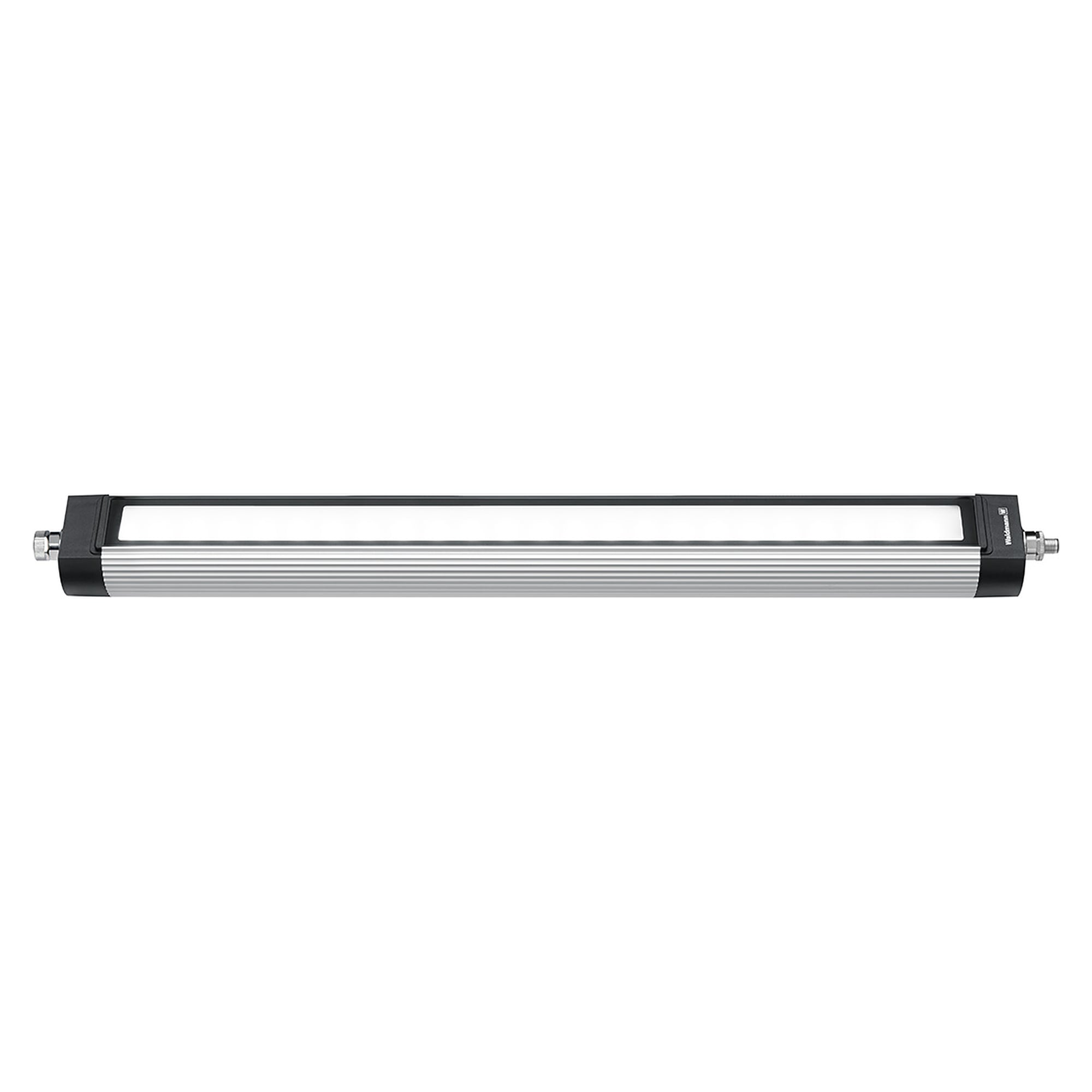

LED machine luminaire MACH LED PLUS.seventy MQAL 48 SD, 24 V DC, 2200 lm, 650 mm, through-wired - Waldmann 113072000-00580648

For the working area of a typical machine tool, the MACH LED PLUS.seventy MQAL 48 SD offers around 2200 lm at 24 W over 650 mm. The Power fitting with twice the number of LEDs is designed for machines with higher lighting demands, at a luminous efficiency of 91 lm/W. It connects to the machine control voltage of 18-30 V DC and needs no control gear (protection class III). Being through-wired with a connection box, several luminaires can be daisy-chained electrically.

Benefits

• Plenty of light in the working area: around 2200 lm at 24 W, neutral white 5000 K, CRI ≥ 80
• IP67 protection with Viton seal, chemically resistant to many oils and cooling lubricants
• Optical film for glare control and 80° beam angle for homogeneous light with soft transitions
• Housing of clear anodised aluminium with borosilicate glass, vibration-proof at 10-55 Hz and shock-proof up to 50 g
• 20-year Waldmann manufacturer's warranty, including LED light source and driver (Waldmann general warranty terms, purchase in the EEA)

Applications

• Continuous light lines along production and assembly lines
• Machine tools such as lathes, milling and grinding machines
• Woodworking machines

Installation and accessories

• Mounting with L-angle, clamp or luminaire bracket (adjustable +/-30°, as a set +/-65°, with rubber profile) from the accessories
• Mains connection via built-in plug series 763, M12, 4-pin, A-coded, plus connection box for the next luminaire
• Matching accessories: connection sockets, connecting plugs, connection cables 3 m or 7 m (5 x 0.5 mm²) and protective cap set
