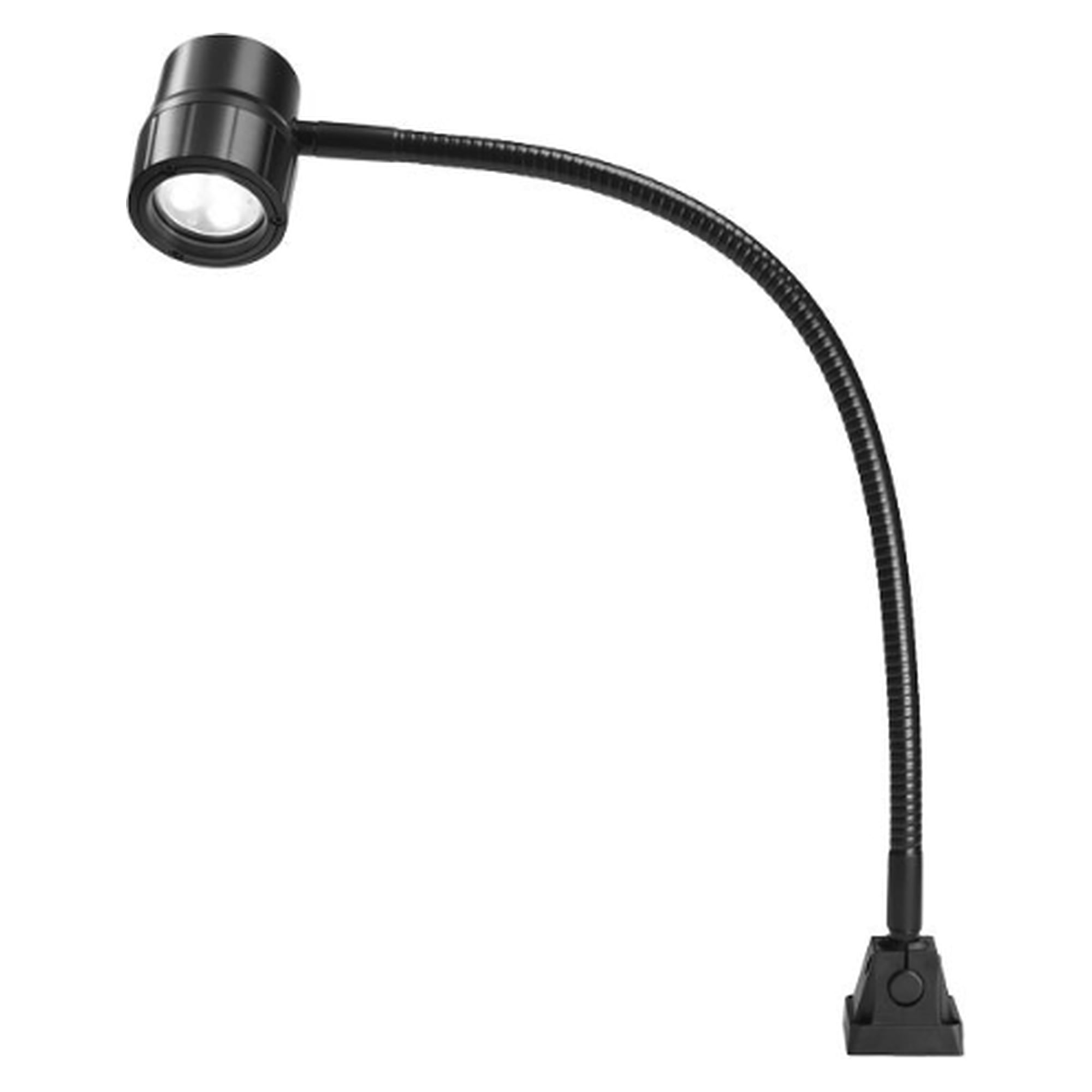

LED flexible-tube luminaire SL SLF 500/750/S, Spot 10°, 490 lm, 24 V DC - Waldmann 113260000-00641130

Where the machine already provides a 24 V DC control voltage, the SL SLF/S is connected directly. The flexible tube guides the luminaire head right up to the machining point, and the 10° spot concentrates 490 lm at 5 W. With protection class III, IP67 and a push button on the head, it integrates safely into the machine's control circuit.

Benefits

• Spot 10°, narrow beam: 490 lm at approx. 5 W, 98 lm/W.
• Directly on the machine's 24 V DC, protection class III, no separate power supply.
• IP67 protection, black painted aluminium housing, borosilicate glass cover.
• Neutral white 5000 K, CRI ≥ 70, risk group RG0/1.
• Designed for ambient temperatures up to 40 °C.
• Flexible tube with push button on the luminaire head.

Applications

• Machine tools: drilling, milling and turning
• Pinpoint lighting of measuring and inspection points
• Woodworking machines

Installation and accessories

• Mounting via screw-down flange on the machine wall or housing
• Connection to 24 V DC (22-26 V) via approx. 3 m cable with free stranded wires
• Further fastenings available as accessories
• Operating devices 100-240 V to 24 V DC (30 W or 100 W) or 220-240 V to 24 V DC constant voltage available as accessories
