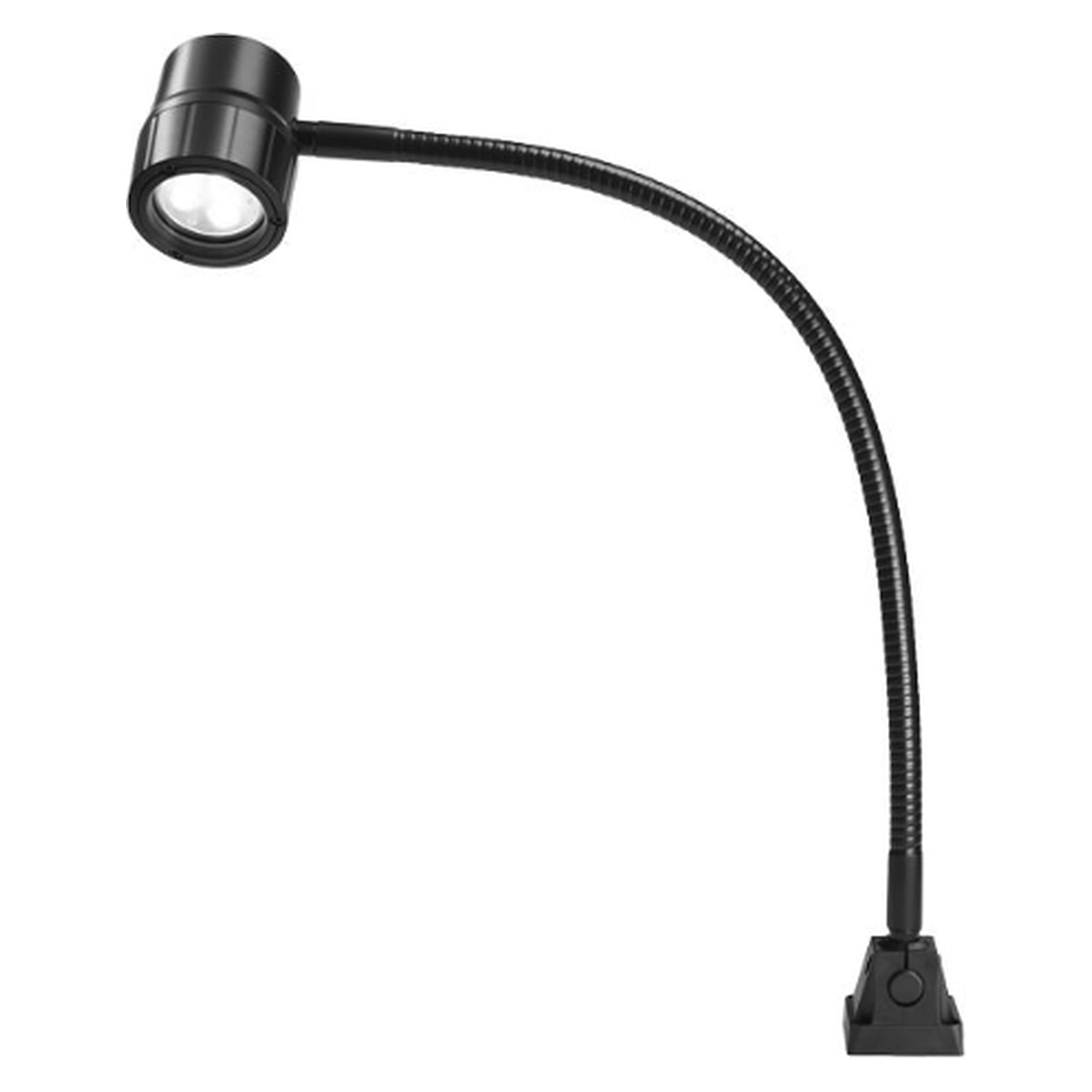

LED flexible-tube luminaire SL SLF 500/750, Spot 10°, 490 lm, plug-in power supply 100-240 V - Waldmann 113261000-00641180

Retrofit without an electrician: the SL SLF with plug-in power supply is screwed to the machine and plugged into the socket. The flexible tube brings the head close to the workpiece, and the 10° spot concentrates 490 lm at approx. 6 W onto the drill hole, milling cutter or inspection point. It is switched on directly at the push button, and the luminaire head is rated IP67.

Benefits

• Spot 10°, narrow beam: 490 lm at approx. 6 W, 81 lm/W.
• Plug-in power supply 100-240 V with CEE 7/XVI, BS 1363 A and NEMA 1-15P plugs, protection class II.
• IP67 protection, black painted aluminium housing, borosilicate glass cover.
• Neutral white 5000 K, CRI ≥ 70, risk group RG0/1.
• Designed for ambient temperatures up to 40 °C.
• Flexible tube and push button on the head: aim and switch with one hand.

Applications

• Machine tools: drilling, milling and turning
• Pinpoint lighting of measuring and inspection points
• Woodworking machines
• Workbenches and test stations without a 24 V supply

Installation and accessories

• Mounting via screw-down flange on the machine wall or housing
• Mains connection via plug-in power supply, approx. 3 m lead, CEE 7/XVI, BS 1363 A or NEMA 1-15P plug
• Further fastenings available as accessories
