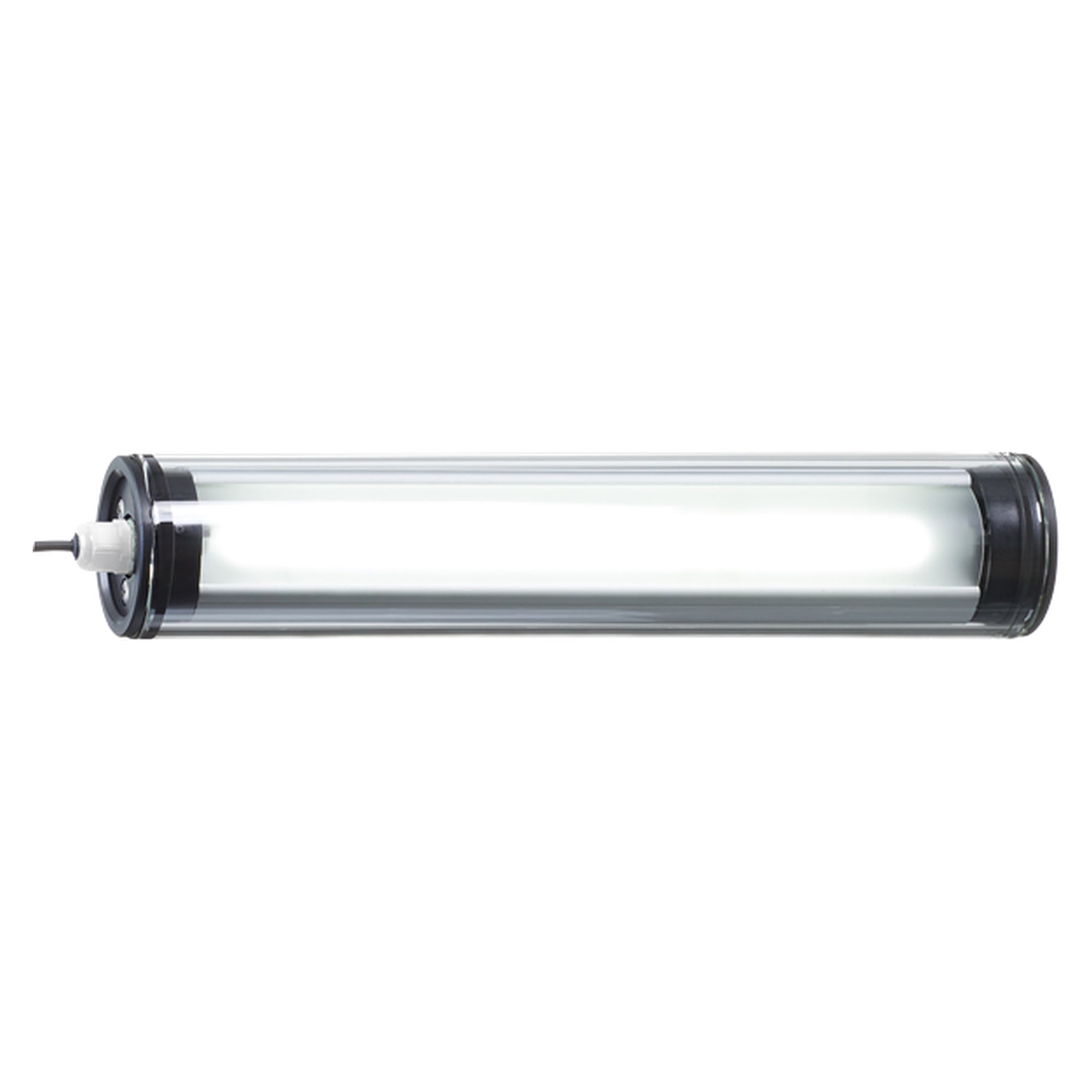

LED tube luminaire RL 70 LE RL70LE-30 N, 230 V, polycarbonate, 1250 lm, 370 mm - Waldmann 113618000-00748823

For production and packaging lines handling food, the RL 70 LE RL70LE-30 N comes with a clear polycarbonate tube: 1250 lm, 78 lm/W and an overall length of 370 mm.

Benefits

• Clear polycarbonate tube with no risk of glass breakage, intended for areas close to food products.
• Direct connection to 230 V, 50/60 Hz: no external control gear, so the luminaire can also light areas away from the machine control (protection class I).
• 1250 lm at 16 W and 78 lm/W, spread over a 316 mm light output length with a 100° beam angle.
• IP67 protection against dust and water jets, operating at ambient temperatures up to 40 °C.
• Light forming technology with diffuser for homogeneous, low-glare light with smooth transitions.
• LEDs for continuous operation without lamp replacement, length grid for 1:1 replacement of conventional Waldmann tube luminaires.

Applications

• Machines for areas close to food products
• Food processing and packaging lines
• Production lines where glass is unwanted

Installation and accessories

• Mounted with pipe clamp (accessory), e.g. luminaire bracket with rubber profile or stainless steel luminaire bracket for 70 mm diameter
• Mains connection: connector, series 272, side part A with screwed cable gland
• External switching, no additional control gear required
