Foto folgt: LED-Maschinenleuchte MACH LED PLUS.forty MLAL 57 S, 18 W, 2000 lm, 715 mm, Tamax 60 °C

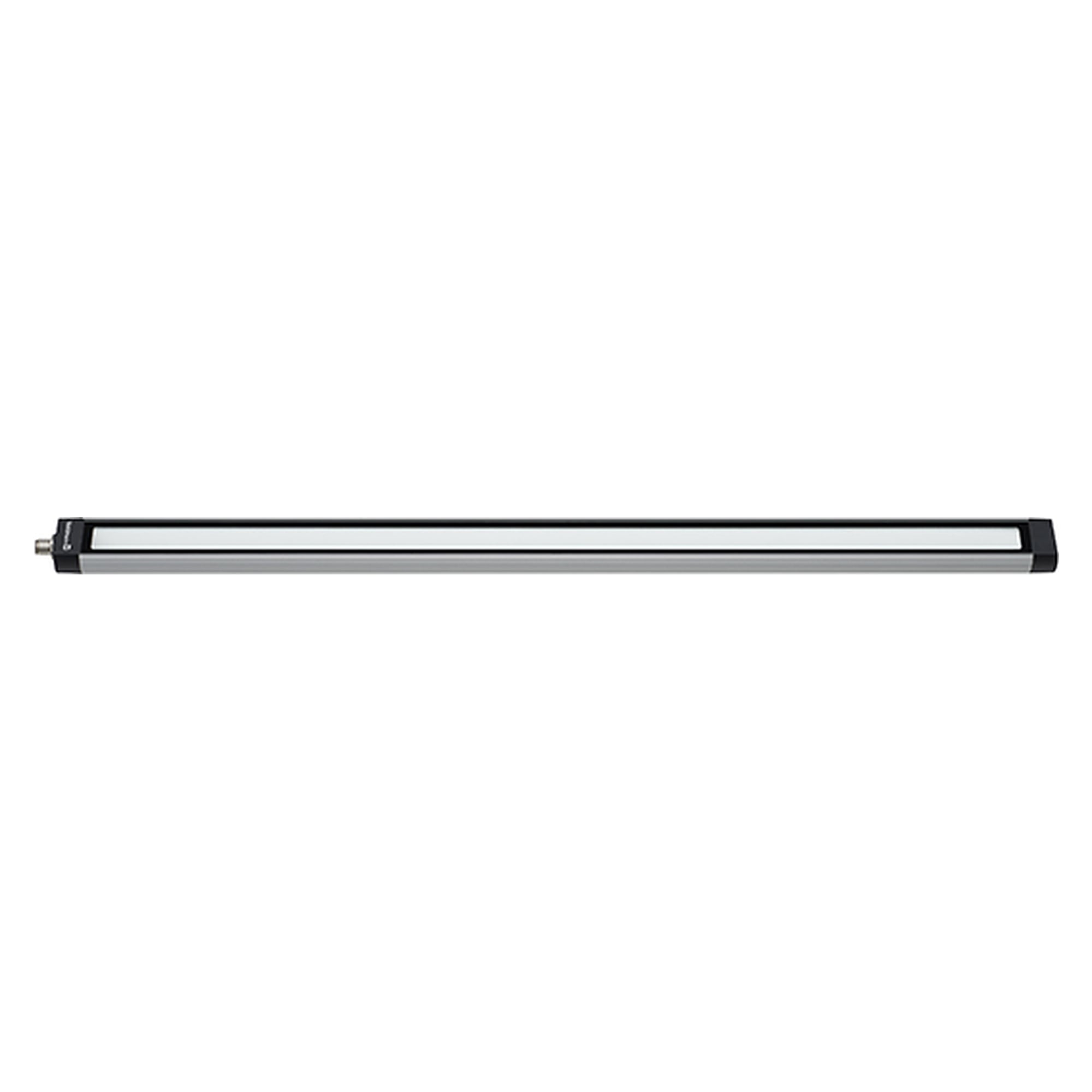

LED machine luminaire MACH LED PLUS.forty MLAL 57 S, 18 W, 2000 lm, 715 mm, Tamax 60 °C

Images are examples, some edited with AI. The technical data are authoritative. AI notice

LED machine luminaire MACH LED PLUS.forty MLAL 57 S, 18 W, 2000 lm, 715 mm, Tamax 60 °C - Waldmann 113692000-00801361

Name: LED machine luminaire MACH LED PLUS.forty MLAL 57 S, 18 W, 2000 lm, 715 mm, Tamax 60 °C - Waldmann 113692000-00801361
Brand: Waldmann
SKU: WAL-113692000-00801361
Price: 342.31 EUR
Availability: InStock

Waldmann ✓ Original product Brand new Made in Germany

Version for higher ambient temperatures: the MACH LED PLUS.forty MLAL 57 S operates up to 60 °C instead of 50 °C and delivers approx. 2000 lm at approx. 18 W over 715 mm. For hot machine interiors with coolant and chips. Waldmann grants a 20-year manufacturer's warranty on this luminaire.

Net

€342.31

excl. VAT

Item WAL-113692000-00801361

Manufacturer no. 113692000-00801361

Question about this item

Datasheet (PDF) User manual 7 documents, all under Downloads

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

Machines whose interior heats up strongly in operation need a luminaire with temperature reserve: the HT version MLAL 57 S is rated for ambient temperatures up to 60 °C and delivers approx. 2000 lm at approx. 18 W over 715 mm.

Benefits

Permissible ambient temperature 0 °C to 60 °C, 10 K more than the standard version
Approx. 2000 lm at approx. 111 lm/W
Reflector with 90° beam angle for wide lighting
IP67 and protection class III: sealed against dust, coolant and temporary immersion
20-year Waldmann manufacturer's warranty, including LED light source and driver (Waldmann general warranty terms, purchase in the EEA)

Applications

Machine interiors with ambient temperatures up to 60 °C
Machining centres and milling machines
Grinding machines using coolant

Installation and accessories

Mounted with L-angle or clamp, matching luminaire bracket +/-20° and luminaire bracket set +/-90°
Connection via built-in plug RSFM 4/0,05 P25-1 (M12, A-coded), accessories: M12 connection cables 3 m and 7 m, sockets, plugs, protective cap
Mains operation via operating device 100-240 V / 24 V DC, 30 W or 100 W

Technical data

Manufacturer part no.	113692000-00801361
Order number	00801361
EAN	4013330015879
Connected load	20-28 V DC
Control gear	Without
Power consumption	approx. 18 W
Luminous flux	approx. 2000 lm
Luminous efficiency	approx. 111 lm/W
Light colour	Neutral white
Colour temperature	approx. 5000 K
Colour rendering index	CRI ≥ 80
Light distribution	Wide beam, Direct, Symmetric, approx. 100 %
Beam angle	90 °
Glare control	without
Light source	LED
Chromaticity tolerance LED	< 4 SDCM
At-risk group	RG0/1
Luminance (L65)	≤ 43,000 cd/m²
UGR class (4H 8H, EN 12464-1)	≤ 25
System of protection/Class	IP67, class III
Technology	Switchable
Operation	External
Housing	Aluminium, Anodised, Aluminium coloured anodised
Light source cover	Borosilicate, Clear
Mains lead	Built-in plug RSFM 4/0,05 P25-1
Design	Surface-mounted version
Fastening	L-angle, Clamp
Ambient temperature min./max	0 °C / 60 °C
Weight without/incl. packaging	1.1 kg net, approx. 1.4 kg packed
Dimensions (dimensional drawing)	A = 715 mm
Packaging dimensions	843 x 100 x 88 mm
Special features	Suitable for higher ambient temperatures
Manufacturer's warranty	20 years (Waldmann general warranty terms)
Weight	1.4 kg
Manufacturer	Waldmann
Manufacturer Nr.	113692000-00801361
HS-Code	94054239
GPSR manufacturer information	WALDMANN Lichttechnik Peter-Henlein-Straße 5 DE-78056 Villingen-Schwenningen
Condition of article	New
Article authenticity	Original product
Country of Manufacture	Germany
Sales unit	1 Stück
Colour	Silver
Farbe	Aluminiumfarben
Luminous flux (lumen)	2000 lm
Power (W)	18 W
Colour rendering (Ra)	Ra 80
Overall length [mm]	715
Operating voltage	20-28 V
Series	MACH LED PLUS.forty
Protection class (IP)	IP67
