TUBELED_25 machine light 1040 mm, 25.9W, daisy-chainable, IP67 - LED2WORK 154610-02
Daisy-chainable LED surface-mounted light for CNC machines and plants, with 4015 lm at just 23 mm mounting height. Several lights can be linked in series, and the aluminium housing with tempered glass reaches IP67 for OEM fitting and retrofit.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
For long lighting runs on CNC machines and automated plants, the daisy-chainable TUBELED_25 in 1040 mm length can be linked in series. It delivers 4015 lm at a mounting height of just 23 mm and fits slim into tight installation spaces, in original equipment or retrofit.
Key benefits
- Daisy-chainable for easy linking of several lights into long light lines.
- 4015 lm output at 155 lm/W for brightly lit work areas.
- Very slim, low profile of only about 23 mm for tight installation spaces.
- IP67 rating, dust- and liquid-tight for harsh machine environments.
- Shock- and vibration-resistant, up to 50 g shock, with over 100,000 h service life.
Applications
For continuous light lines illuminating large work areas on CNC machines and automated plants, in original equipment or as a retrofit.
Technical data
| Model | TUBELED_25 daisy-chainable |
|---|---|
| Type | LED surface-mounted light for machines and plants |
| Light source | SMD LED |
| Power | ~25.9 W |
| Luminous flux | 4015 lm |
| Luminous efficacy | 155 lm/W |
| Light colour | 5700K 3-step MacAdam |
| Colour rendering (Ra) | >85 |
| Light distribution | Light Forming Technology |
| Supply voltage | 24 V DC ± 10% |
| Connection | M8 A-coded |
| Protection rating | IP67 |
| Protection class | III |
| Beam angle | 100° |
| Operating temperature | -30 °C to +55 °C |
| Service life | > 100,000 h (L80/B10) |
| Vibration resistance | 10 to 55 Hz (amplitude 0.35 mm) |
| Shock resistance | up to 50 g |
| Housing material | aluminium |
| Cover material | safety glass, 4 mm |
| Dimensions (H x W) | ~23 mm x ~28 mm, length 1040 mm |
| Weight | 700 g |
| Dimmable | optional via accessory |
| Daisy-chainable | yes |
| Risk group (DIN EN 62471) | exempt group |
| Certifications | CE, UKCA, ETL Listed (5003529) |
| Made in | Germany |
| Manufacturer | LED2WORK |
| Manufacturer Nr. | 154610-02 |
| HS-Code | 94054239 |
| GPSR manufacturer information | LED2WORK GmbH, Stuttgarter Straße 13 A, 75179 Pforzheim www.led2work.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Norm | DIN EN 62471 |
| Control and dimming | Dimmable |
| Luminous flux (lumen) | 4015 lm |
| Power (W) | 25.9 W |
| Colour temperature | 5700K |
| Mounting type | Surface-mounted |
| Operating voltage | 24 V |
| Protection class (IP) | IP67 |
Downloads
User Manual
Catalogue
Accessories
LED2WORK
TUBELED_25 light bracket mounting angle 180°, stainless steel V2A, pair - LED2WORK 210200-25
Item L2W-210200-25
€4.40
LED2WORK
DIN rail power supply 72W 24V DC for LED2WORK lights - LED2WORK 210100-01
Item L2W-210100-01
€47.70
LED2WORK
Table power supply 24V DC, 60 W, M12 A-coded, 1.8 m cable - LED2WORK 210100-02
Item L2W-210100-02
€34.85
LED2WORK
Plug-in power supply 36W 24V DC with M12 socket A-coded - LED2WORK 210100-03
Item L2W-210100-03
€31.42
LED2WORK
Sensor cable 0.2 m, 3-pole, M8 socket to M12 plug, 24V - LED2WORK 200200-25
Item L2W-200200-25
€21.56
LED2WORK

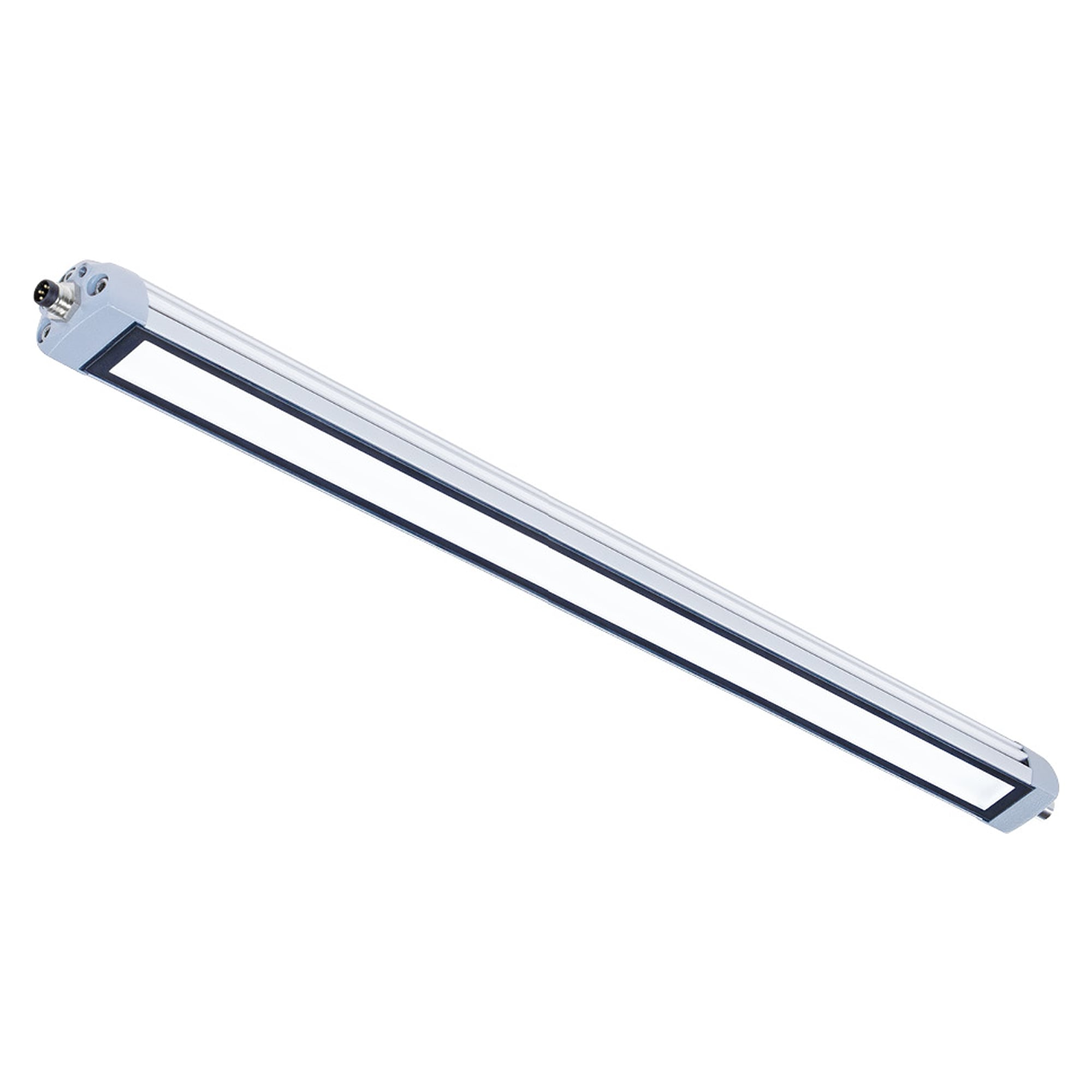

TUBELED_25 machine light 870 mm, 21.6W, daisy-chainable, IP67 - LED2WORK 154510-02
Item L2W-154510-02
€180.40
LED2WORK
TUBELED_25 machine light 705 mm, 17.2W, daisy-chainable, IP67 - LED2WORK 154410-02
Item L2W-154410-02
€154.88
Show 4 more items
LED2WORK

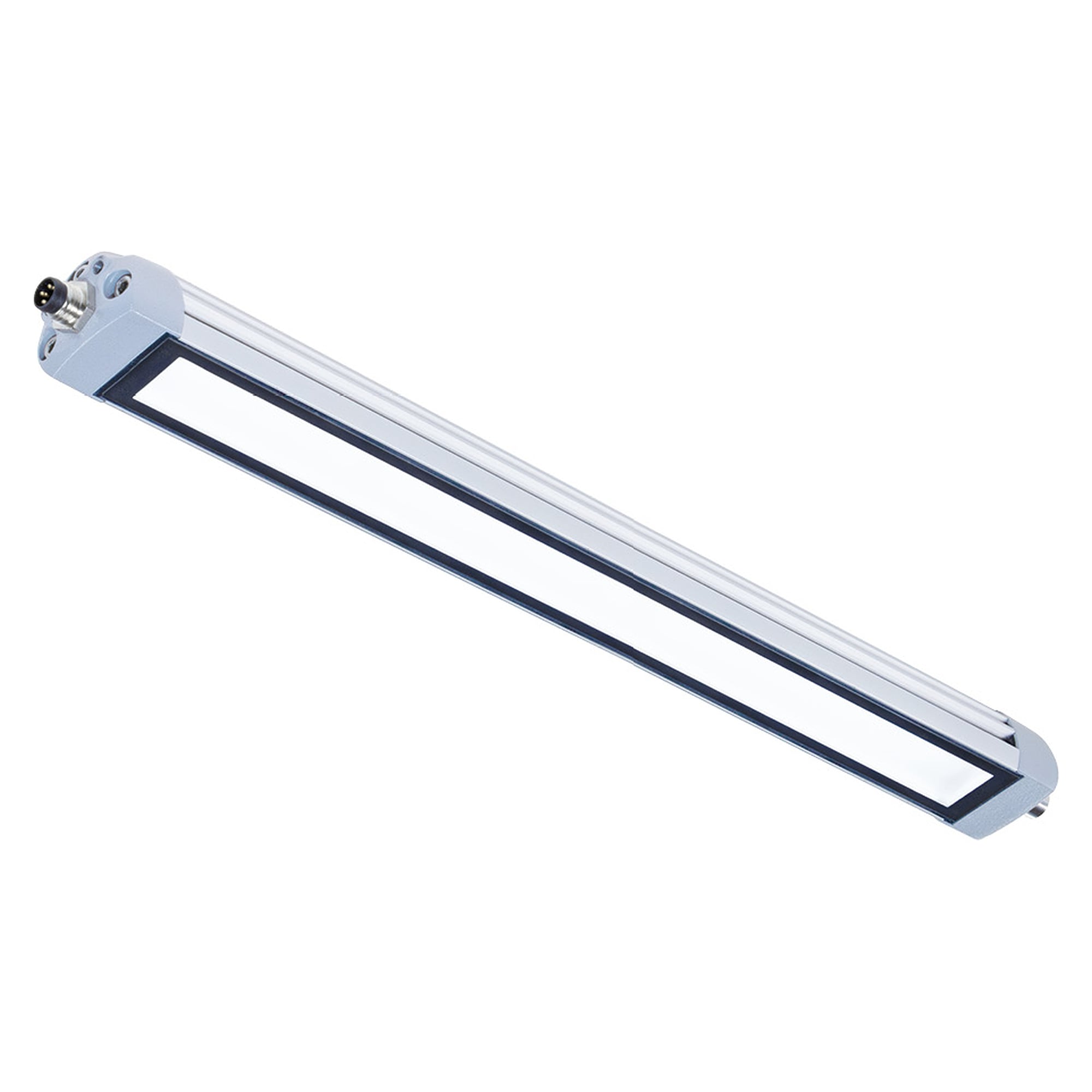

TUBELED_25 machine light 540 mm, 13W, daisy-chainable, IP67 - LED2WORK 154310-02
Item L2W-154310-02
€134.64
LED2WORK
TUBELED_25 daisy-chainable 370mm, 8.6W, 100°, IP67 - LED2WORK 154210-02
Item L2W-154210-02
€114.40
LED2WORK
TUBELED_25 daisy-chainable 290mm, 6.5W, 100°, IP67 - LED2WORK 154110-02
Item L2W-154110-02
€107.36
LED2WORK

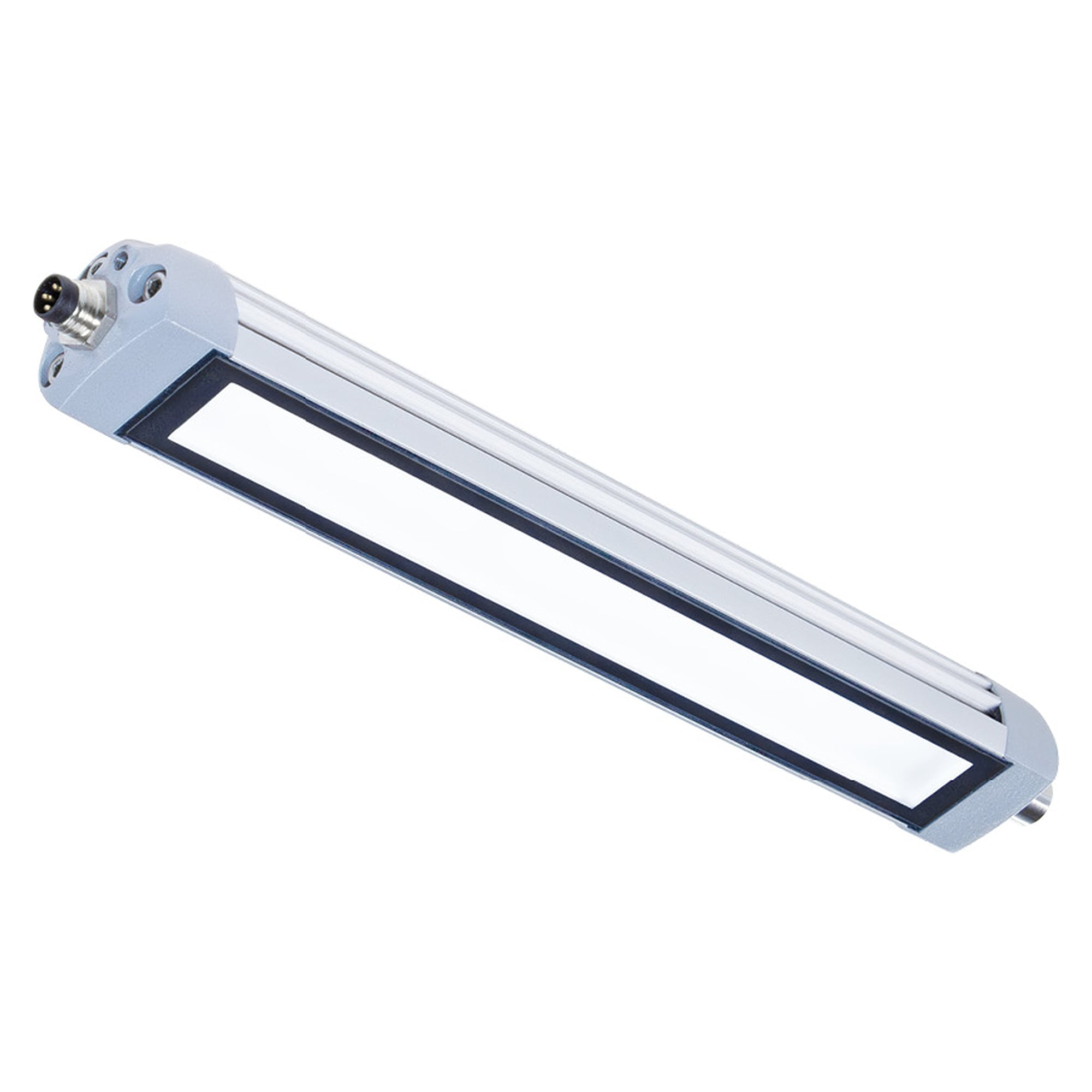

TUBELED_25 daisy-chainable 205mm, 4.3W, 100°, IP67 - LED2WORK 154010-02
