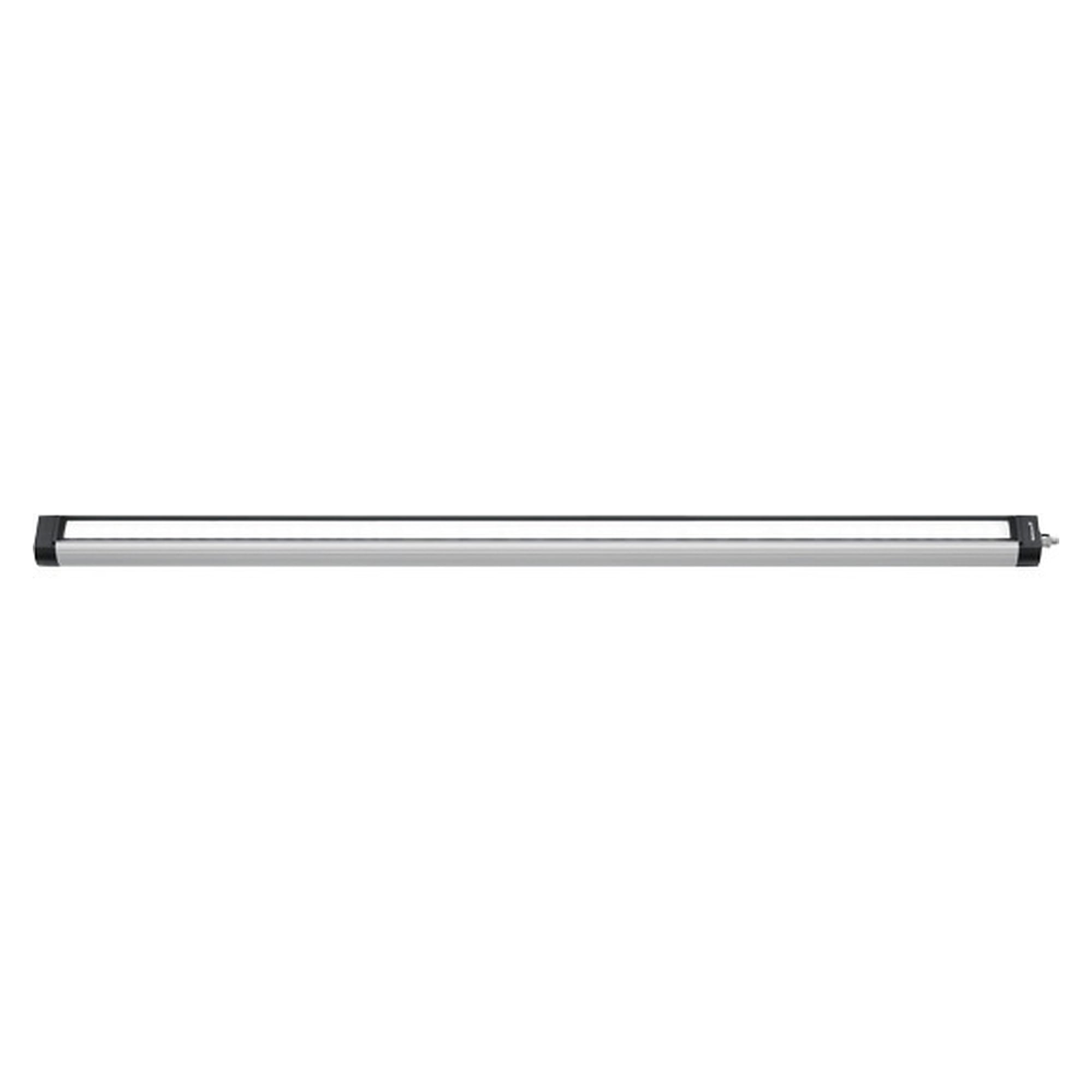

LED machine luminaire MACH LED PLUS.seventy MQAL 60 S, 24 V DC, 2500 lm, 1490 mm - Waldmann 113694000-00801854

At 1490 mm, the MACH LED PLUS.seventy MQAL 60 S is the longest version in the range and spreads around 2500 lm at 26 W across the entire working area. The Eco fitting keeps consumption low and reaches 96 lm/W, which is frequently enough when converting existing machines. It connects to the machine control voltage of 18-30 V DC and needs no control gear (protection class III).

Benefits

• Efficient: 96 lm/W, around 2500 lm at only 26 W power consumption
• IP67 protection with Viton seal, chemically resistant to many oils and cooling lubricants
• Neutral white light at 5000 K, CRI ≥ 80, colour tolerance < 4 SDCM
• Optical film for glare control and 80° beam angle for homogeneous light with soft transitions
• 20-year Waldmann manufacturer's warranty, including LED light source and driver (Waldmann general warranty terms, purchase in the EEA)

Applications

• Initial equipment of large machining centres and systems with high lighting demands
• Conversion of conventional tube luminaires to LED
• Machine tools such as lathes, milling and grinding machines
• Woodworking machines

Installation and accessories

• Mounting with L-angle, clamp or luminaire bracket (adjustable +/-30°, as a set +/-65°, with rubber profile) from the accessories
• Mains connection via built-in plug series 763, M12, 4-pin, A-coded
• Matching accessories: connection sockets, connecting plugs, connection cables 3 m or 7 m (5 x 0.5 mm²) and protective cap set
