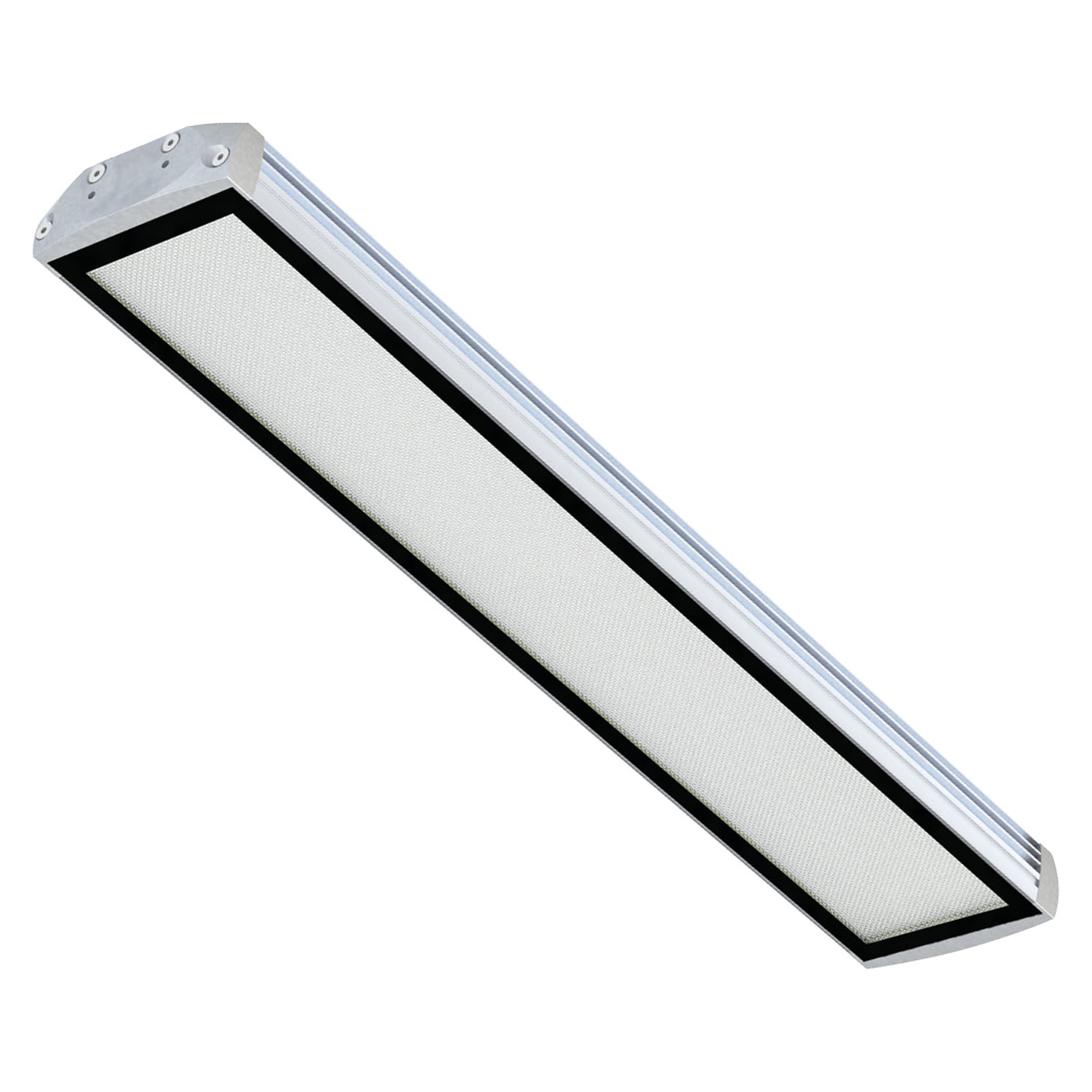

FIELDLED EVO surface 280x96 mm machine light 19W, 100°, M12 rear, IP67/IP69K - LED2WORK 153010-02

For even, flicker- and glare-free lighting of large plant, the FIELDLED EVO surface delivers 3000 lm from around 19 W with microprism glare control, ideally for harsh settings such as metal machining.

Key benefits

• High output of 3000 lm at around 19 W, 155 lm/W
• Microprism glare control for flicker- and glare-free light
• IP67/IP69K rating against chips, dust and coolant
• Aluminium metal housing with shatterproof toughened safety glass (ESG)
• Vibration-resistant at 10 to 55 Hz and shock-resistant up to 50 g
• M12 connection on the rear, reverse-polarity-safe at 24V DC

Technical data

• Model: FIELDLED EVO surface, M12 rear
• Design: surface-mounted LED machine light
• Light source: SMD LED
• Power: ~19 W

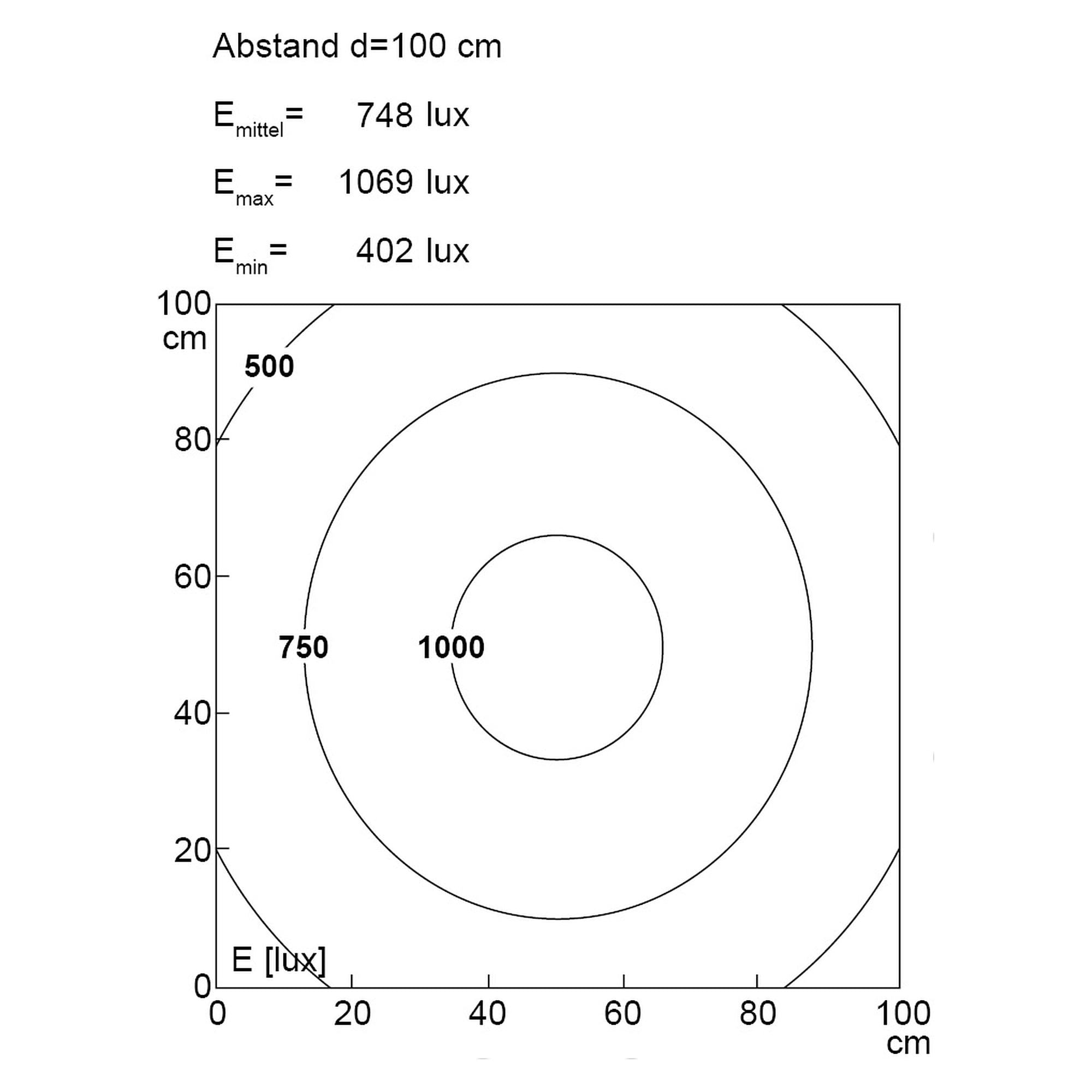

• Luminous flux: 3000 lm
• Luminous efficacy: 155 lm/W
• Light colour: 5700K 3-step MacAdam
• Colour rendering (Ra): >85
• Supply voltage: 24V DC ± 10%

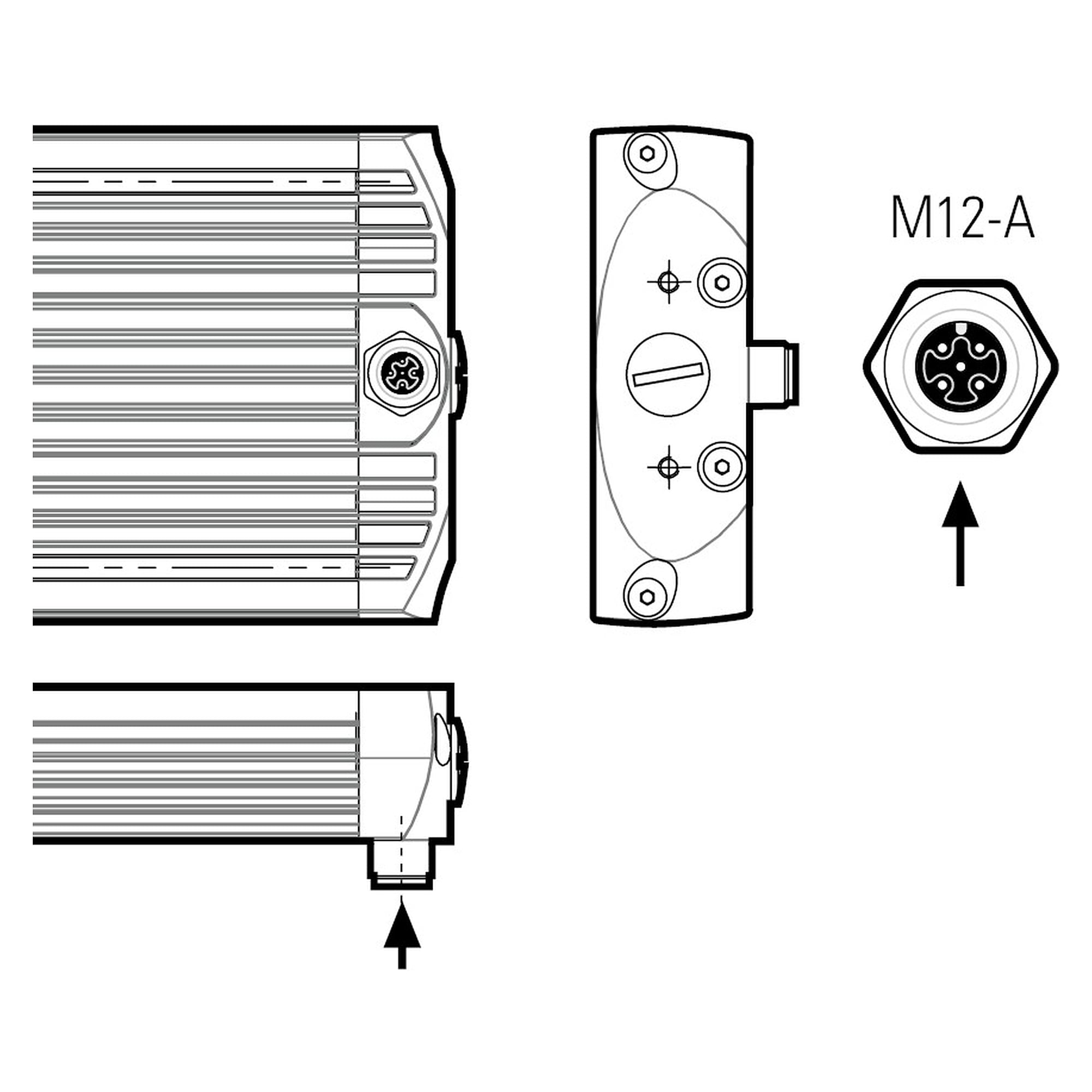

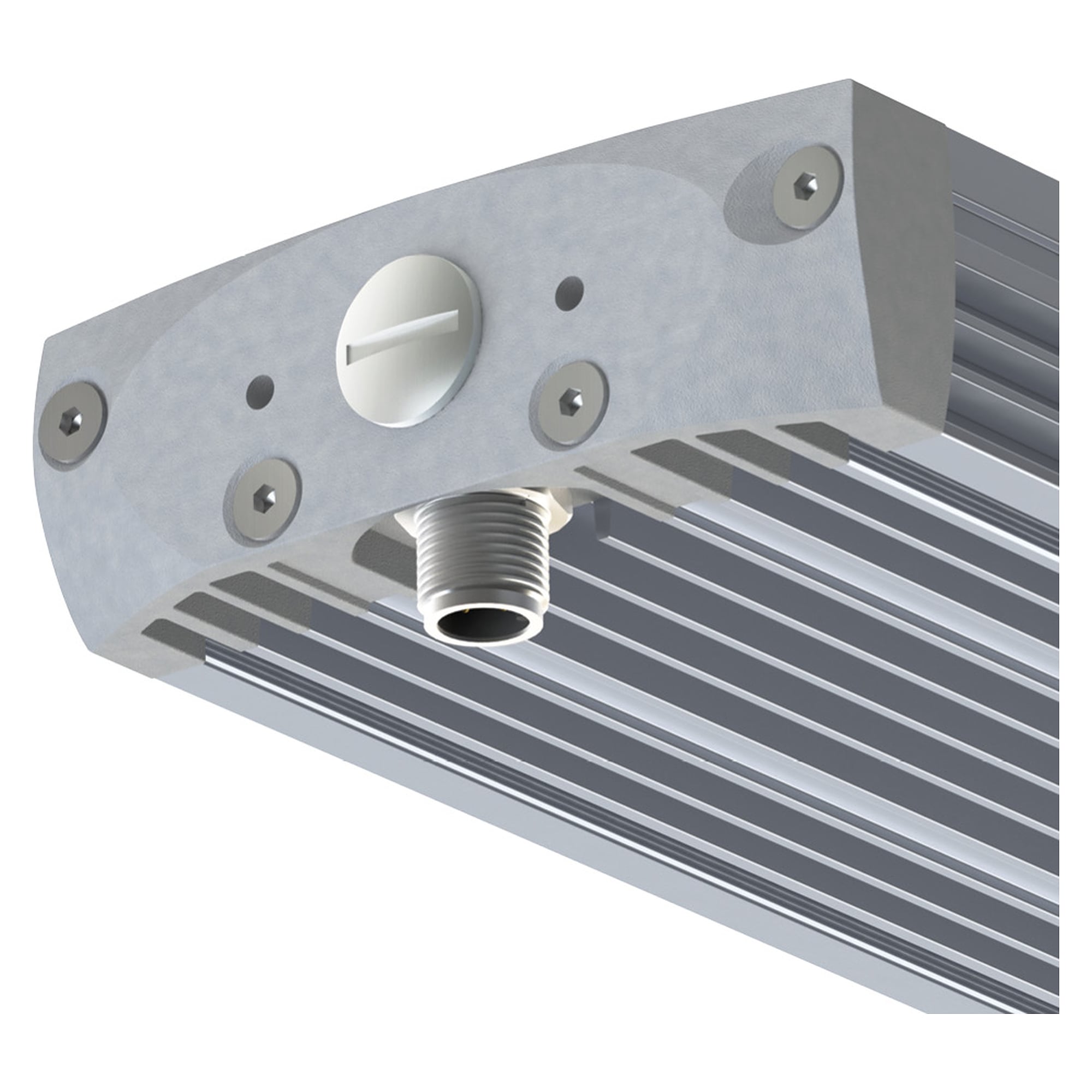

• Connection: M12 A-coded, rear
• Protection rating: IP67/IP69K
• Protection class: III

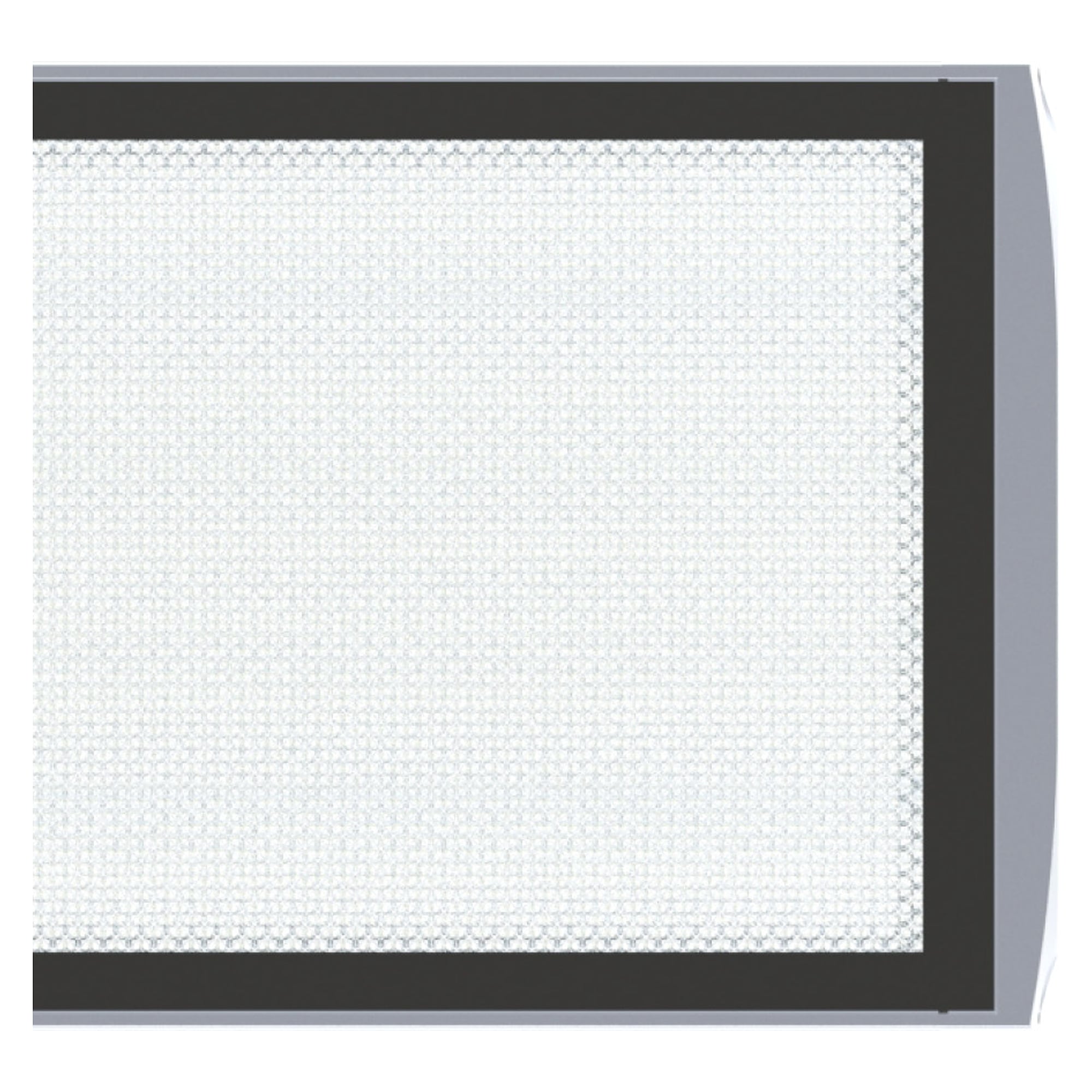

• Glare control: microprisms

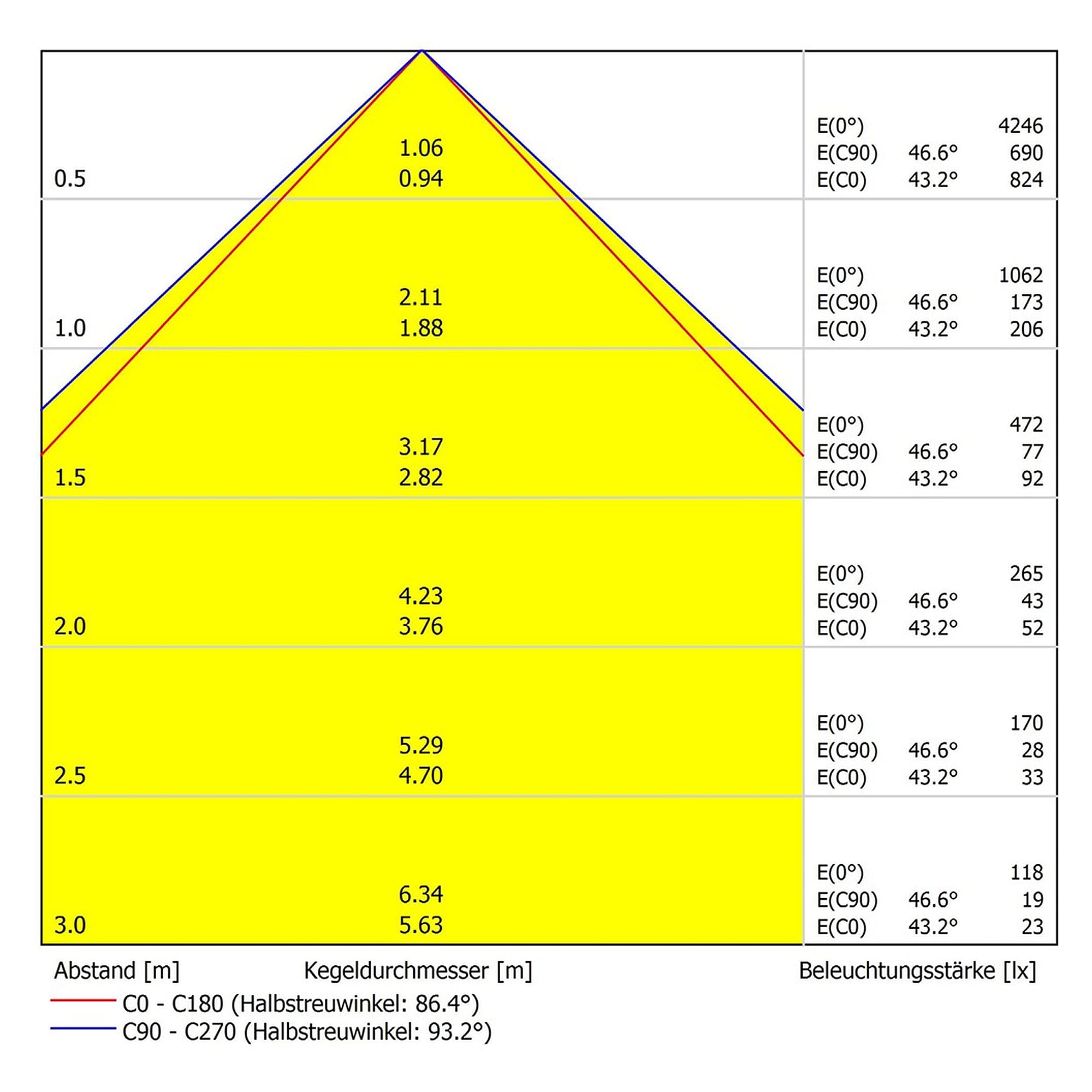

• Beam angle: 100°
• Operating temperature: -30 °C to +60 °C
• Service life: > 100,000 h (L80/B10)
• Vibration resistance: 10 to 55 Hz (amplitude 0.35 mm)
• Shock resistance: up to 50 g

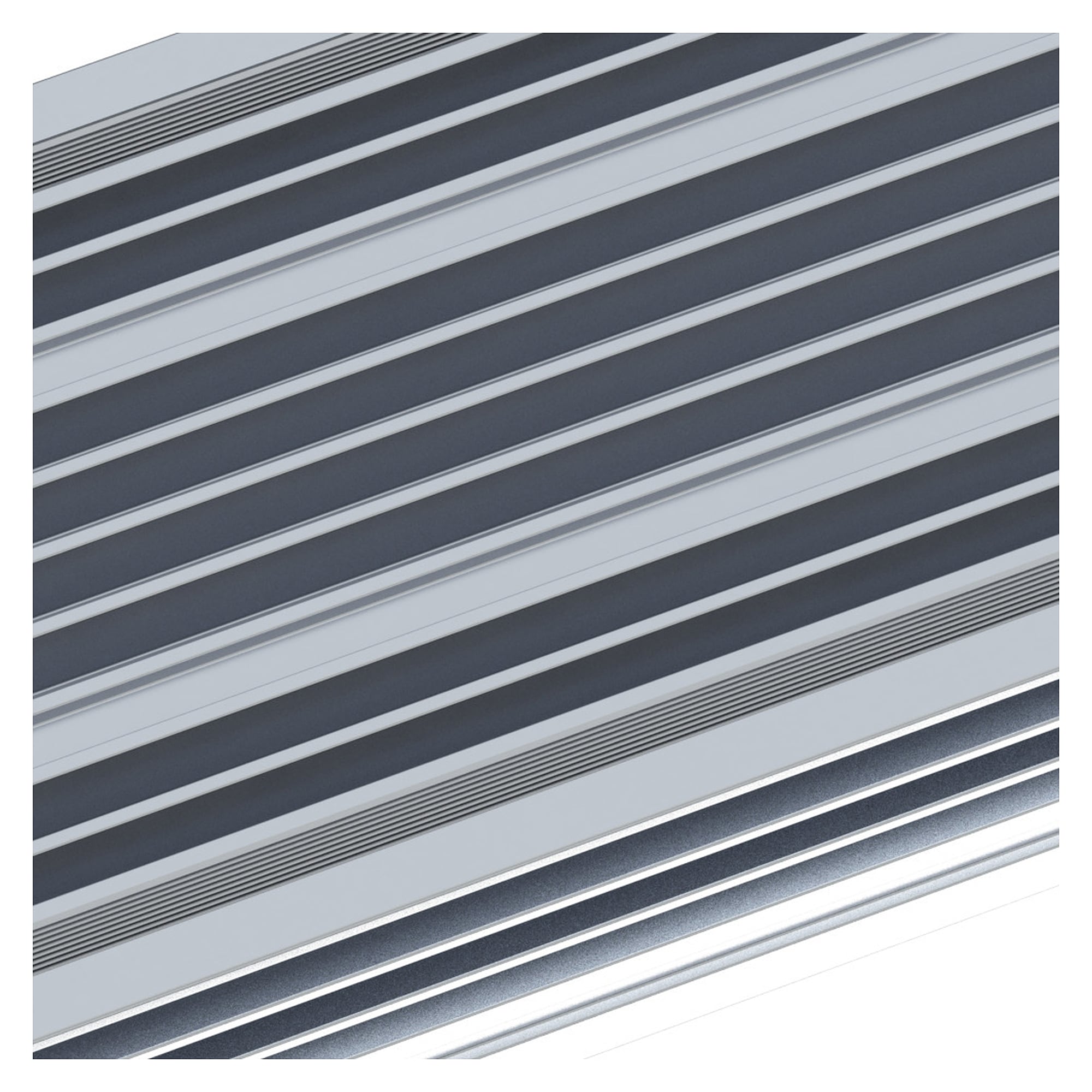

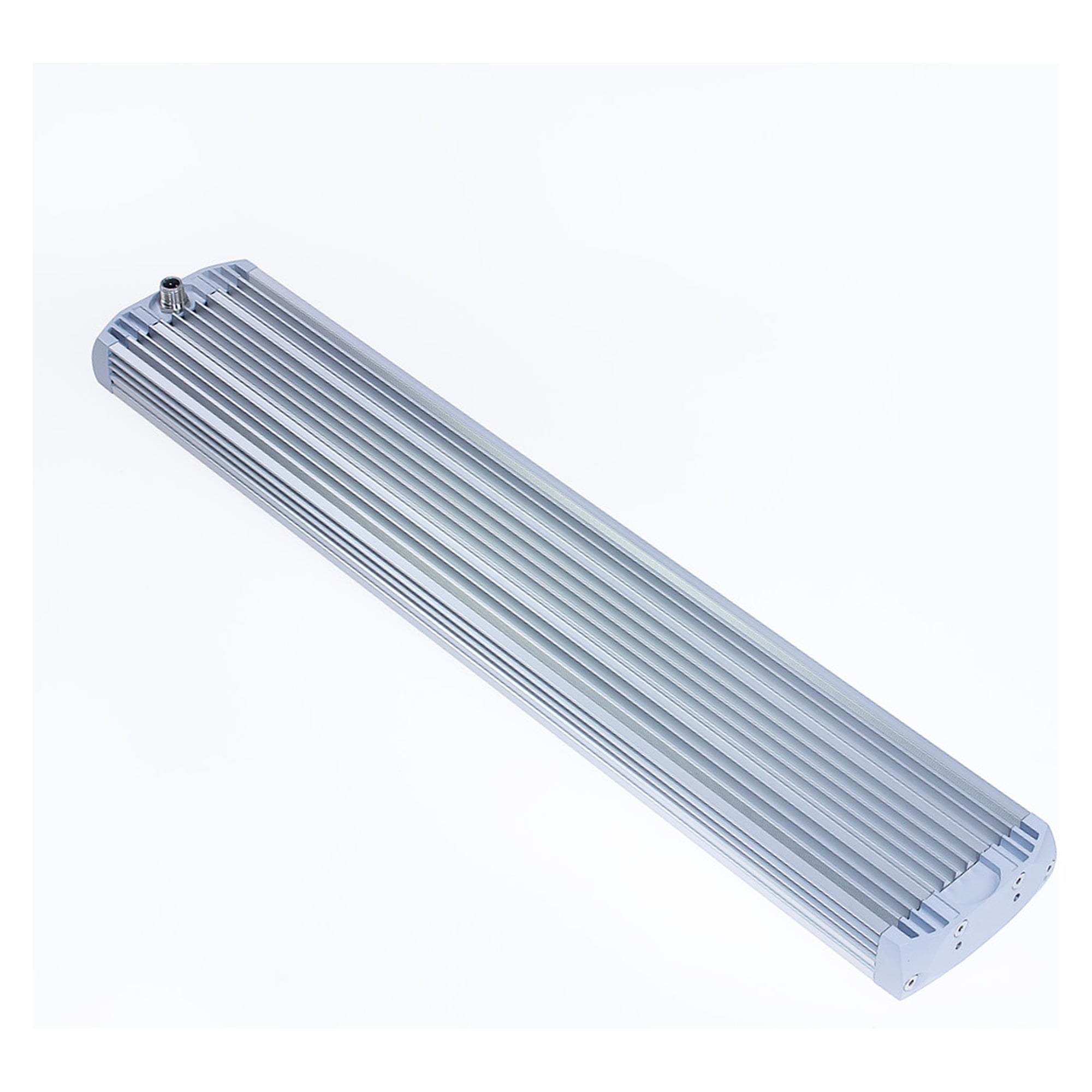

• Housing material: aluminium
• Cover material: ESG (safety glass), shatterproof

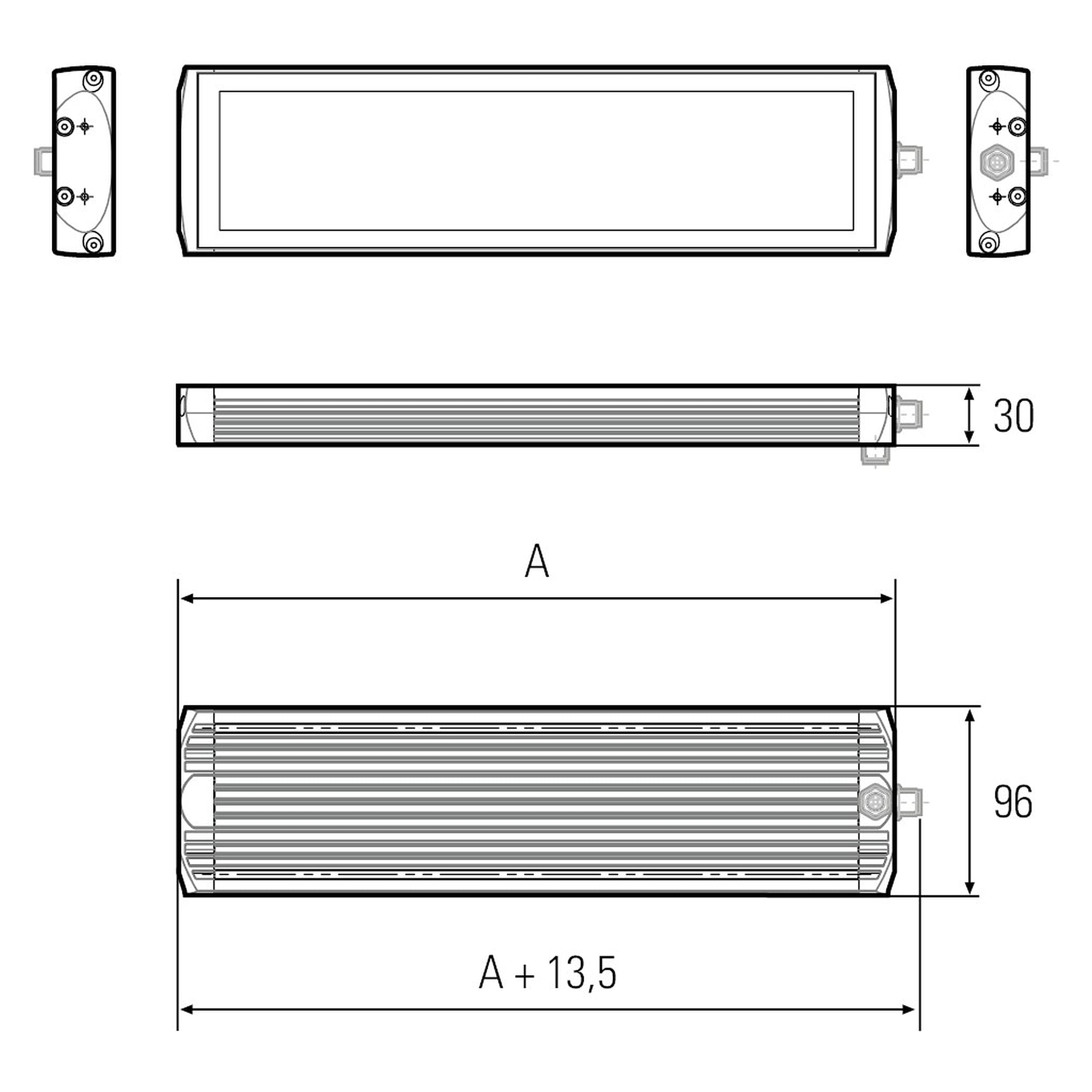

• Dimensions (H x W): 30 mm x 96 mm, length: 280 mm
• Weight: 1180 g
• Risk group (DIN EN 62471): exempt group
• Dimmable: optional via accessory

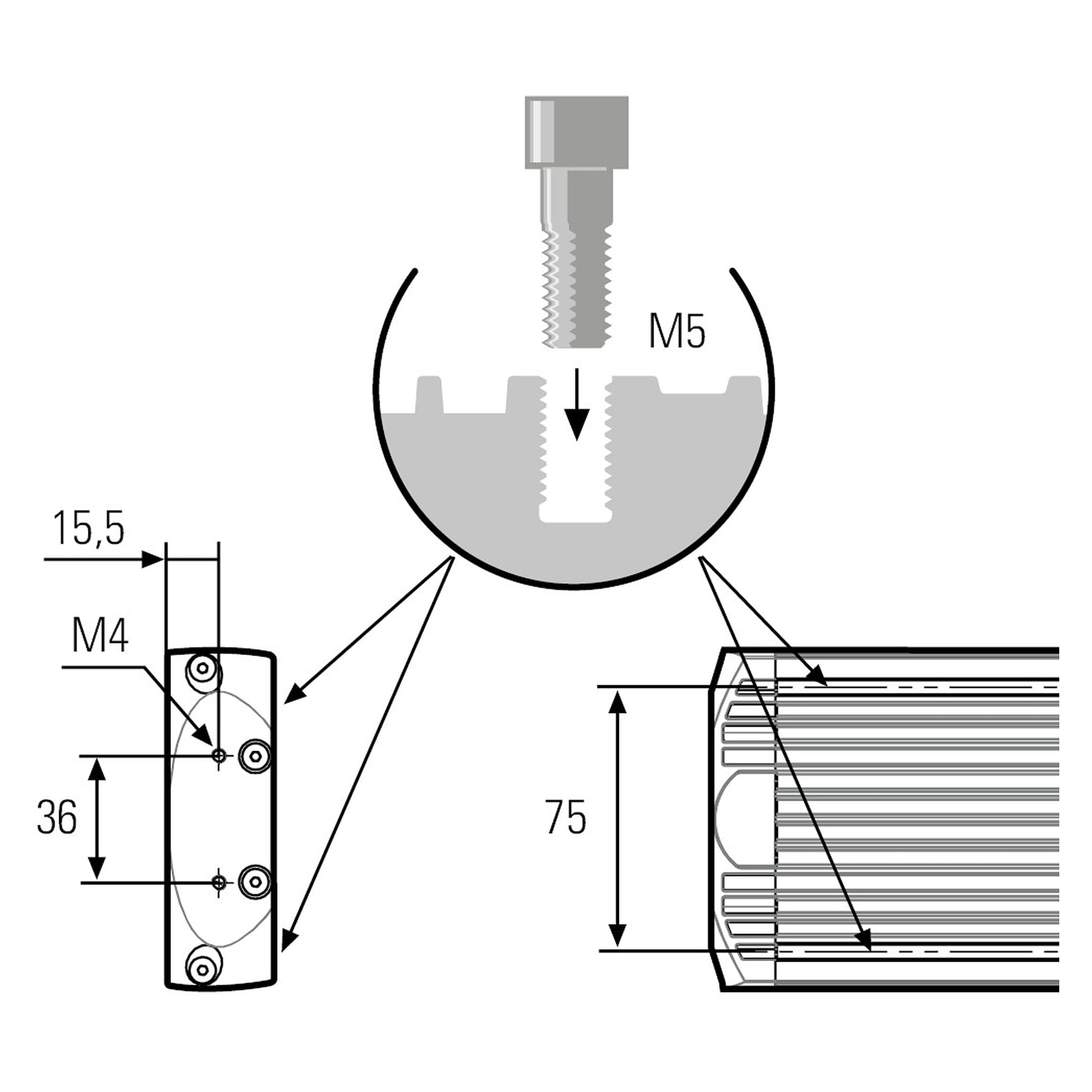

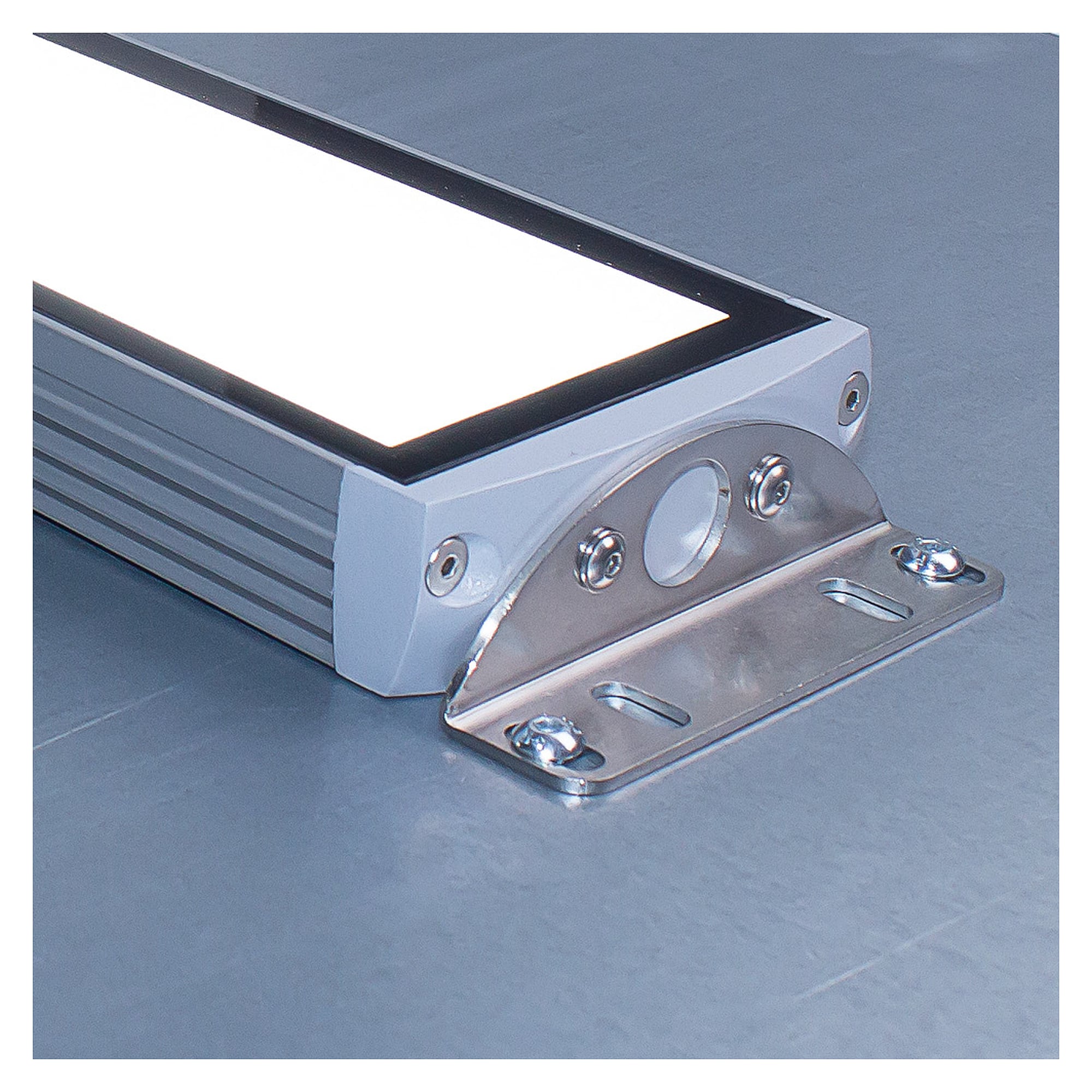

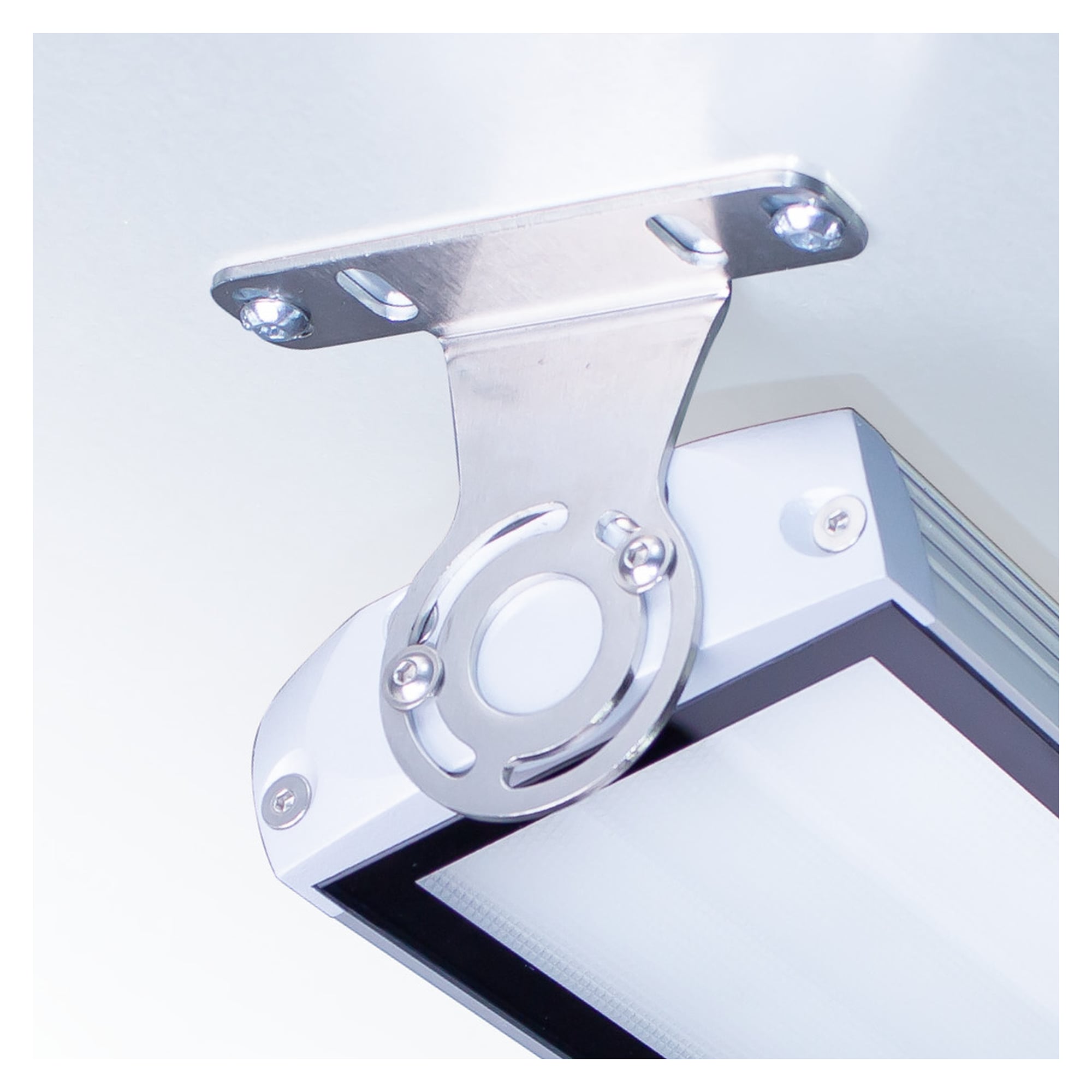

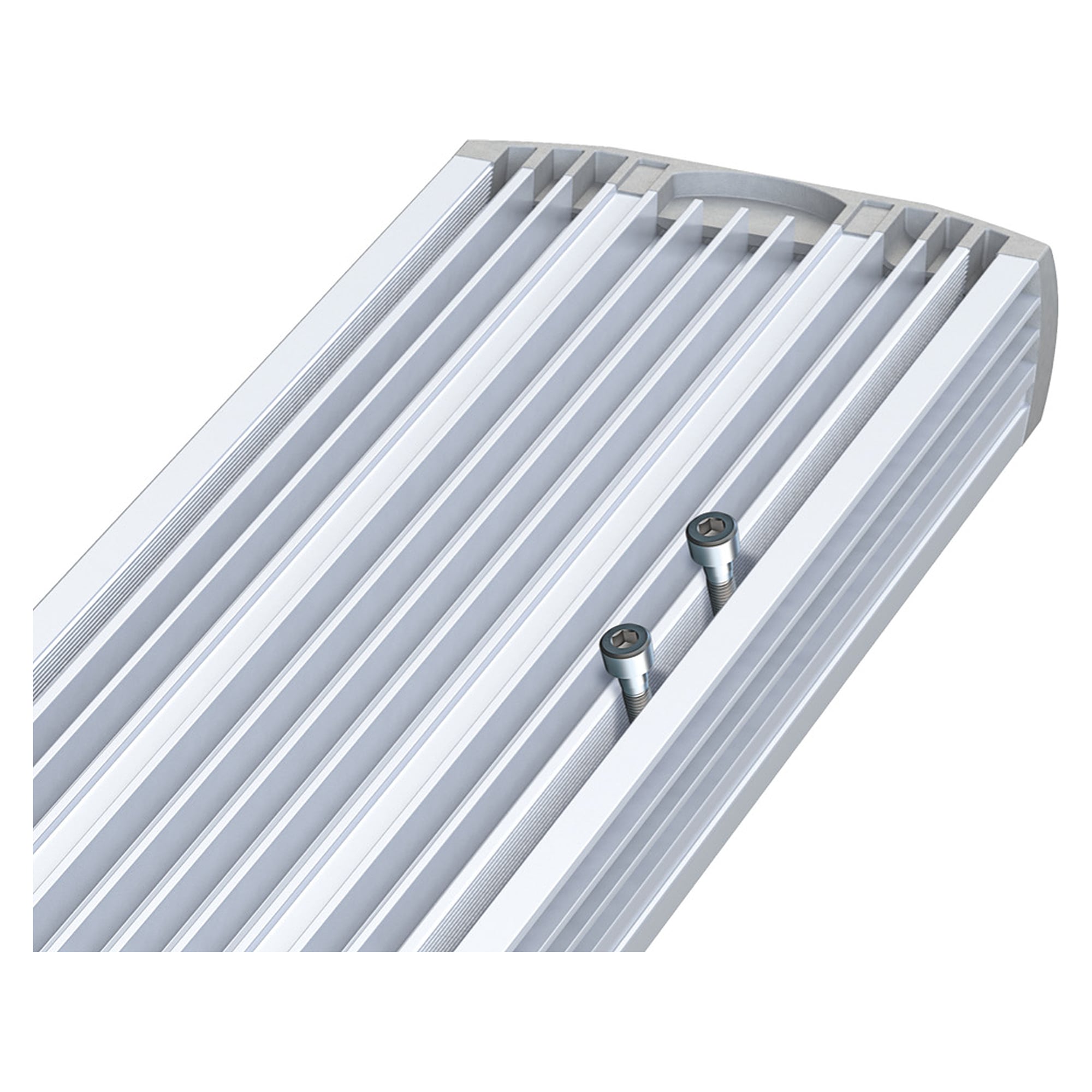

• Mounting accessories: optional, 2 screw channels for M5 on the rear
• Certifications: CE, UKCA, ETL Listed (5003529)
• Made in: Germany

Applications

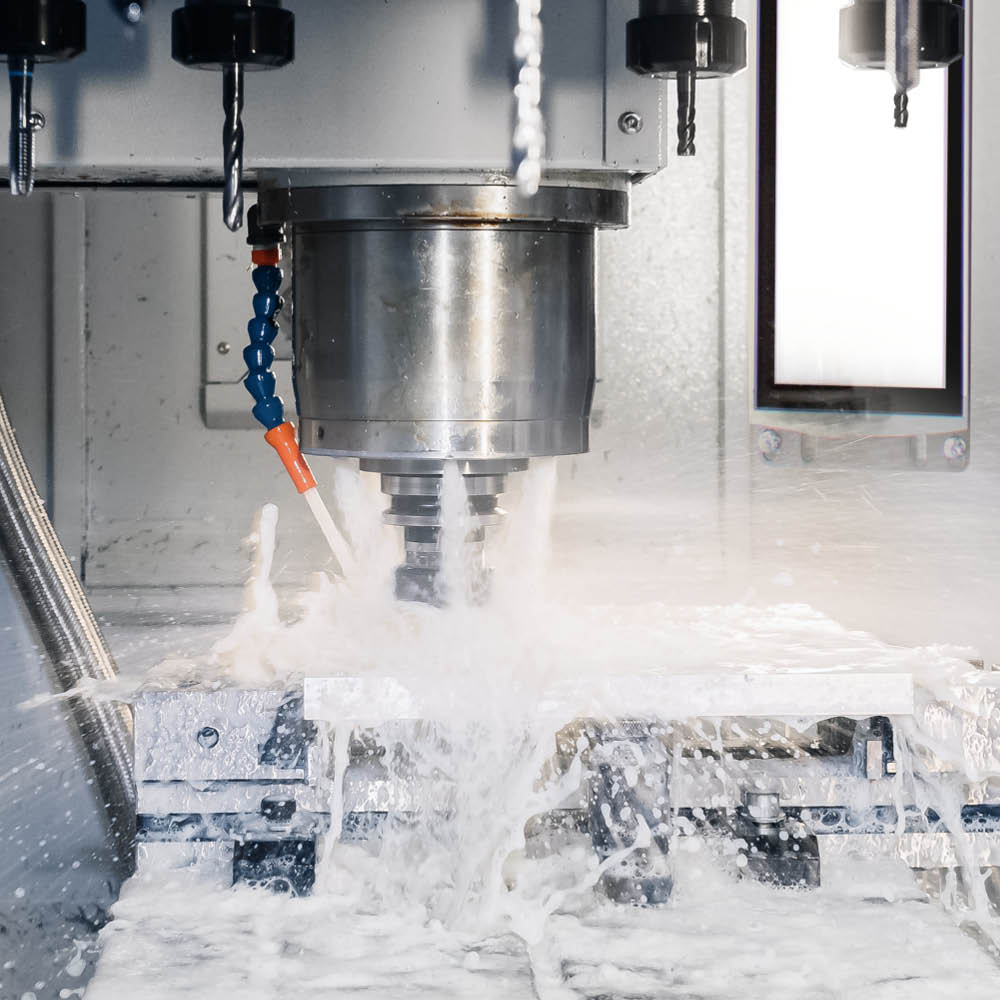

Lighting of machine tools and large plant, ideally in metal machining. The surface-mounted light retrofits into almost any machine tool.
