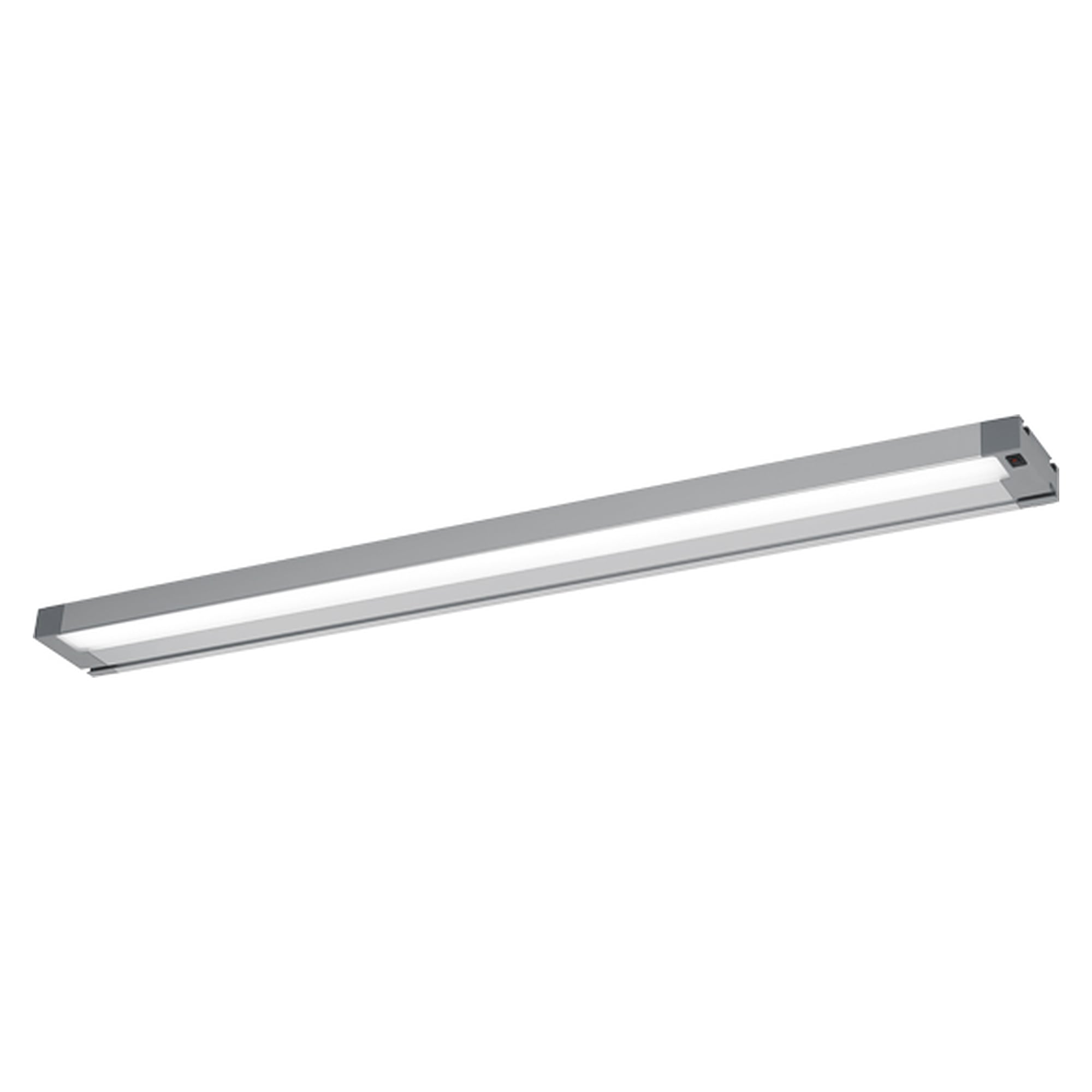

LED workplace-system luminaire WLA 3000/850/DT, 899 mm, 3200 lm, DALI, through-wired - Waldmann 113881000-00754405

For medium-width assembly and test workstations, the WLA 3000/850/DT delivers 3200 lm at 35 W over a length of 899 mm, in neutral white at approx. 5000 K with CRI ≥ 80. The rocker switch on the luminaire dims it continuously, and DALI integrates it into a lighting control system. Through-wiring lets it be connected electrically to further WLA luminaires at linked workstations.

Benefits

• 3200 lm at 35 W (approx. 91 lm/W), 5000 K neutral white and CRI ≥ 80 for visual inspection at the workbench
• Prism aperture with structured cover limits glare, 85° beam angle, approx. 100 % direct light
• Continuously dimmable via rocker switch, DALI interface for light management
• Through-wired: link several luminaires in a row and reduce installation work along workstation rows
• Housing of colourless anodised aluminium and plastic, dusty grey side parts, IP20, protection class I

Applications

• Assembly workstations in production
• Electronics manufacturing and soldering stations
• Medium-width test stations

Installation and accessories

• Fastening via screw-on bracket or the T-slots (8 mm) in the profile
• Mains connection via built-in GST 18i3F REV plug, matching 3 m connection cable with CEE 7/7 Schuko plug to GST18i3 (accessory)
• Linking to the next WLA via GST18i3 connecting cable, 0.3 m or 3.0 m (accessory)
