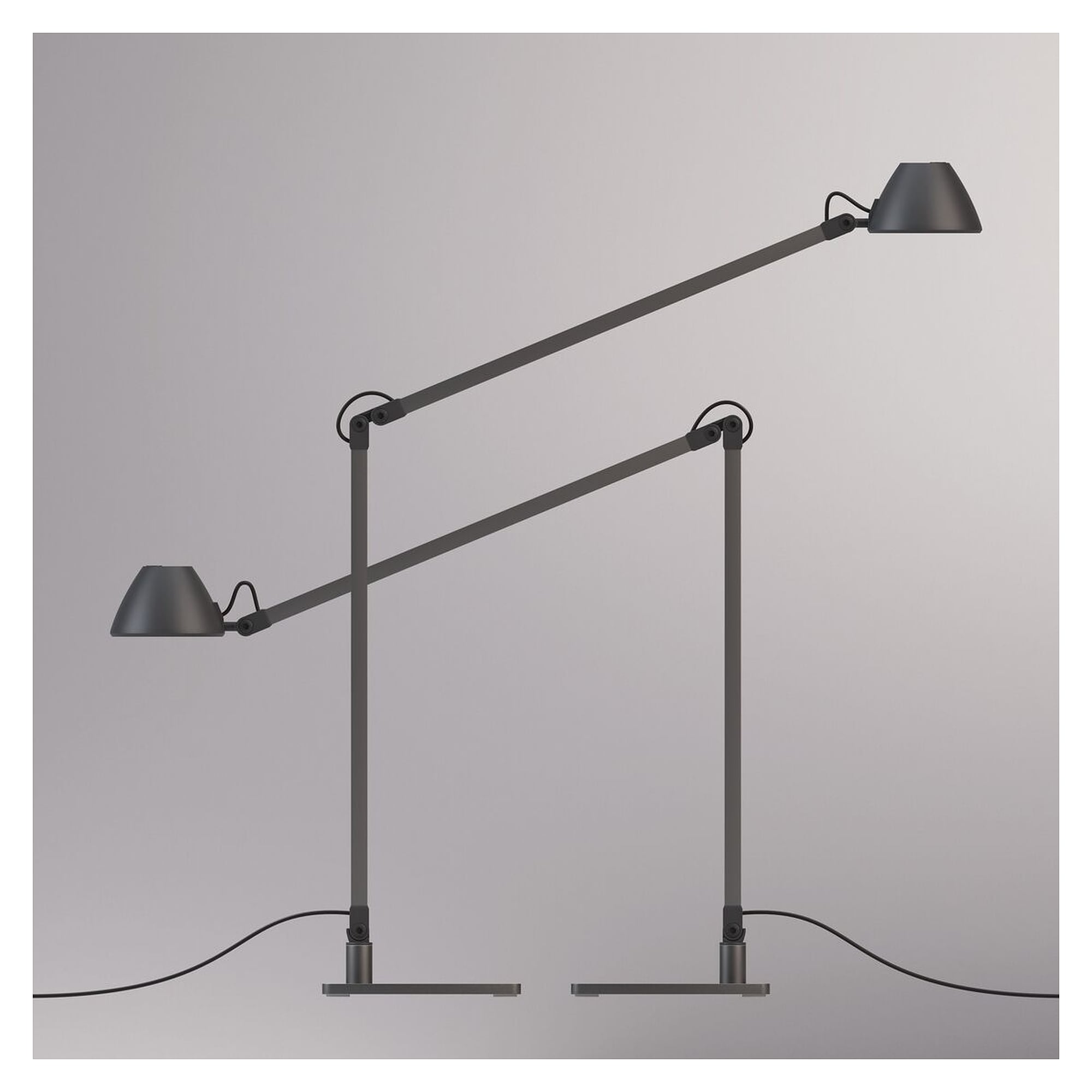

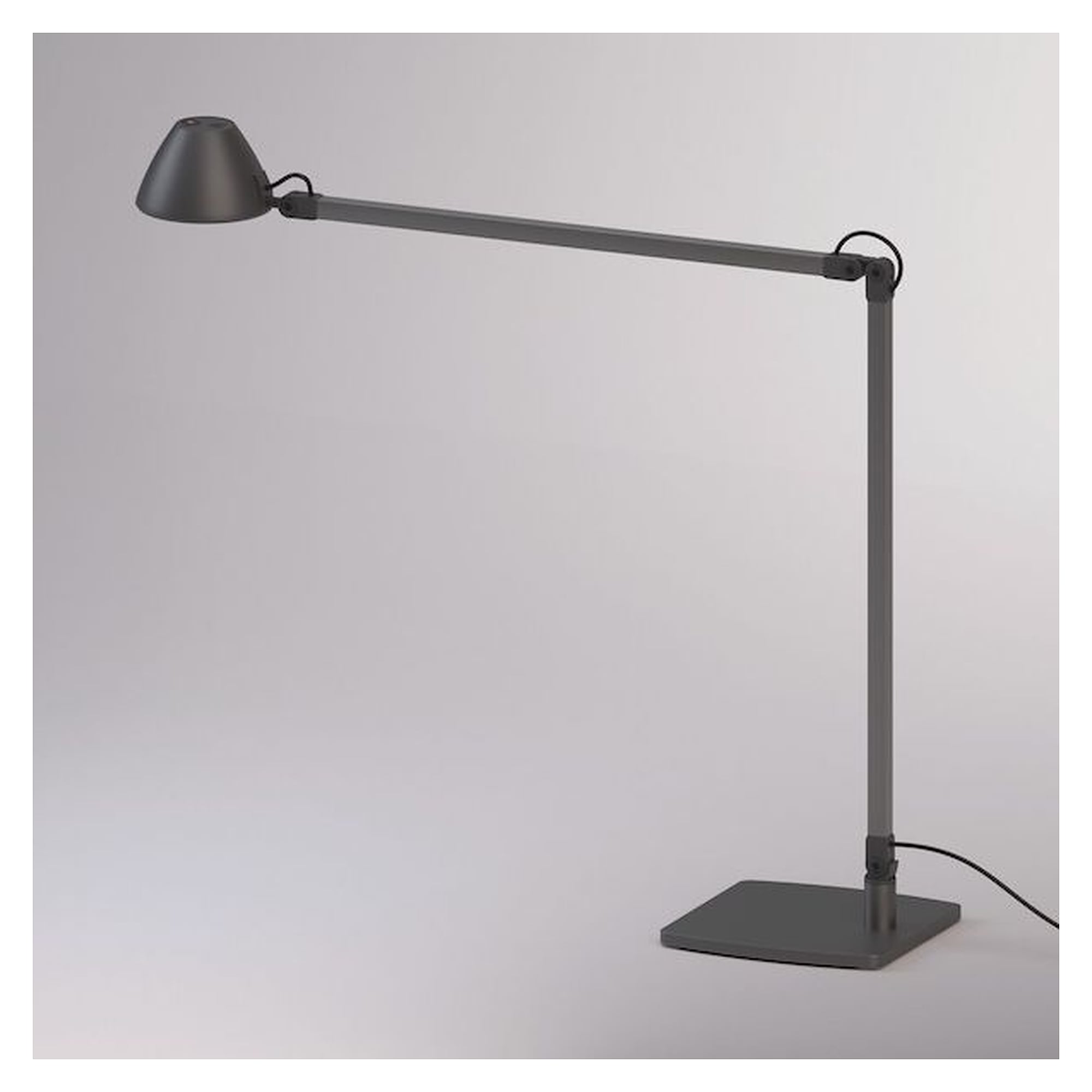

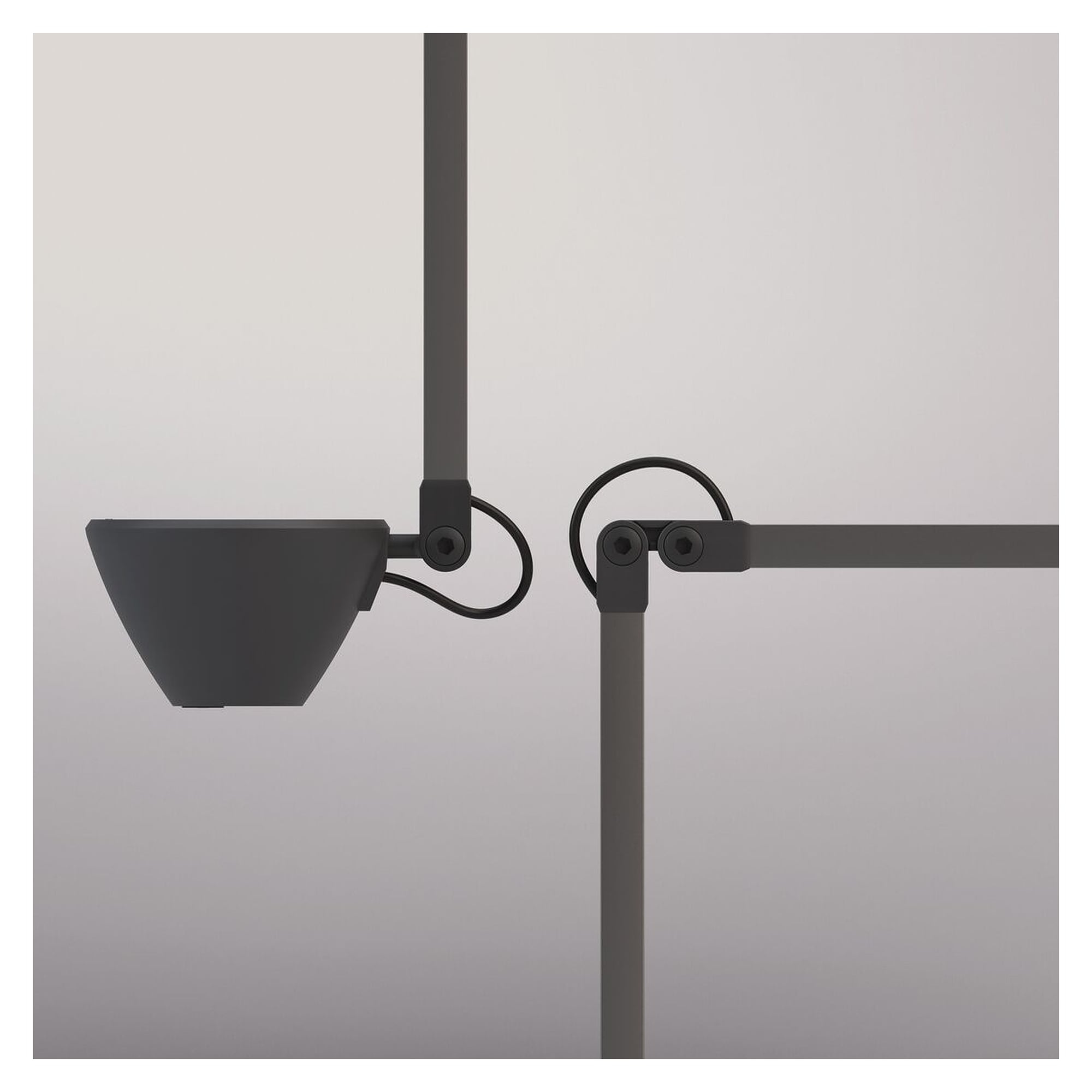

LED task luminaire LUCIO LUD 500/840/D, 300 lm, 4000 K, beam angle 73°

Images are examples, some edited with AI. The technical data are authoritative. AI notice

LED task luminaire LUCIO LUD 500/840/D, 300 lm, 4000 K, beam angle 73° - Waldmann 113998000-00810809

Name: LED task luminaire LUCIO LUD 500/840/D, 300 lm, 4000 K, beam angle 73° - Waldmann 113998000-00810809
Brand: Waldmann
SKU: WAL-113998000-00810809
Price: 215.21 EUR
Availability: InStock

Waldmann ✓ Original product Brand new Made in Germany

LED task luminaire in the LUD version with approx. 300 lm of neutral white light at 4000 K and a 73° beam angle. Continuously dimmable via the button in the luminaire head. For focused reading, writing and screen work in the office.

Net

€215.21

excl. VAT

Item WAL-113998000-00810809

Manufacturer no. 113998000-00810809

Question about this item

Datasheet (PDF) User manual 5 documents, all under Downloads

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

The LUCIO LUD 500/840/D directs approx. 300 lm of neutral white light at 4000 K onto the work surface with a 73° beam angle. The light lands where people read, write or work at the screen, for a power consumption of approx. 4 W.

Benefits

73° beam angle concentrates the light on documents and keyboard
Neutral white 4000 K, luminous efficiency approx. 96 lm/W, energy efficiency class E
Continuously dimmable with the push button in the head, standby approx. 0.3 W
Colour rendering CRI ≥ 80, photobiological risk group RG0/1
Net weight approx. 1.85 kg, anodised aluminium arm in titanium with friction joints

Applications

Screen workstations with reading and writing tasks
Clerical work and administration
Private offices and home office desks
Laboratory evaluation desks with paper records

Installation and accessories

Supplied with table base, table clamp and adaptor available as accessories
Mains lead approx. 1.5 m with CEE 7/XVI plug, plug-in transformer 100-240 V to 5 V

Technical data

Manufacturer part no.	113998000-00810809
Order no.	00810809
EAN	4013330143527
Connected load	100-240 V, AC, 50 Hz, 60 Hz
Control gear	Electronic plug-in transformer
Secondary voltage	5 V
Power consumption	approx. 4 W
Sec. power consumption	approx. 3.5 W
Standby	approx. 0.3 W
Luminous flux	approx. 300 lm
Luminous efficiency	approx. 96 lm/W
Light type/-color	Neutral white
Colour temperature	approx. 4000 K
Color rendering index	CRI ≥ 80
Light distribution	Direct, approx. 100 %
Beam angle	73°
Glare control	Optics
Light source	LED module
Energy efficiency class	E
Chromaticity tolerance LED	< 3 SDCM
At-risk group	RG0/1
System of protection/Class	IP 20, II with plug-in power supply, III without plug-in power supply
Technology	Continuously dimmable, DC control signal
Operation	Push button
Housing	Plastic, Untreated, Umbra grey
Light source cover	Polycarbonate (PC), Satine
Arm	Tubular aluminium section, Anodized, Tubular section upright, Titanium
Balance of articulation joints	Friction
Mains lead	approx. 1.5 m, Mains plug, CEE 7/XVI
Fastening	Adaptor (accessory), Table clamp (accessory), Table base
Weight without/incl. packaging	1.85 kg / approx. 2.8 kg
Packaging dimensions	990 mm, approx. 190 mm, 130 mm
Power factor	approx. 0.97
Special features	Push button in luminaire head
Weight	2.8 kg
Manufacturer	Waldmann
Manufacturer Nr.	113998000-00810809
HS-Code	94052140
GPSR manufacturer information	WALDMANN Lichttechnik Peter-Henlein-Straße 5 DE-78056 Villingen-Schwenningen
Condition of article	New
Article authenticity	Original product
Country of Manufacture	Germany
Sales unit	1 Stück
Colour	Grey
Farbe	Umbragrau
Control and dimming	Dimmable
Luminous flux (lumen)	300 lm
Power (W)	4 W
Colour rendering (Ra)	Ra 80
Mounting type	Table clamp
Operating voltage	100-240 V
Series	LUCIO
Protection class (IP)	IP20
