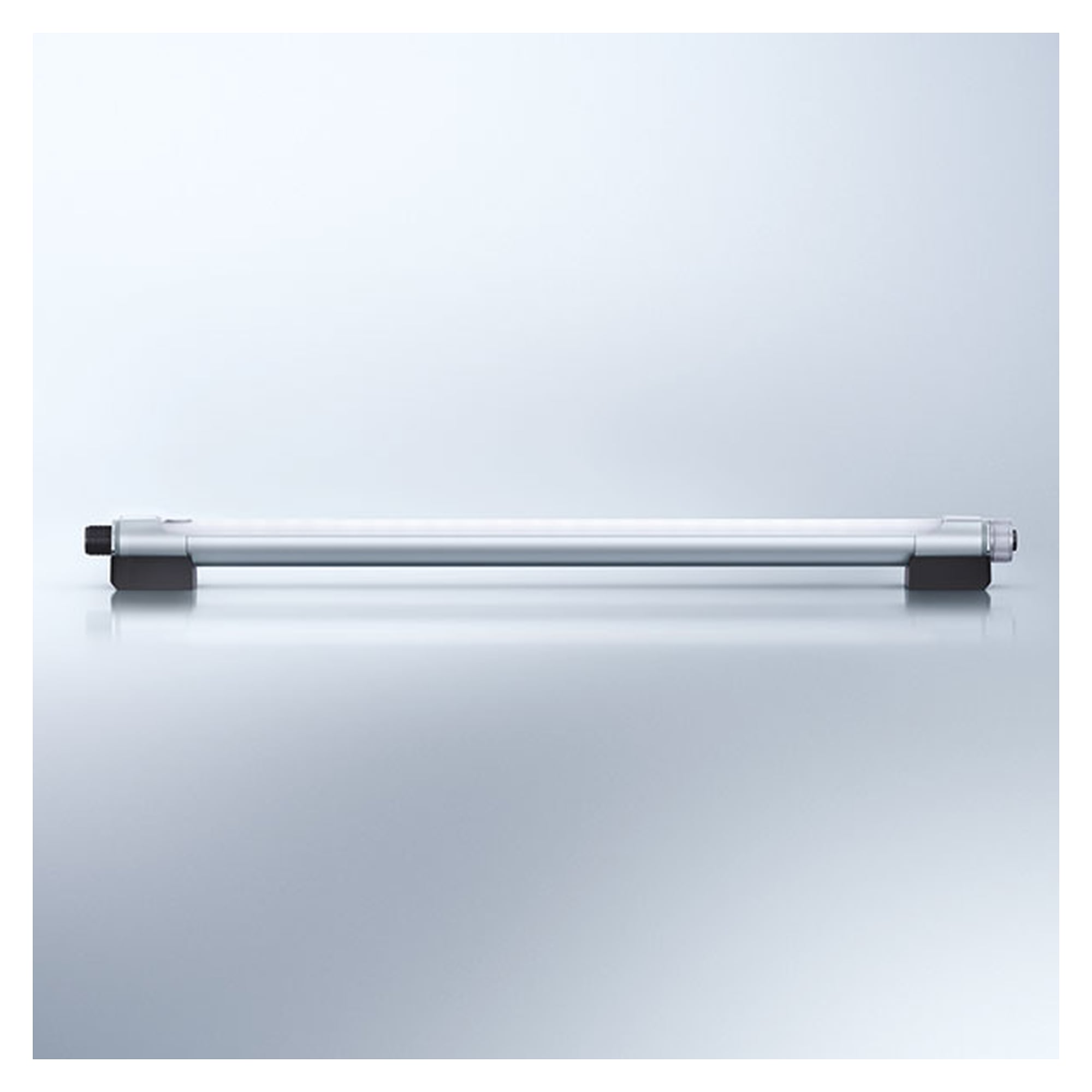

LED surface-mounted luminaire LINURA.edge LEA 1200/850/ST, 12 W, 1260 lm, 615 mm, through-wired - Waldmann 114038000-00801350

Small test stations and tight machine compartments need light that fits into existing profiles. The LINURA.edge LEA 1200/850/ST delivers approx. 1260 lm of neutral white light at 5000 K over a length of 615 mm, with a power consumption of approx. 12 W. Through-wiring passes the supply on to the next luminaire, so several LINURA.edge units run from one supply line and wiring effort drops.

Benefits

• Through-wired: several luminaires on one supply line, fewer cables along the machine
• 615 mm length: fits into control cabinets and short profile sections without protruding beyond the machine
• CRI ≥ 80 and chromaticity tolerance < 4 SDCM: consistent light colour even with several luminaires side by side
• 89° beam angle and satin PMMA cover: approx. 98 % direct, evenly distributed light
• 20-year Waldmann manufacturer's warranty, including LED light source and driver (Waldmann general warranty terms, purchase in the EEA)

Applications

• Control cabinets and machine interiors
• Compact test and inspection stations
• Linked light lines of several luminaires on one supply line

Installation and accessories

• Supplied brackets, adjustable by +/- 60°, for aluminium system and control cabinet profiles
• Mains connection via integrated M12 plug connector, A-coded, 5-pin, for 22-26 V DC
• Connect further LINURA.edge units via the through-wiring
• Accessories: M12 connection cables 3 m and 7 m, connection socket, LDS/ST distance sensor, capacitive contact sensor
