TUBELED_70 EVO LED machine light 1100 mm, 48W, 100°, IP67/IP69K - LED2WORK 156410-01
The 1100 mm TUBELED_70 EVO delivers a strong 7596 lm at 48 W to light wide machine areas. Its IP67/IP69K rating and aluminium housing with safety glass shrug off dust, washdown and temperatures from -30 °C to +70 °C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
For wide work areas on large machines, the 1100 mm TUBELED_70 EVO provides continuous bright illumination with 7596 lm at 48 W. At 155 lm/W, energy demand stays low.
Your benefits
- High light output: 7596 lm from 48 W, 155 lm/W efficacy.
- Fully sealed: IP67/IP69K rating, dust-tight and washdown-proof.
- Wide temperature range: operation from -30 °C to +70 °C.
- Long service life: over 100,000 h (L80/B10), low maintenance.
- Good colour rendering: Ra > 85 at 5700K for flicker-free light.
- Impact-proof: aluminium housing with safety glass, shock-resistant up to 50 g.
Applications

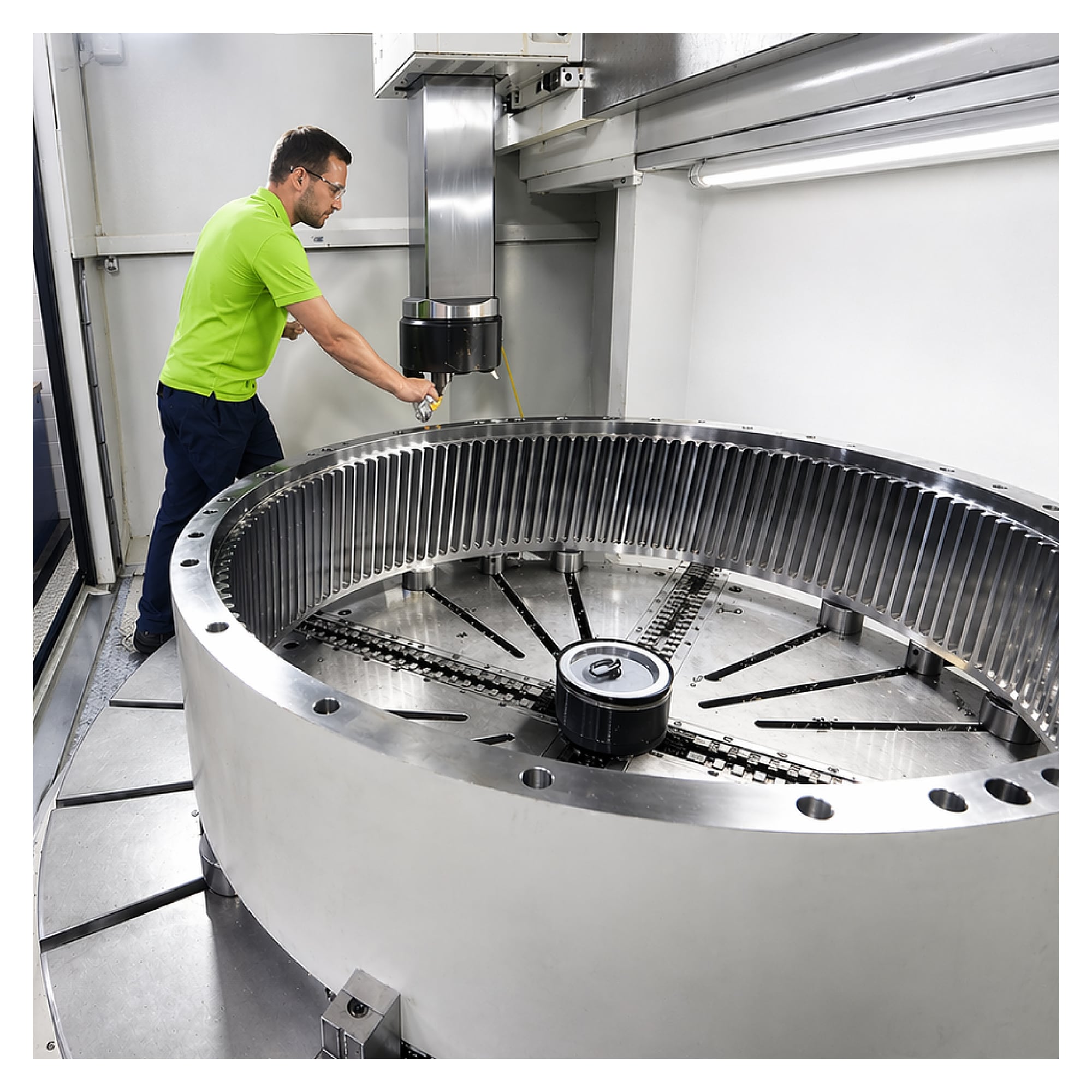

Suited to lighting wide machining centres, long machine fronts and production lines in harsh, wet or thermally demanding environments. Optionally dimmable, fixing hardware optional.
Technical data
| Model | TUBELED_70 EVO DC |
|---|---|
| Light source | SMD LED |
| Power | 48 W |
| Luminous flux | 7596 lm |
| Luminous efficacy | 155 lm/W |
| Light colour | 5700K 3-step MacAdam |
| Colour rendering (Ra) | > 85 |
| Supply voltage | 24V DC ± 10% |
| Connection | M12 A-coded, 3-pin |
| Protection rating (IP) | IP67/IP69K |
| Protection class | III |
| Beam angle | 100° |
| Operating temperature | -30 °C to +70 °C |
| Service life | > 100,000 h (L80/B10) |
| Material | aluminium, glass |

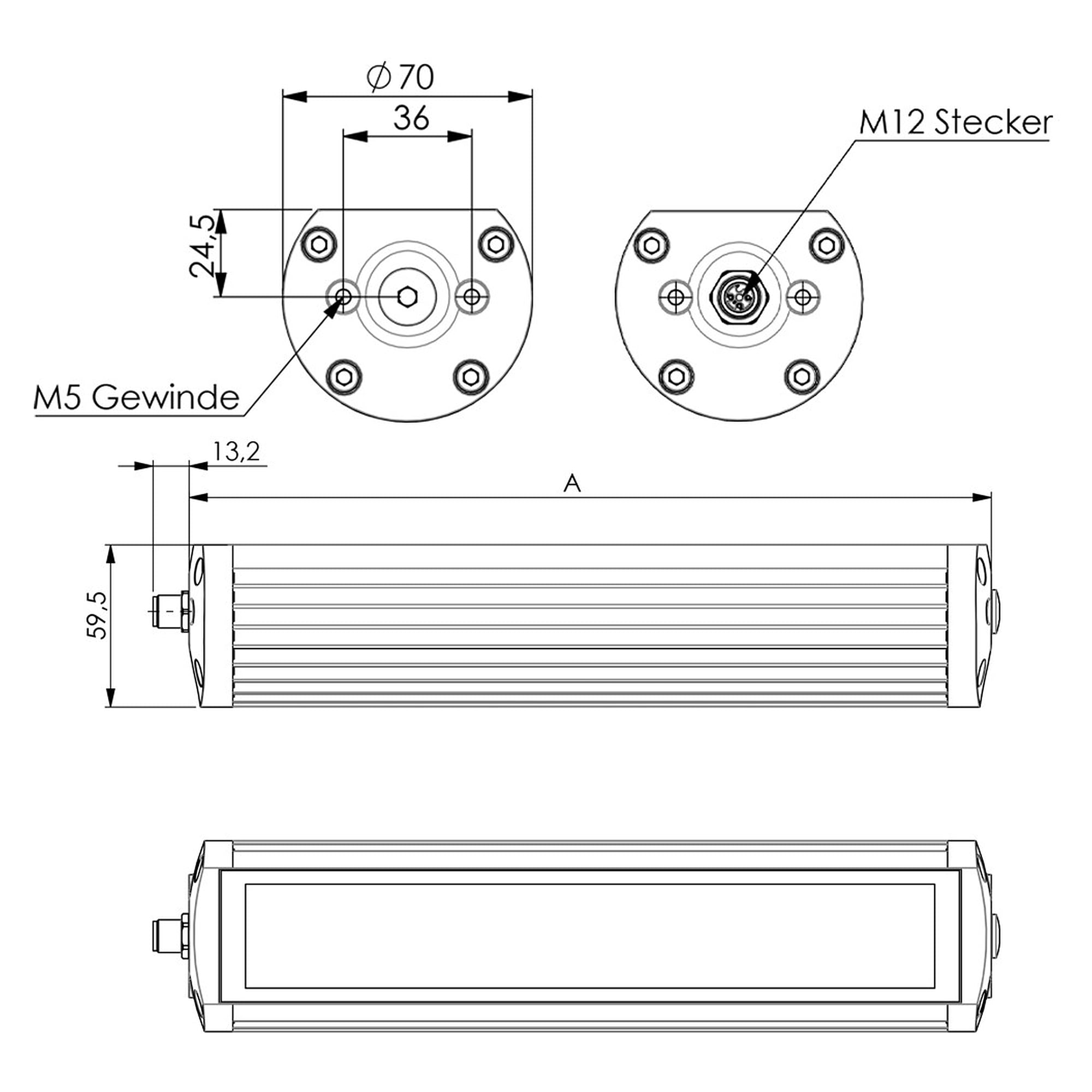

| Dimensions | 1100 mm x 70 mm x 59.5 mm |
| Weight | 3000 g |
| Risk group (DIN EN 62471) | exempt group |
| Certifications | CE, UKCA, ETL Listed (5003529) |
| Made in | Germany |
| Manufacturer | LED2WORK |
| Manufacturer Nr. | 156410-01 |
| HS-Code | 94054259 |
| GPSR manufacturer information | LED2WORK GmbH, Stuttgarter Straße 13 A, 75179 Pforzheim www.led2work.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Norm | DIN EN 62471 |
| Control and dimming | Dimmable |
| Luminous flux (lumen) | 7596 lm |
| Power (W) | 48 W |
| Colour temperature | 5700K |
| Operating voltage | 24 V |
| Protection class (IP) | IP69K |
