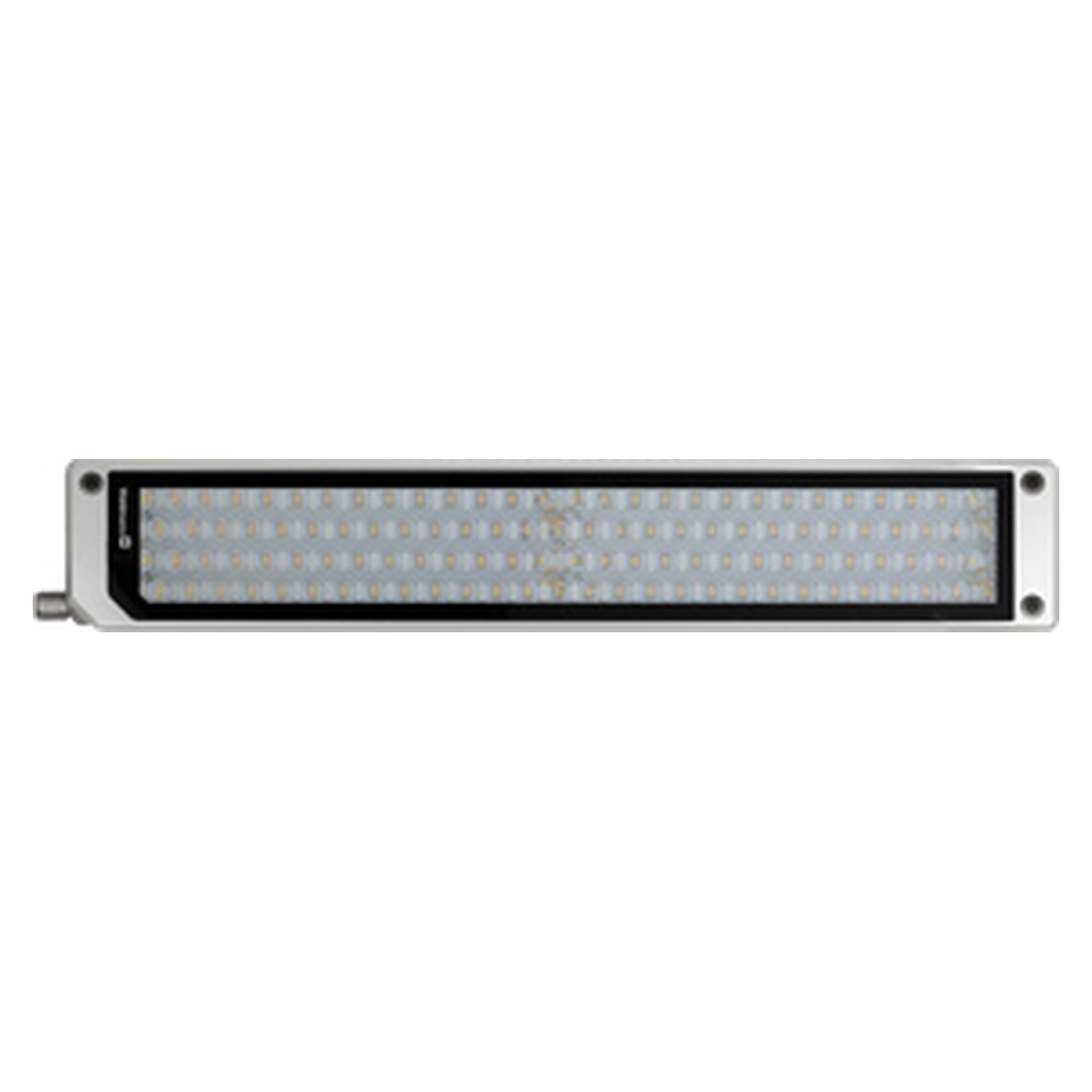

LED machine luminaire ACURIA.perfect APA 1450/850/MS, 12 W, 1400 lm, 402.5 mm, screw mounting - Waldmann 114466000-00811567

On narrow, elongated mounting surfaces inside the machine, the APA 1450 spreads approx. 1400 lm at 12 W over a length of 402.5 mm with a width of only 70 mm. Compared with the short APA 1400 at the same wattage, the light covers a longer section of the work area. This version is fastened to the machine with screws.

Benefits

• Approx. 1400 lm at 12 W, luminous efficiency approx. 116 lm/W: plenty of light with low power draw on the machine's 24 V DC supply
• Optical glare control, UGR ≤ 22, beam angle 91°, neutral white 5000 K with CRI ≥ 80 and chromaticity tolerance < 3 SDCM
• Multi-stage switchable via external control, protection class III at 24 V DC
• Screw fastening, dimensions per drawing A = 402.5 mm, C = 382.5 mm
• 20-year Waldmann manufacturer's warranty, including LED light source and driver (Waldmann general warranty terms, purchase in the EEA)

Applications

• Narrow profiles and side walls inside the machine
• Assembly and inspection stations
• Transfer points in conveyor systems

Installation and accessories

• Fastening with screws, mounted version
• Mains lead via built-in plug M12-A-5, matching M12 5-pin connection cables in 3 m or 7 m length
• Runs on 24 V DC without integrated operating device: operating device 100-240 V, 50/60 Hz / 24 V DC with 30 W or 100 W, selected by power consumption (here approx. 12 W)
