CENALED SPOT recessed machine light 8.5W 30° flood, IP67 - LED2WORK 121012-05

When the area lighting should sit flush in the machine body, the CENALED SPOT recessed uses a 30° optic to deliver even light of 1120 lm from only 8.5 W. It suits both first fit and retrofit.

Your benefits

• 30° optic for even area illumination
• Flush recessed mounting in a cut-out from 81 x 81 mm
• IP67 rating, dust-tight and protected against jetting water
• Sturdy aluminium housing with 4 mm ESG safety glass
• High luminous efficacy of 134 lm/W
• Reverse-polarity-protected M12 A-coded connector

Technical data

• Model: CENALED SPOT recessed
• Type: recessed LED light
• Light source: High Power LED
• Power: ~8.5 W
• Luminous flux: 1120 lm
• Luminous efficacy: 134 lm/W
• Light colour: 5700K (3-step MacAdam)
• Colour rendering (Ra): >80
• Beam angle: 30°
• Supply voltage: 24V DC ± 10%
• Connection: M12 A-coded
• Protection rating (IP): IP67
• Protection class: III
• Operating temperature: -10 °C to +50 °C
• Service life: > 100,000 h (L90/B10)
• Housing: aluminium (powder-coated)
• Cover: ESG 4 mm, shatterproof

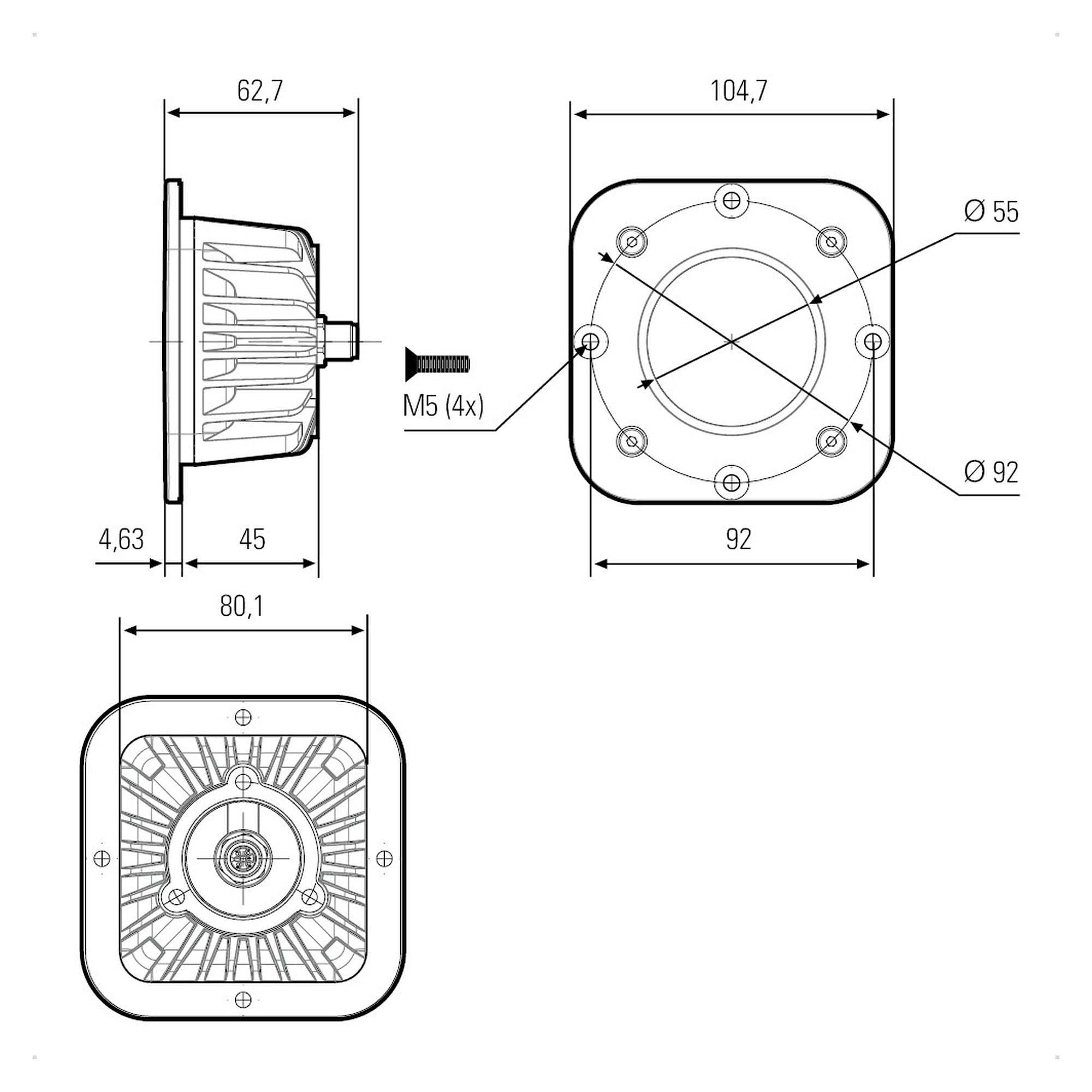

• Dimensions: recessed body ~80 x ~80 mm, depth >60 mm, bezel ~105 x ~105 mm
• Weight: 200 g
• Risk group (DIN EN 62471): exempt group
• Certifications: CE, UKCA, ETL Listed (5003529)
• Dimmable: optional via accessory
• Made in: Germany

Applications

Flush area lighting inside the working area of drilling automats, CNC and milling machines where no protruding parts are allowed.

Mounting and scope of delivery

The light is fixed with four M5 countersunk screws into a cut-out of at least 81 x 81 mm. A supplied seal behind the bezel seals it at the rear. Made in Germany.
