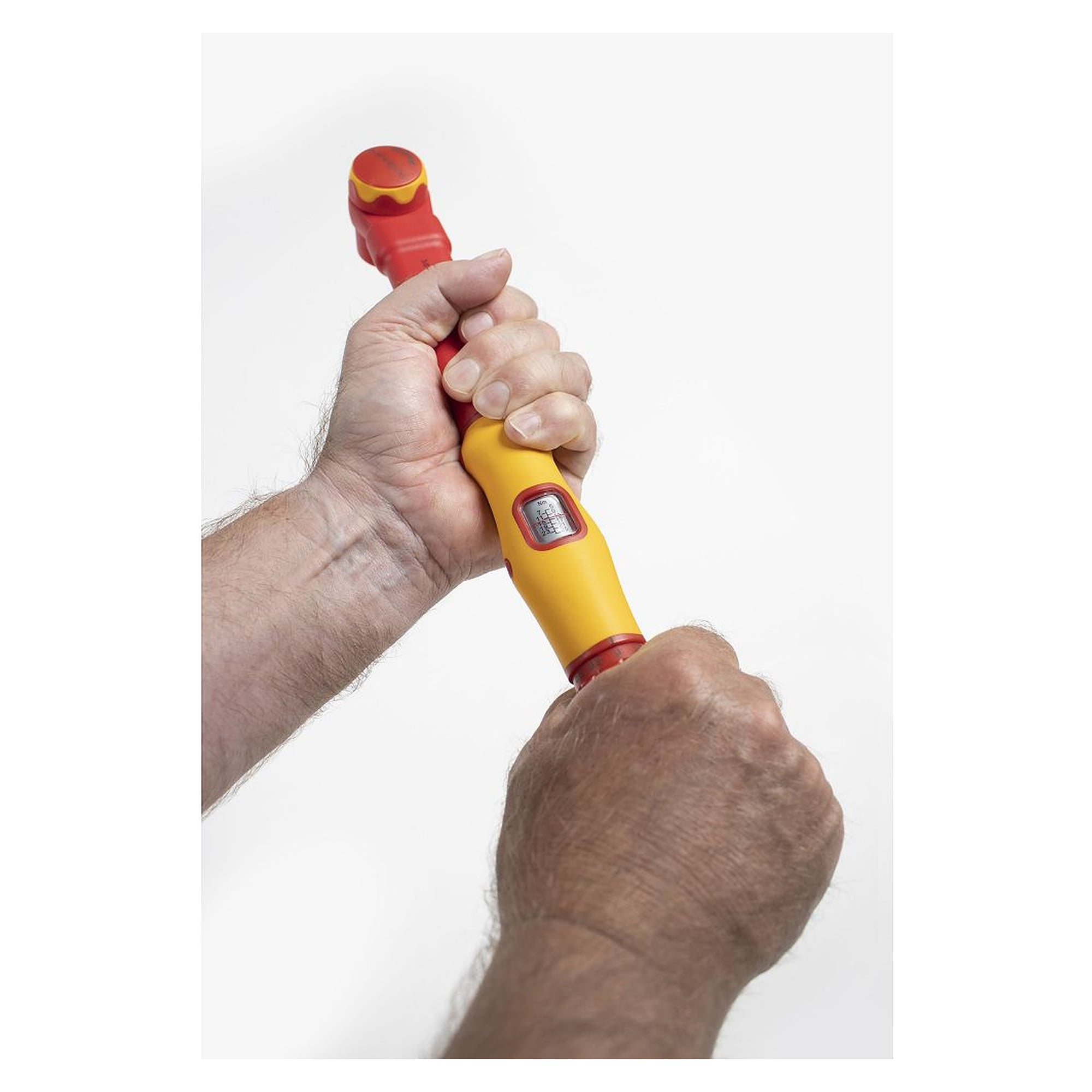

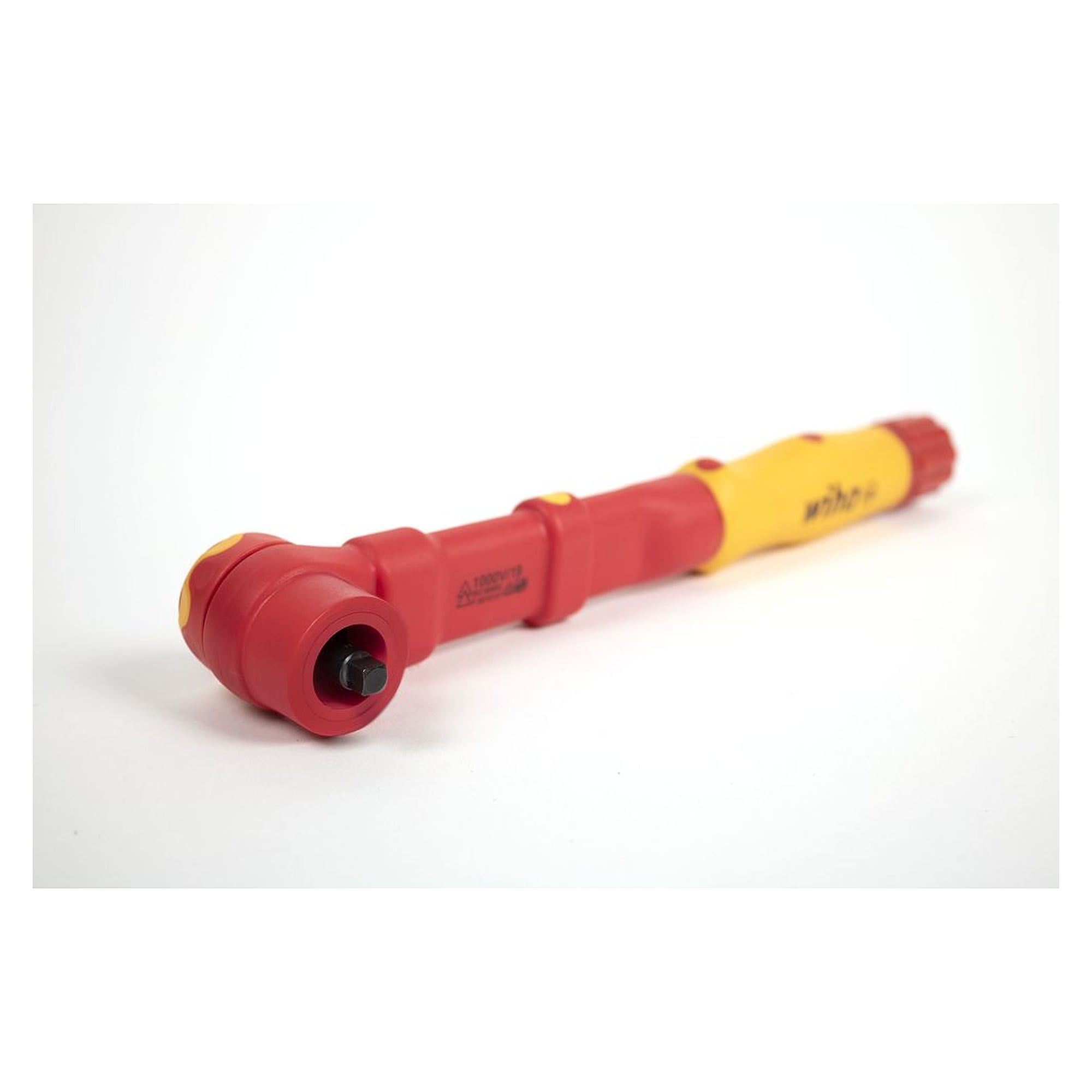

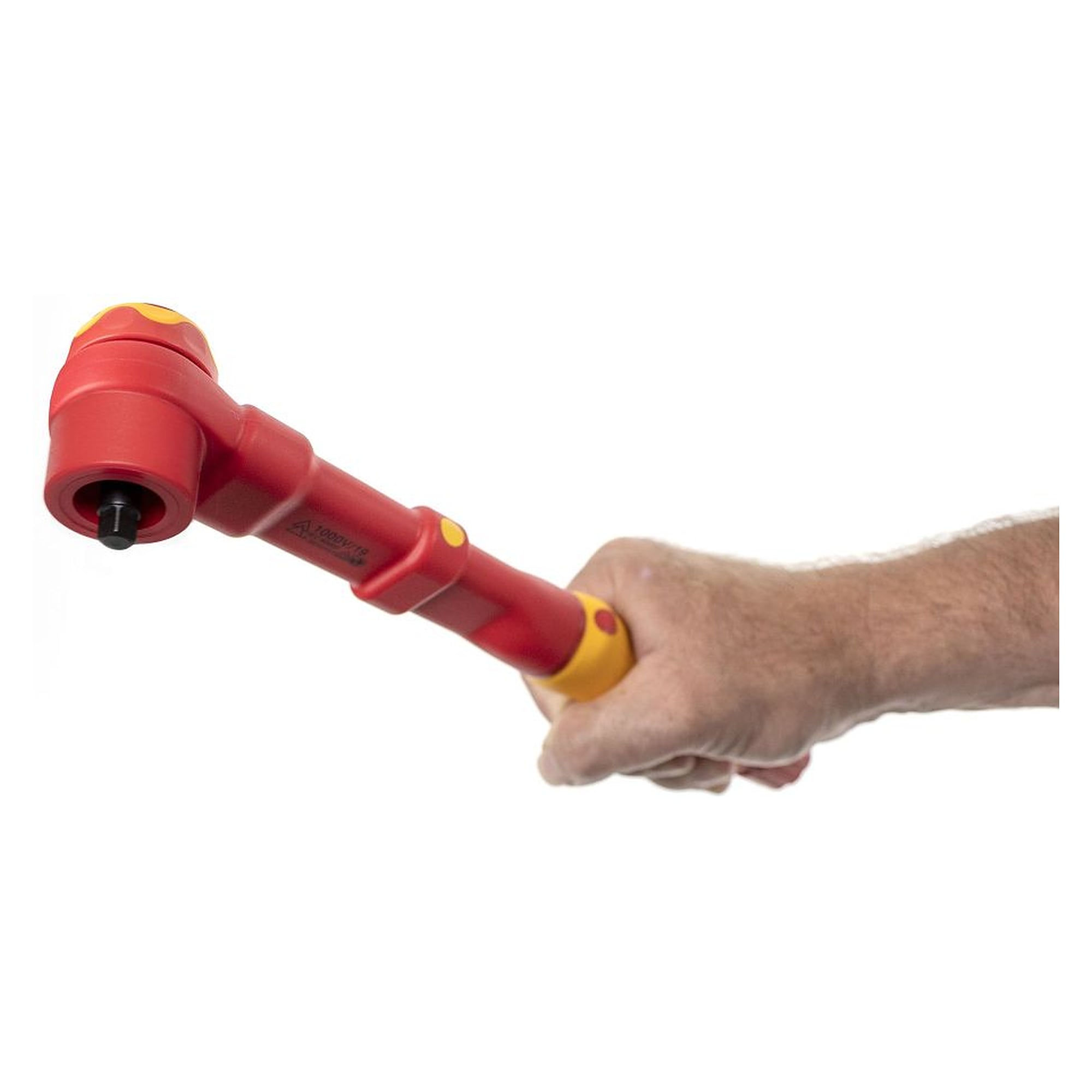

Torque key electric 1/4" insulated 5-25 Nm adjustable - Wiha 43126

Fastening bus bars and terminals in junction boxes demands accurate torque control - the Wiha torque key electric 1/4" delivers exactly that, covering 5 to 25 Nm on a clear numeric scale, with dual rotation for both tightening and loosening and a 10° switching angle suited to restricted installation positions.

Benefits

• Stepless adjustment 5-25 Nm via numeric scale - tolerance ±4%
• Dual rotation (clockwise and counterclockwise) for tightening and loosening
• 10° switching angle for tight spaces in distribution boards
• Individually tested to EN/IEC 60900 - safe work on live parts up to 1,000 V AC
• Works inspection certificate included, ball fastener retains 1/4" nut driver inserts

Technical data

• Drive: 1/4" square
• Torque range: 5-25 Nm (44.25-221.27 lbs)
• Tolerance: ±4%
• Overall length: 288 mm
• Lever arm length: 200 mm
• Handle diameter: 36 mm
• Dimensions: 288 x 59 x 38 mm (L x W x D)
• Standard: DIN EN/IEC 60900

Applications

Safe installation of terminals, sleeves, conductor connections and bus bars on live parts up to 1,000 V AC. Use only with insulated Wiha nut driver inserts.

Made in China (CHN). Standard: DIN EN/IEC 60900. HS code: 82041100.
