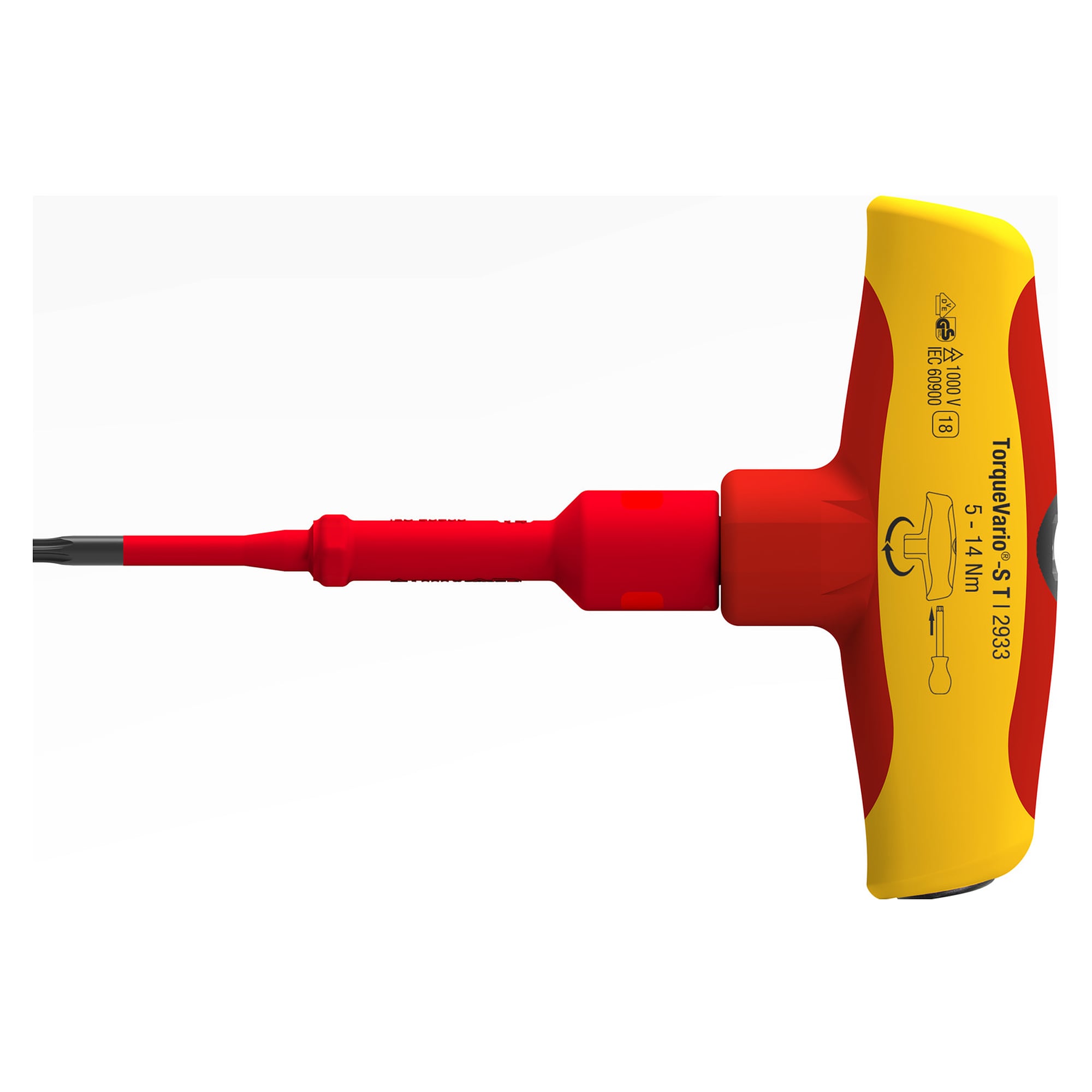

Torque screwdriver with T-handle TorqueVario-S T electric 5-14 Nm - Wiha 43177

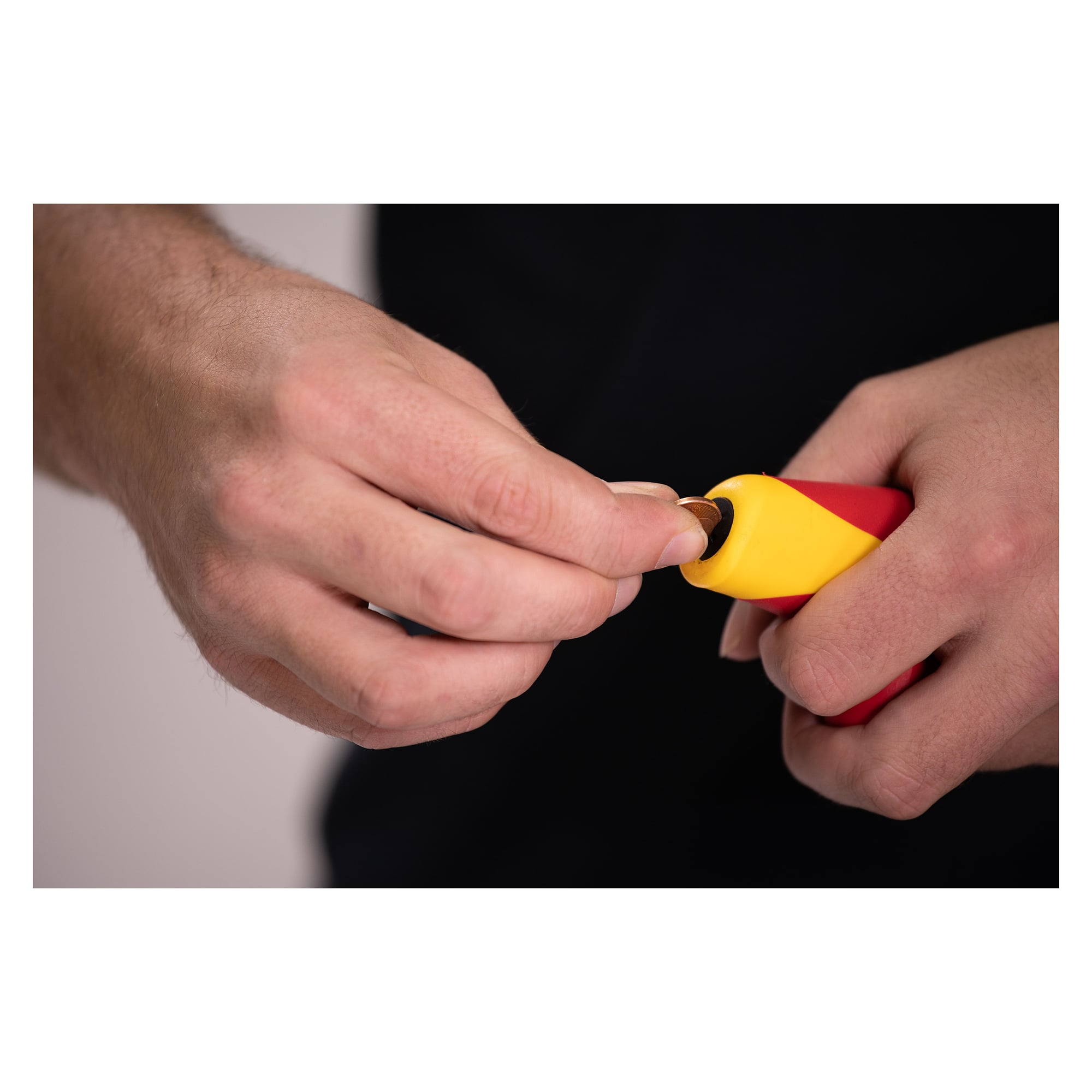

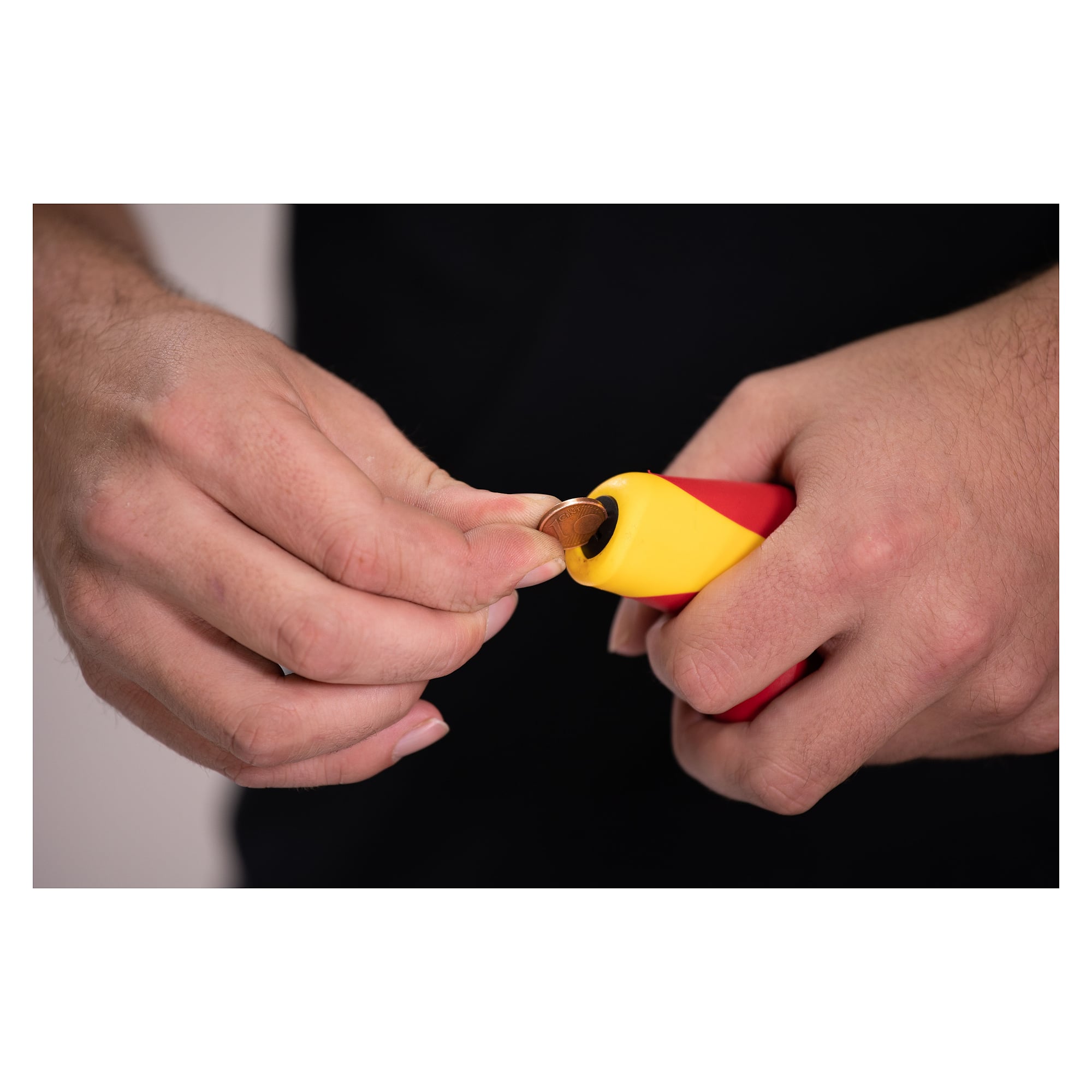

Achieving specific torque values above 5 Nm reliably with a standard torque screwdriver is practically impossible. The Wiha TorqueVario-S T electric addresses this: with a continuously adjustable range of 5 to 14 Nm and a T-handle for increased leverage, it covers a wide field in industrial assembly and electrical installation. The side cover is opened with a one-cent coin, the desired torque set with the supplied tool, and read clearly from the numerical Nm display. The integrated friction clutch reliably prevents the set value from being exceeded. As a VDE- and IEC-certified tool, the TorqueVario-S T electric is approved for use on live parts up to 1,000 V AC.

Benefits

• Adjustable torque range 5-14 Nm with release accuracy +/- 6% per EN ISO 6789
• T-handle for torque values above 5 Nm that are impractical with conventional torque screwdrivers
• Clearly audible and tactile signal at the set torque trigger point
• VDE- and IEC-certified for safe work on live parts up to 1,000 V AC

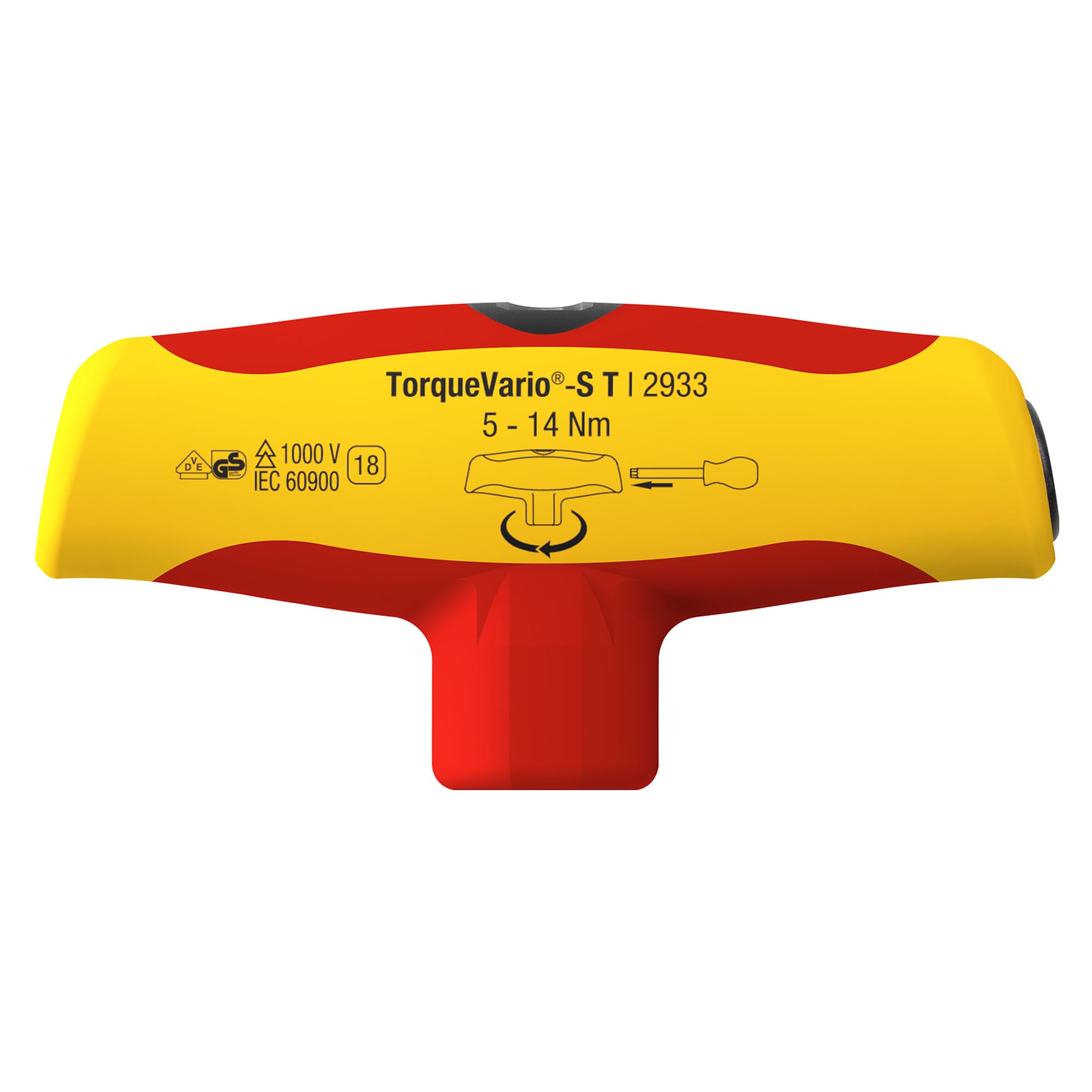

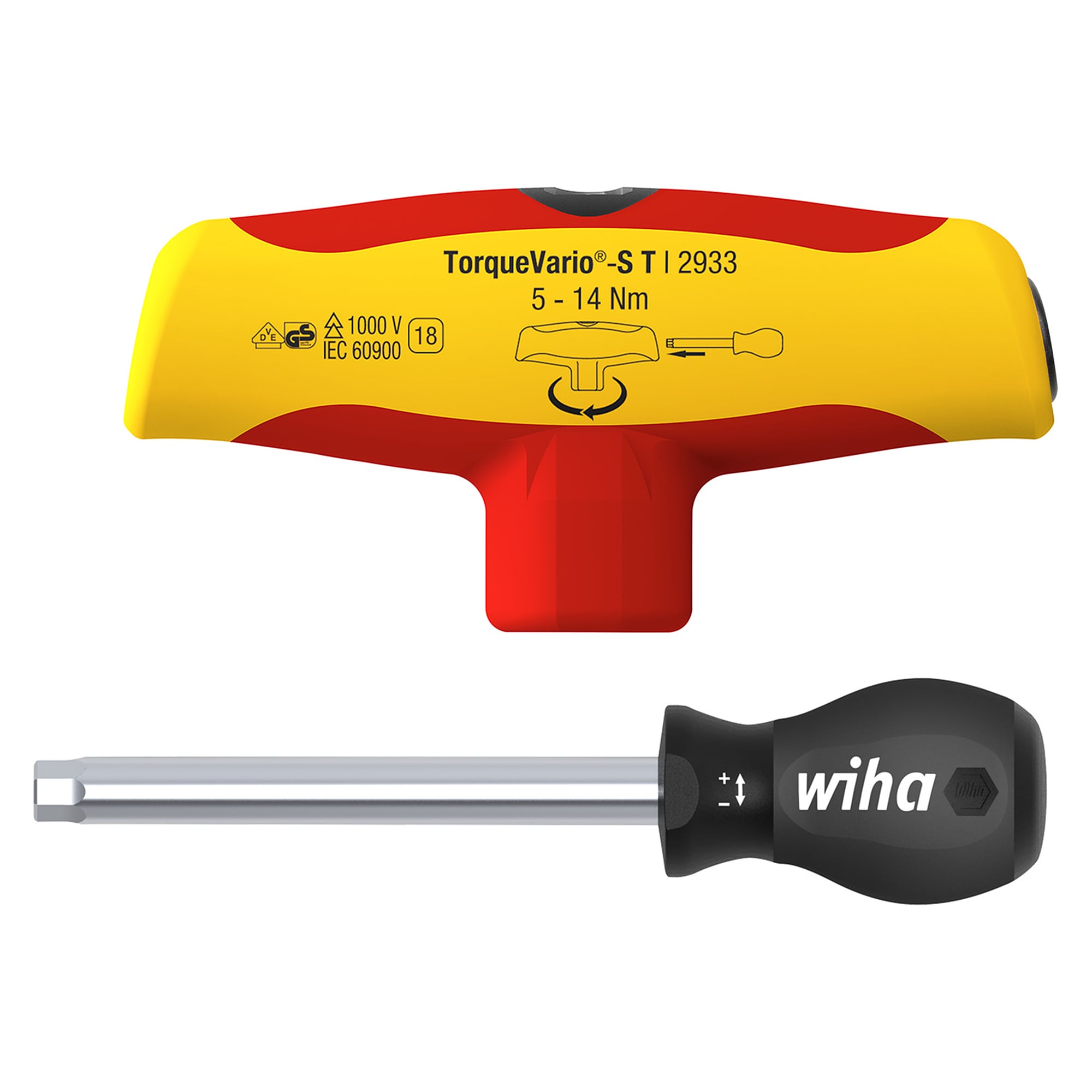

• Numerical Nm display and setting tool for precise, repeatable adjustment
• Includes works inspection protocol

Technical data

• Torque range: 5-14 Nm (continuously adjustable)
• Release accuracy: +/- 6%
• Hexagon drive: 6.0 mm
• Handle width (T-handle): 120 mm
• T-handle length: 56 mm
• Product dimensions: 178 x 80 x 45 mm (LxWxD)
• Standards: EN ISO 6789, IEC 60900, VDE certified
• For use with insulated Wiha torque blades series 28379 from 2018 onwards only

Applications

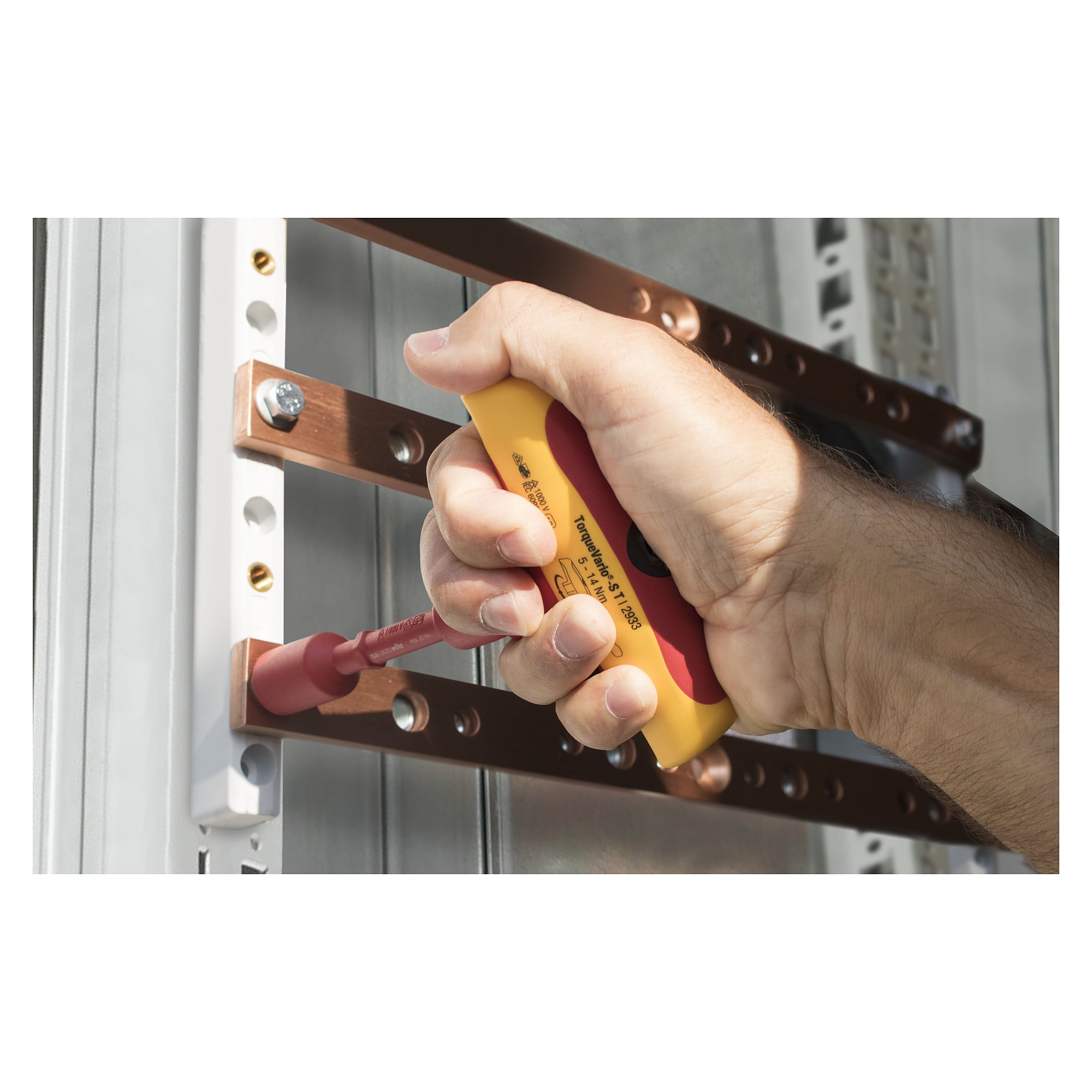

For process-safe assembly work on live parts up to 1,000 V AC in industrial assembly, switchgear construction, and electrical installation where torque values between 5 and 14 Nm must be reliably maintained.

Made in Germany. HS commodity code: 82054000. Tested to EN ISO 6789 and IEC 60900.
