Torque screwdriver TorqueVario-S ESD 0.1-0.6 Nm for ESD-sensitive components - Wiha 36852

The TorqueVario-S ESD in the 0.1-0.6 Nm variant is suited to mid-range torque requirements in electronics manufacturing and PCB assembly. The dissipative multi-component handle made of conductive plastic has a surface resistance of 10^6 to 10^9 ohms and channels electrostatic energy away in a controlled manner, protecting sensitive components from ESD damage. Torque is set continuously using the included Torque-Setter adjusting tool.

Benefits

• ESD-safe handle per IEC 61340-5-1: protection for ESD-sensitive components
• Surface resistance 10^6 - 10^9 ohms: controlled dissipation of electrostatic energy
• Continuously adjustable torque 0.1 - 0.6 Nm: typical range for electronics screws
• Click signal on release: audible and tactile feedback prevents over-tightening
• Release accuracy ±6 % (DIN EN ISO 6789): reproducible torque application

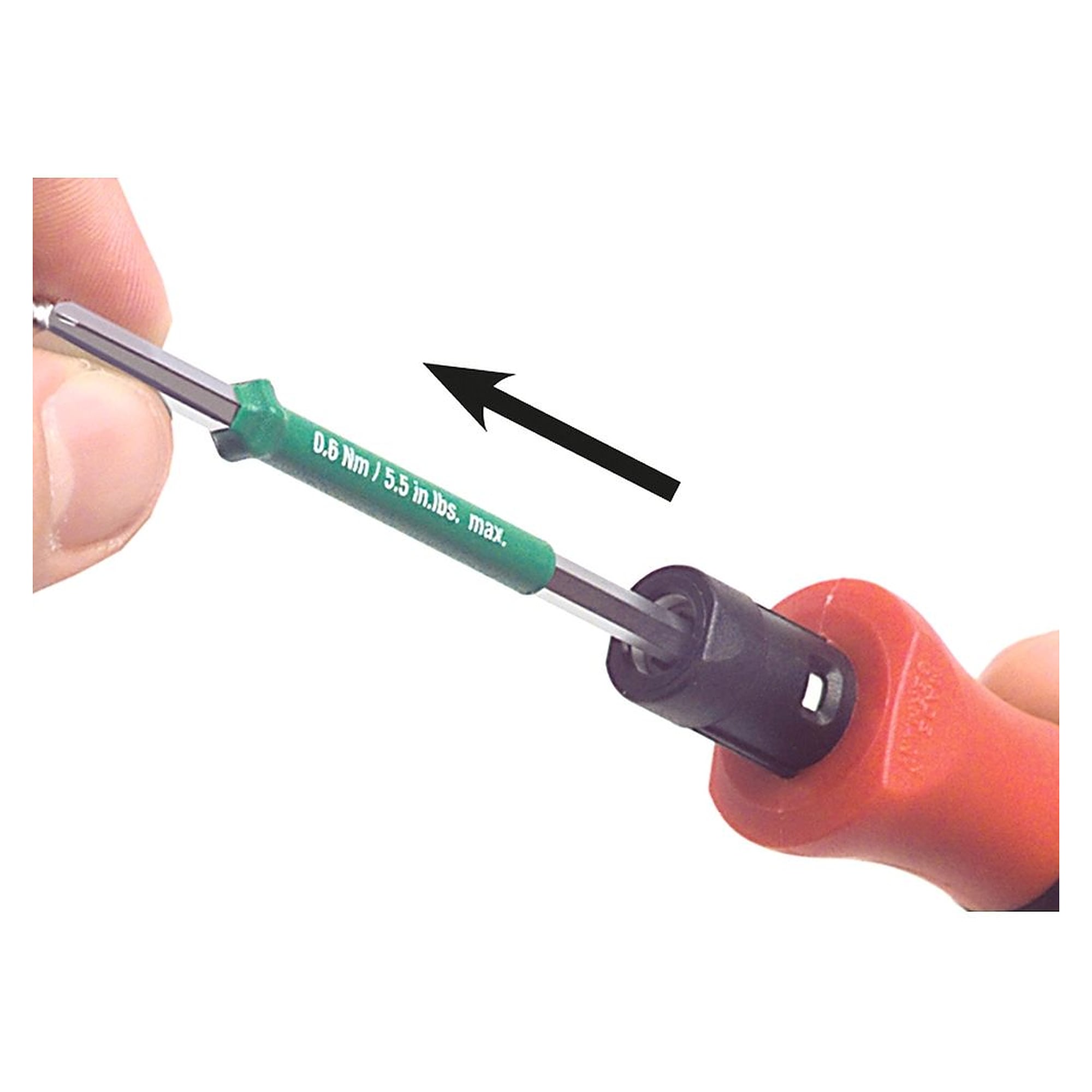

• Compatible with Series 2859 blades and 1/4" bit holder

Technical data

• Torque range: 0.1 - 0.6 Nm
• Tolerance: ±6 %
• Hexagon head: 4.0 mm
• Handle diameter: 23 mm, handle length: 127 mm
• Surface resistance: 10^6 - 10^9 ohms
• Product dimensions: 195 x 35 x 35 mm (L x W x D)
• Standards: DIN EN ISO 6789, IEC 61340-5-1
• Contents: ESD torque handle, Torque-Setter, robust box, works inspection protocol
• ESD: Yes

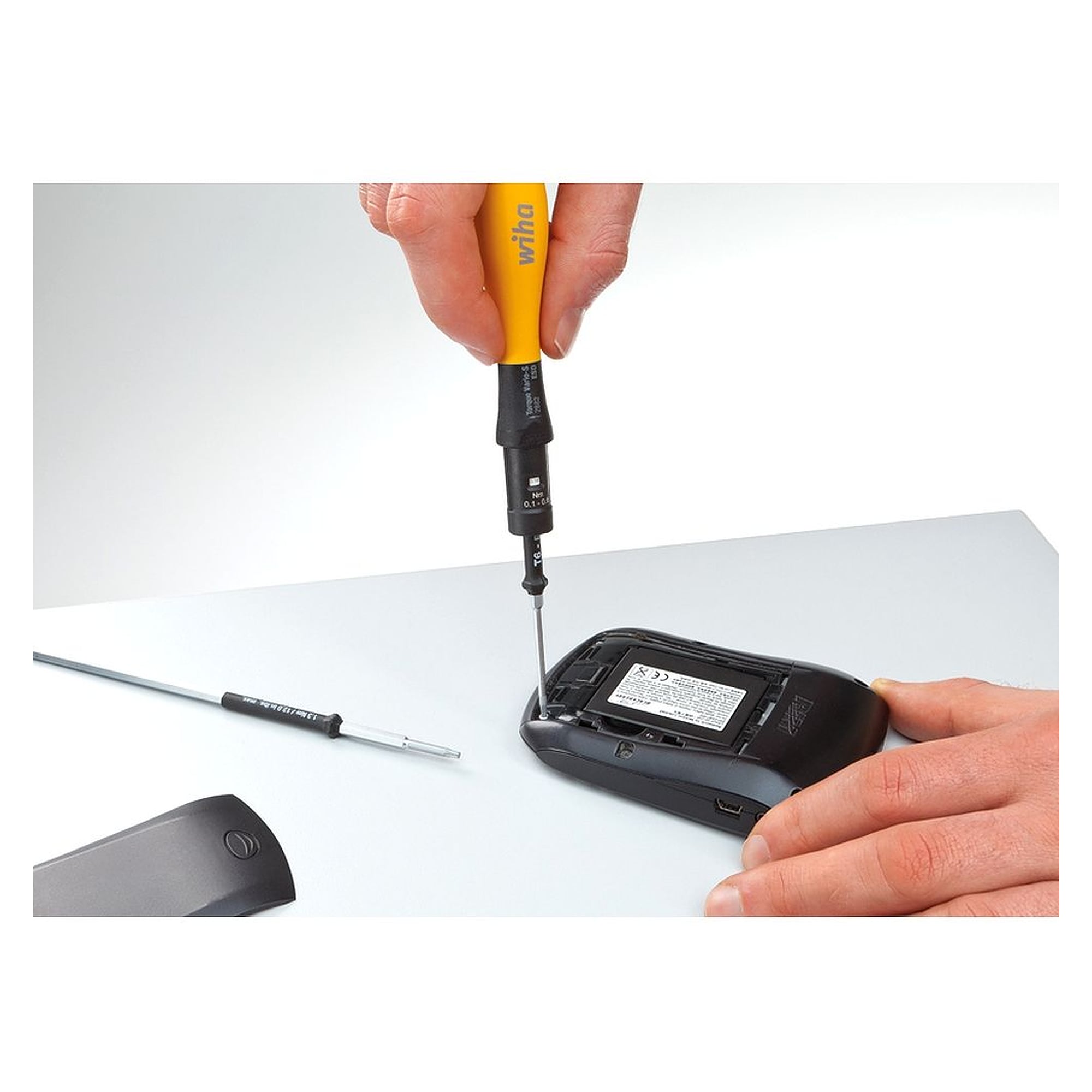

Applications

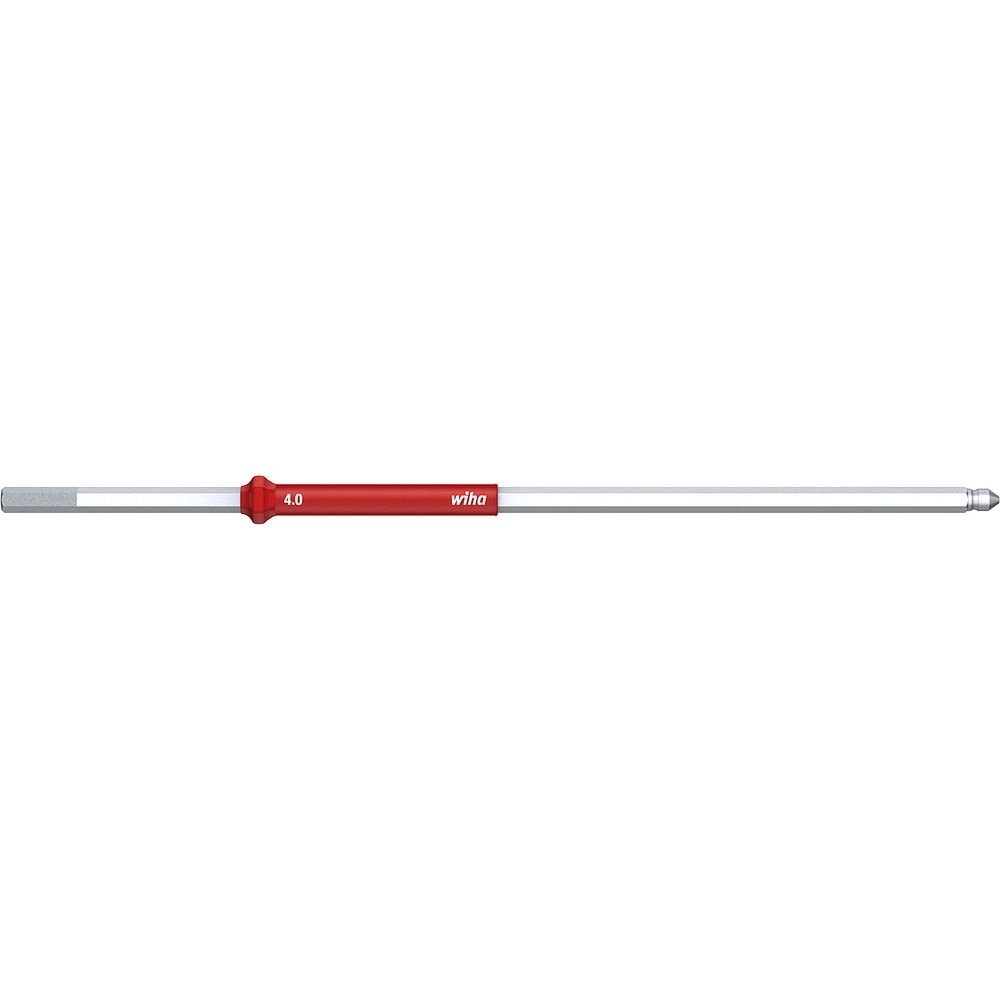

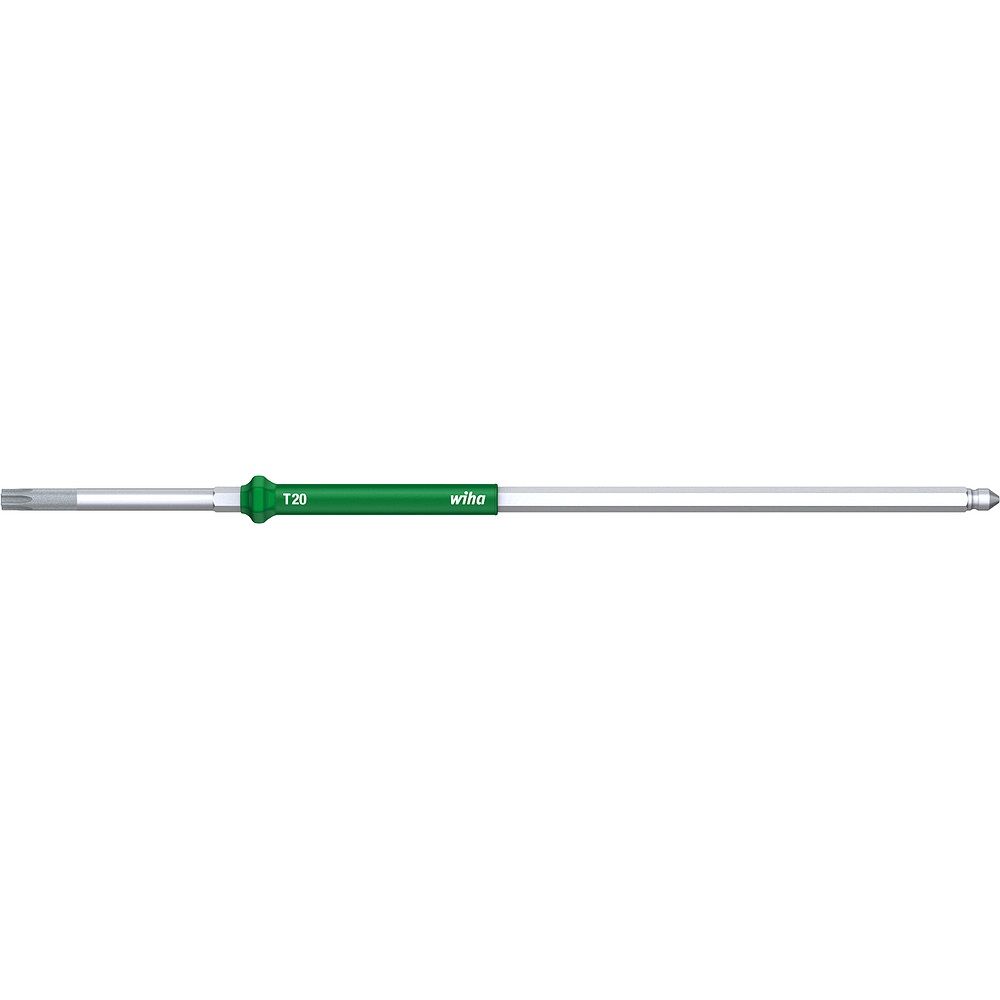

For accurate torque fastening on ESD-sensitive components in electronics manufacturing, PCB assembly and equipment maintenance. Compatible with Wiha Torque 4 mm interchangeable blades (Series 2859) or 1/4" bits. Made in Germany.
