Stripping tool automatic 0.2-6 mm², 190 mm, Professional electric - Wiha 44617
The Wiha automatic stripping tool handles all common conductor cross sections from 0.2 to 6 mm² and adjusts automatically to the respective cross section via an integrated scanning system - without damaging the inner conductors. The adjustable length stop (5-12 mm) ensures repeatable, measured stripping lengths.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Stripping cables is one of the most frequent tasks in electrical installation. The Wiha Professional electric automatic stripping tool adjusts to the conductor cross section fully automatically: the integrated scanning system detects the cross section and sets the cutting force so that inner conductors remain undamaged.
Benefits
- Automatic adjustment to conductor cross sections from 0.2 to 6 mm² (AWG 24-10) - no manual setting required
- Integrated scanning system prevents damage to inner conductors
- Adjustable length stop 5-12 mm for repeatable, consistent strip lengths
- Also usable as diagonal cutters for cables up to 2 mm in diameter
- Blades made of high-quality cutlery steel - replaceable when needed
- Locking function for space-saving, safe storage
Applications
For precise and safe stripping of all standard conductors during electrical system installation. The length stop can be fully removed from the tool if not needed. Blades are replaceable. Country of origin: Germany (DEU). HS code: 82032000.
Technical data
| Stripping range | 0.2-6 mm² (AWG 24-10) |
|---|---|
| Cutting to length, single-strand / multi-strand | max. 3 mm² / max. 6 mm² |
| Max. cutting diameter (cutting to length) | 2 mm |
| Adjustable length stop | 5-12 mm |
| Overall length | 190 mm (7 1/2") |
| Dimensions | 240 x 110 x 30 mm (L x W x D) |
| Weight | 0.16 kg |
| Manufacturer | Wiha |
| Manufacturer Nr. | Z57500106SB |
| EAN | 4010995446178 |
| HS-Code | 82032000 |
| GPSR manufacturer information | Wiha Werkzeuge GmbH Obertalstraße 3-7 DE-78136 Schonach www.wiha.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| ESD version | TEC |
Downloads
Accessories

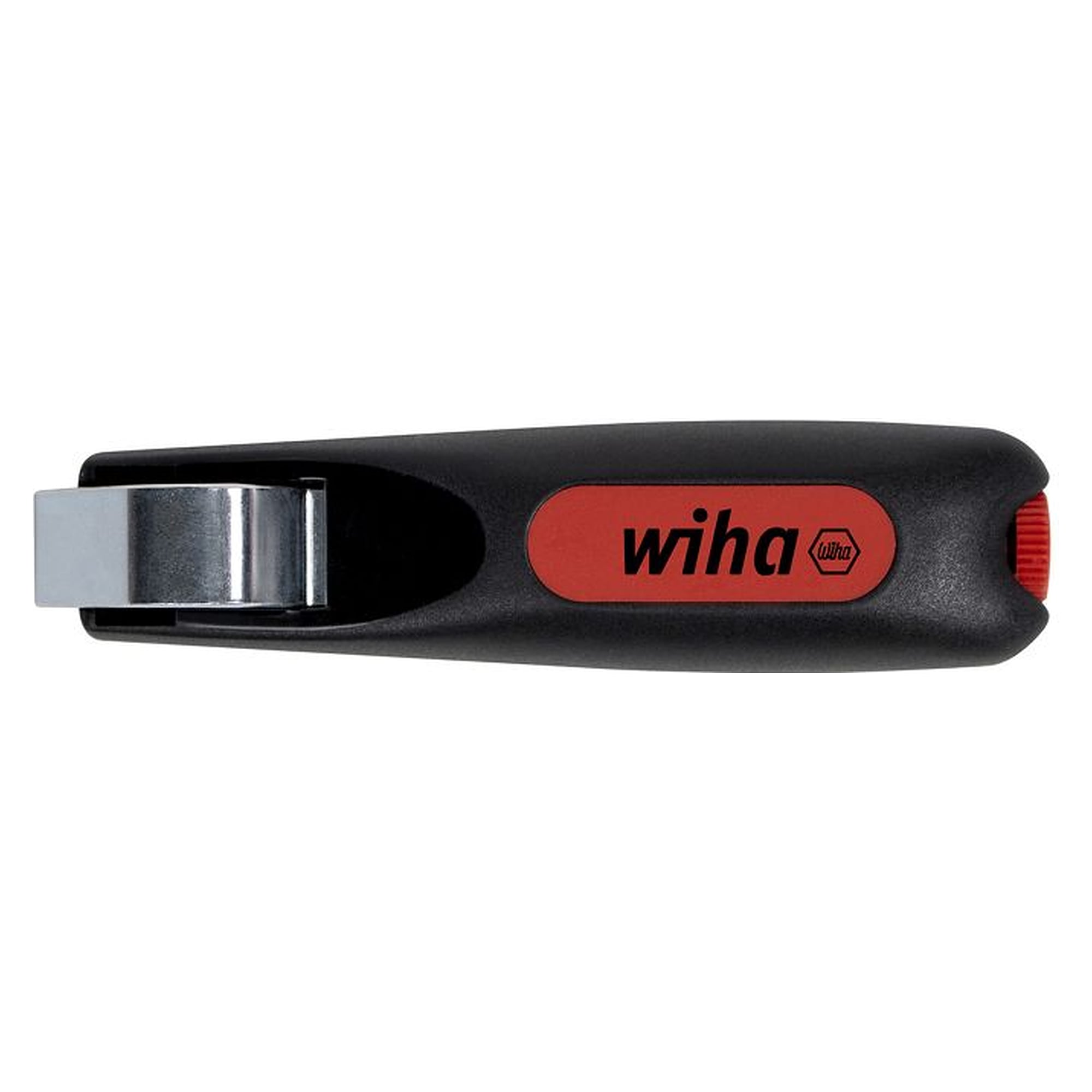

Stripping tool self-rotating drag blade round cables 4-28 mm, 165 mm SB - Wiha 44619
