Compartment layout, 18 compartments, conductive, for drawer cabinet 5150.830 - Warmbier 5150.830.B

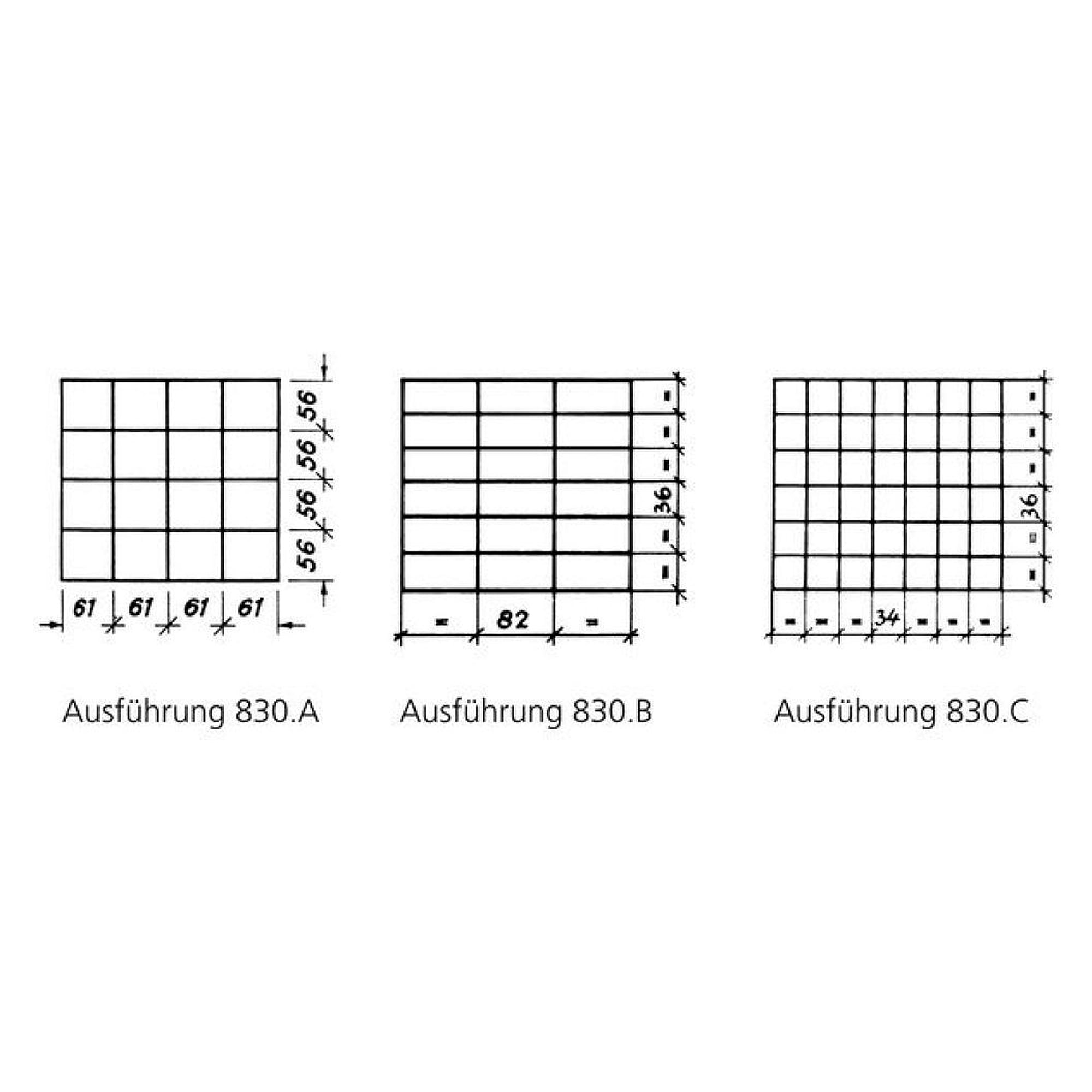

Between coarse block layouts and miniature cells lies everyday work at the assembly bench: medium-sized parts that need to stay apart. This insert divides one drawer of the 5150.830 drawer cabinet into 18 compartments and is made of permanently conductive polystyrene with a typical surface resistance of 10^4 - 10^5 ohm.

Benefits

• 18 compartments per drawer, a balanced layout for medium-sized components and standard parts.
• Permanently conductive polystyrene, the dissipative property lasts through the service life.
• Typical surface resistance 10^4 - 10^5 ohm, level with the cabinet so the grounding concept of the EPA stays intact.
• Made to fit the 5150.830 drawer cabinet, no cutting and no sliding inside the drawer.
• Removable, a drawer can be run with or without the insert as the job demands.

Technical data

Application

Separating connectors, terminals, fuses and assembly parts at the ESD workstation, range drawers in test and service areas, and staging material by assembly inside the EPA.
