Warmbier
ESD table mat set with table mat, grey, 1220 x 610 x 2 mm, incl. accessories - Warmbier 1402.690.SET.N
Item WL43405
€80.35
Images are examples, some edited with AI. The technical data are authoritative. AI notice
ESD workstation set with table mat, grey, 1220 x 610 x 2 mm, incl. accessories - Warmbier 1250683
Complete ESD workstation set from Warmbier with grey table mat, floor and personnel grounding. It includes a grounding terminal strip, Schuko grounding plug, grounding box, wrist strap and coil cord for full grounding of bench and operator.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The ESD workstation set from Warmbier converts an assembly station fully to ESD protection. It grounds both the work surface and the operator, giving a complete protection concept in the EPA.
Application
Suitable for the complete initial fit-out of an ESD workstation with bench and personnel grounding in the EPA.
Standards and compliance
Meets the technical requirements of DIN EN 61340-5-1.
Technical data
| Table mat material | synthetic rubber, two-layer composite mat |
|---|---|
| Table mat dimensions | 1220 x 610 x 2 mm |
| Table mat colour | grey |
| Connection | 2x 10 mm press stud, 4 mm eyelet |
| Selling unit | set |
| Weight | 0.1 kg |
| Manufacturer | Warmbier |
| Manufacturer Nr. | 1250683 |
| GPSR manufacturer information | Wolfgang WARMBIER Untere Gießwiesen 21 DE-78247 Hilzingen www.warmbier.com |
| Condition of article | New |
| Article authenticity | Original product |
| Sales unit | Set |
| Height | 2 |
| Width | 1220 |
| Depth | 610 |
| Colour | Grey |
| ESD version | ESD (antistatic) |
| Certification | IEC 61340-5-1 |
Scope of delivery

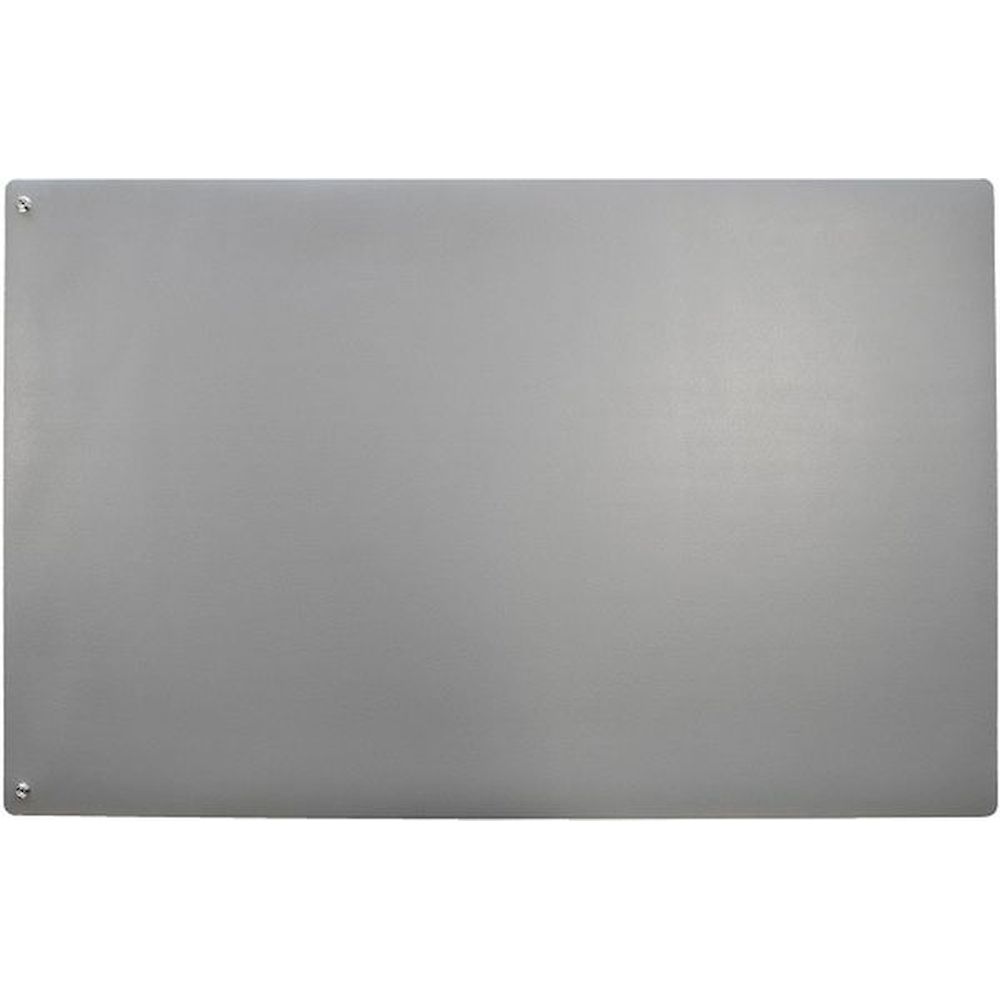

- Table mat, grey, 1220 x 610 x 2 mm
- Central grounding terminal strip with 7 screw connections
- Grounding plug for Schuko socket
- Grounding box with 2x 10 mm press stud and 1x 4 mm safety socket
- Grounding cord with 10 mm press stud
- Adjustable wrist strap, light blue
- Coil cord 2.4 m, 3 mm press stud
