Snipe nose side cutting pliers, stork beak pliers with 73 mm jaws, chrome-plated, 200 mm - Knipex 26 25 200

Knipex ✓ Original product Brand new Made in Germany

Stork beak pliers with half-round, 73 mm long tapered jaws whose tips are only 3.0 mm wide. The distortion-tolerant precision tips reach into easy and semi-difficult areas, the induction-hardened cutting edges of about 61 HRC cut hard wire up to 2.2 mm dia. Chrome-plated, 200 mm, 199 g.

Net
€31.21
excl. VAT
Item WL30499
Manufacturer no. 26 25 200
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Fine gripping work behind components usually fails because of the jaw shape, not because of the force. The 26 25 200 snipe nose side cutting pliers have 73 mm long tapered jaws with a tip width of only 3.0 mm and cut hard wire up to 2.2 mm dia. at the same time.

Benefits

  • Half-round, long, tapered jaws of 73.0 mm length, the pliers reach places where short jaws no longer grip.
  • Distortion-tolerant, elastic precision tips with 3.0 mm tip width and 2.5 mm tip thickness, they spring back instead of bending.
  • Suitable for finer gripping and cutting work, also in easy and semi-difficult to reach areas.
  • Cutting edges for soft, medium hard and hard wire, medium hard wire up to 3.2 mm dia. and hard wire up to 2.2 mm dia.
  • Cutting edges additionally induction-hardened, cutting edge hardness approx. 61 HRC for a long service life.
  • Comfort handles made of three ergonomic components with two KNIPEXtend interfaces for extensions.

Areas of use

Electronics and fine mechanics, control cabinet building, model making, assembly and maintenance in places that are hard to see into. The long jaws save a second tool there, because gripping and cutting sit in one pair of pliers.

Standards and conformity

According to the manufacturer the pliers comply with DIN ISO 5745. The manufacturer states that they contain no substances of very high concern under REACH. The RoHS directive does not apply.

Technical data

EAN4003773035039
Plierschrome-plated
Headchrome-plated
Handleswith comfort handles
Weight199 g
Dimensions200 x 53 x 20 mm
StandardDIN ISO 5745
Cutting capacity medium hard wire (diameter)3.2 mm
Cutting capacity hard wire (diameter)2.2 mm
Jaw thickness (at the joint) (T1)9.5 mm
Tip width (W4)3.0 mm
Tip thickness (T2)2.5 mm
Gripping surface length (L4)23.0 mm
Jaw length (L3)73.0 mm
Head width (W3)18 mm
REACH conformitycontains no SVHC
RoHS conformitynot applicable
ManufacturerKnipex
Manufacturer Nr.26 25 200
HS-Code82032000
GPSR manufacturer informationKNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de
Condition of articleNew
Article authenticityOriginal product
Country of ManufactureGermany
Height20 mm
Width53 mm
NormDIN ISO 5745
Overall length [mm]200

Downloads

Accessories

Videos

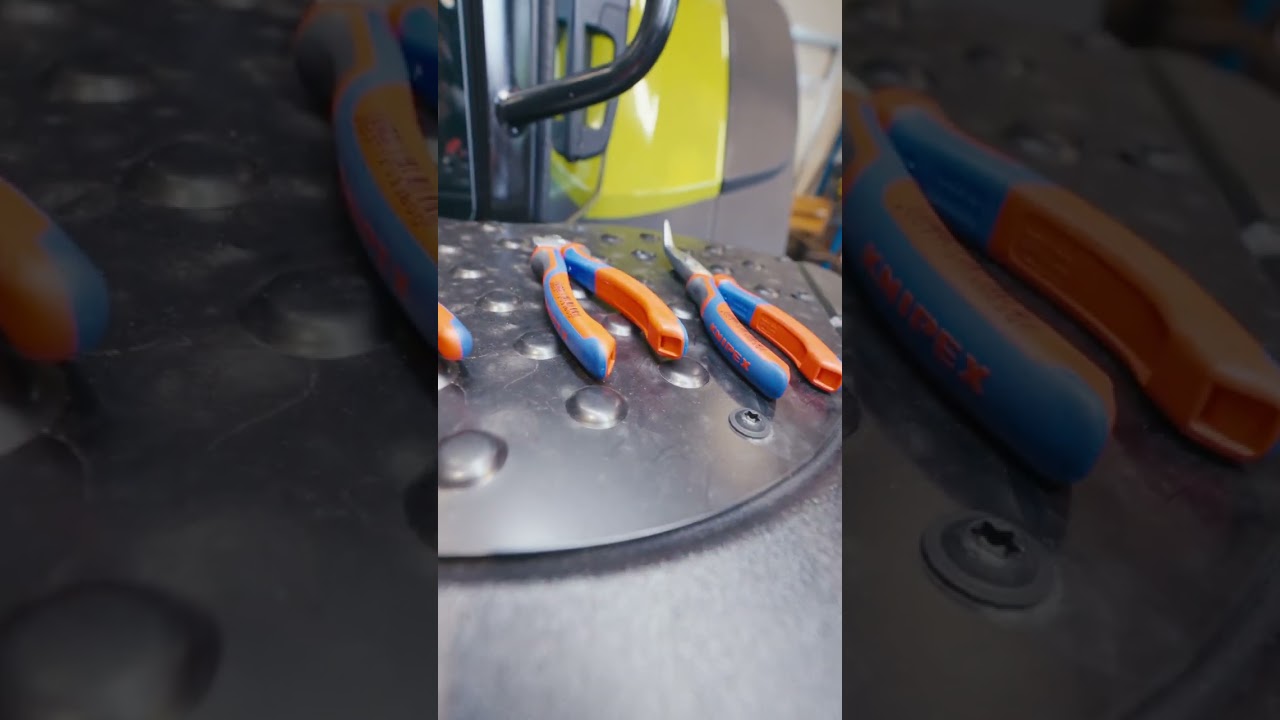

KNIPEX Flachrundzange mit Schneide 26 25 200 und der KNIPEX Electronic Super Knips® XL 78 03 140
KNIPEX Flachrundzange mit Schneide 26 25 200
