Images are examples, some edited with AI. The technical data are authoritative. AI notice

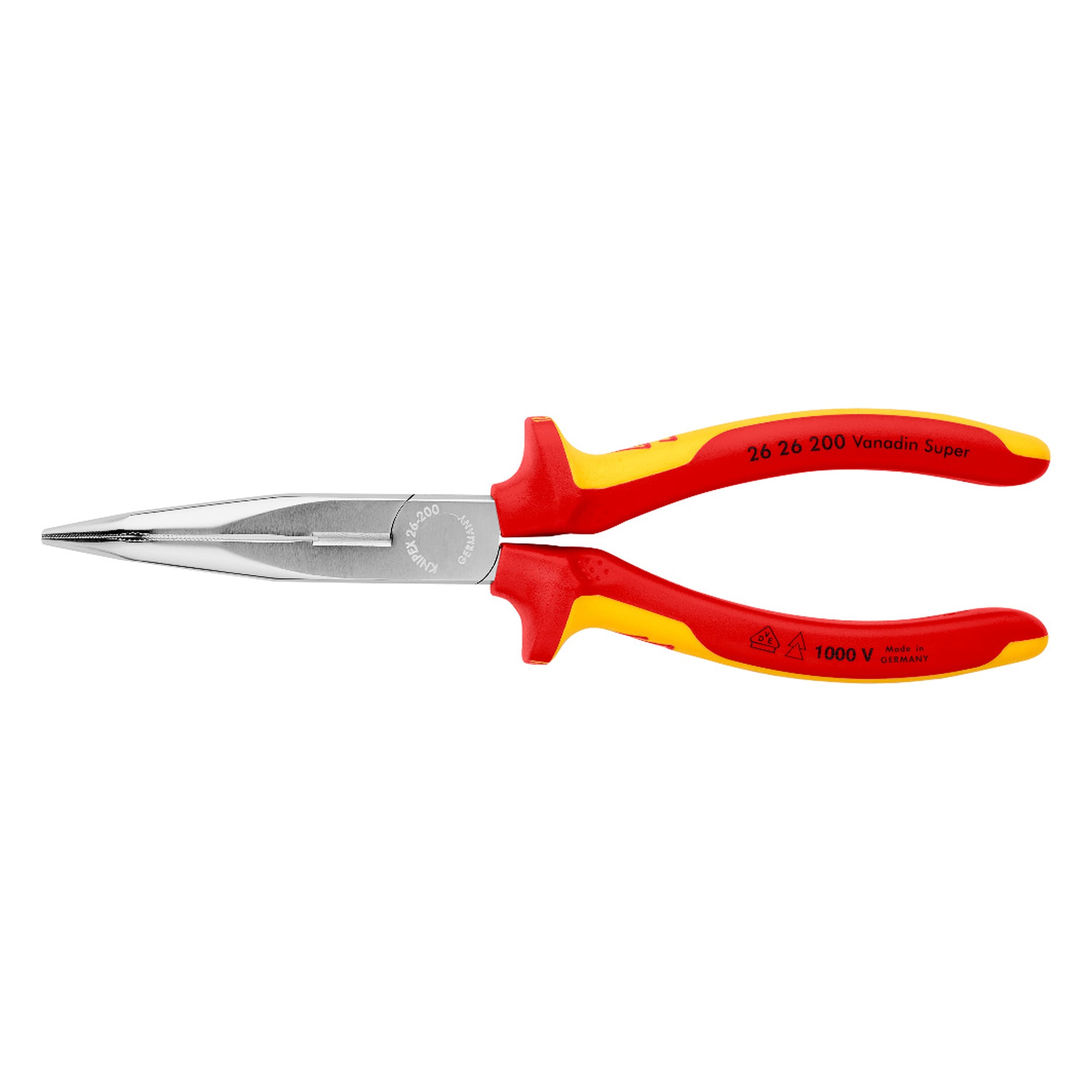

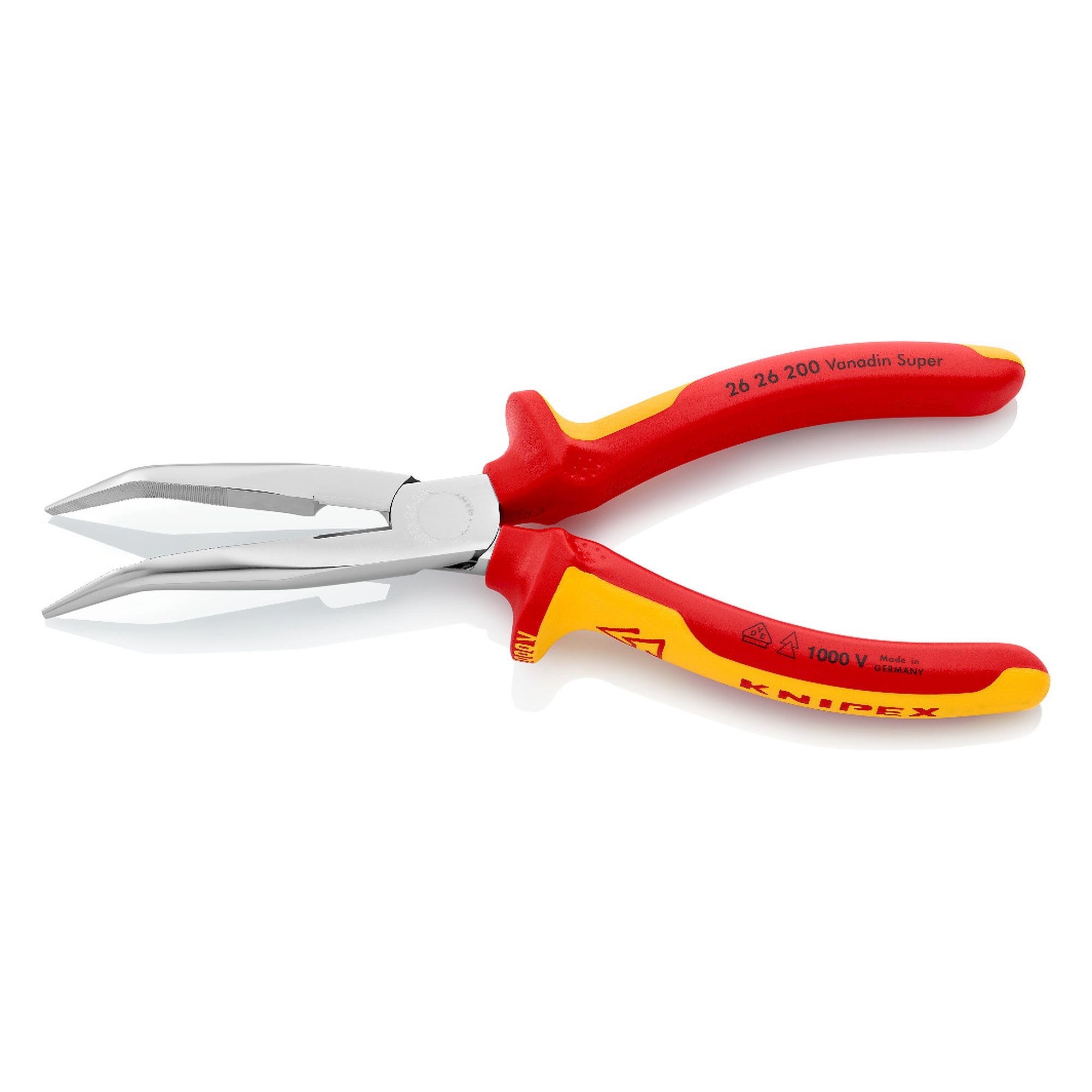

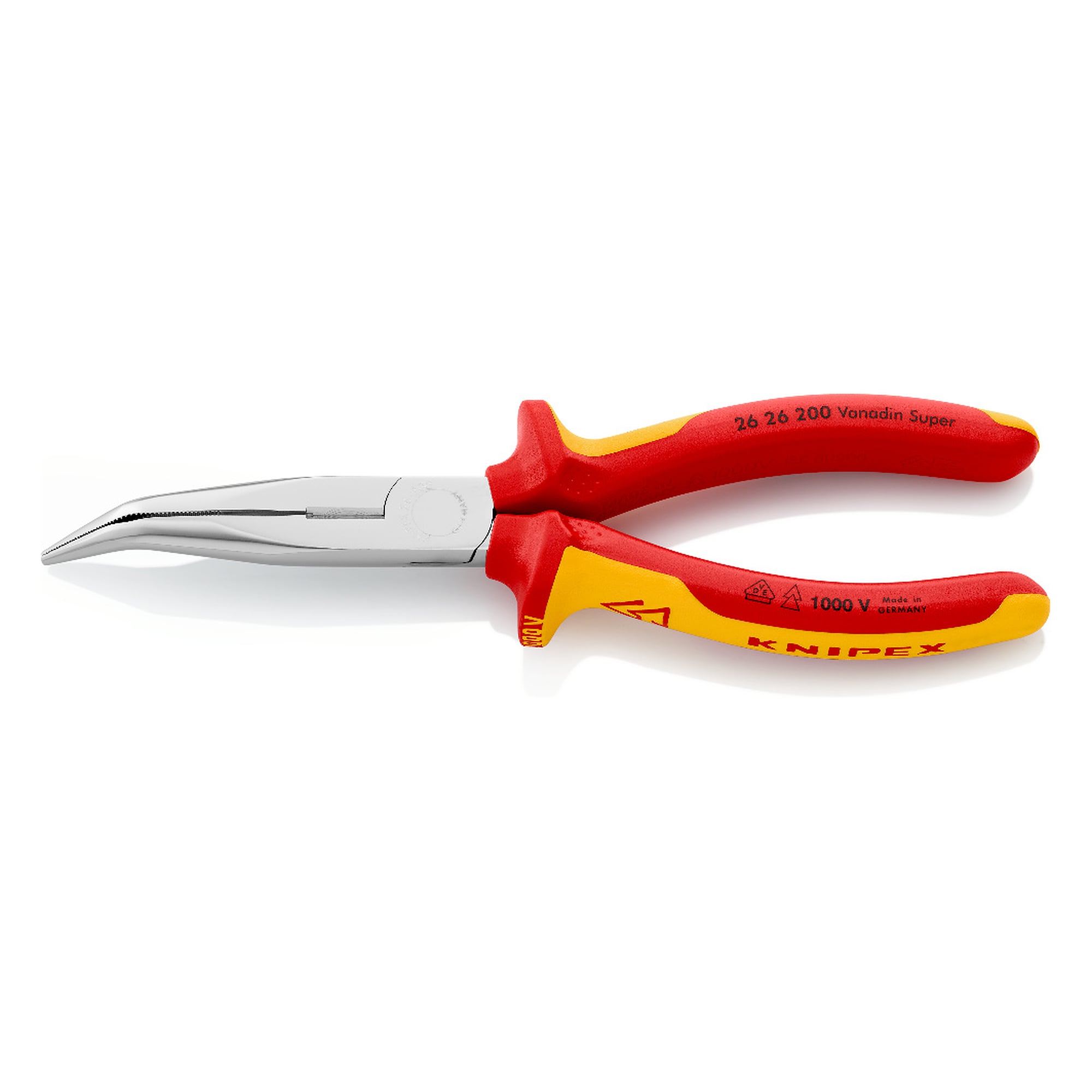

Snipe nose side cutting pliers (stork beak pliers), VDE insulated, chrome-plated, 200 mm - Knipex 26 26 200
Snipe nose side cutting pliers for finer gripping and cutting work in easy and semi-difficult to reach areas, jaw length 73.0 mm, tip width 3.0 mm. The induction-hardened cutting edges of about 61 HRC cut medium-hard wire up to Ø 3.2 mm and hard wire up to Ø 2.2 mm. VDE tested handles to IEC 60900, 200 mm long at 204 g.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
In cramped control cabinets, gripping and cutting rarely fit into one hand at the same time. The 26 26 200 snipe nose side cutting pliers handle both with 73.0 mm long tapered jaws and cutting edges for medium-hard wire up to Ø 3.2 mm, insulated for live working.
Benefits
- Half-round, long, tapered jaws with a jaw length of 73.0 mm reach into semi-difficult areas.
- Distortion-tolerant, elastic precision tips, 3.0 mm wide and 2.5 mm thick, hold small parts securely.
- Cutting edges for soft, medium-hard and hard wire, medium-hard up to Ø 3.2 mm, hard up to Ø 2.2 mm.
- Cutting edges additionally induction-hardened to about 61 HRC, so the edges last longer.
- Handles insulated with multi-component grips and VDE tested to DIN EN 60900 and IEC 60900.
- Chrome-plated pliers and head, and at 204 g the tool stays easy to handle over long shifts.
Areas of use
Electrical installation, control cabinet and control system building, fine assembly and maintenance on live equipment. Wherever cores and thin wires have to be gripped, bent and cut to length in one operation.
Standards and conformity
The manufacturer states DIN ISO 5745 for the pliers and DIN EN 60900 together with IEC 60900 for insulated hand tools. According to the manufacturer the tool contains no substances of very high concern under REACH, and the RoHS directive does not apply.
Technical data
| EAN | 4003773022855 |
|---|---|
| Pliers | chrome-plated |
| Head | chrome-plated |
| Handles | insulated with multi-component grips, VDE tested |
| Weight | 204 g |
| Dimensions | 200 x 56 x 19 mm |
| Standard | DIN ISO 5745, DIN EN 60900, IEC 60900 |
| Cutting capacity medium-hard wire (diameter) | Ø 3.2 mm |
| Cutting capacity hard wire (diameter) | Ø 2.2 mm |

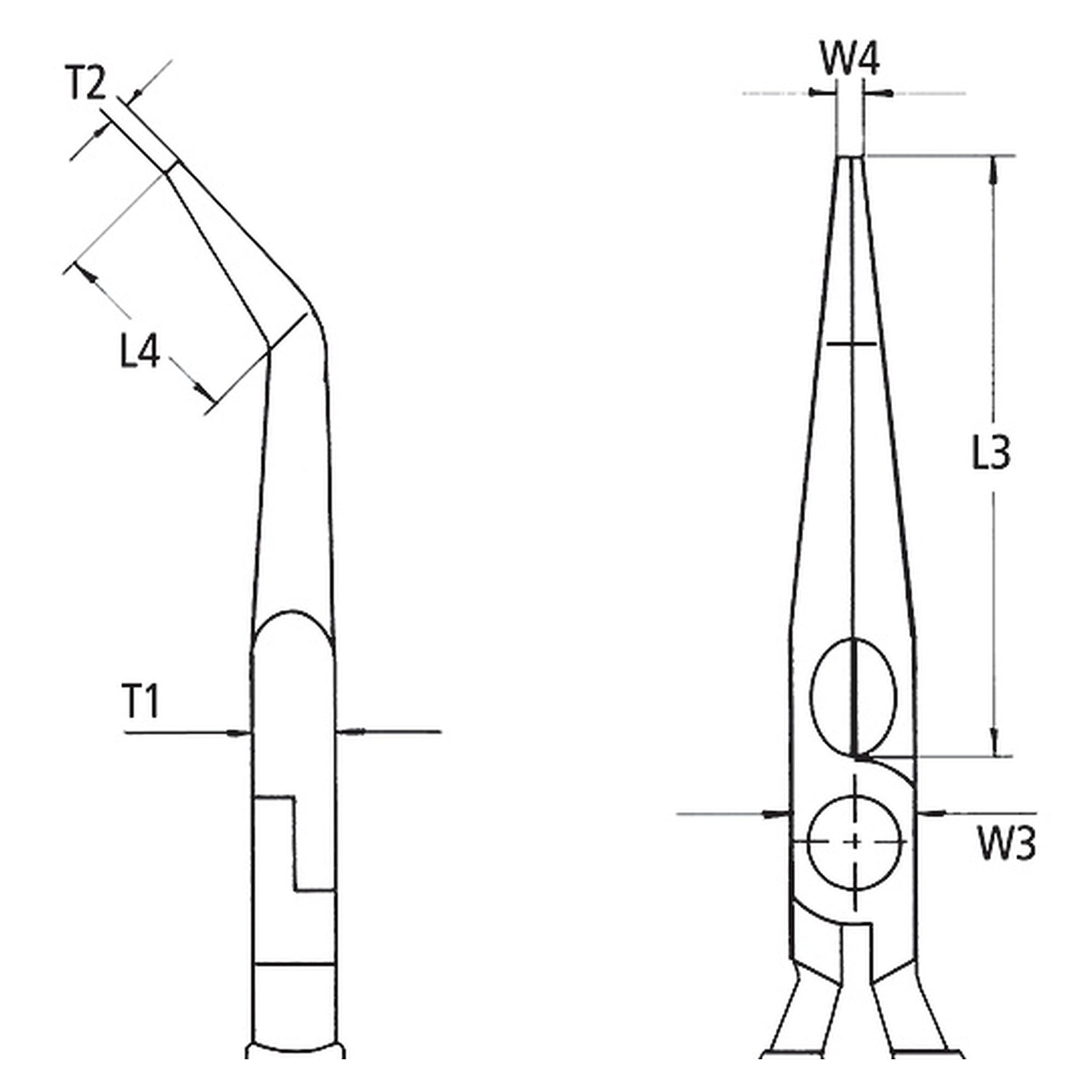

| Jaw thickness at the joint (T1) | 9.5 mm |
| Tip width (W4) | 3.0 mm |
| Tip thickness (T2) | 2.5 mm |
| Gripping surface length (L4) | 23.0 mm |
| Jaw length (L3) | 73.0 mm |
| Head width (W3) | 18 mm |
| VDE tested | yes |
| REACH conformity | contains no SVHC |
| RoHS conformity | not applicable |
| Manufacturer | Knipex |
| Manufacturer Nr. | 26 26 200 |
| GPSR manufacturer information | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
| Condition of article | New |
| Article authenticity | Original product |
| Height | 19 mm |
| Width | 56 mm |
| Norm | DIN EN IEC 60900, DIN ISO 5745 |
| Certification | IEC 60900 |
| Overall length [mm] | 200 |
