ESD walking test kit WT5000 with USB and evaluation software - Warmbier 7100.WT5000.B
Complete walking-test kit for measuring and graphing body charge to DIN EN 61340-4-5. The Digilloscope software automatically marks the five highest peak values and calculates the mean.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

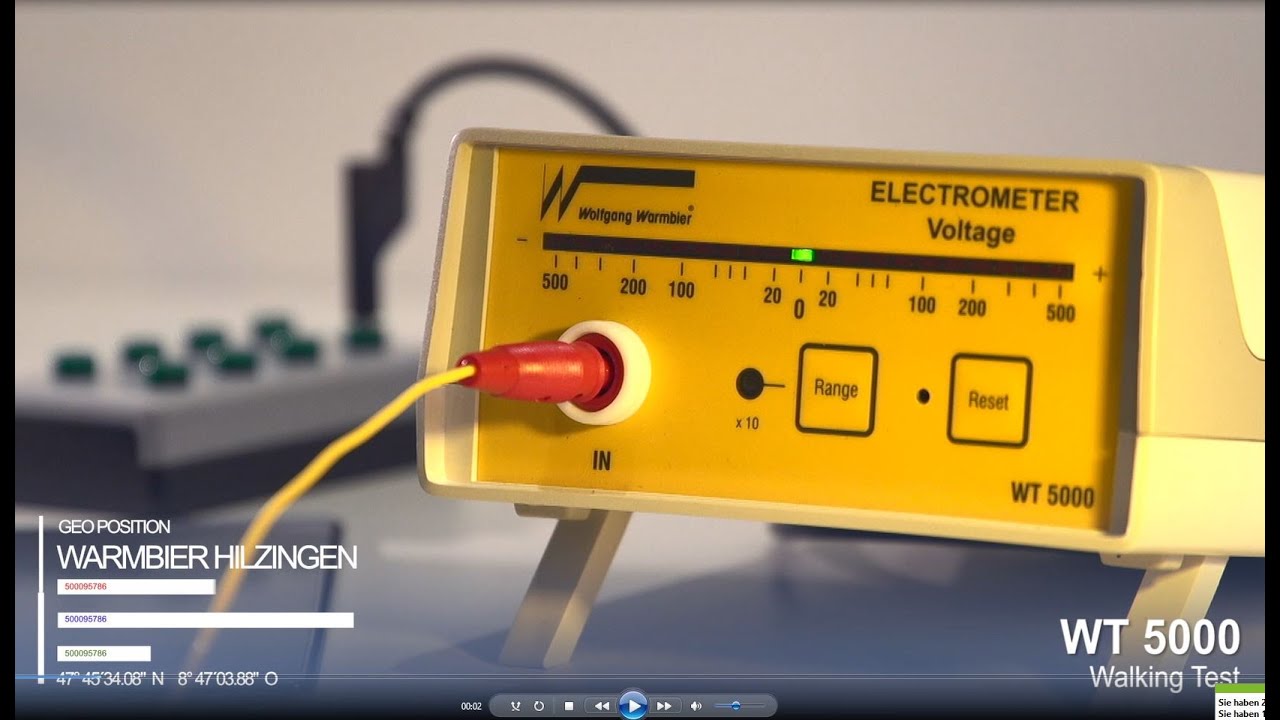

The Warmbier WT5000 ESD walking test kit is used mainly to measure body charge and display it graphically. The Digilloscope evaluation software automatically marks the five highest peak values and calculates the mean, so you can check whether footwear and flooring ground a person sufficiently inside the EPA.
Benefits
- Logarithmic LED display plus/minus 500 V switchable to plus/minus 5000 V with peak-hold function
- Fast response time and high input impedance for accurate charge measurement
- Digilloscope evaluation software for Windows included
- Powered by rechargeable battery or via the USB interface
Applications
Used to verify personnel grounding at ESD workplaces in electronics manufacturing, laboratories and repair shops.
Standards and compliance
Complies with DIN EN 61340-4-5.
Technical data
| Measuring range | plus/minus 5000 V or plus/minus 500 V |
|---|---|
| Accuracy | 5 % |
| Input impedance | greater than 10 to the 14th Ohm |
| Input capacitance | less than 5 pF |
| Input resistance | 10 MOhm |
| Response time | less than or equal to 10 ms |
| Output | analogue plus/minus 5 V DC per range |
| Resolution | 12 bit, maximum sampling rate 10 kHz |
| Interface | USB 2.0 / USB 1.1 |
| Power | battery operation (charger included) or USB |
| Weight | 2.76 kg |
| Manufacturer | Warmbier |
| Manufacturer Nr. | 7100.WT5000.B |
| EAN | 4052339012533 |
| HS-Code | 90303200 |
| GPSR manufacturer information | Wolfgang WARMBIER Untere Gießwiesen 21 DE-78247 Hilzingen www.warmbier.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Sales unit | 1 Stück |
| ESD version | ESD (antistatic) |
| Certification | IEC 61340-4-5 |
Scope of delivery

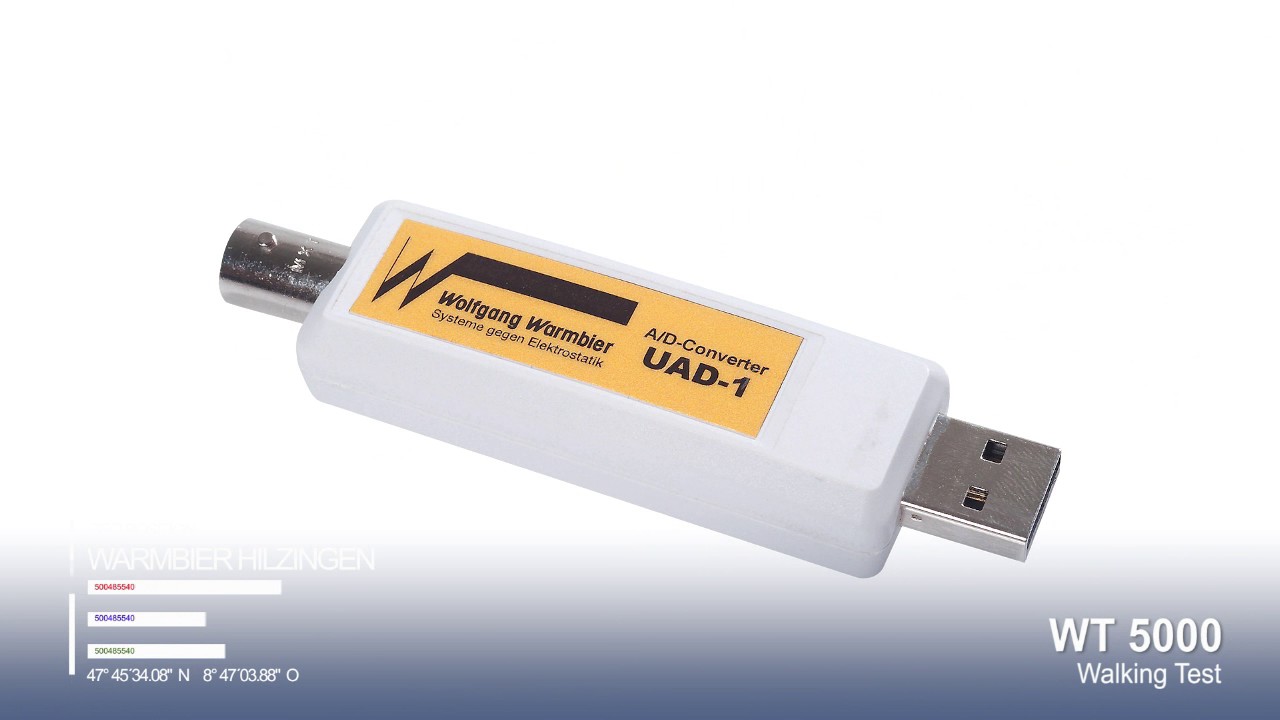

- WT5000 electrometer, A/D converter
- Digilloscope measuring software on CD-ROM

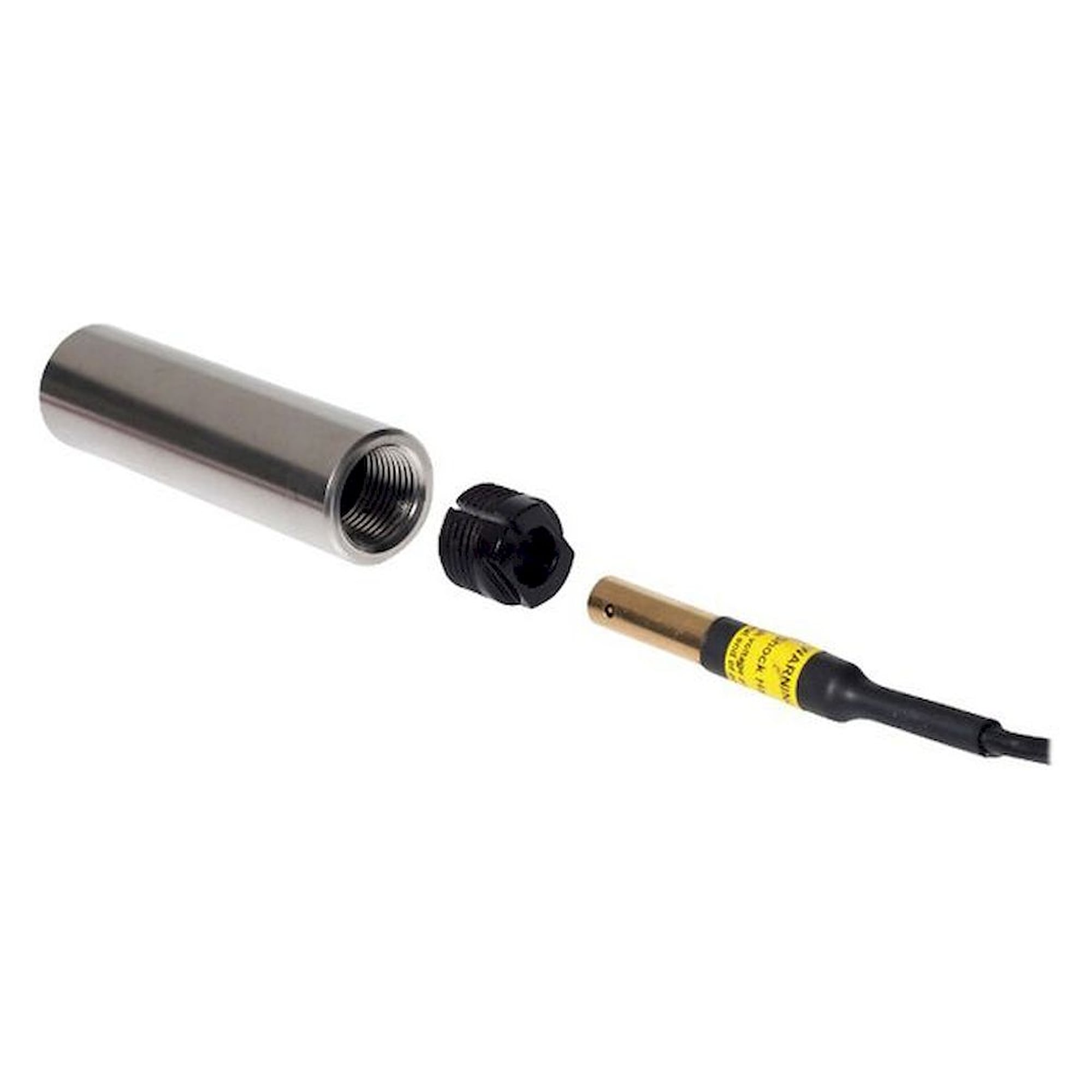

- batteries, plug-in power supply, hand electrode
- measuring leads and connectors
- conductive carrying case, user manual, factory calibration certificate
