Multifunctional 3-channel rework station with 600 W total power and intelligent power management for soldering, desoldering and hot air. Two integrated pumps make it independent of external compressed air.
3-channel rework station WXR 3030, 600 W, soldering desoldering hot air - Weller WXR 3030
WELLER
Original product
Net price (excl. VAT)
€3,638.82
Item
WL34966
Manufacturer no.
T0053501699N
ESD · IEC 61340-5-1
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.T0053501699N
Country of originGermany
Customs tariff number85151990000
ConditionNew
Article
WL34966
Frequently Bought Together
-
This Item:
€3,638.82
-

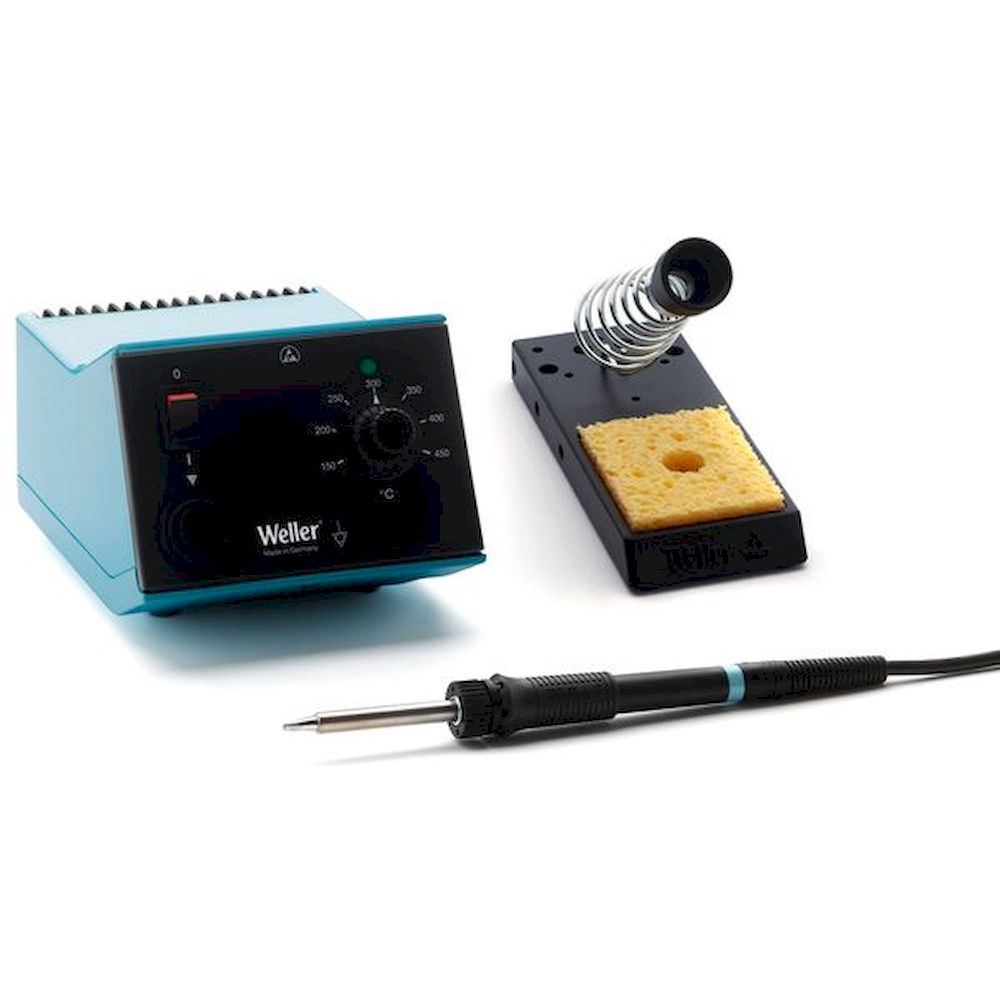

Analogue soldering station set 80 W, 150-450 C - Weller WS 81
€348.89
-

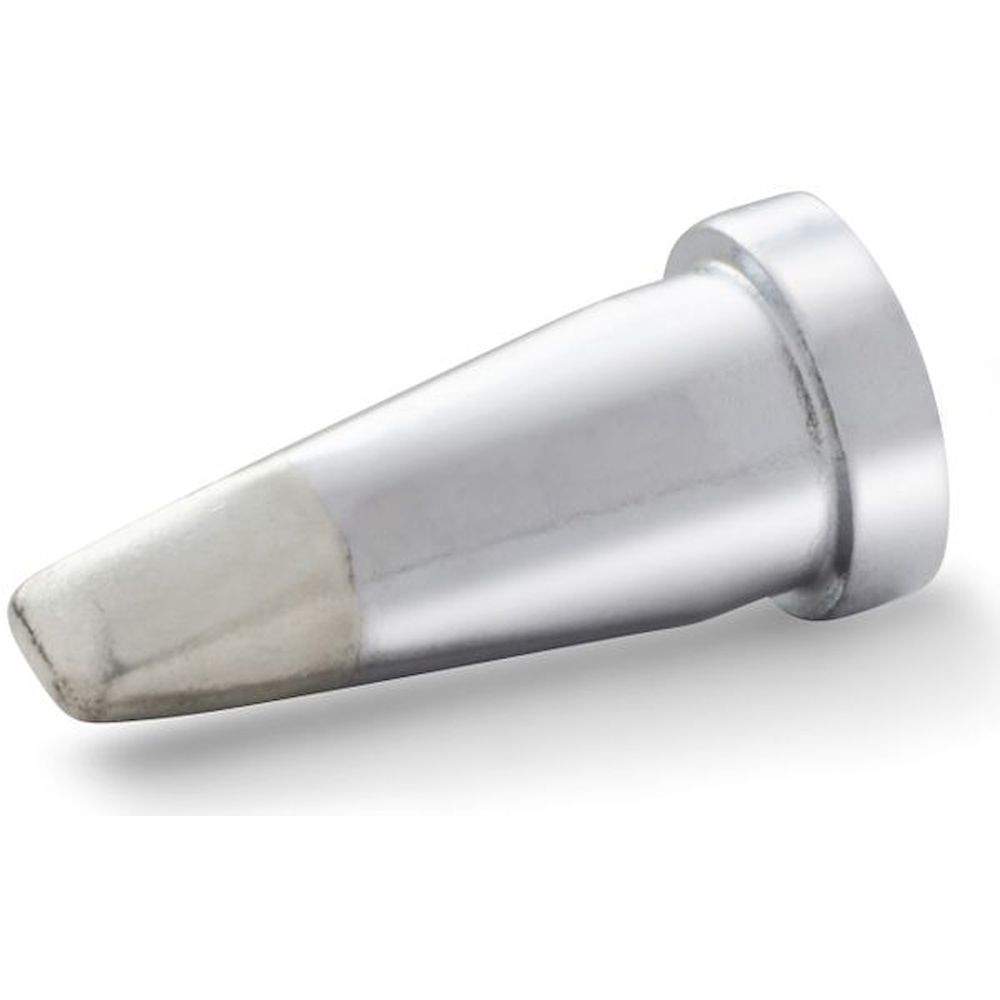

Soldering tip LT B chisel, 2.4x0.8 mm - Weller LT B
€6.30
Total price
The WXR 3030 is a multifunctional 3-channel rework station combining soldering, desoldering and hot air in one system. With 600 W total power (3 channels of 200 W each) and intelligent power management it distributes the available power to the connected WX tools as required, so high-performance tools can run simultaneously.
Benefits
- 600 W total power across 3 channels for demanding rework
- Intelligent power management distributes power on demand
- Two integrated pumps, independent of external compressed air
- Integrates into traceability processes, USB interface for firmware, parameterization and monitoring
- Backlit LCD (240 x 88 px) shows all connected tools
- IPC compliant, WX compatible
Technical data
| Model | WXR 3030 |
| Model line | WXR 3 |
| Manufacturer item no. | T0053501699N |
| Total power | 600 W (3 x 200 W) |
| Number of channels | 3 |
| Temperature range | 100-450°C / 200-850°F |
| Temperature stability | ±2°C |
| Vacuum | max. 0.7 bar |
| Max. hot air volume | 15 l/min (tool dependent) |
| Flow rate | 18 l/min |
| Display | 240 x 88 px, backlit |
| Overcurrent release | 2.0 A |
| Dimensions (LxWxH) | 273 x 235 x 102 mm |
Applications
Complete rework on populated PCBs in manufacturing, repair and lab: soldering, desoldering and hot air at one workstation.
Scope of supply & compatibility
Supplied with: WXR 3 supply unit (420 W), WXHAP 200 hot air iron set, WXDP 120 desoldering iron set (horizontal), WXP 65 soldering iron set, WVP vacuum pipette and PDN desoldering nozzle pliers. All WX tools can be connected.
ESD-safe and IPC compliant to IEC 61340-5-1. Origin: Germany.
| Certification | IEC 61340-5-1 |
|---|---|
| ESD version | ESD (antistatic) |
| Manufacturer Nr. | T0053501699N |
| Manufacturer | Weller |
| Country of Manufacture | Germany |
| Weight | 0.100000 |
| HS-Code | 85151990000 |
| GPSR manufacturer information | WELLER Tools GmbH Carl-Benz-Strasse 2 DE-74354 Besigheim www.weller.eu |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
