A point source does not need a large hood, it needs high capture velocity right where the fume forms. This suction slot with 100 mm width and 50 mm tube diameter delivers exactly that, and the internal distributor pipe keeps the draw even across the whole slot. The red version makes it easy to colour-code workstations or processes.
Suction slot 100 mm DN50 red - Alsident 1-5010-4
ALSIDENT
Original product
Net price (excl. VAT)
€168.20
Item
WL42325
Manufacturer no.
1-5010-4
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.1-5010-4
ConditionNew
Article
WL42325
Frequently Bought Together
-
This Item:
€168.20
-

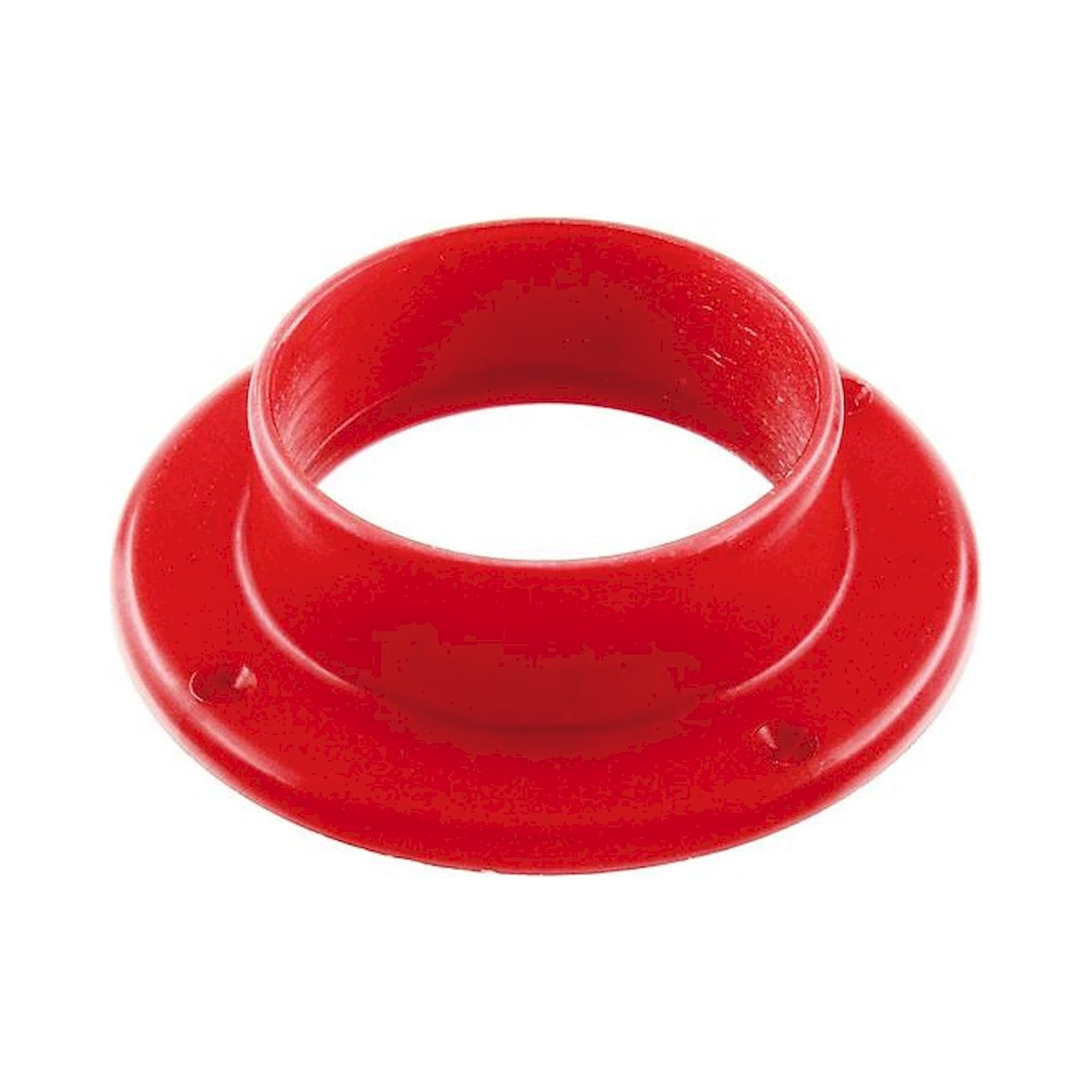

Flange for console DN50, Ø50 mm, polypropylene, red - Alsident 4-50-13-2-4
€25.62
-
Base box ceiling mounting 1250 mm DN 50/63/75 side connection - Alsident 2-1250-80
€538.45
Total price
At soldering benches, dispensing stations and laboratory processes with a narrow source, a suction slot captures more per m³ of airflow than a wide hood. This 100 mm version in red fits extraction arms of the Alsident System 50 with a 50 mm tube diameter.
Benefits
- Suction gap for concentrated sources of contamination with high capture velocity at the point of origin
- Internal distributor pipe for even extraction across the full 100 mm width
- Tube and suction gap in anodised aluminium with 10μ layer thickness
- Alternatively impact-resistant, chemically resistant polypropylene for use with solvent vapour
- Red finish for colour-coding processes or work areas
Technical data
| Item number | WL42325 |
| Model | 1-5010-4 |
| Manufacturer | Alsident |
| Manufacturer item number | 1-5010-4 |
| Width | 100 mm |
| Tube diameter | 50 mm |
| Colour | red |
| Material | Tube and suction gap in anodised aluminium with 10μ layer thickness, or impact-resistant chemically resistant polypropylene |
| Order unit | piece |
Applications
The slot is used at hand soldering and rework benches, bonding and dispensing stations, solvent cleaning work and laboratory or test positions with a fixed emission source.
Compatibility and scope of delivery
Fits Alsident System 50 extraction arms with a 50 mm tube diameter. One suction slot is supplied per order unit, without the extraction arm. For ESD protected areas the conductive black version is intended.
| Manufacturer Nr. | 1-5010-4 |
|---|---|
| Manufacturer | Alsident |
| Weight | 0.100000 |
| Colour | Red |
| GPSR manufacturer information | Alsident system A/S Finlandsvej 10 DK-8450 Hammel www.alsident.com |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
