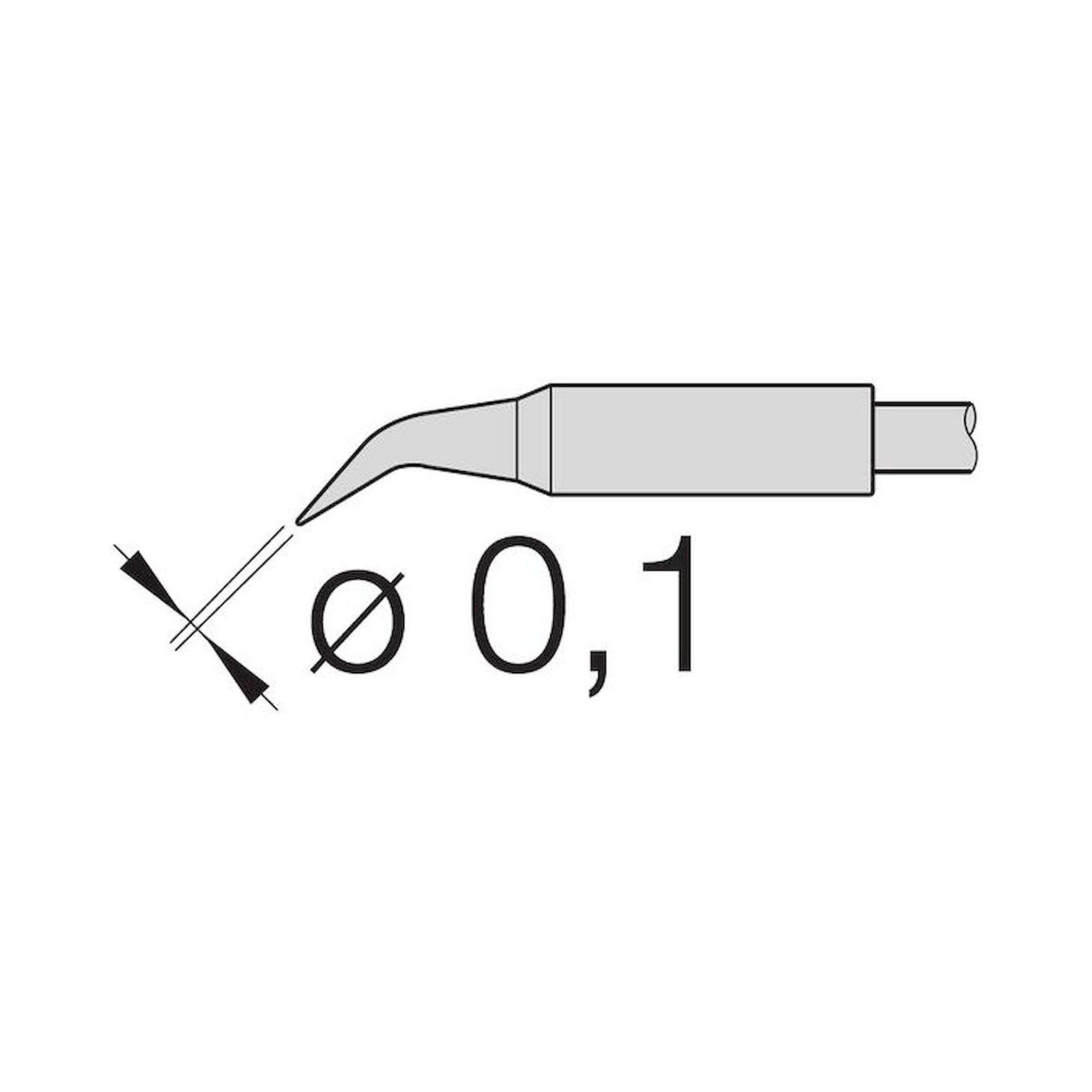

Bent conical soldering tip, 0.1 mm, for Nano handpieces - JBC C115-118
Bent conical soldering tip of the C115 series with an extremely fine 0.1 mm diameter and 4.5 mm tip length for the finest soldering work. Fits the Nano handpieces NT115-A, NP115-A and AN115-A.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
When soldering the smallest components and finest structures, a very slim tip is decisive. The bent conical JBC C115-118 soldering tip, just 0.1 mm in diameter, is designed for the finest solder joints in microelectronics.
Benefits
- Extremely fine 0.1 mm diameter for the finest solder joints
- Bent conical shape for good visibility and access
- Compact 4.5 mm tip length for high thermal stability
- Compatible with the Nano handpieces NT115-A, NP115-A and AN115-A
- Fast heat-up and even heat transfer thanks to the JBC tip concept
Applications
Soldering and repairing the finest components in microelectronics, rework on the smallest SMD parts and solder joints.
Compatibility and scope of delivery
Suitable for the JBC Nano soldering handpieces NT115-A, NP115-A and AN115-A. Supplied as a single tip (1 piece).
ESD-safe to IEC 61340-5-1. Manufactured by JBC, Spain.
Technical data
| Item no. | WL44725 |
|---|---|
| Model | C115-118 |
| Manufacturer | JBC |
| Manufacturer item no. | C115118 |
| Tip series | C115 |
| Tip shape | conical |
| Tip alignment | bent |
| Tip diameter | 0.1 mm |
| Tip length | 4.5 mm |
| Suitable handpiece | NT115-A, NP115-A, AN115-A |
| Order unit | piece |
| Weight | 0.1 kg |
| Manufacturer Nr. | C115118 |
| HS-Code | 85159080 |
| GPSR manufacturer information | JBC Soldering SL, Ramón y Cajal 3, ES-08750 Molins De Rei, www.jbctools.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Spain |
| ESD version | ESD (antistatic) |
| Certification | IEC 61340-5-1 |
| Tip diameter/width [mm] | 0.1 |
| Soldering tip shape | konisch |
| Series | C115 |
