High leverage combination pliers 200 mm long that needs about 35% less hand force than a conventional combination pliers thanks to the optimised leverage. The induction-hardened cutting edges of approx. 63 HRC cut hard wire up to Ø 2.8 mm, piano wire up to Ø 2.2 mm and multi-stranded copper cable up to 25.0 mm². The handles are insulated with multi-component grips and tested to DIN EN 60900 and IEC 60900 for work up to 1000 V.

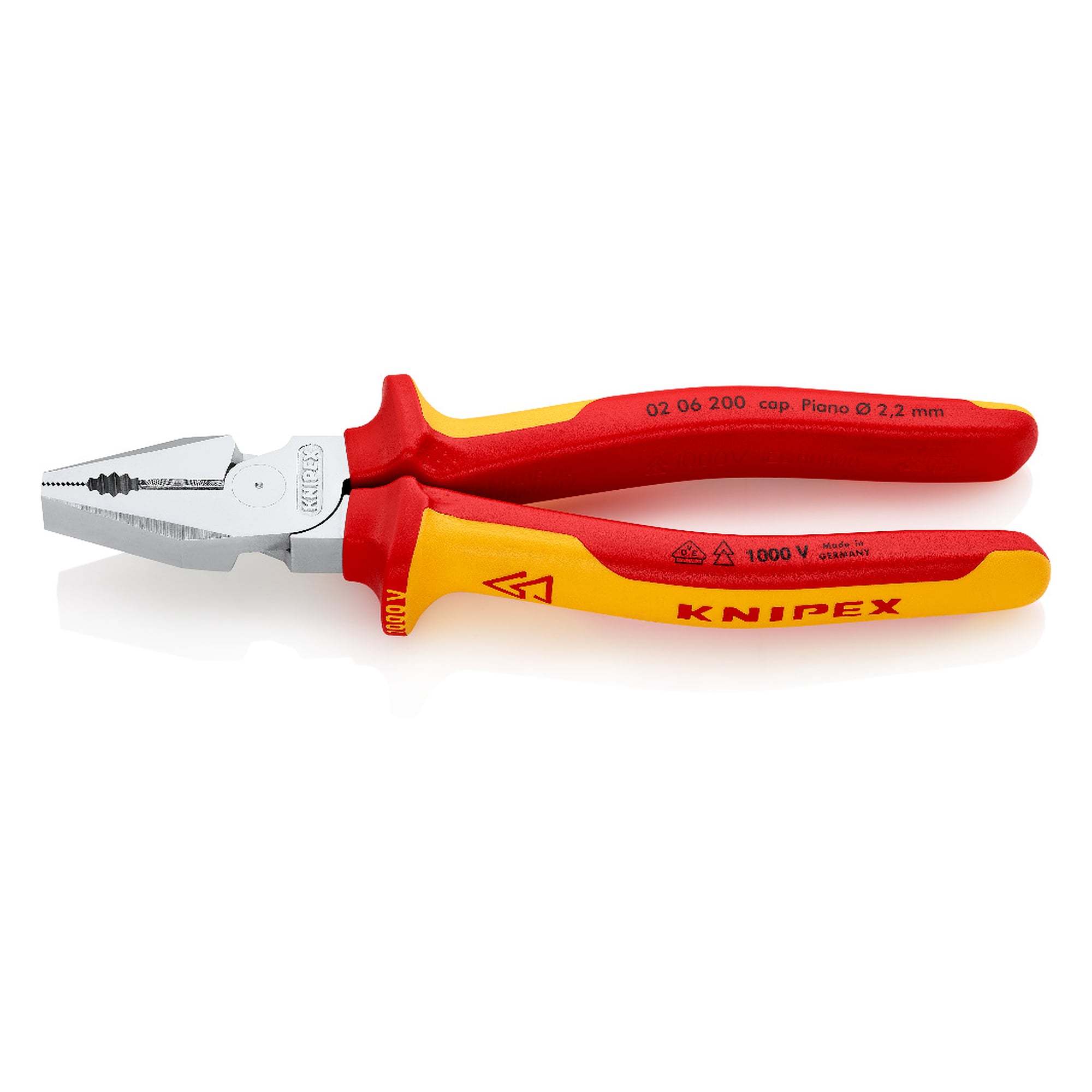

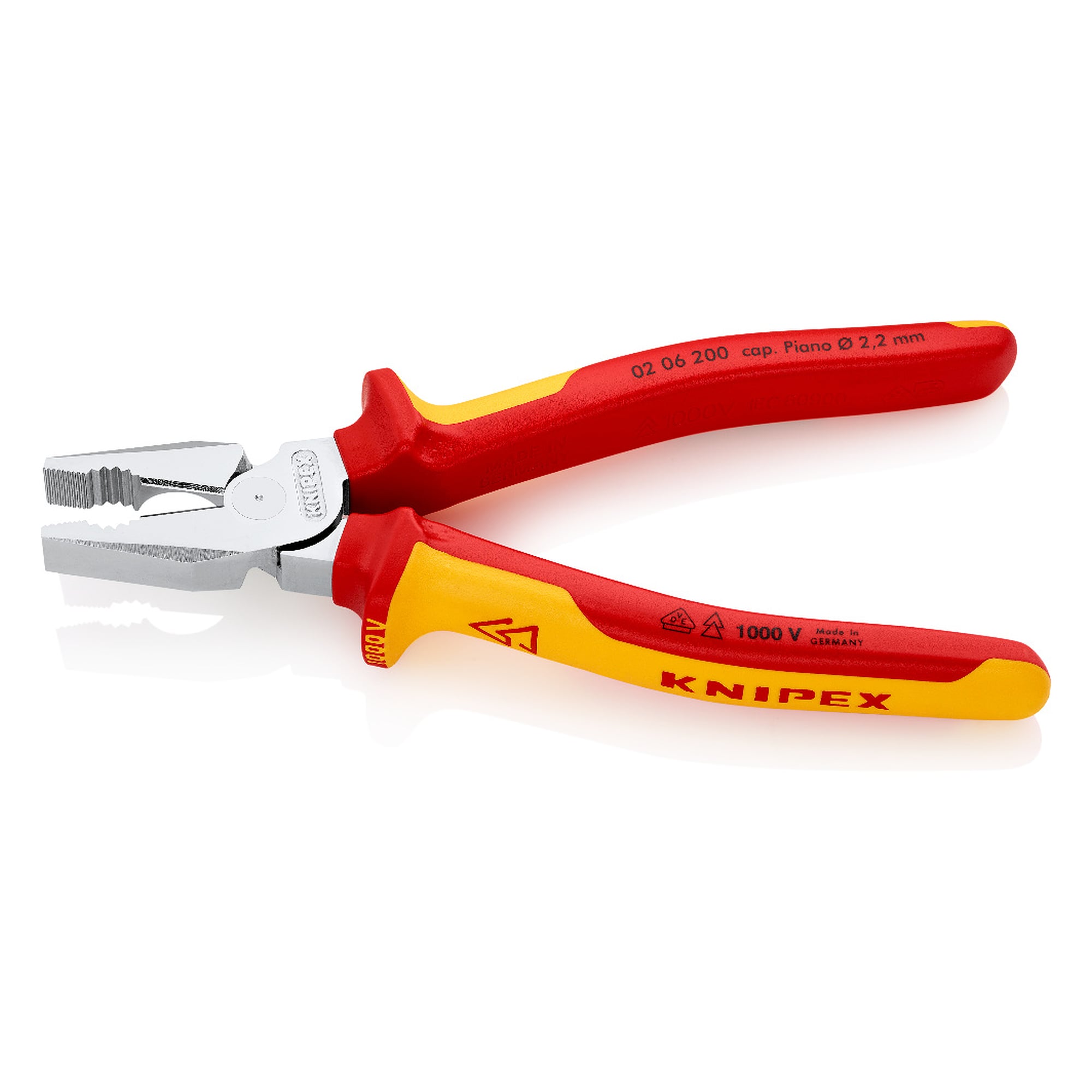

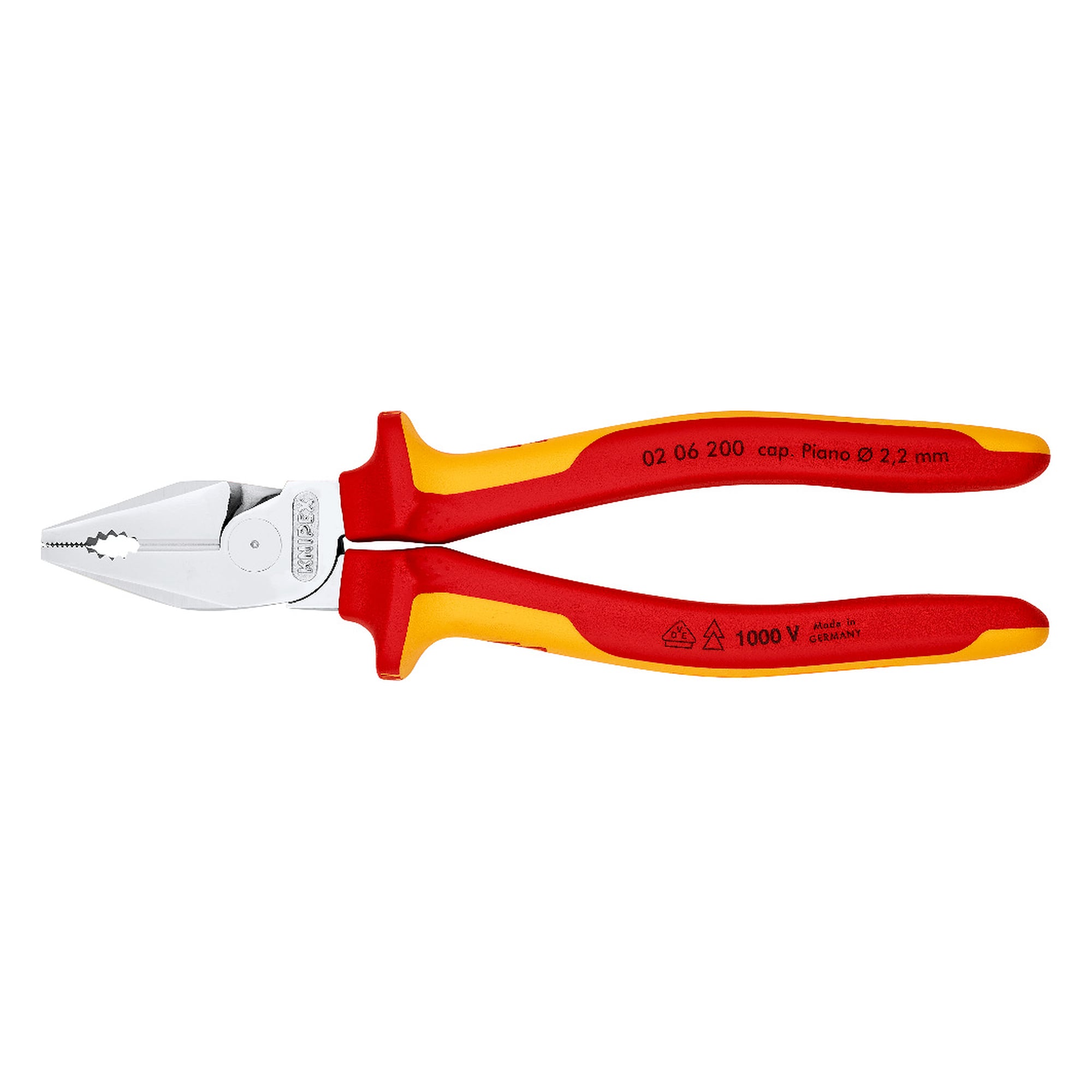

High leverage combination pliers, VDE insulated to 1000 V, cutting edges 63 HRC, 200 mm - Knipex 02 06 200
KNIPEX
Original product
Net price (excl. VAT)
€30.61
Item
WL61279
Manufacturer no.
02 06 200
1000 V · IEC 60900
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.02 06 200
EAN4003773010029
ConditionNew
Article
WL61279
Frequently Bought Together
Anyone who grips, bends and cuts all day in electrical work and assembly feels every unnecessary movement. The high leverage combination pliers 02 06 200 works with optimised leverage and therefore needs about 35% less force than a conventional combination pliers, at 200 mm length and 343 g weight.
Benefits
- 35% less effort than with conventional combination pliers thanks to the optimised leverage, which spares the hand during many cuts in a row.
- Cutting edges additionally induction-hardened to approx. 63 HRC, so hard wire up to Ø 2.8 mm and piano wire up to Ø 2.2 mm are cut cleanly.

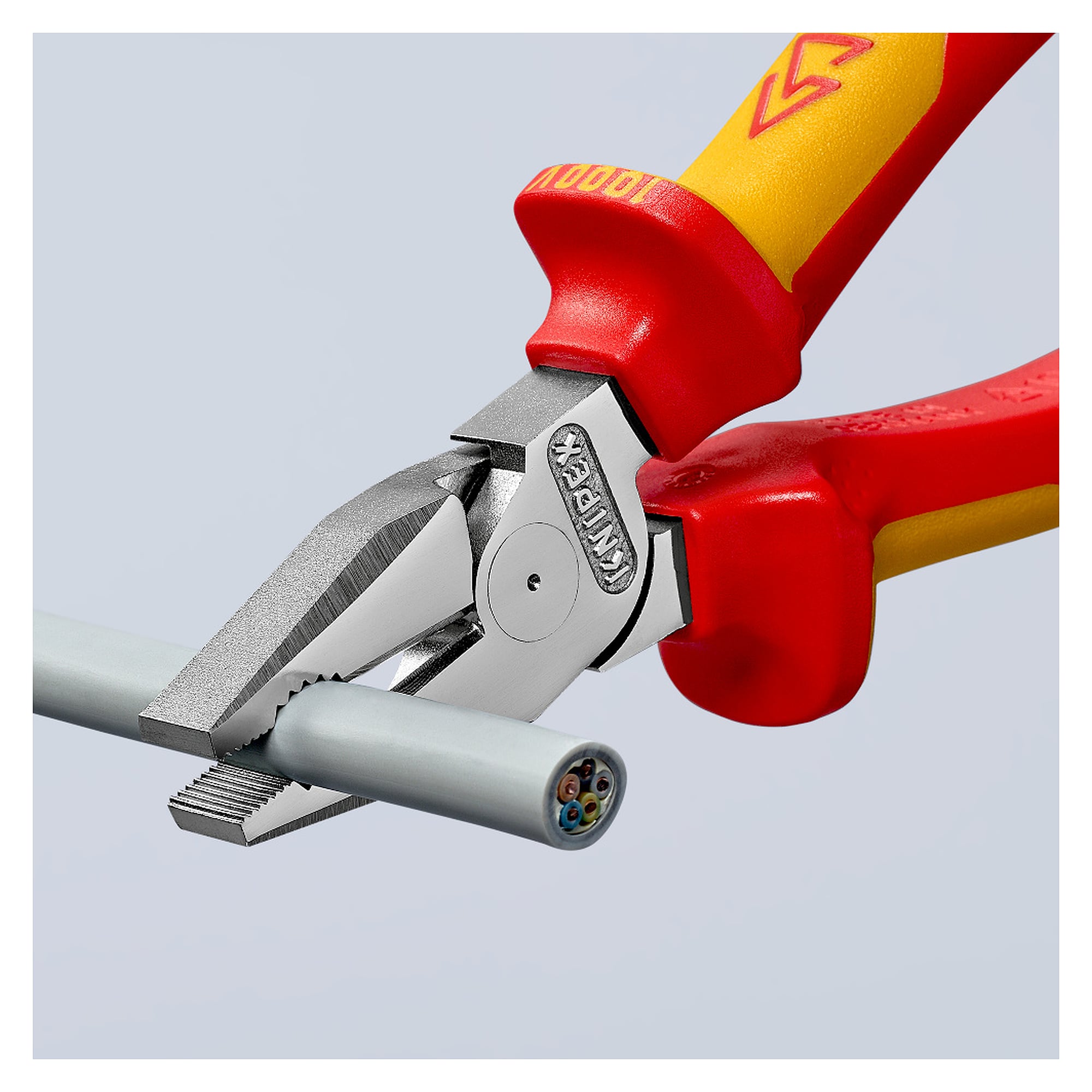

- Long cutting edges for thicker cables, multi-stranded copper cable up to 25.0 mm² is cut in one stroke.
- Gripping zones for flat and round material, so the same tool grips, bends and pulls.
- Precise, minimal light gap between the gripping jaws, which ensures the optimal function of the cutting edges.
- Handles insulated with multi-component grips and tested to DIN EN 60900 and IEC 60900, so work on live parts up to 1000 V is possible.
- Chrome-plated pliers and head, which keeps the surface clean in rough site conditions.
Technical data
| EAN | 4003773010029 |
|---|---|
| Pliers | chrome-plated |
| Head | chrome-plated |
| Handles | insulated with multi-component grips, VDE tested |
| Weight | 343 g |
| Dimensions | 200 x 55 x 20 mm |
| Cutting capacity hard wire (diameter) | Ø 2.8 mm |
| Cutting capacity piano wire (diameter) | Ø 2.2 mm |
| Cutting capacity multi-stranded copper cable | 25.0 mm² |
| VDE tested | yes |
| Standard | DIN ISO 5746 DIN EN 60900 IEC 60900 |
| REACH conformity | contains no SVHC |
| RoHS conformity | not applicable |
Areas of use
Electrical installation, switchgear and control cabinet building and maintenance work where live parts up to 1000 V are handled.
Standards and conformity
The pliers meet DIN ISO 5746 for combination pliers and are tested to DIN EN 60900 and IEC 60900 for live working up to 1000 V. According to the manufacturer they contain no substances of very high concern under REACH, the RoHS directive does not apply.
| Norm | DIN EN IEC 60900, DIN ISO 5746 |
|---|---|
| Certification | IEC 60900 |
| Manufacturer Nr. | 02 06 200 |
| Manufacturer | Knipex |
| EAN | 4003773010029 |
| Weight | 0.343000 |
| Height | 20 mm |
| Width | 55 mm |
| GPSR manufacturer information | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
| Article authenticity | Original product |
| Condition of article | New |
| Overall length [mm] | 200.000000 |
