Other versions
| item number | tether attachment point |
| WL61353 | ja |
| WL61354 | nein |

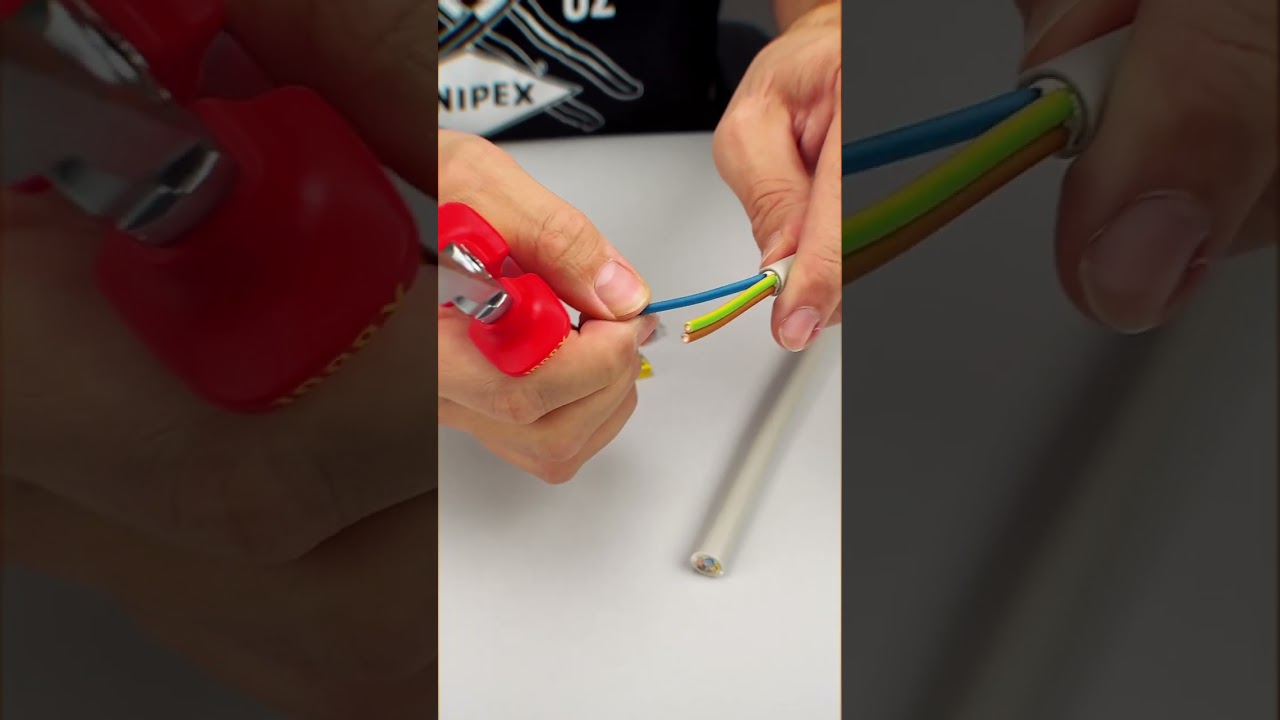

KNIPEX StriX® wire strippers with cable shears - two indispensable tools for electrical installation in one pair of pliers. Integrated cable shears for clean, crush-free cutting of Cu and Al cables. Cutting edges additionally induction hardened, cutting edge hardness approx. 57 HRC. Universal adjustment of the stripping blades by means of a knurled screw. Slim design for good accessibility. Stripping of solid, stranded and fine-stranded conductors with plastic or rubber insulation up to max. Ø 5 mm or 10 mm² conductor cross-section. Optical orientation aid for stripping common lengths (11 mm and 16 mm) due to graduation in the jaw. - Cutting value Cu-cable, stranded: Ø 50mm² - Cutting value Cu-cable, stranded: Ø 15mm - Stripping values square millimetres: 10mm² - Stripping values (diameter): Ø 5mm - AWG: 8 - VDE-tested: Yes
- Integrated cable shears for clean, crush-free cutting of Cu and Al cables
- Cutting edges additionally induction hardened, cutting edge hardness approx. 57 HRC
- Universal adjustment of the stripping blades by means of a knurled screw
- Slim design for good accessibility
- Stripping of solid, stranded and fine-stranded conductors with plastic or rubber insulation up to max. Ø 5 mm or 10 mm² conductor cross-section
- Optical orientation aid for stripping common lengths (11 mm and 16 mm) due to graduation in the jaws
Product details
| item number | WL61354 |
| model | 13 66 180 |
| manufacturer | KNIPEX |
| manufacturer item number | 13 66 180 |
| dimensions (LxWxH) | 187 mm x 53 mm x 27 mm |
| dimensions with packaging (LxWxH) | 193 mm x 66 mm x 31 mm |
| Packaging volume | 0.371 dm³ |
| order unit | piece |
| type of packaging | single pack |
| standards | DIN EN 60900 | IEC 60900 |
| product series | StriX® |
| RoHS conform | no |
| surface | chrome-plated |
| tether attachment point | nein |
| ESD safe | no |
| VDE | yes |
| stripping value diameter | 5 mm |
| tool length | 180 mm |
| AWG | 8 |
| description head | chrome-plated |
| type of handle | VDE | insulated with multi-component sleeves, VDE-tested |
| Cutting value copper cable, multistranded | 50 mm² |
| Cutting value copper cable, multistranded (diameter) | 15 mm |
| type of pliers | wire stripper |
