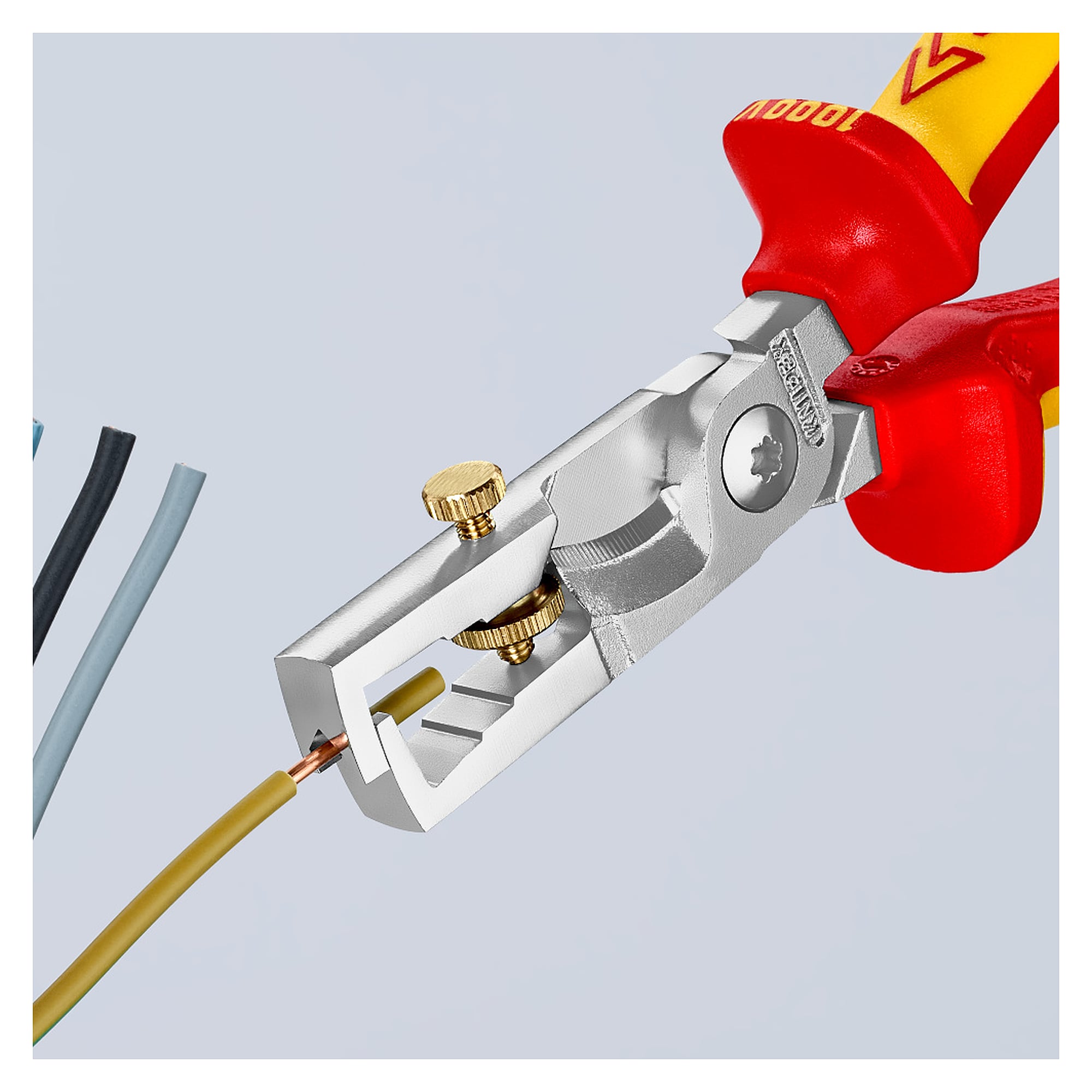

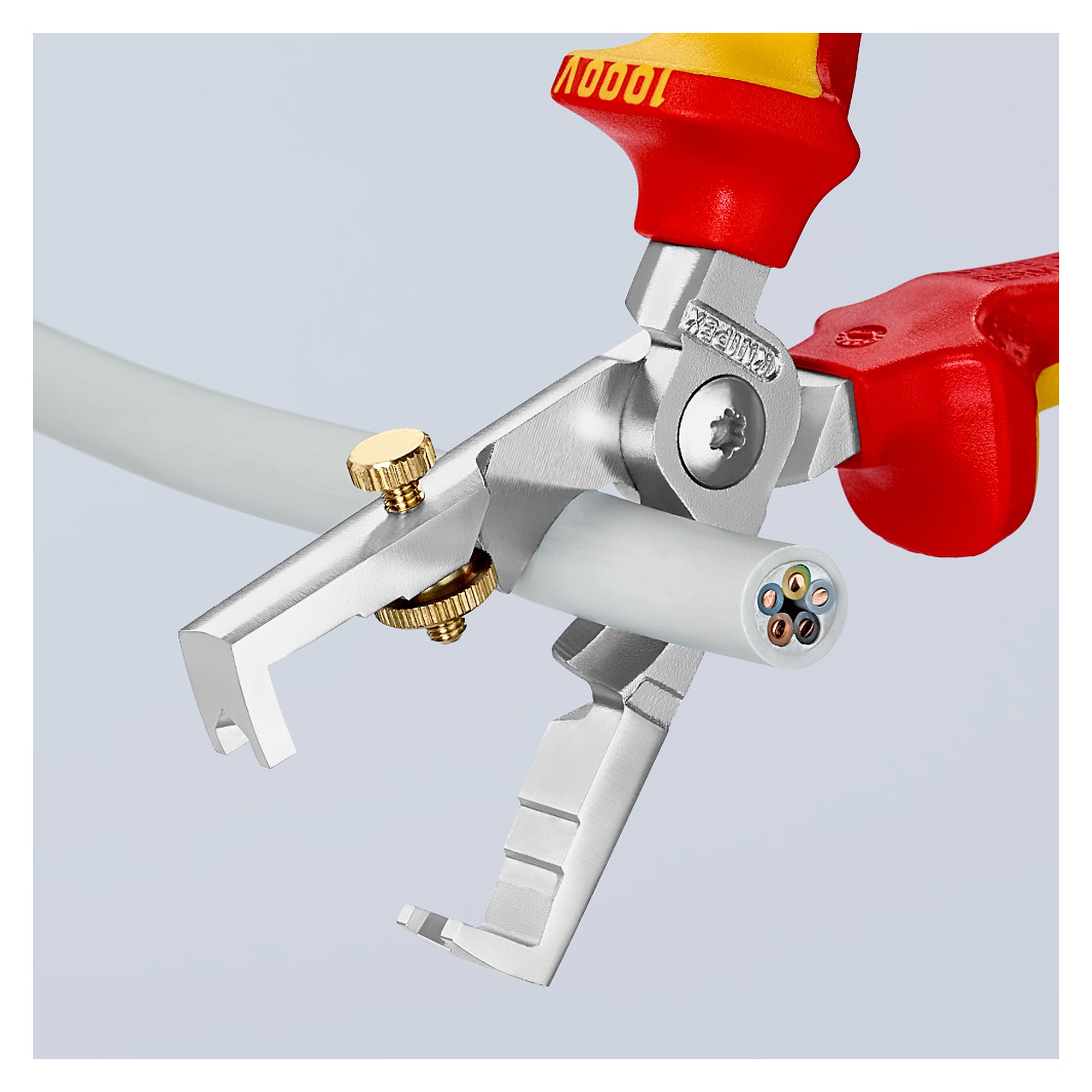

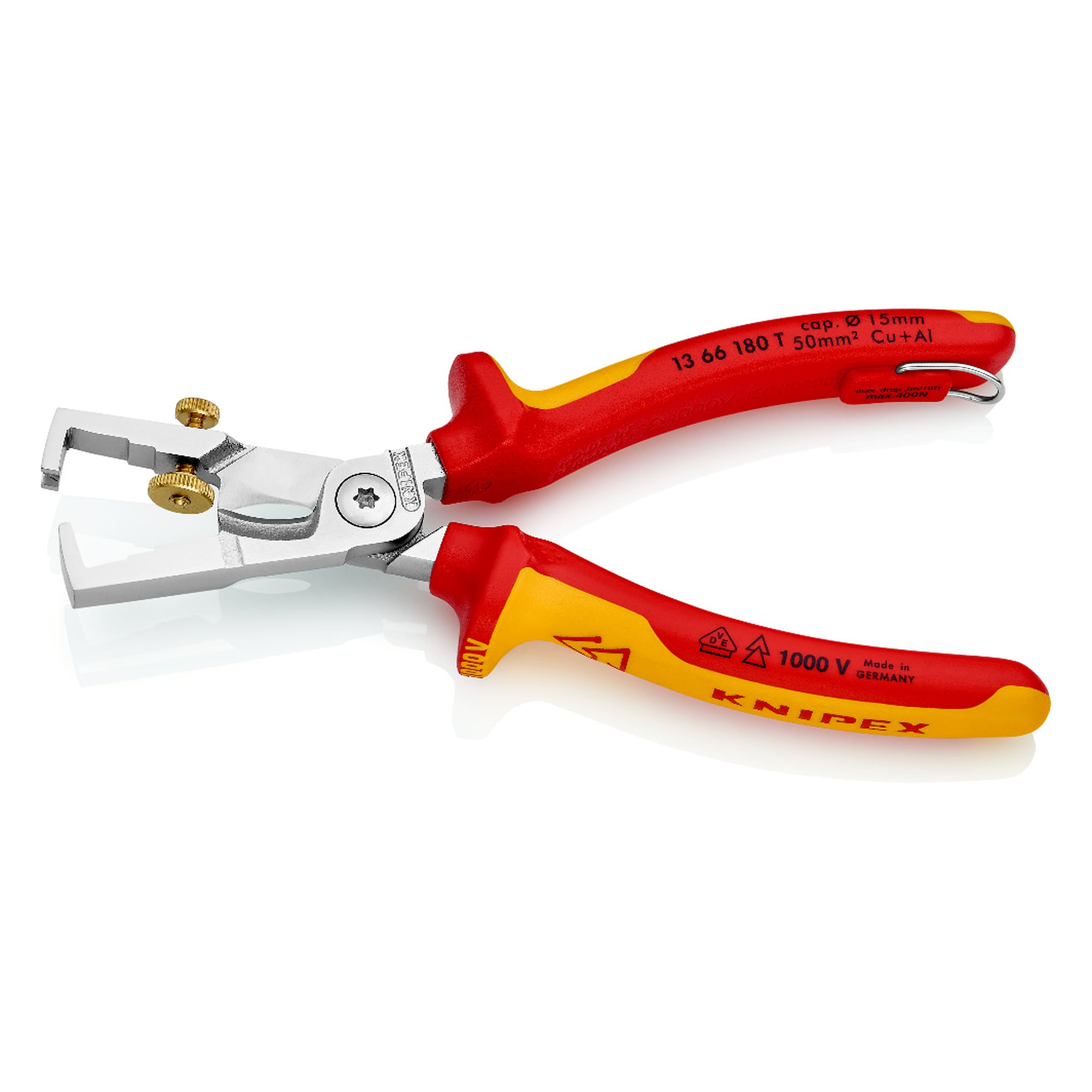

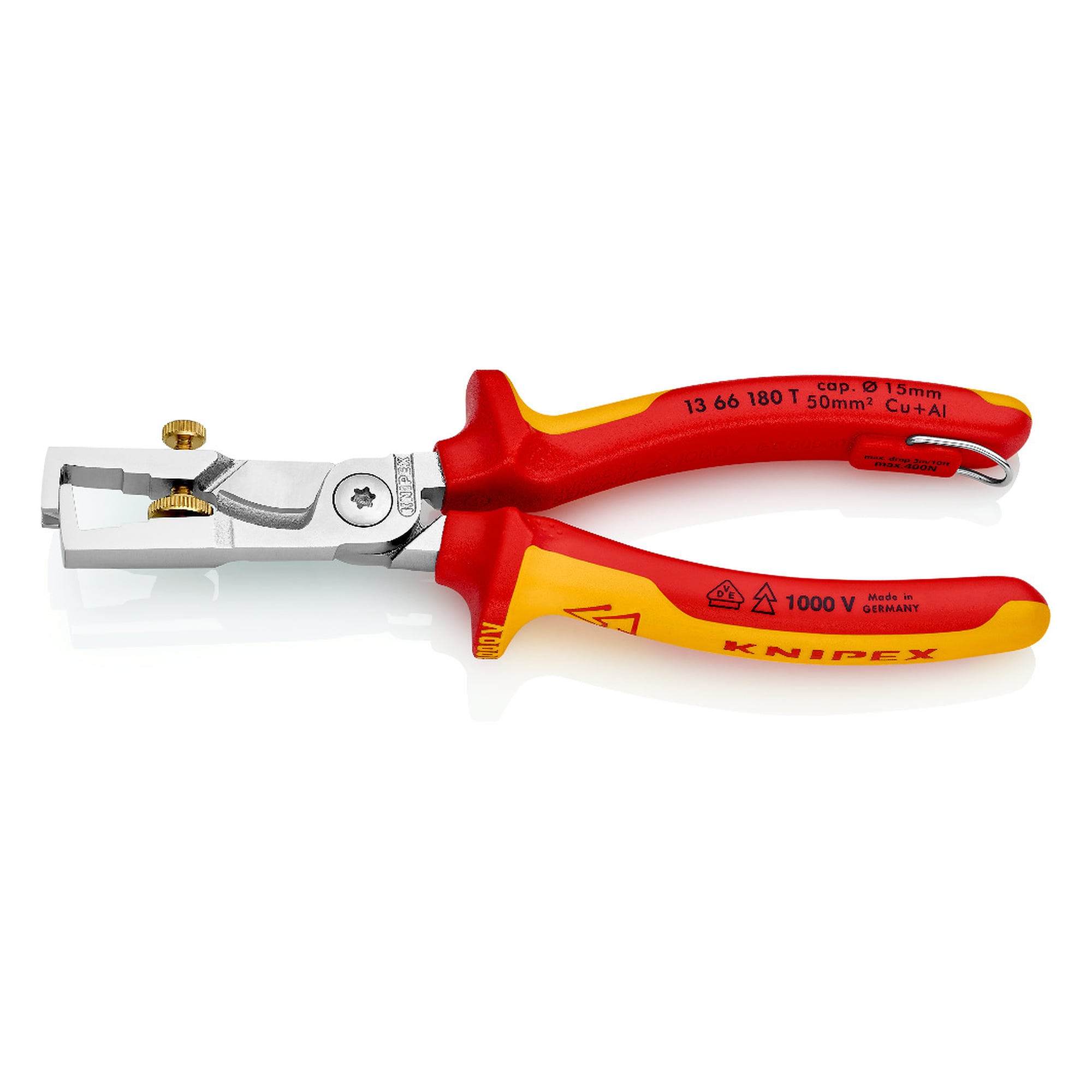

StriX Wire strippers with cable cutter, chrome-plated, insulated, fixing eye, 180 mm
Knipex 13 66 180 T. StriX wire strippers with cable cutter, chrome-plated, insulated, fixing eye, 180 mm
KNIPEX StriX® wire strippers with cable shears - two indispensable tools for electrical installation in one pair of pliers. Integrated cable shears for clean, crush-free cutting of Cu and Al cables. Cutting edges additionally induction hardened, cutting edge hardness approx. 57 HRC. Universal adjustment of the stripping blades by means of a knurled screw. Slim design for good accessibility. Stripping of solid, stranded and fine-stranded conductors with plastic or rubber insulation up to max. Ø 5 mm or 10 mm² conductor cross-section. Optical orientation aid for stripping common lengths (11 mm and 16 mm) due to graduation in the jaw. Pliers with integrated insulated fastening eye for attaching a fall protection. - Cutting value Cu-cable, stranded: Ø 50mm² - Cutting value Cu-cable, stranded: Ø 15mm - Stripping values square millimetres: 10mm² - Stripping values (diameter): Ø 5mm - AWG: 8 - Fall protection: Yes - VDE-tested: Yes
Integrated cable shears for clean, crush-free cutting of Cu and Al cables
Universal adjustment of the stripping blades by means of a knurled screw
Slim design for good accessibility
Stripping of solid, stranded and fine-stranded conductors with plastic or rubber insulation up to max. Ø 5 mm or 10 mm² conductor cross-section
Optical orientation aid for stripping common lengths (11 mm and 16 mm) due to graduation in the jaws
Product details
item number
WL61353
model
13 66 180 T
manufacturer
KNIPEX
manufacturer item number
13 66 180 T
dimensions (LxWxH)
187 mm x 53 mm x 27 mm
dimensions with packaging (LxWxH)
192 mm x 66 mm x 31 mm
Packaging volume
0.393 dm³
order unit
piece
type of packaging
single pack
standards
DIN EN 60900 | IEC 60900
product series
StriX®
RoHS conform
no
surface
chrome-plated
tether attachment point
ja
ESD safe
no
VDE
yes
stripping value diameter
5 mm
tool length
180 mm
AWG
8
description head
chrome-plated
type of handle
VDE, Tethered Tools | insulated with multi-component sleeves, VDE-tested; with integrated insulated fastening eyelet for attaching a fall protection device
Cutting value copper cable, multistranded
50 mm²
Cutting value copper cable, multistranded (diameter)
