Electronics gripping pliers with 45° angled half-round jaws and a backlash-free box joint, 115 mm long and 55 g. The smoothly ground gripping surfaces hold components without marking them, the tip thickness is 1.0 mm. The mirror-polished head and the dip-insulated handles complete the tool.

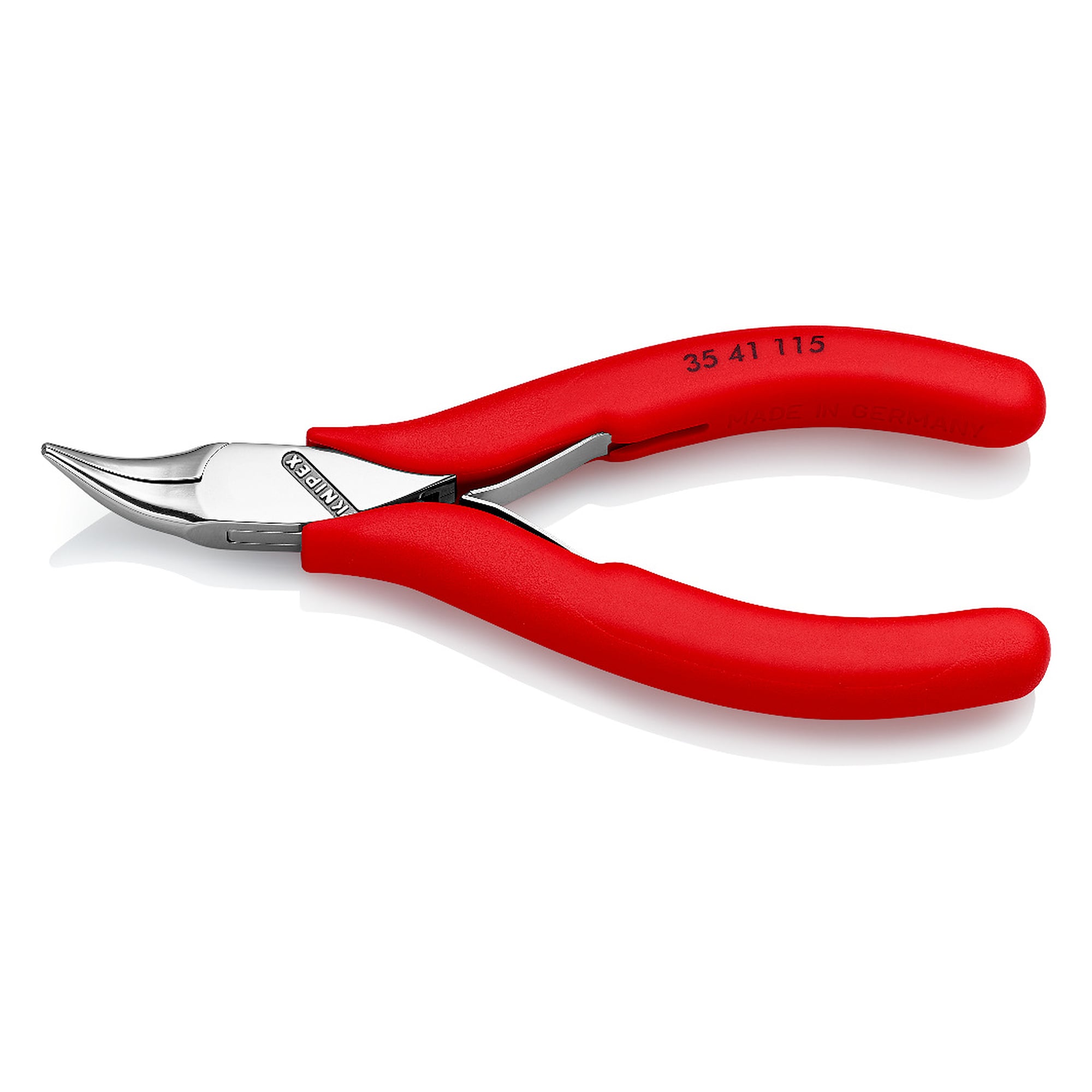

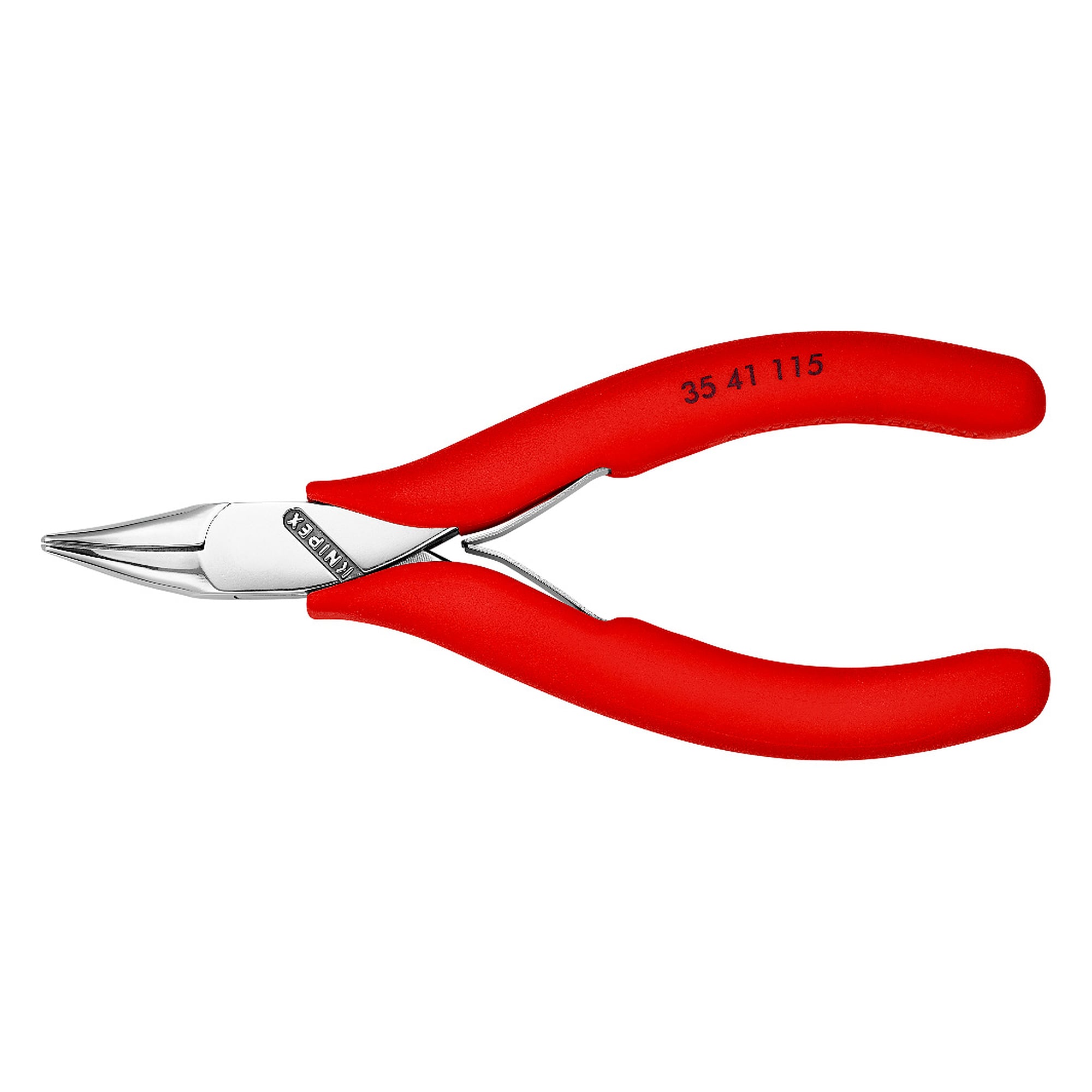

Electronics gripping pliers with 45° angled half-round jaws, 115 mm - Knipex 35 41 115
KNIPEX
Original product
Net price (excl. VAT)
€29.46
Item
WL61461
Manufacturer no.
35 41 115
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.35 41 115
EAN4003773082248
ConditionNew
Article
WL61461
Frequently Bought Together
At concealed terminals straight pliers cannot reach the component. The 35 41 115 electronics gripping pliers have half-round jaws angled by 45° with a tip thickness of 1.0 mm and give access from the side, at 115 mm length and 55 g.
Benefits
- Durable, load-optimised design with a backlash-free box joint.
- Head carefully rounded, so there are no sharp edges that could damage the workpiece.
- Slim sleeves drawn up towards the head for fine gripping between thumb and index finger.
- Jaws angled by 45°, half-round with smoothly ground gripping surfaces, tip thickness 1.0 mm.
- Low-friction double spring for smooth and even opening, plus uniform bending behaviour for a more direct feel.
- Mirror-polished head with a fine oil film protects against rust, no peeling chrome that could disturb the circuit.
- Dip-insulated handles with a slim contour.
Technical data
| EAN | 4003773082248 |
|---|---|
| Head | mirror polished |
| Handles | dip-insulated |
| Weight | 55 g |
| Dimensions | 115 x 66 x 14 mm |
| Standard | DIN ISO 9655 |
| REACH conformity | contains no SVHC |
| RoHS conformity | not applicable |
| Jaw length (B) | 22.5 mm |
| Jaw thickness (at the joint) (D) | 6.5 mm |
| Tip width (E) | 2.0 mm |
| Tip thickness (F) | 1.0 mm |
| Head width (A) | 11.0 mm |
Areas of use
Electronics production, test bays and service work on printed circuit boards, connectors and fine stranded wires. The mirror-polished head pays off wherever loose chrome particles would disturb the circuit.
Standards and conformity
The manufacturer states DIN ISO 9655 for this tool. According to the manufacturer the pliers contain no substances of very high concern under REACH. The RoHS directive does not apply.
| Norm | DIN ISO 9655 |
|---|---|
| Manufacturer Nr. | 35 41 115 |
| Manufacturer | Knipex |
| EAN | 4003773082248 |
| Weight | 0.055000 |
| Height | 14 mm |
| Width | 66 mm |
| GPSR manufacturer information | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
| Article authenticity | Original product |
| Condition of article | New |
| Overall length [mm] | 115.000000 |
