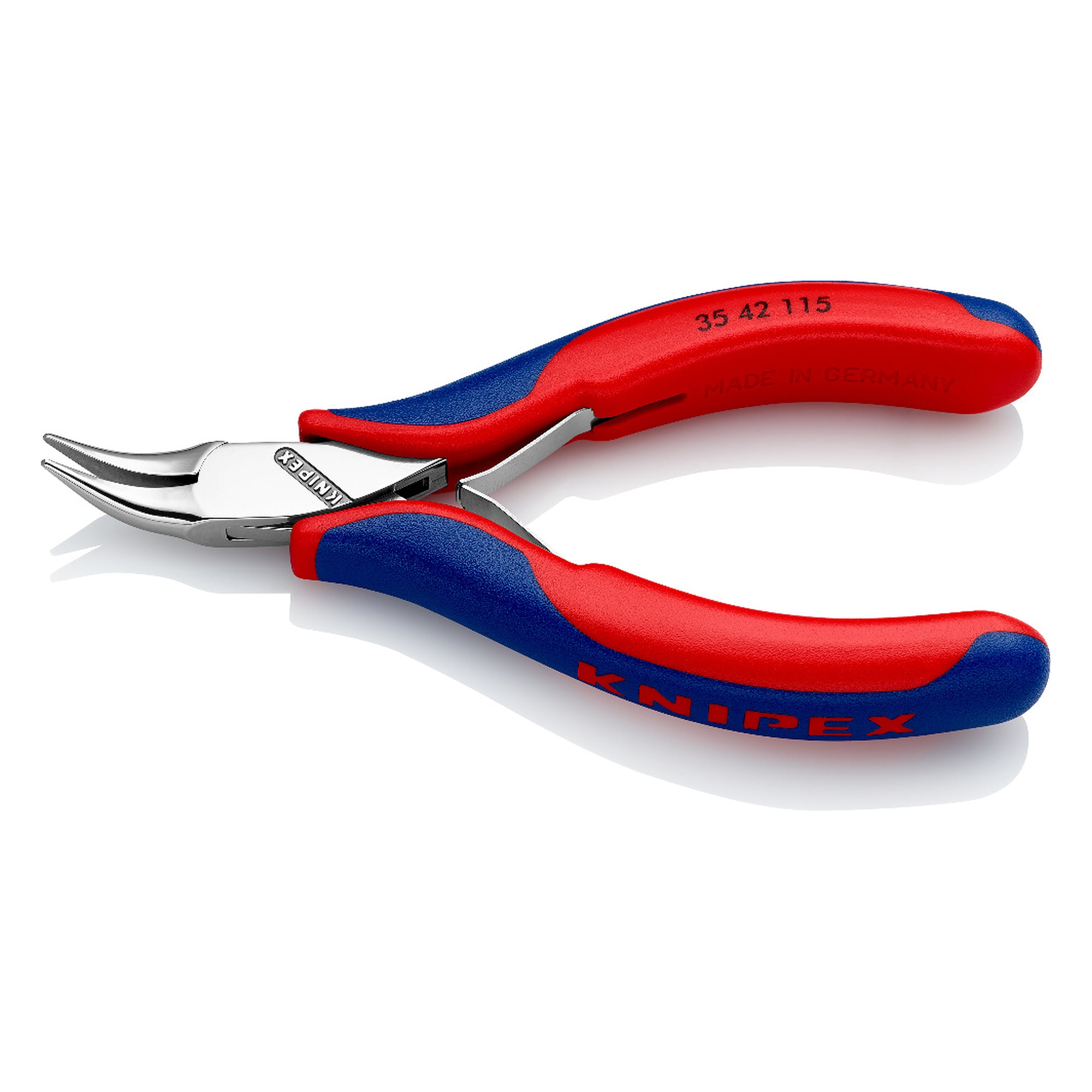

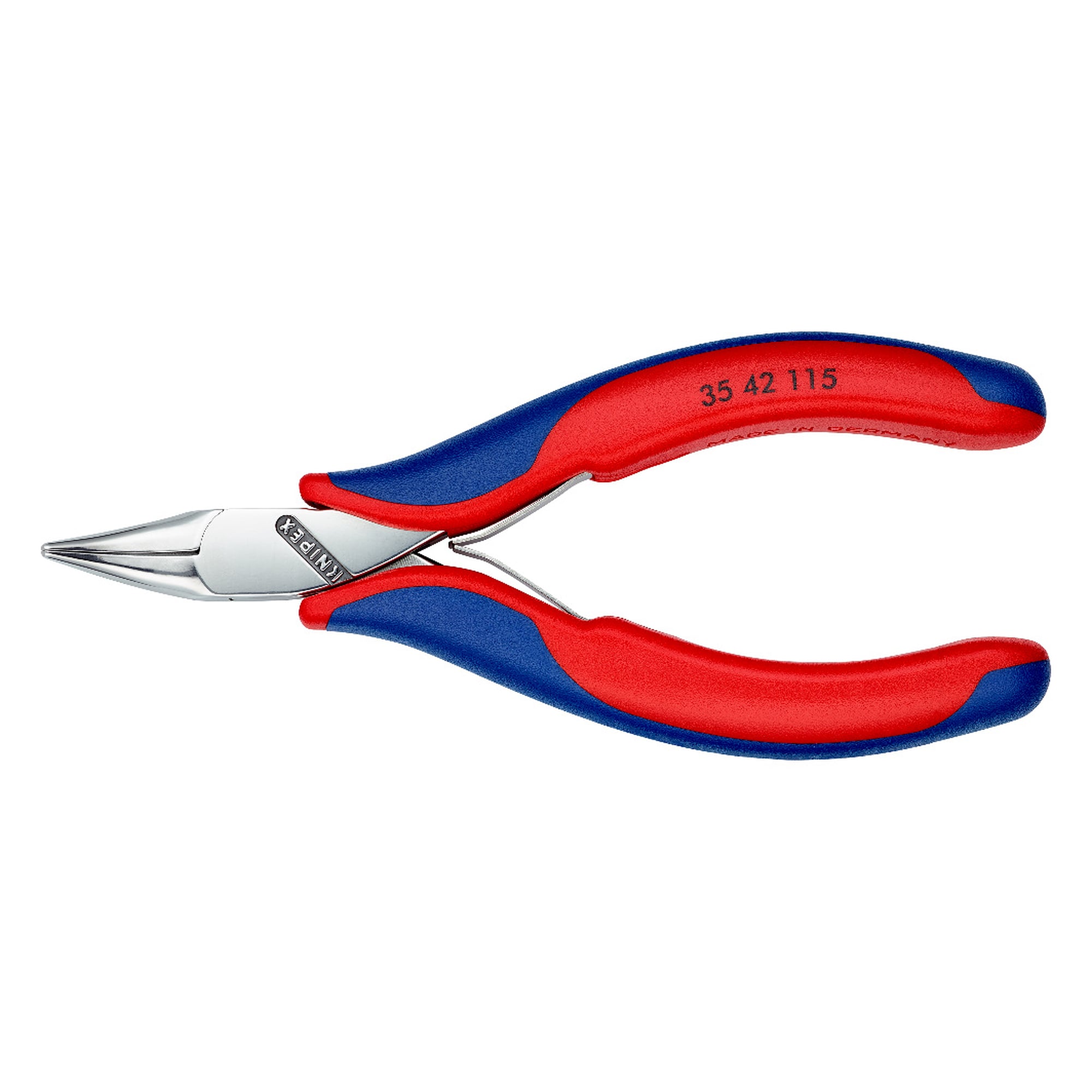

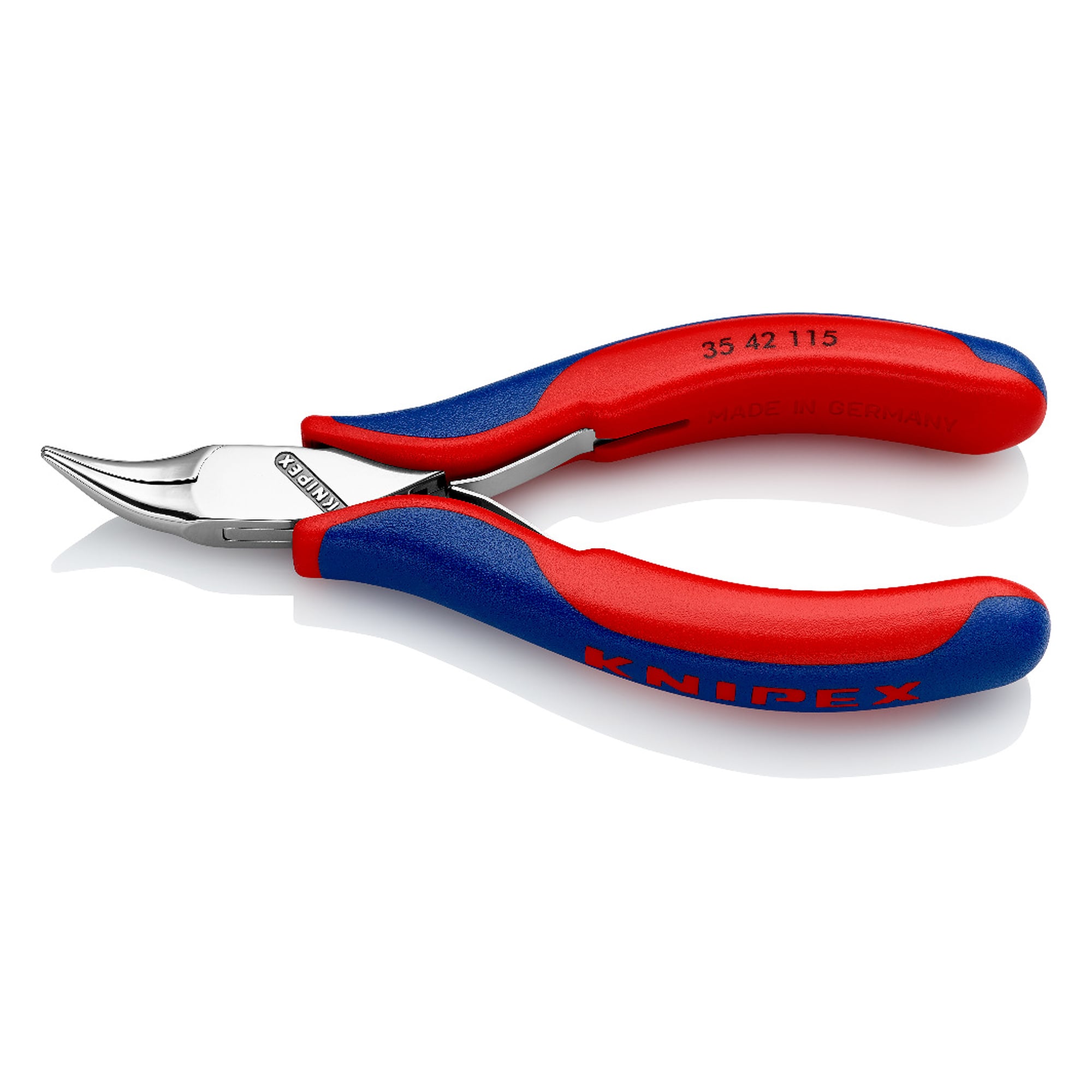

Electronics gripping pliers with 45 degree angled half-round jaws, 115 mm - Knipex 35 42 115

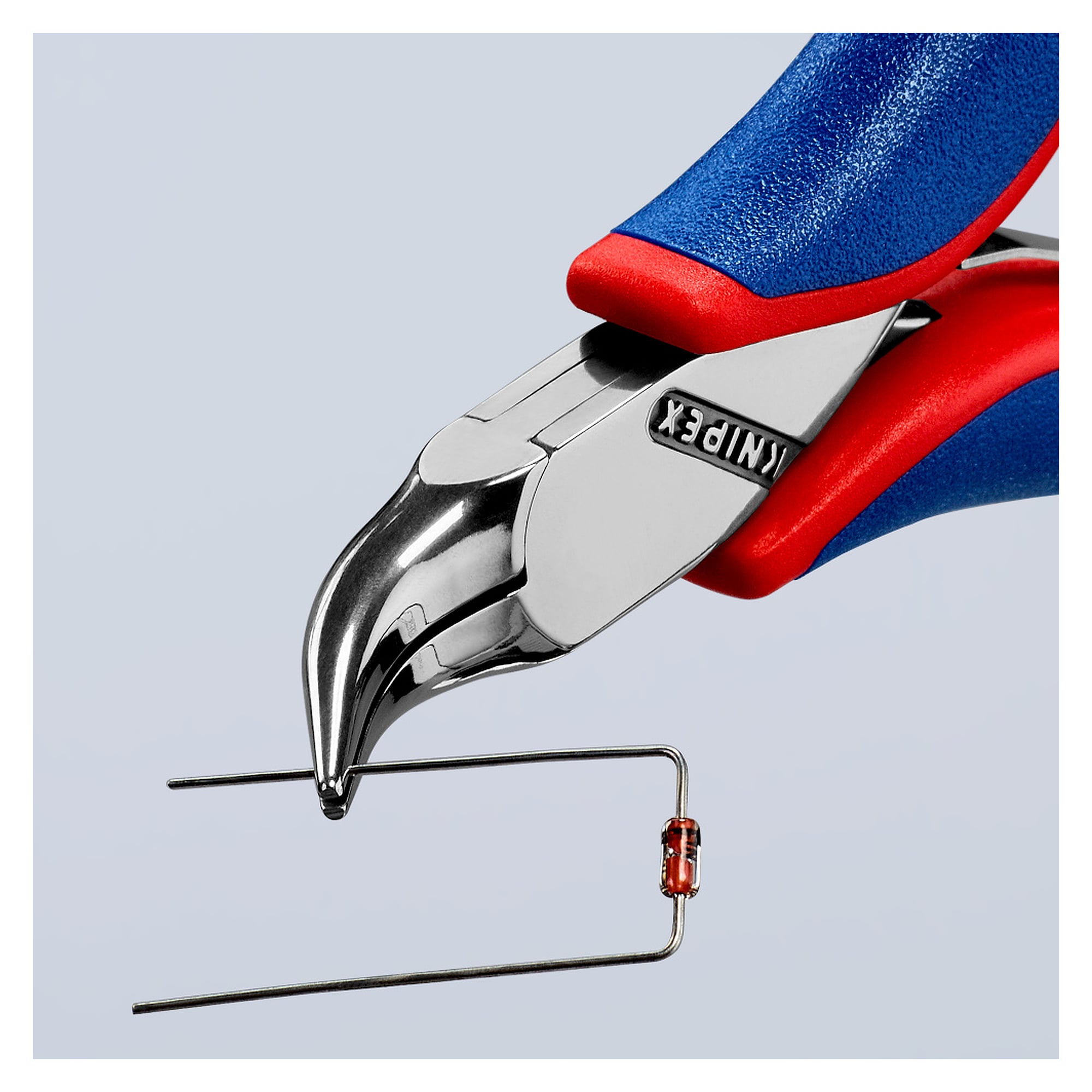

On a populated board a straight plier often hides exactly the spot being worked on. The 35 42 115 electronics gripping pliers solve this with half-round jaws of 22.5 mm length angled by 45 degrees, so the hand stays to the side and the view of the component remains clear.

Benefits

• Half-round jaws angled by 45 degrees with smoothly ground gripping surfaces for a clear view of the work area.
• Durable, load-optimised design with a backlash-free box joint for a more direct feel when working.
• Head carefully rounded, so no sharp edges are left that could damage the material.
• Slim sleeves drawn up towards the head for fine and comfortable gripping between thumb and index finger.
• Low-friction double spring for smooth and even opening, plus uniform bending behaviour.
• The mirror polish with a fine oil film provides good rust protection. No chrome flakes come loose that could cause circuit faults.

Technical data

Areas of use

Board assembly and repair, precision mechanics, model making, laboratory work and prototyping. The angled head helps wherever work is done flat above the board and a straight head would block the view or the access.

Standards and conformity

The pliers comply with DIN ISO 9655. According to the manufacturer they contain no substances of very high concern under REACH. The RoHS directive does not apply to this product.
