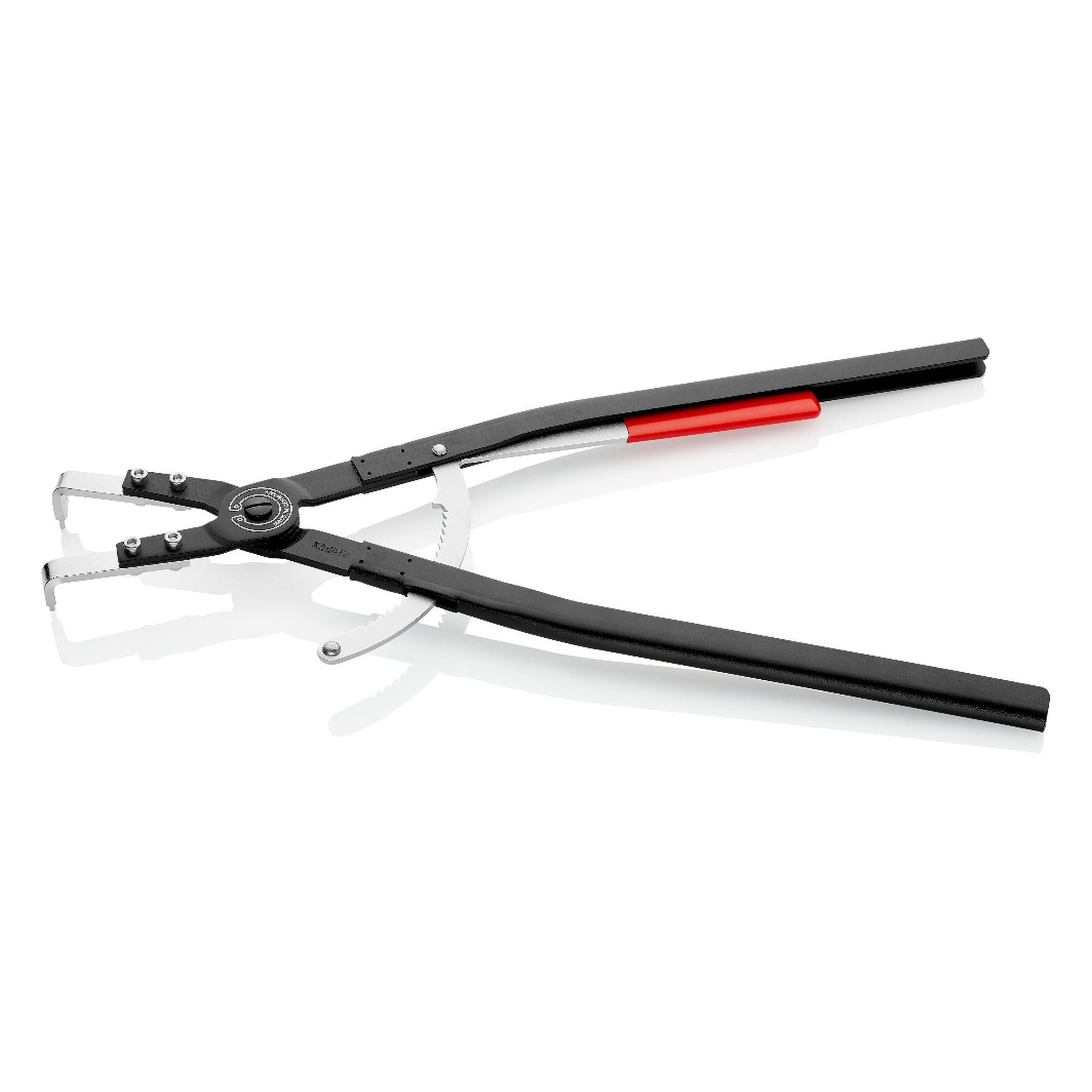

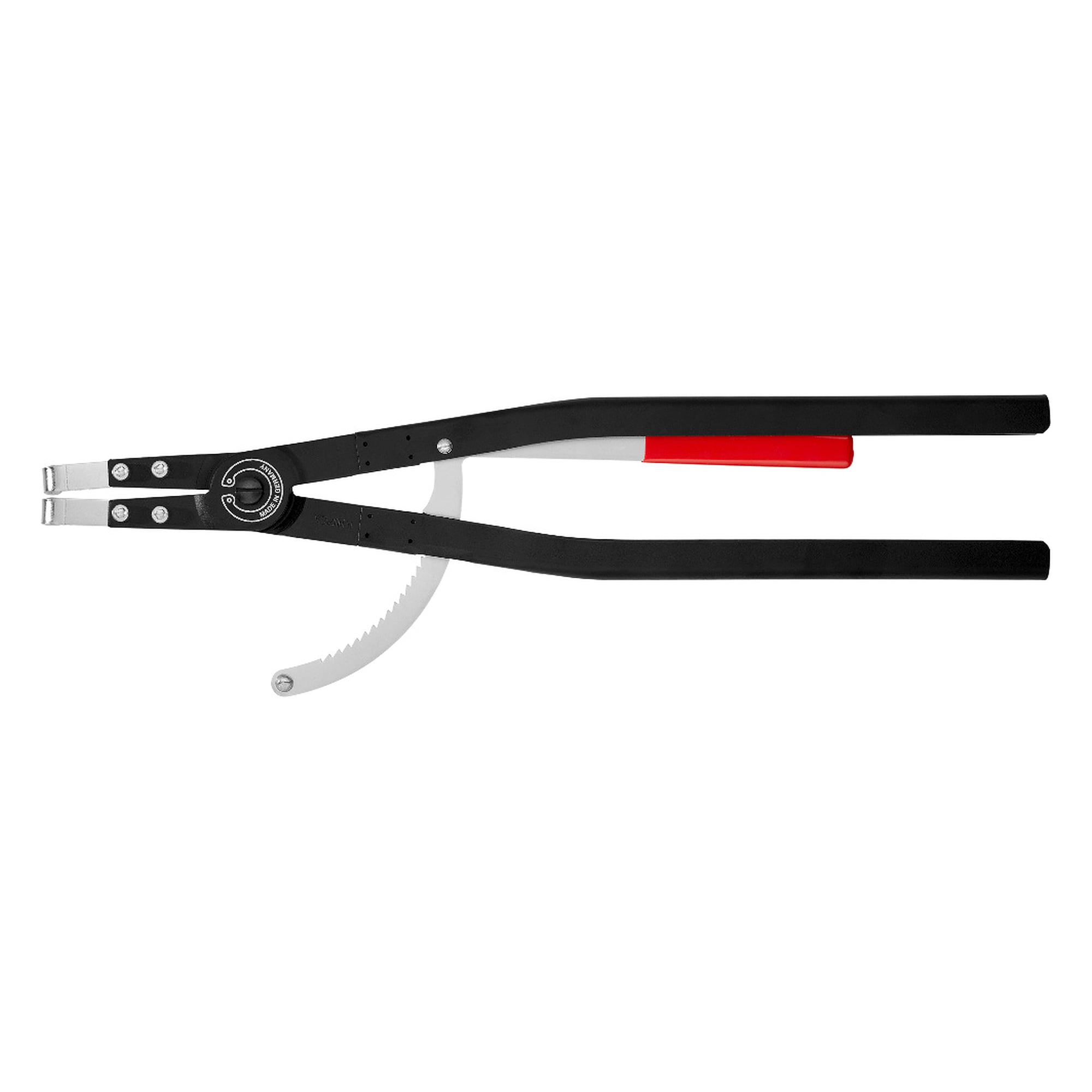

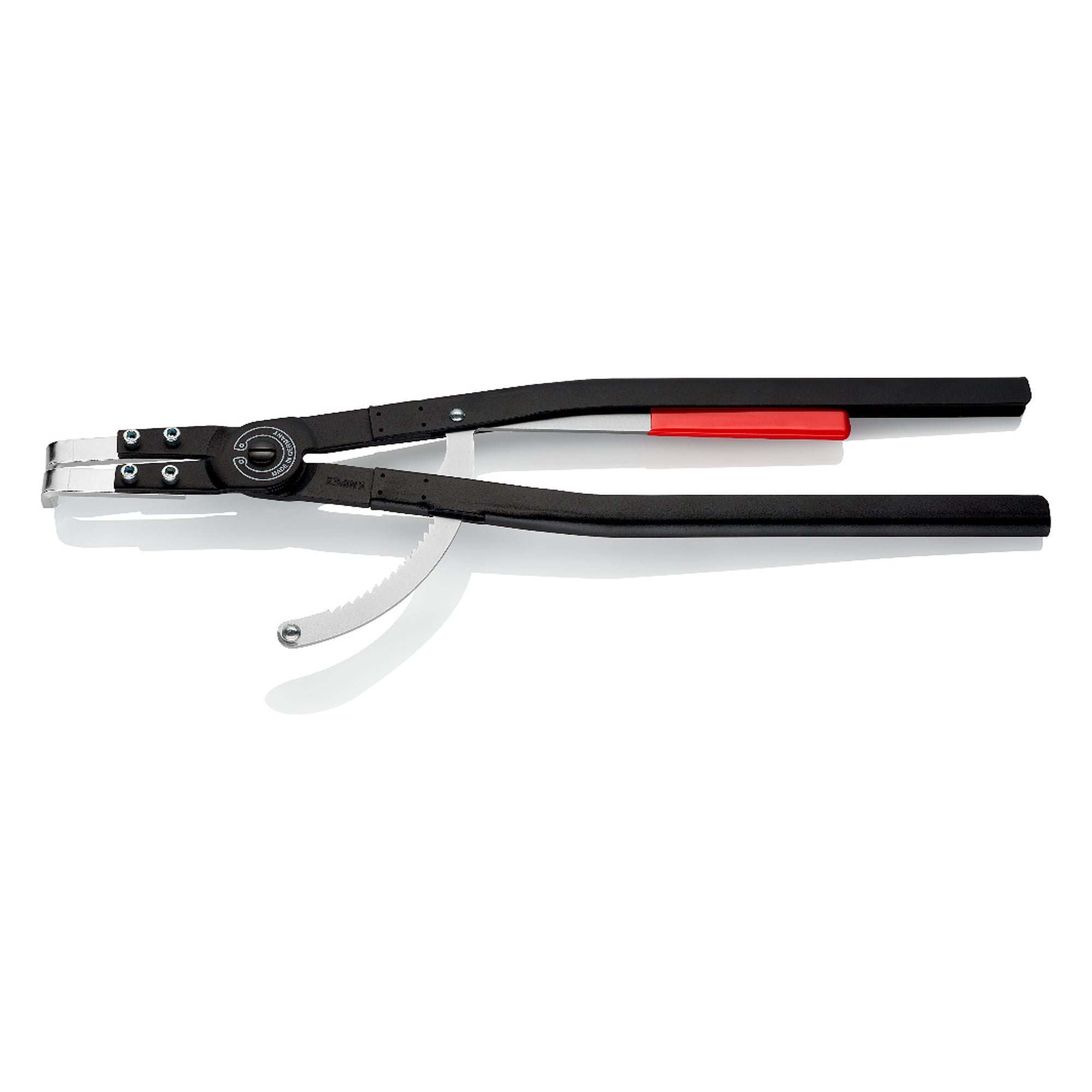

Circlip pliers for large internal circlips in bores 122 to 300 mm, 590 mm - Knipex 44 20 J51
For internal circlips in bores from 122 to 300 mm diameter. The releasable locking device holds the tensioned ring in position until it sits in the groove. Replaceable tips of 3.5 mm diameter, 590 mm overall length, 1803 g.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Large internal circlips in bores from 122 to 300 mm can only be spanned safely with long enough levers. With an overall length of 590 mm, these circlip pliers bring the required reach and force to the ring and hold it open by means of the releasable locking device until it sits in the groove.
Benefits
- Releasable locking device holds the tensioned ring, leaving both hands free for fitting.
- Replaceable tips of 3.5 mm diameter, worn tips are exchanged instead of the complete tool.
- Working range of 122 to 300 mm covers large internal circlips in machine and plant construction.
- Black powder-coated finish protects the pliers against corrosion.
- 590 mm of leverage keeps the effort low even on strongly pretensioned rings.
Applications
Fitting and removing large internal circlips in bores, for example on gearbox housings, bearing seats and hydraulic cylinders in machine and plant construction as well as in maintenance work.
Standards and compliance
The pliers contain substances of very high concern as defined by the REACH regulation. The RoHS directive does not apply to this hand tool.
Technical data
| EAN | 4003773024958 |
|---|---|
| Pliers | black powder-coated |
| Weight | 1803 g |
| Dimensions | 590 x 141 x 18 mm |
| Capacity for bore diameter | 122 - 300 mm dia. |
| Tips (diameter) | 3.5 mm dia. |
| REACH compliance | contains SVHC |
| RoHS compliance | not applicable |
| Manufacturer | Knipex |
| Manufacturer Nr. | 44 20 J51 |
| HS-Code | 82032000 |
| GPSR manufacturer information | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Height | 18 mm |
| Width | 141 mm |
| Colour | Black |
| Farbe | schwarz |
| Norm | DIN ISO 5256 |
| Overall length [mm] | 590 |
