Circlip pliers to DIN 5254 A for external circlips on shafts from Ø 3 - 10 mm. Forged style and non-slip tips of Ø 0.9 mm hold the ring while it is spread. Length 140 mm, weight 85 g.

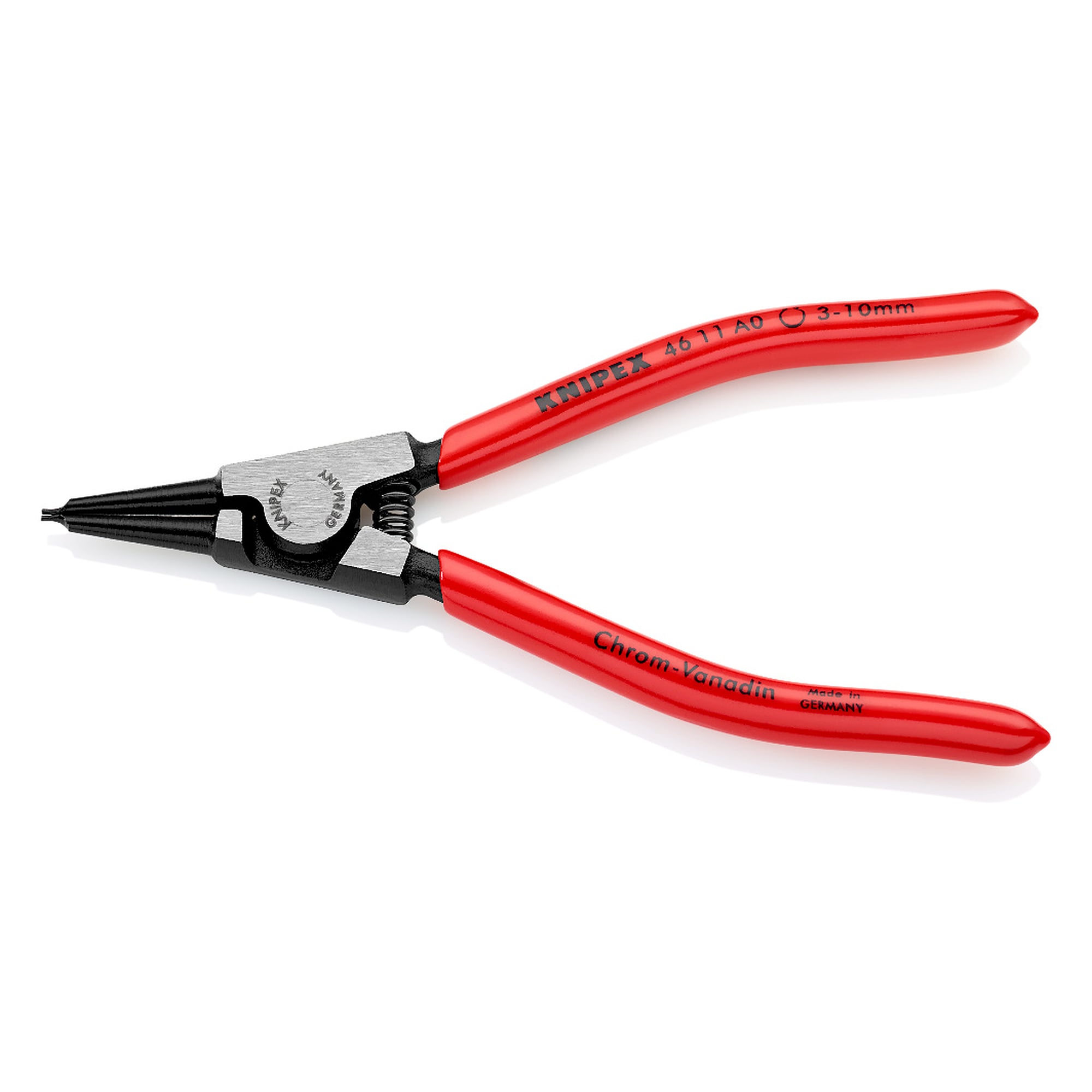

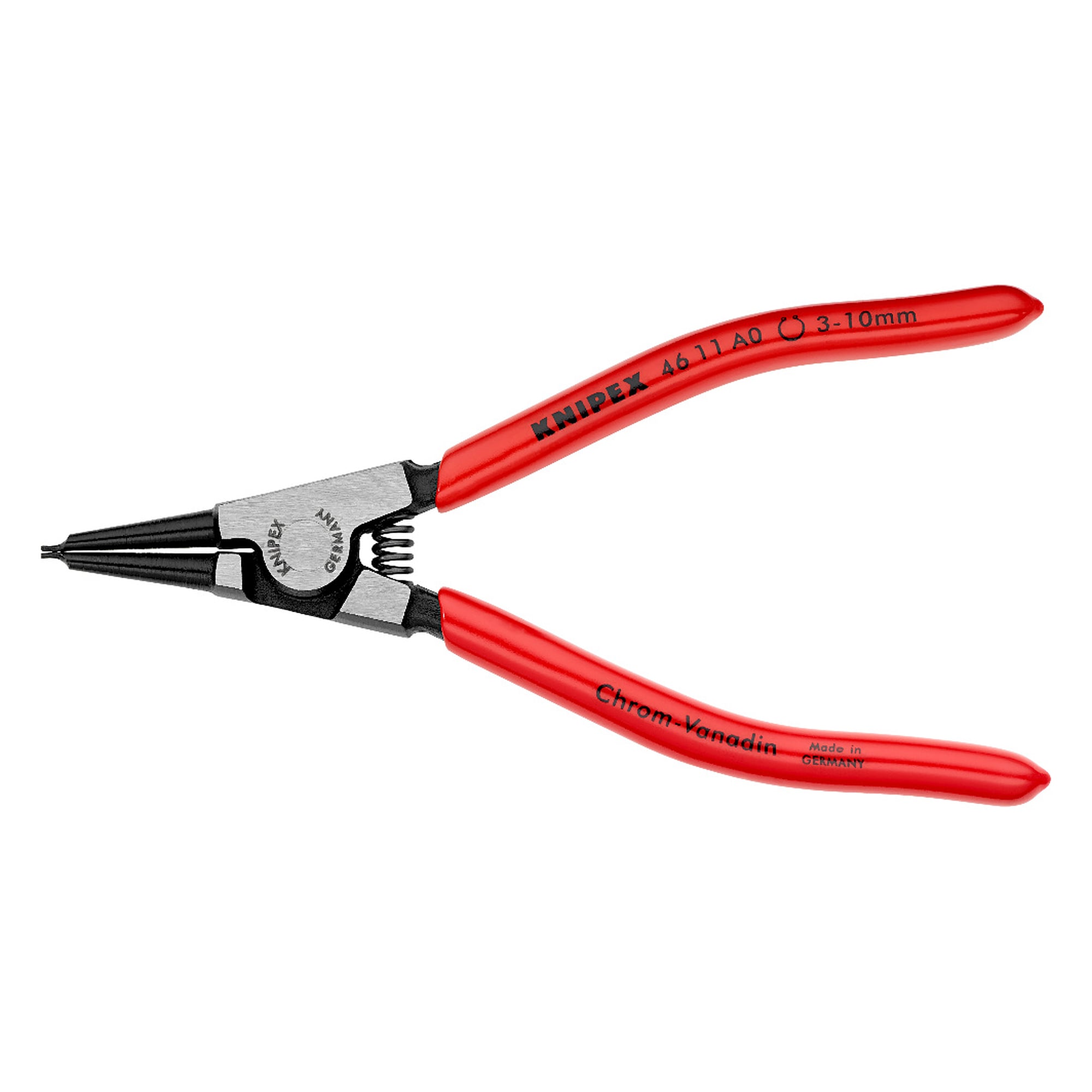

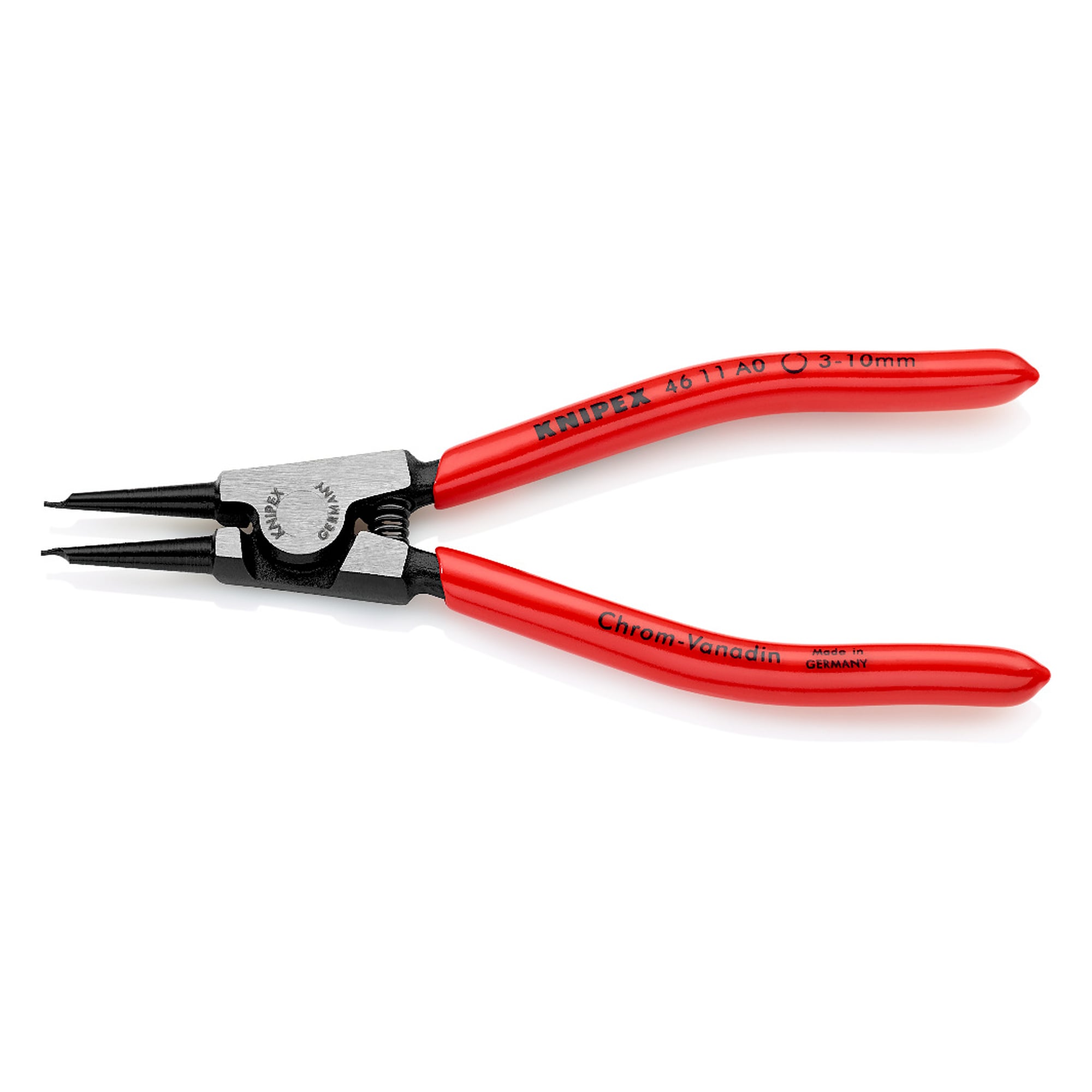

Circlip pliers for external circlips on shafts, Ø 3 - 10 mm, DIN 5254 A, 140 mm - Knipex 46 11 A0
KNIPEX
Original product
Net price (excl. VAT)
€14.52
Item
WL61530
Manufacturer no.
46 11 A0
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.46 11 A0
EAN4003773033950
ConditionNew
Article
WL61530
Frequently Bought Together
External circlips on shafts from Ø 3 - 10 mm have to be spread evenly for removal without the pliers slipping off and scoring the shaft. These forged pliers to DIN 5254 A are 140 mm long and seat their solid tips of Ø 0.9 mm firmly in the grip holes.
Benefits
- Solid forged style transfers the spreading force up to 10 mm without distortion.
- Non-slip, solid tips of Ø 0.9 mm engage safely in the ring holes.
- Design to DIN 5254 A, so the pliers fit into established tool sets.
- Polished head and black atramentized pliers stay clean even in contact with oil.
- Plastic coated handles and a weight of 85 g allow long assembly runs.
Technical data
| EAN | 4003773033950 |
|---|---|
| Pliers | black atramentized |
| Head | polished |
| Handles | plastic coated |
| Standard | DIN 5254 A |
| Capacity for shaft diameter | Ø 3 - 10 mm |
| Tips (diameter) | Ø 0.9 mm |
| Weight | 85 g |
| Dimensions | 140 x 69 x 11 mm |
| REACH conformity | contains no SVHC |
| RoHS conformity | not applicable |
Applications
Maintenance, mechanical engineering and vehicle technology, above all when changing bearings and seals on small drives, precision engineering and power tools.
Standards and conformity
The design follows DIN 5254 A. The pliers contain no substances of very high concern under REACH, and the RoHS directive is not applicable to this hand tool.
| Norm | DIN ISO 5254 |
|---|---|
| Manufacturer Nr. | 46 11 A0 |
| Manufacturer | Knipex |
| EAN | 4003773033950 |
| Weight | 0.085000 |
| Colour | Black |
| Height | 11 mm |
| Width | 69 mm |
| GPSR manufacturer information | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
| Article authenticity | Original product |
| Condition of article | New |
| Farbe | schwarz |
| Overall length [mm] | 140.000000 |
