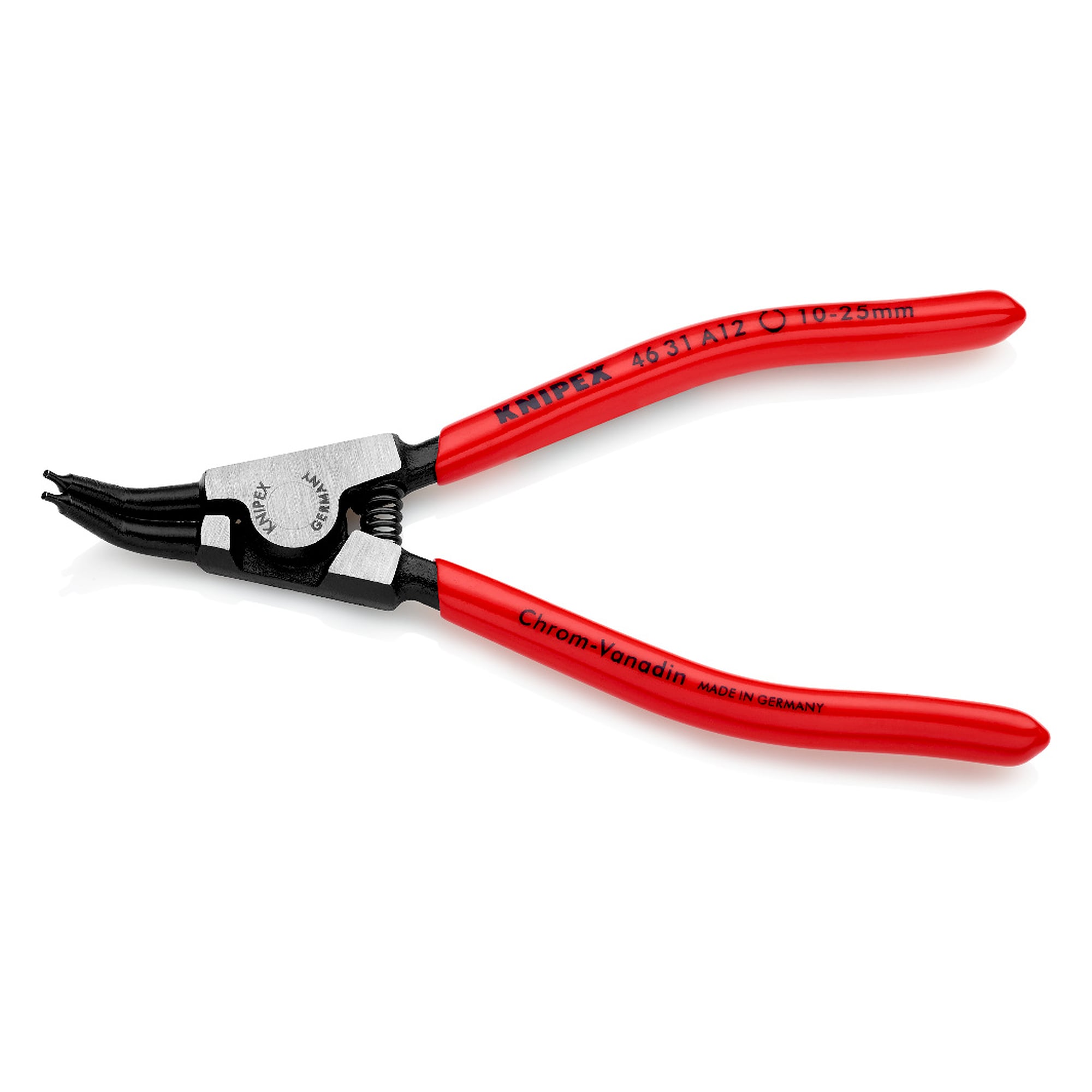

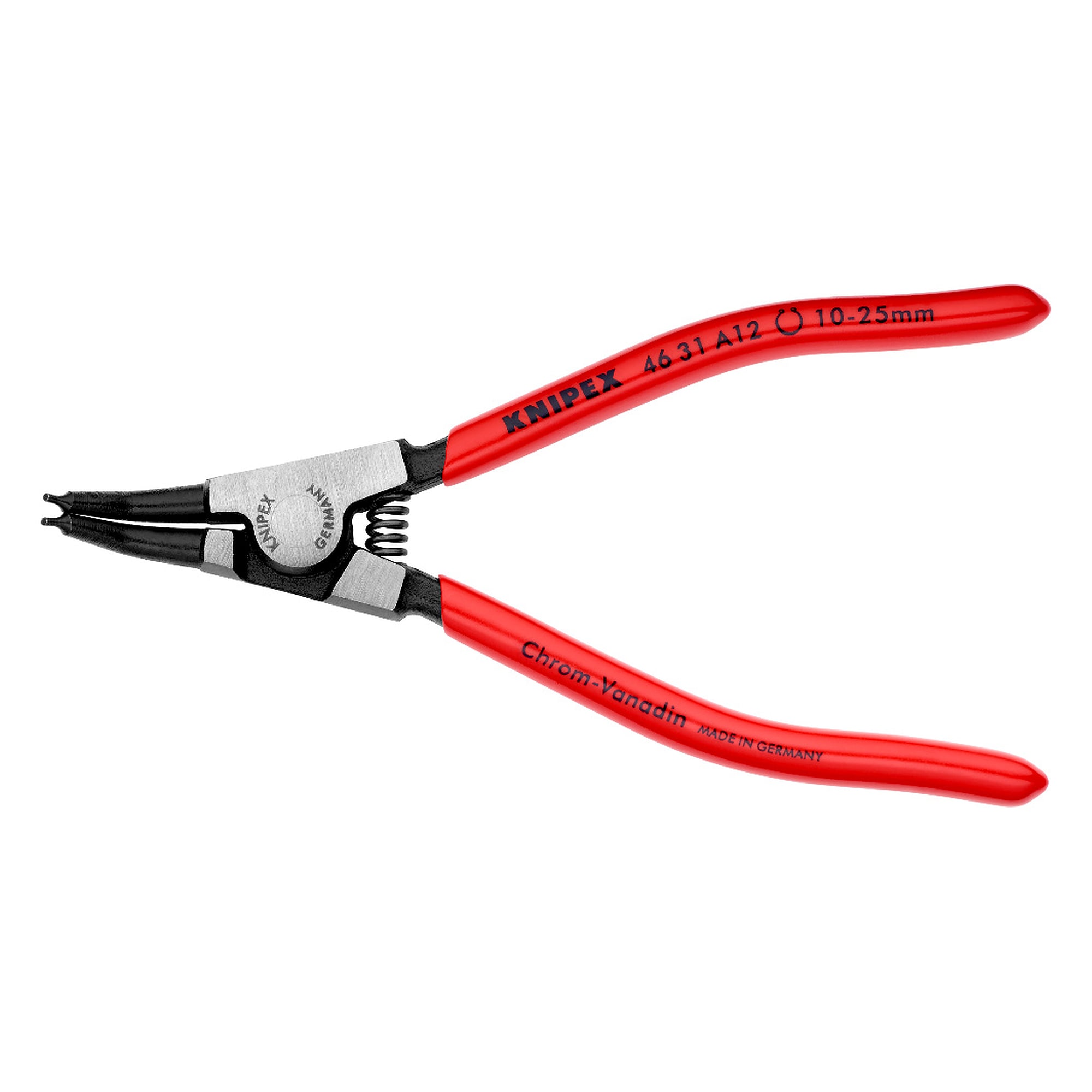

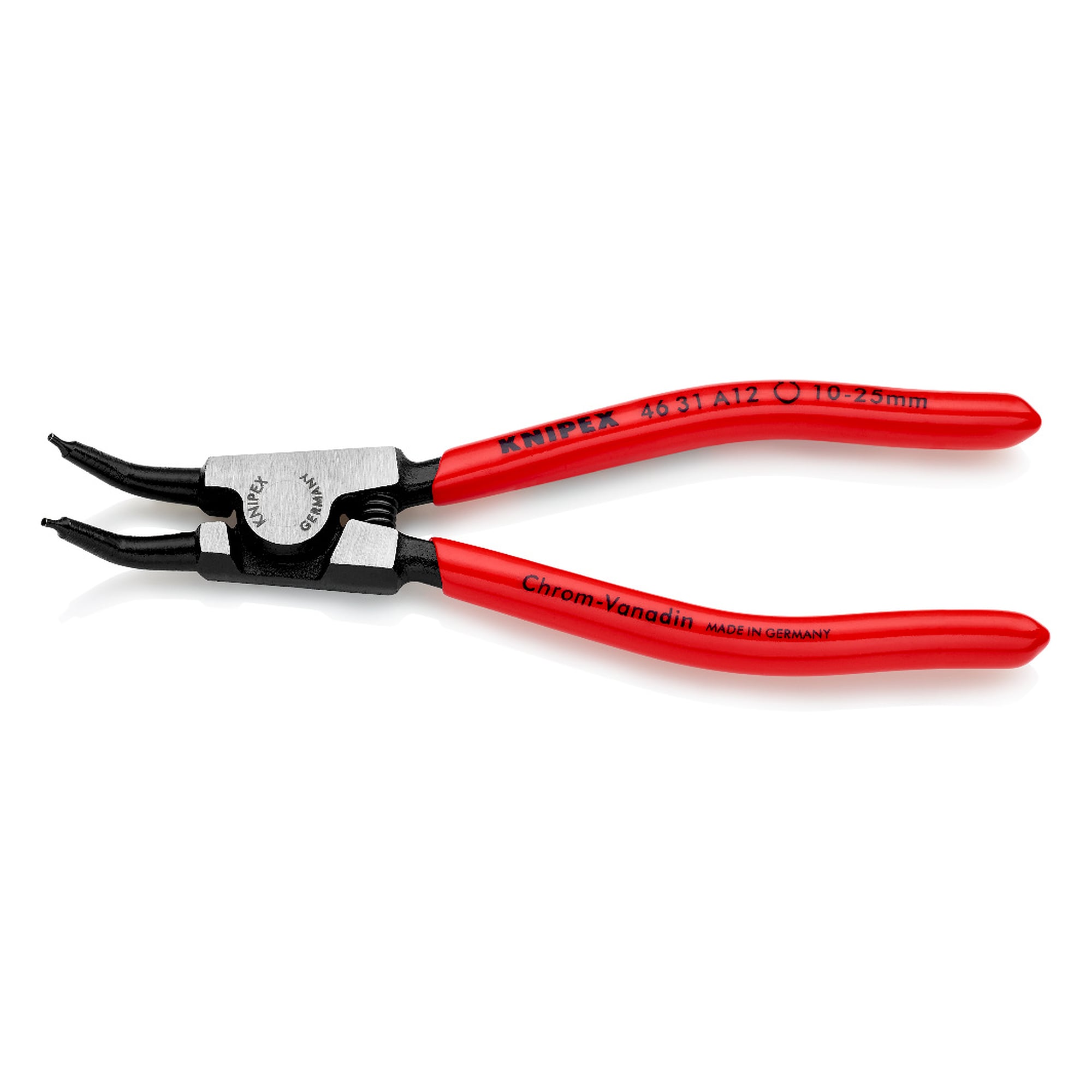

Circlip pliers for external circlips on shafts, angled 45°, 10 - 25 mm dia., black atramentized, 130 mm - Knipex 46 31 A12

When shafts are dismantled and reassembled, the circlip has to be expanded, guided over the shaft shoulder and set back cleanly into its groove. The 46 31 A12 circlip pliers with tips angled at 45° work on shaft diameters of 10 - 25 mm dia. and hold the ring with non-slip tips of 1.3 mm dia.

Benefits

• Solid forged style that withstands the forces arising when the ring is expanded.
• Tips angled at 45° for grooves that cannot be reached straight on.
• Non-slip, solid tips of 1.3 mm dia. keep the circlip in its groove while it is spread.
• Capacity for shaft diameters of 10 - 25 mm dia., matched to the corresponding ring size.
• Plastic coated handles for a secure grip at a tool weight of only 85 g.
• Overall length 130 mm, overall size 130 x 67 x 11 mm, so the reach can be planned even in installed condition.
• Black atramentized pliers with polished head.

Areas of use

Machine and plant construction, gearbox and bearing assembly, vehicle repair and the general repair shop. Wherever external circlips are fitted to or removed from shafts of 10 - 25 mm dia., including confined installation spaces.

Standards and conformity

The manufacturer states no pliers standard for this angled version. According to the manufacturer it contains no substances of very high concern under REACH. The RoHS directive does not apply to this product.
