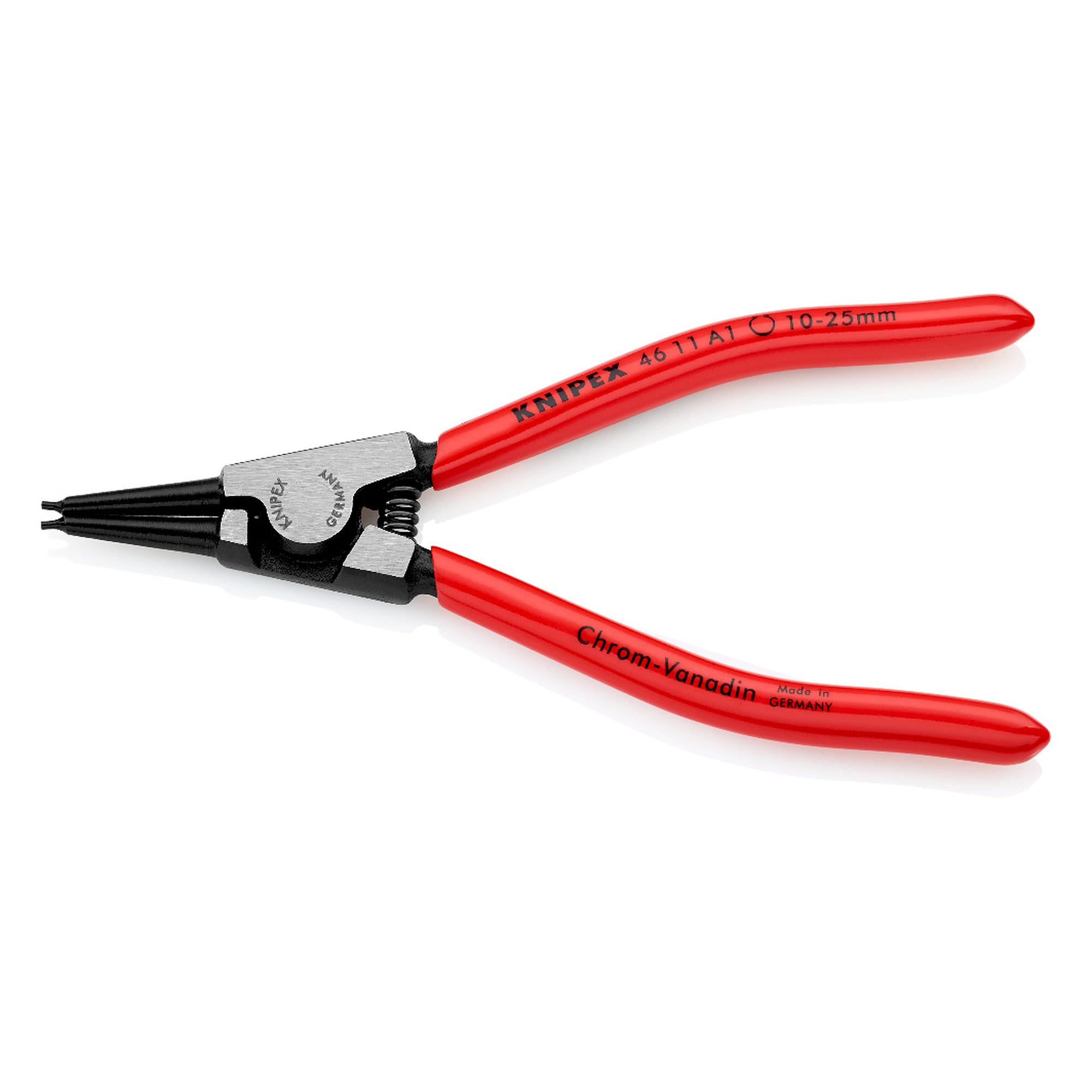

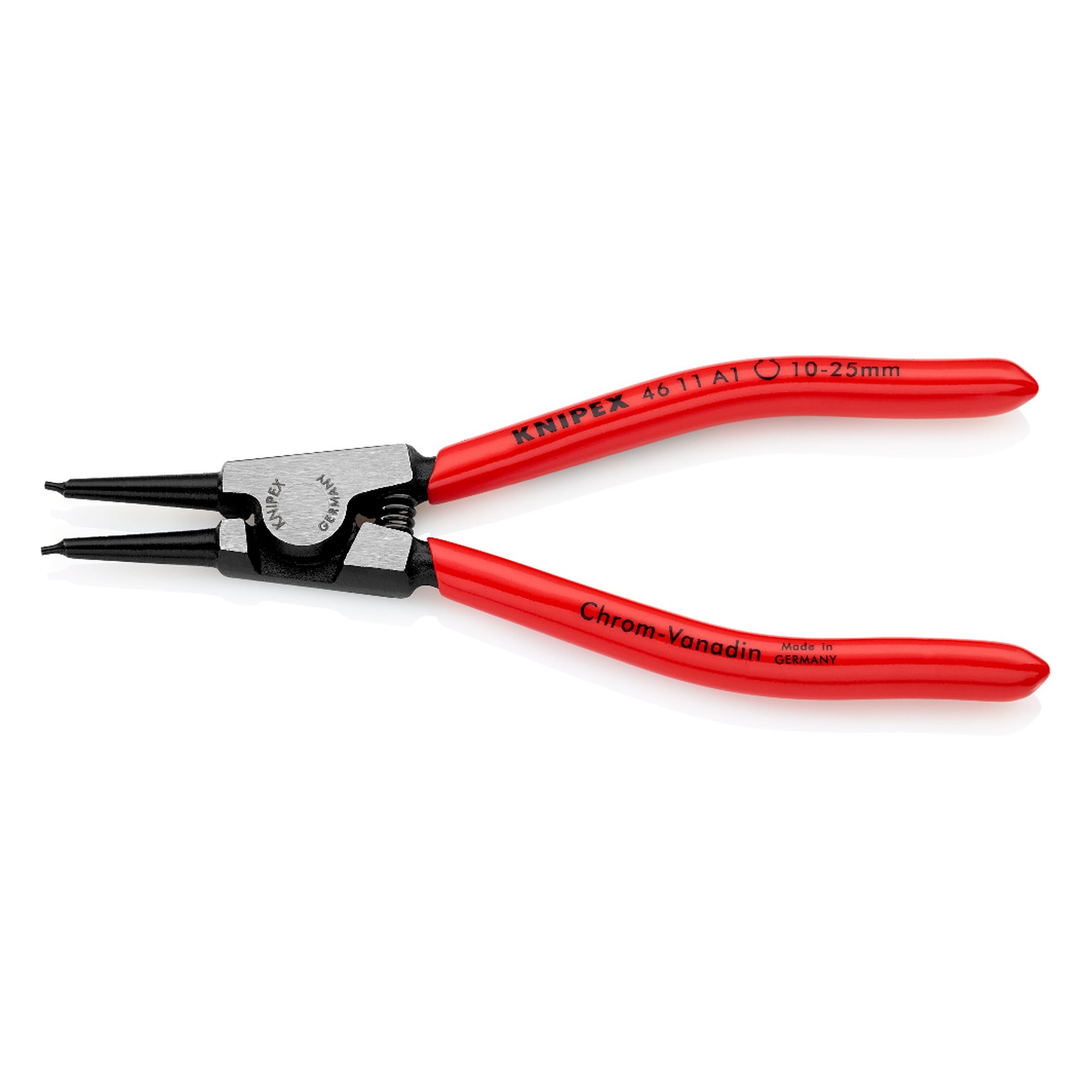

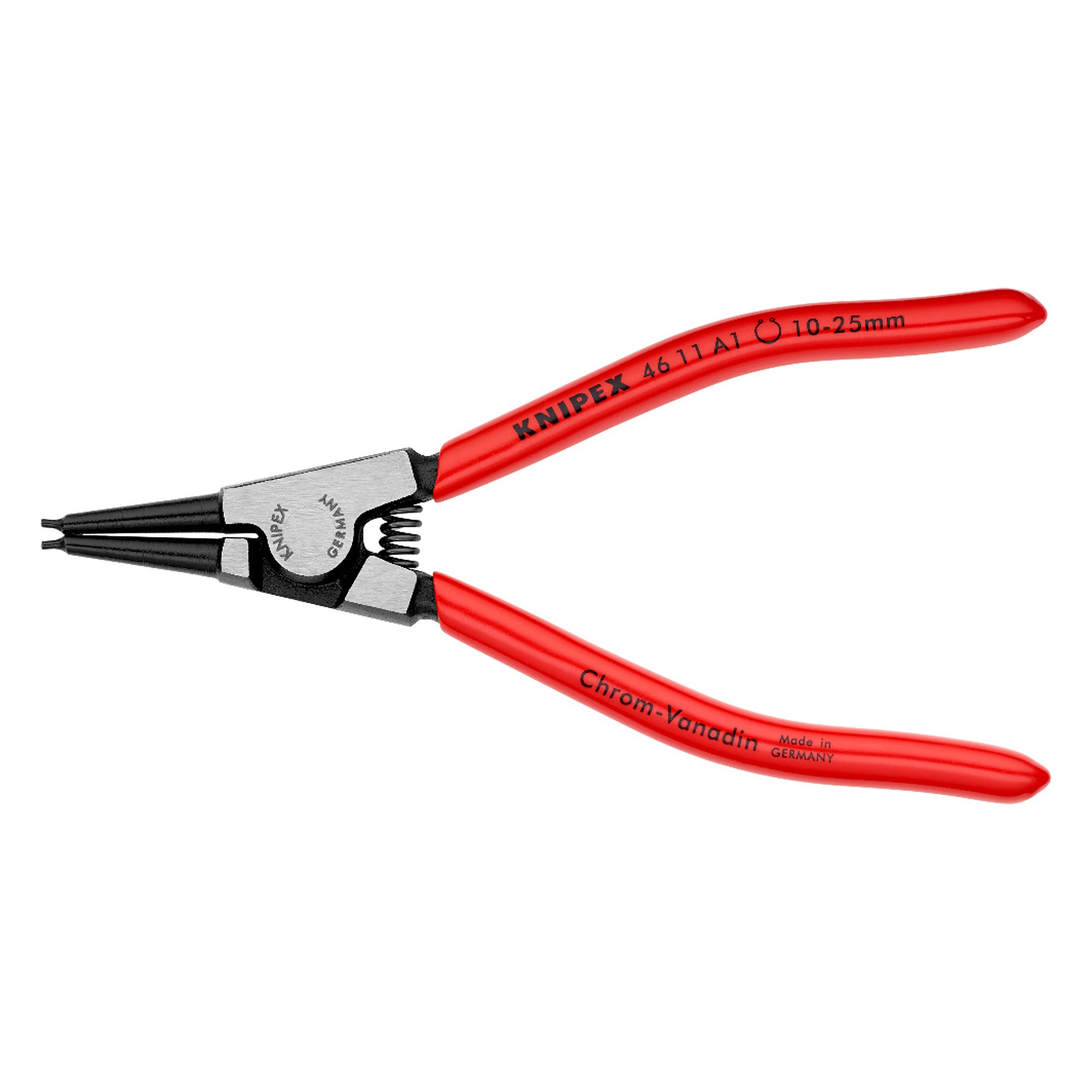

Circlip pliers for external circlips on shafts, Ø 10 - 25 mm, DIN 5254 A, 140 mm - Knipex 46 11 A1

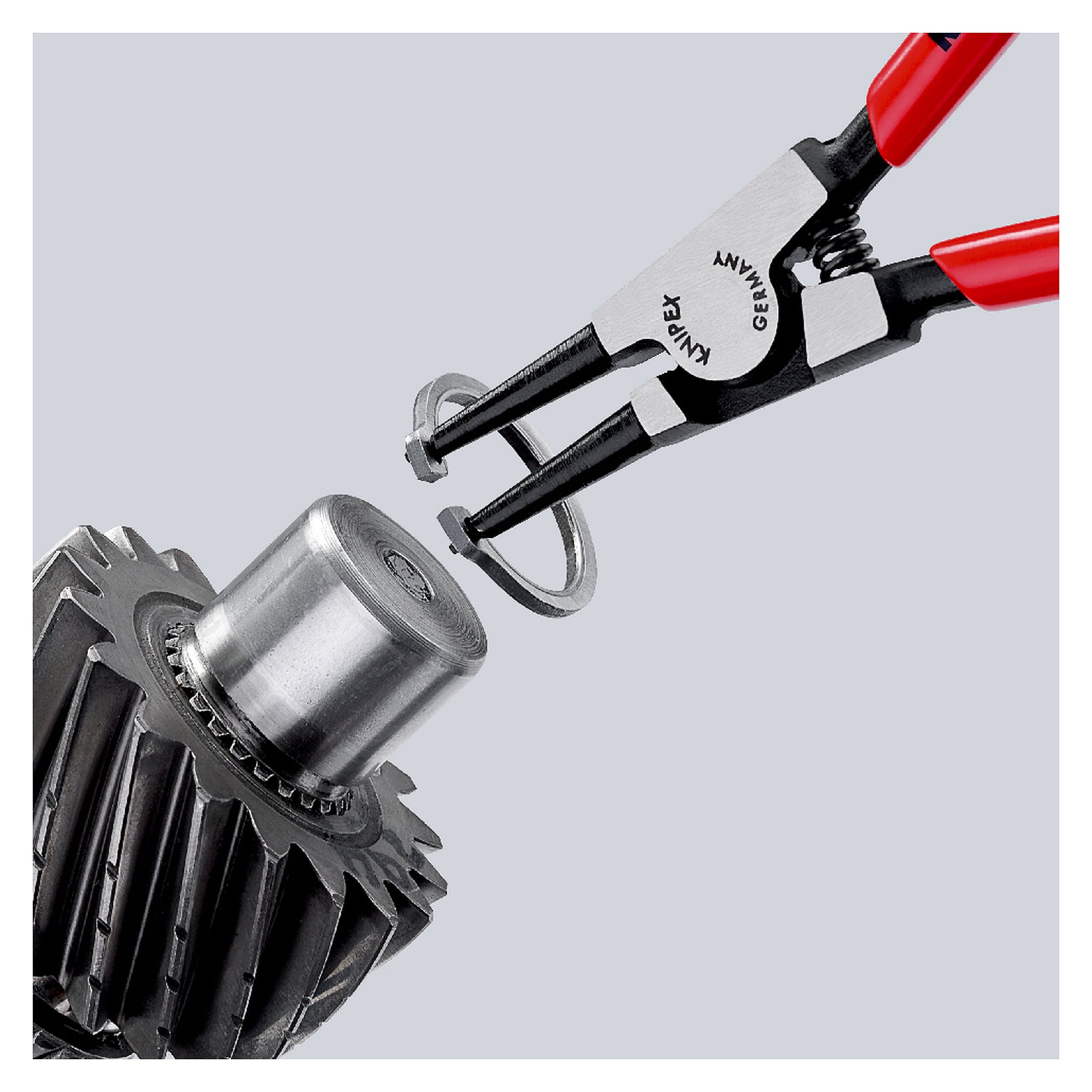

External circlips on shafts from Ø 10 - 25 mm have to be spread evenly for removal without the pliers slipping off and scoring the shaft. These forged pliers to DIN 5254 A are 140 mm long and seat their solid tips of Ø 1.3 mm firmly in the grip holes.

Benefits

• Solid forged style transfers the spreading force up to 25 mm without distortion.
• Non-slip, solid tips of Ø 1.3 mm engage safely in the ring holes.
• Design to DIN 5254 A, so the pliers fit into established tool sets.
• Polished head and black atramentized pliers stay clean even in contact with oil.
• Plastic coated handles and a weight of 86 g allow long assembly runs.

Applications

Maintenance, mechanical engineering and vehicle technology, above all when changing bearings and seals on shafts of pumps, motors and gearboxes.

Standards and conformity

The design follows DIN 5254 A. The pliers contain no substances of very high concern under REACH, and the RoHS directive is not applicable to this hand tool.
