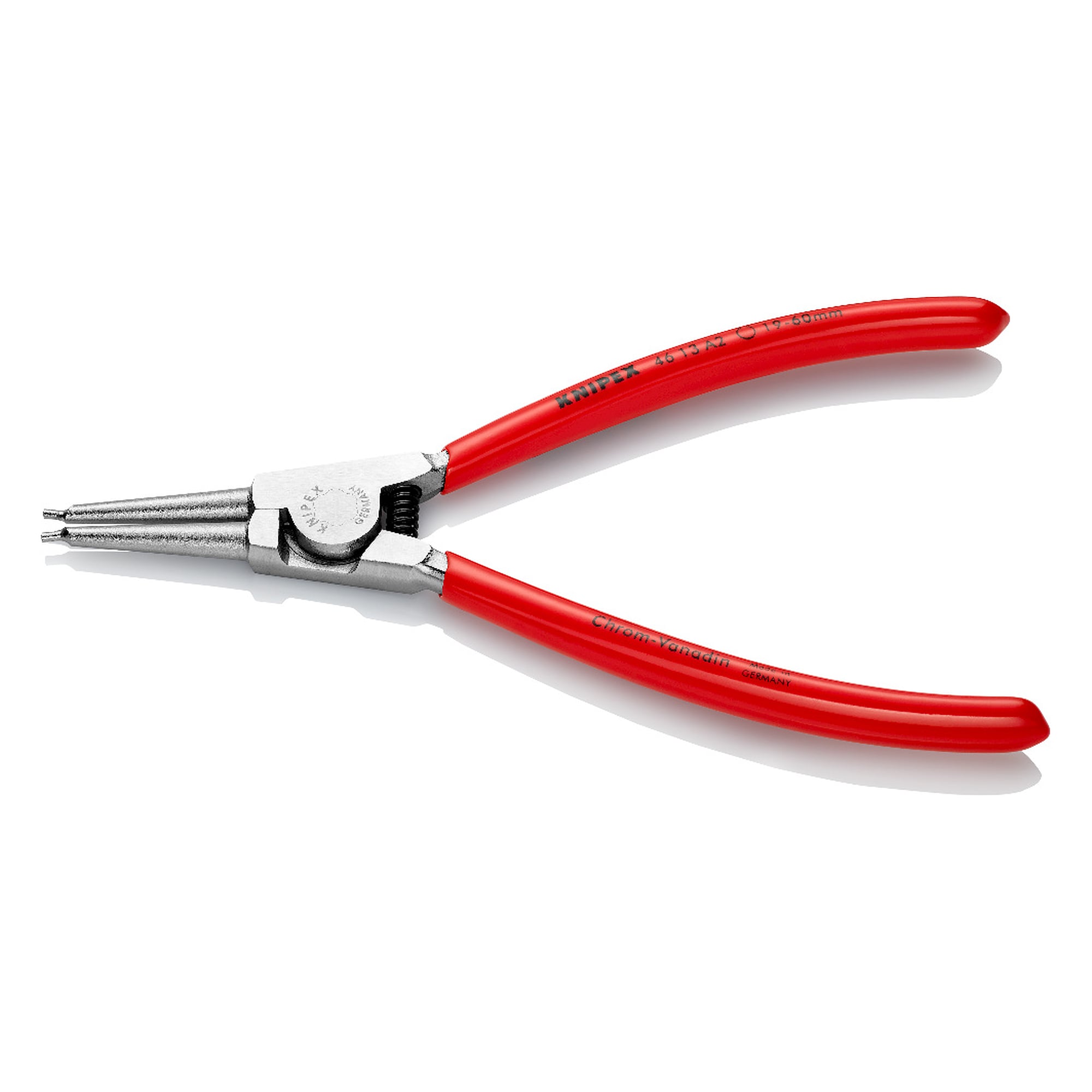

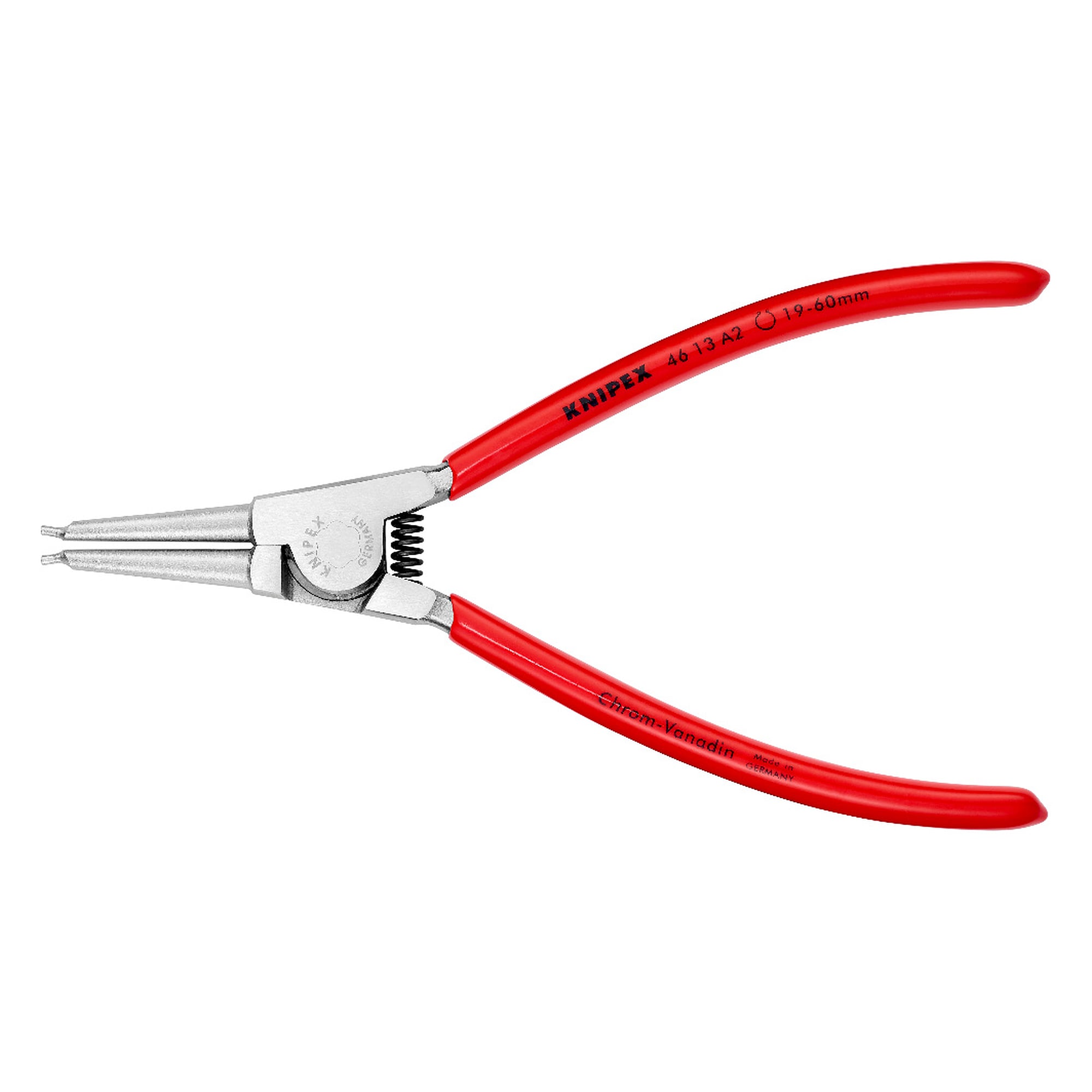

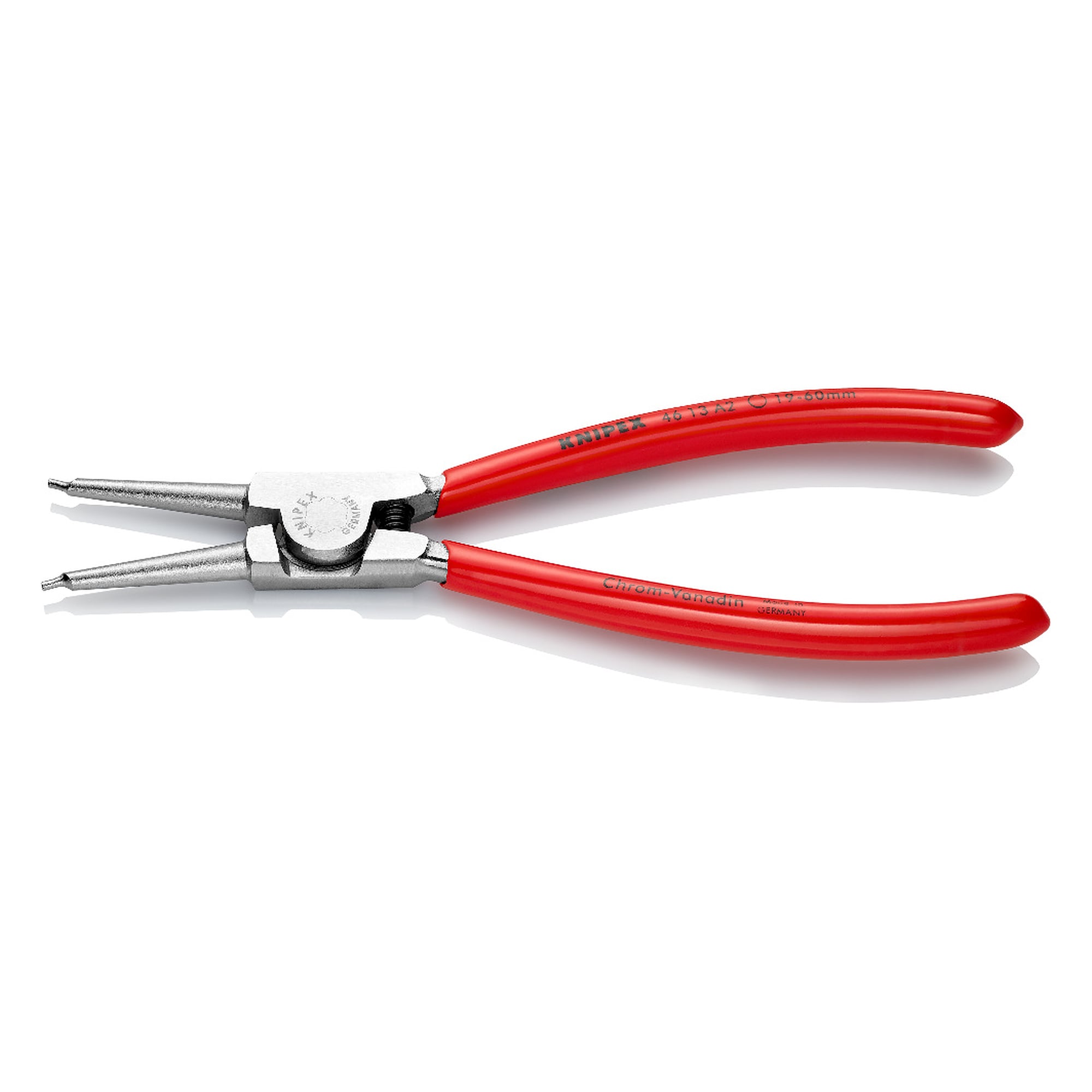

Circlip pliers for external circlips on shafts Ø 19 - 60 mm, forged, 180 mm - Knipex 46 13 A2

External circlips sit under tension in the shaft groove and tend to fly off when released. The 46 13 A2 circlip pliers cover shaft diameters from Ø 19 to 60 mm and keep the ring on the tool with non-slip tips of Ø 1.8 mm.

Benefits

• Solid forged style absorbs the spreading force needed for rings on shafts up to Ø 60 mm.
• Non-slip, solid tips of Ø 1.8 mm reach into the eye of the ring and stay there while you position the tool.
• Capacity Ø 19 - 60 mm shaft diameter, tip spacing and tip diameter are matched to exactly this range.
• Pliers and head chrome-plated, the handles are plastic coated and stay under control even under a hard pull.
• 180 mm long at 133 g, handy enough for work in a tight installation space.
• Built to DIN 5254 A, the standard for circlip pliers.

Areas of use

Gearbox and bearing repair, engine and pump assembly, vehicle workshops and general machine building. Wherever shafts from Ø 19 to 60 mm are secured against axial movement by external circlips.

Standards and conformity

The tool is built to DIN 5254 A. According to the manufacturer it contains no substances of very high concern under REACH, and the RoHS directive does not apply to this hand tool.
