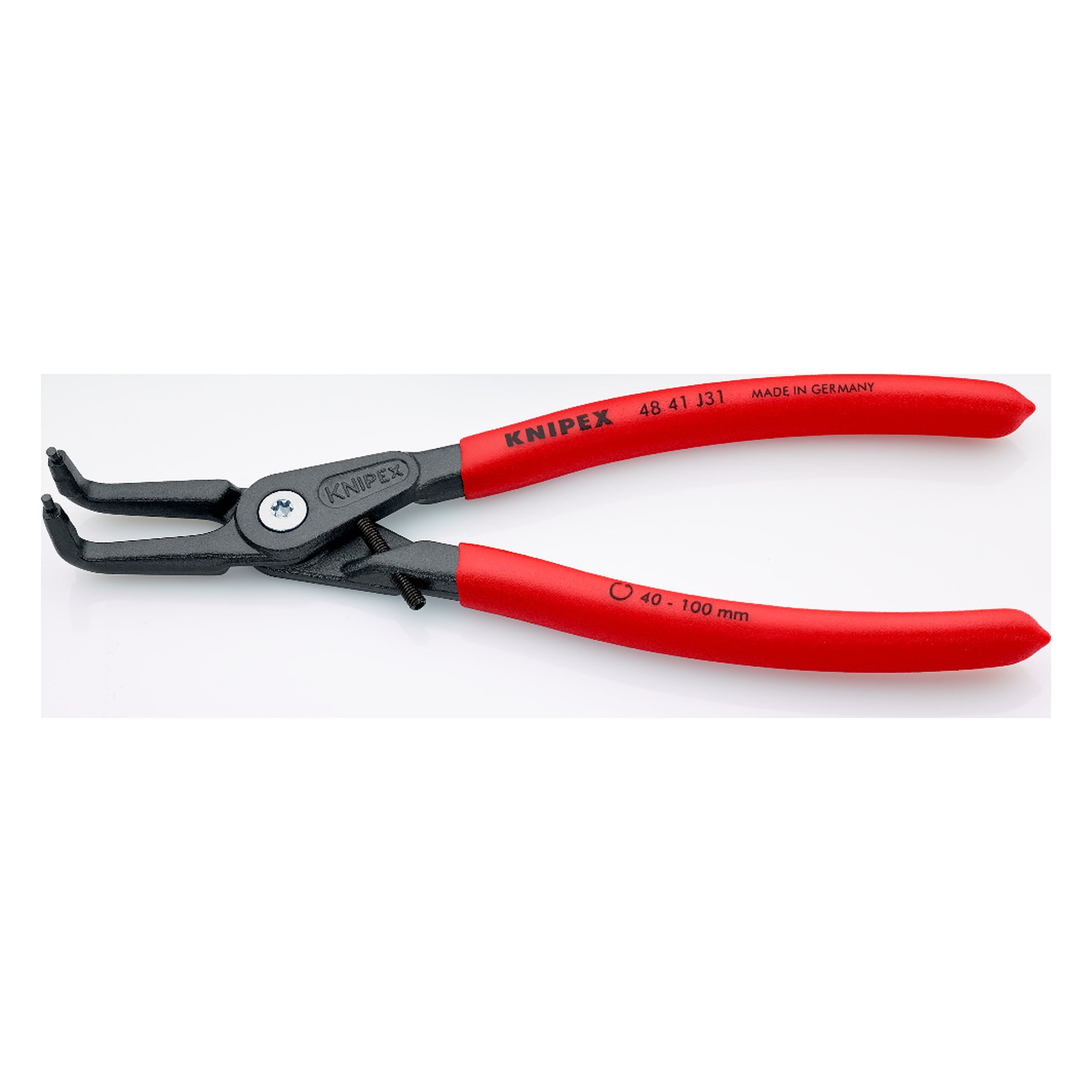

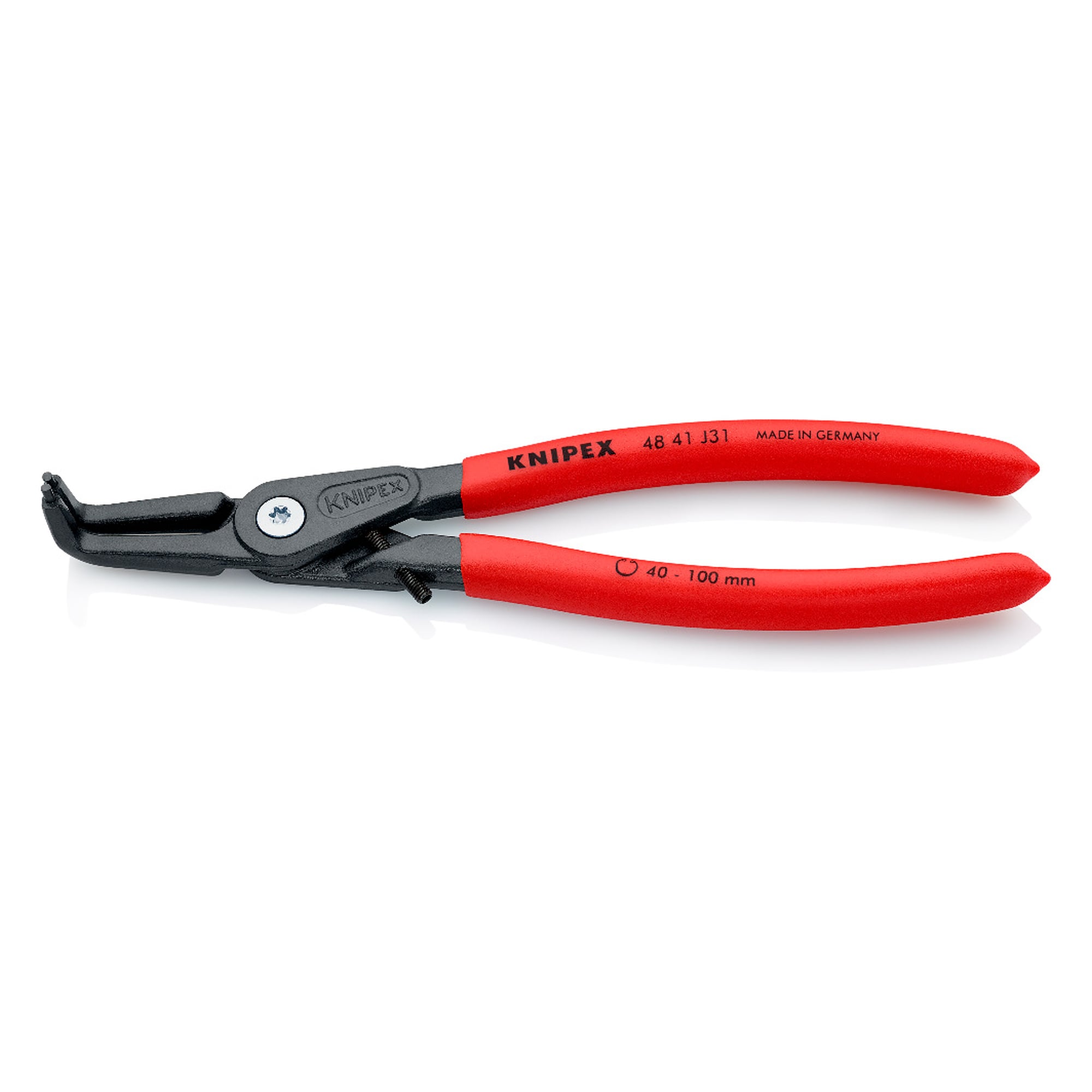

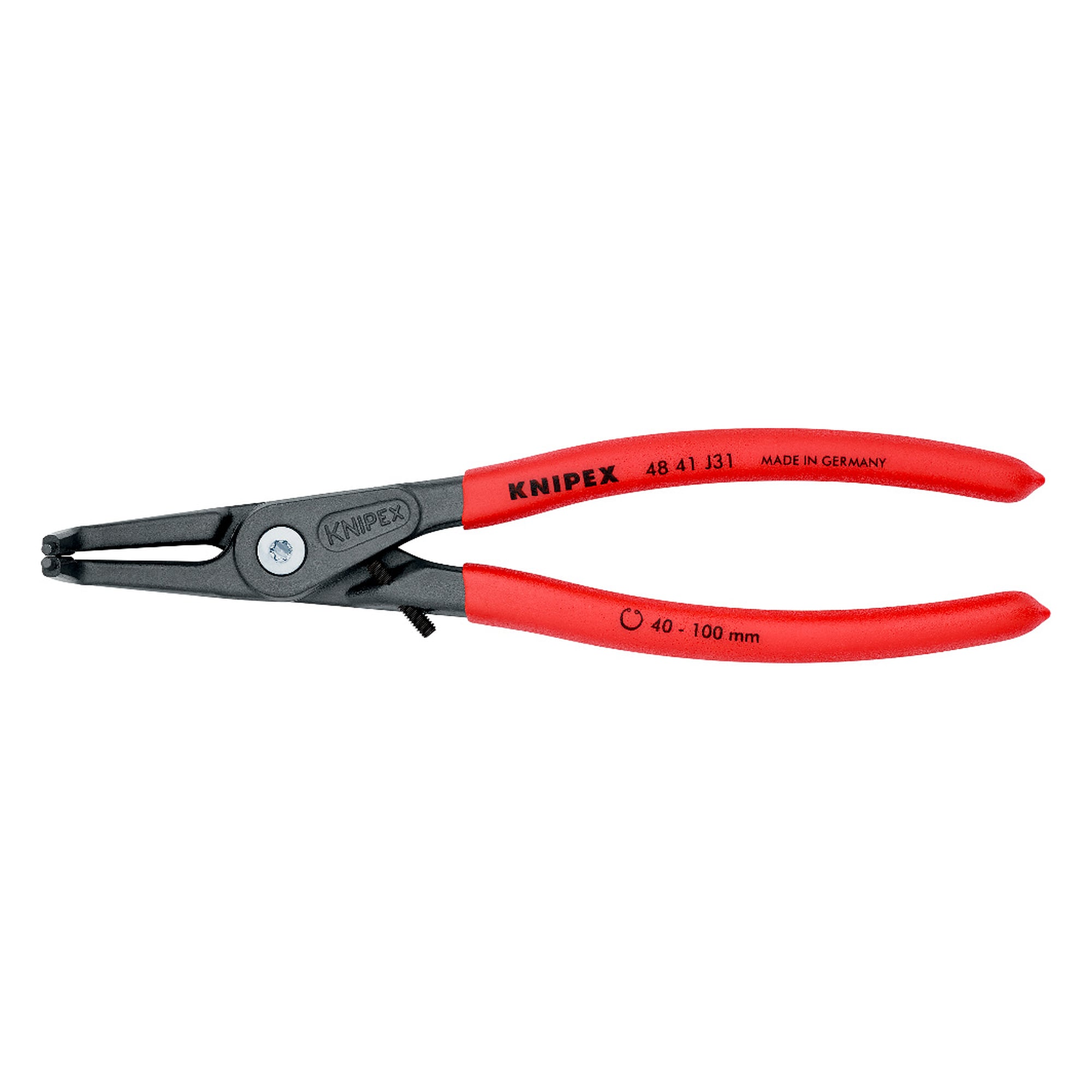

Precision circlip pliers for internal circlips in bore holes with overexpansion guard, 210 mm - Knipex 48 41 J31
Precision circlip pliers for internal circlips in bore holes to DIN 5256 D, 210 mm long, 265 g. The end stop, set by a hexagon socket screw, prevents the rings from being overstretched, and the inserted tips last up to 10 times longer in continuous use than turned tips. Grey atramentized pliers with non-slip plastic coated handles.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Large internal circlips call for leverage and for tips that travel on an exact path. The 48 41 J31 precision circlip pliers deliver both: 210 mm of length for low effort spreading and a bolted joint for backlash free action. The adjustable end stop prevents overstretching, and the tool weighs 265 g.
Benefits
- Inserted tips instead of turned tips, up to 10 times longer service life in continuous operation.
- Overexpansion guard with an adjustable end stop, the ring is only spread as far as needed.
- Adjustment by hexagon socket screw, quickly matched to the ring size in hand.
- Large contact faces on the tips, so circlips are not distorted and go in easily.
- Bolted joint for precise, zero backlash operation of the pliers over their whole service life.
- Non-slip plastic coating on the handles, 210 mm overall length at 265 g.
Areas of use
Series assembly, workshop repair and test benches. The adjustable end stop pays off in particular when the same ring size to DIN 5256 D is fitted over and over.
Standards and conformity
The pliers comply with DIN 5256 D for circlip pliers for internal circlips. According to the manufacturer they contain no substances of very high concern under REACH. The RoHS directive does not apply to this product.
Technical data
| EAN | 4003773079590 |
|---|---|
| Pliers | grey atramentized |
| Handles | coated with non-slip plastic |
| Weight | 265 g |
| Dimensions | 210 x 45 x 13 mm |
| Standard | DIN 5256 D |
| REACH conformity | contains no SVHC |
| RoHS conformity | not applicable |
| Manufacturer | Knipex |
| Manufacturer Nr. | 48 41 J31 |
| GPSR manufacturer information | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
| Condition of article | New |
| Article authenticity | Original product |
| Height | 13 mm |
| Width | 45 mm |
| Colour | Grey |
| Farbe | grau |
| Norm | DIN ISO 5256 |
| Overall length [mm] | 210 |
