Circlip pliers for external circlips on shafts, 10 - 25 mm dia., chrome-plated, 125 mm - Knipex 46 23 A11
Circlip pliers for external circlips on shafts of 10 - 25 mm dia., forged in a solid style for the forces that arise when the ring is expanded. The non-slip, solid tips of 1.3 mm dia. hold the circlip in its groove instead of letting it spring away. Chrome-plated version to DIN 5254 B, 125 mm long at 84 g.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
When shafts are dismantled and reassembled, the circlip has to be expanded, guided over the shaft shoulder and set back cleanly into its groove. The 46 23 A11 circlip pliers work on shaft diameters of 10 - 25 mm dia. and hold the ring with non-slip tips of 1.3 mm dia.
Benefits
- Solid forged style that withstands the forces arising when the ring is expanded.
- Non-slip, solid tips of 1.3 mm dia. keep the circlip in its groove while it is spread.
- Capacity for shaft diameters of 10 - 25 mm dia., matched to the corresponding ring size.
- Plastic coated handles for a secure grip at a tool weight of only 84 g.
- Overall length 125 mm, overall size 125 x 69 x 19 mm, so the reach can be planned even in installed condition.
- Chrome-plated pliers and chrome-plated head, protected against corrosion in daily workshop use.
Areas of use
Machine and plant construction, gearbox and bearing assembly, vehicle repair and the general repair shop. Wherever external circlips are fitted to or removed from shafts of 10 - 25 mm dia..
Standards and conformity
The pliers follow DIN 5254 B for circlip pliers. According to the manufacturer they contain no substances of very high concern under REACH. The RoHS directive does not apply to this product.
Technical data
| EAN | 4003773043027 |
|---|---|
| Pliers | chrome-plated |
| Head | chrome-plated |
| Handles | plastic coated |
| Weight | 84 g |
| Dimensions | 125 x 69 x 19 mm |
| Standard | DIN 5254 B |
| REACH conformity | contains no SVHC |
| RoHS conformity | not applicable |
| Capacity for shaft diameters | 10 - 25 mm dia. |
| Tips (diameter) | 1.3 mm dia. |
| Manufacturer | Knipex |
| Manufacturer Nr. | 46 23 A11 |
| GPSR manufacturer information | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
| Condition of article | New |
| Article authenticity | Original product |
| Height | 19 mm |
| Width | 69 mm |
| Norm | DIN ISO 5254 |
| Overall length [mm] | 125.000000 |
Downloads

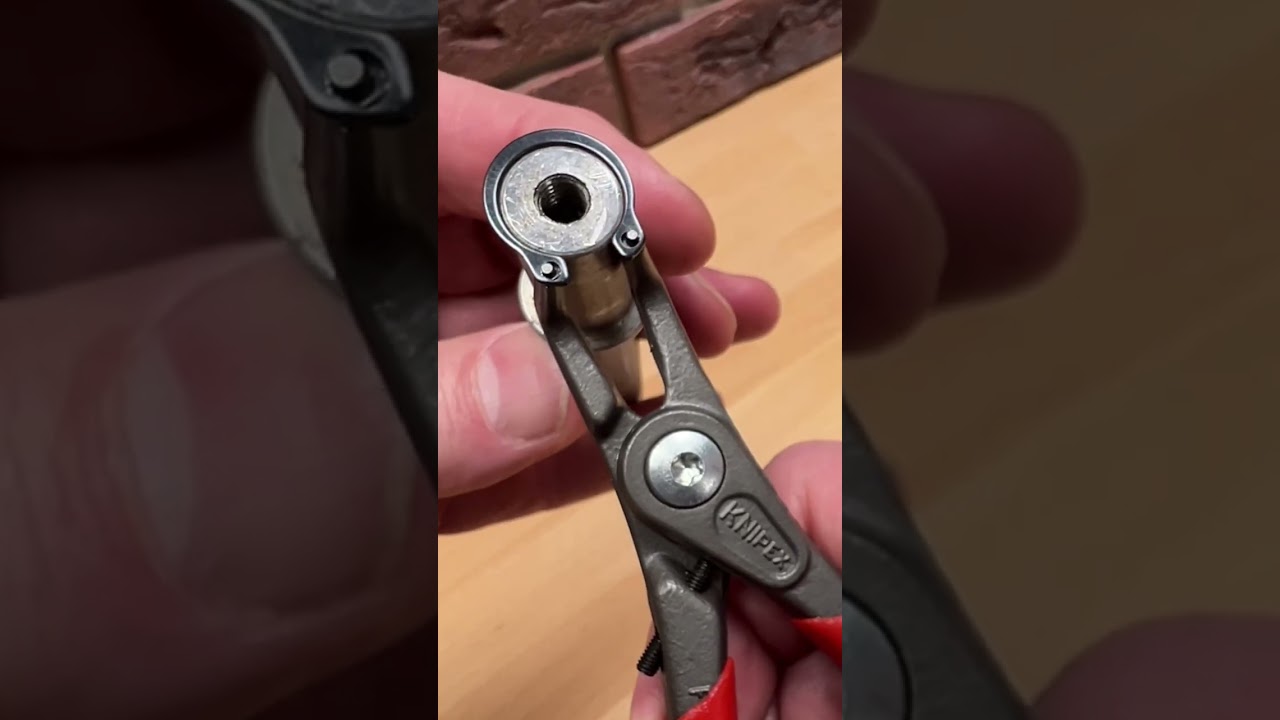

Videos
