Precision circlip pliers for internal circlips in bore holes from 85 to 140 mm dia. with 3.2 mm dia. tips, 305 mm long at 576 g. The inserted tips last up to 10 times longer in continuous use than turned tips and the bolted joint keeps the action free of backlash. Made to DIN 5256 D, grey atramentized.

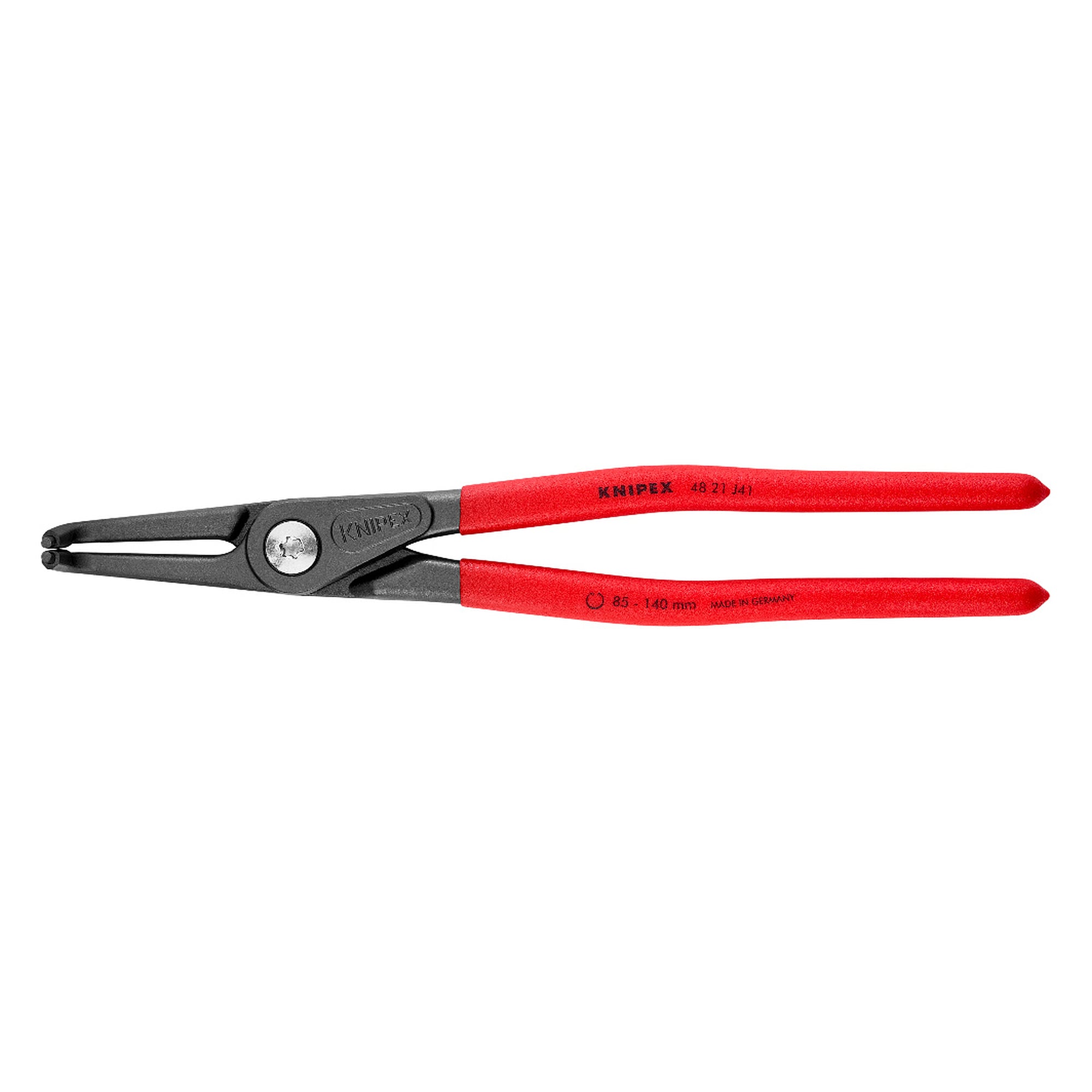

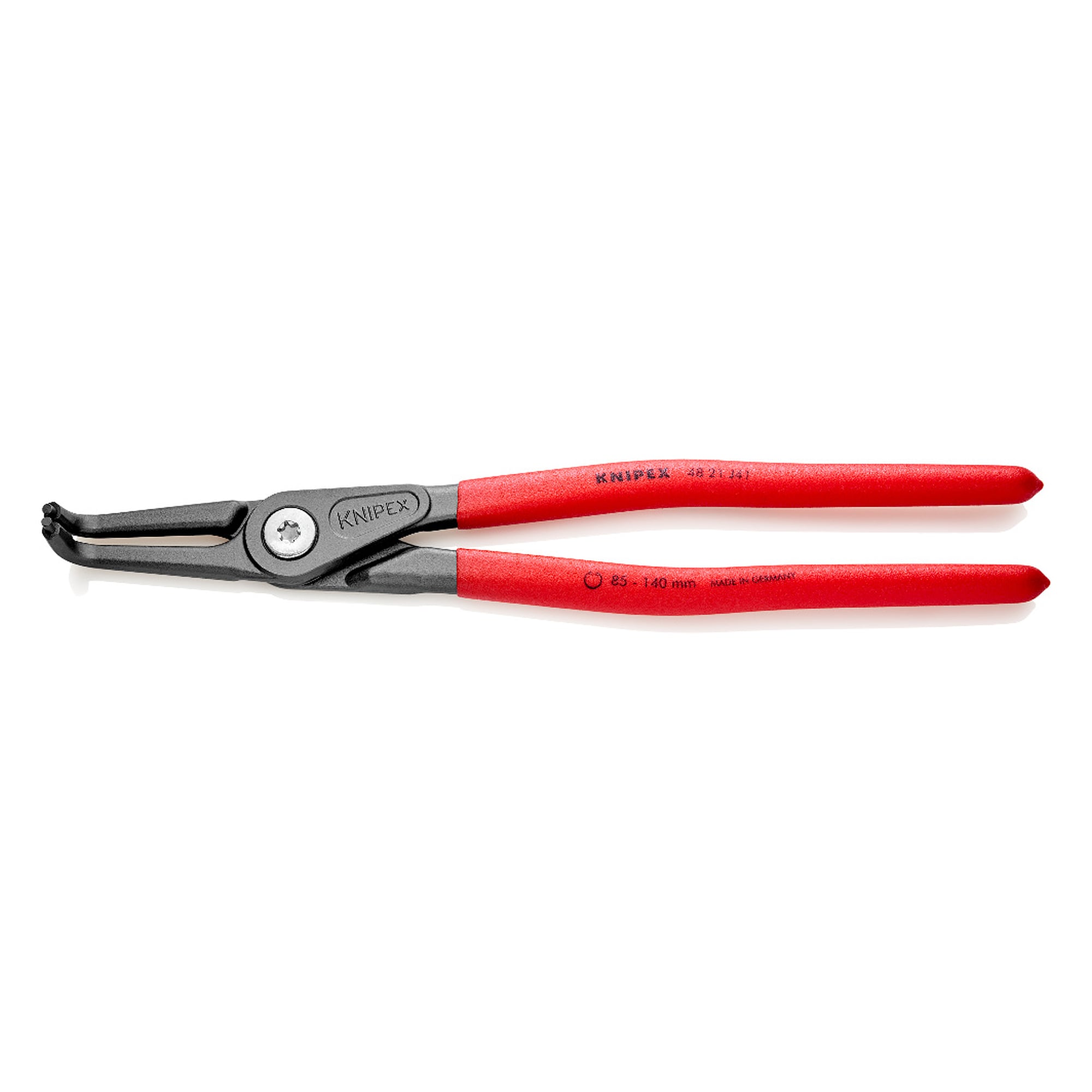

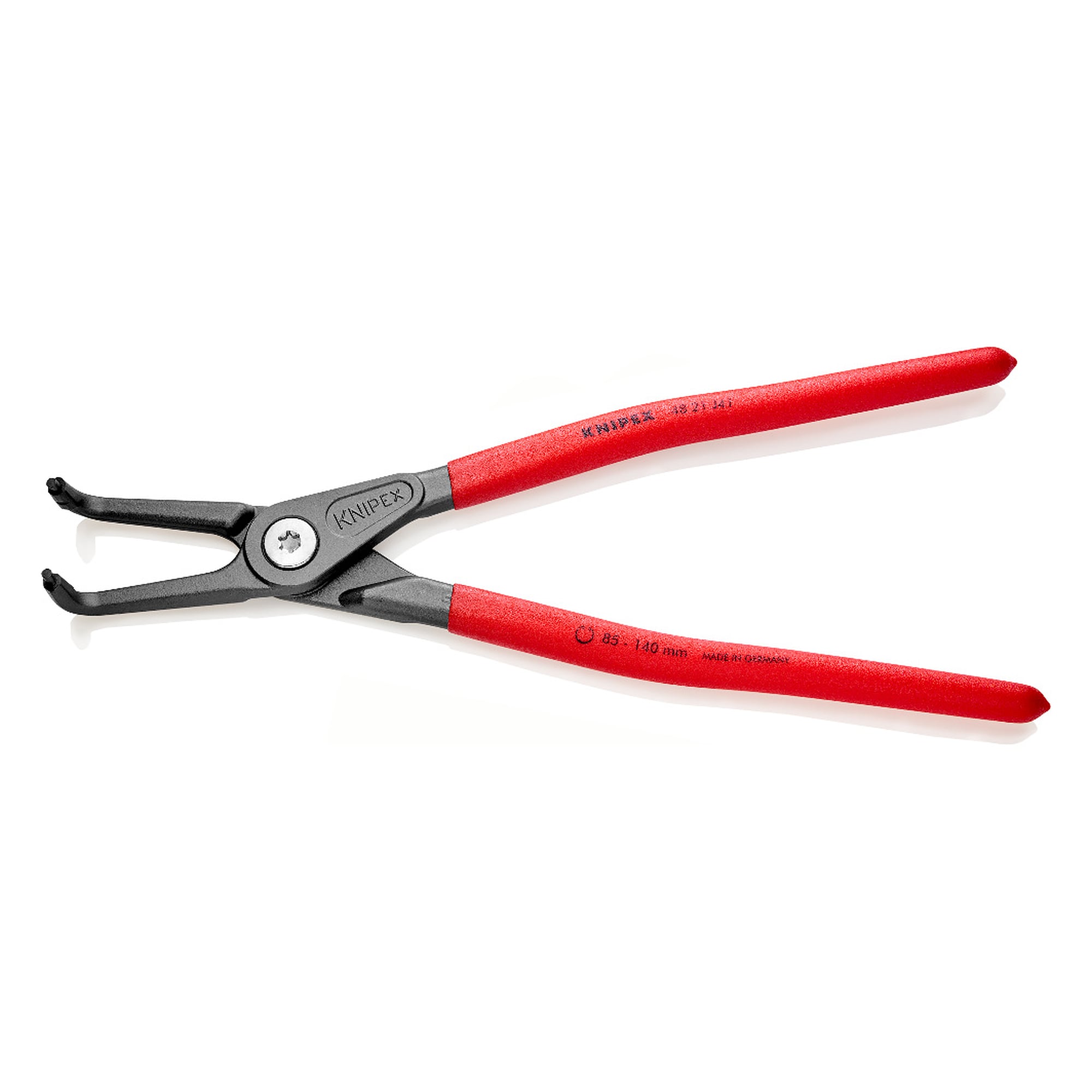

Precision circlip pliers for internal circlips in bore holes 85 - 140 mm dia., 305 mm - Knipex 48 21 J41
KNIPEX
Original product
Net price (excl. VAT)
€36.60
Item
WL61575
Manufacturer no.
48 21 J41
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.48 21 J41
EAN4003773048664
ConditionNew
Article
WL61575
Frequently Bought Together
Circlips in bore holes from 85 to 140 mm dia. are beyond the reach of a normal pair of assembly pliers. The 48 21 J41 precision circlip pliers cover that range with 3.2 mm dia. tips and, at 305 mm, offer the leverage to spread even strong rings calmly. The inserted tips give up to 10 times the service life of turned tips, and the tool weighs 576 g.
Benefits
- Tips of 3.2 mm dia. for internal circlips in bore holes from 85 to 140 mm dia.
- Inserted tips instead of turned tips, up to 10 times longer service life in continuous operation.
- Large contact faces on the tips, so circlips are not distorted and go in easily.
- Bolted joint for precise, zero backlash operation of the pliers.
- 305 mm of length for spreading large rings with little effort, weight 576 g.
- Non-slip plastic coating on the handles, grey atramentized pliers.
Technical data
| EAN | 4003773048664 |
|---|---|
| Pliers | grey atramentized |
| Handles | coated with non-slip plastic |
| Weight | 576 g |
| Dimensions | 305 x 45 x 17 mm |
| Standard | DIN 5256 D |
| REACH conformity | contains no SVHC |
| RoHS conformity | not applicable |
| Capacity for bore diameter | 85 - 140 mm dia. |
| Tips (diameter) | 3.2 mm dia. |
Areas of use
Repair of large bearing seats, gearboxes, pumps and hydraulic cylinders as well as tool and mould making, wherever internal circlips to DIN 5256 D sit in bores from 85 to 140 mm dia.
Standards and conformity
The pliers comply with DIN 5256 D for circlip pliers for internal circlips. According to the manufacturer they contain no substances of very high concern under REACH. The RoHS directive does not apply to this product.
| Norm | DIN ISO 5256 |
|---|---|
| Manufacturer Nr. | 48 21 J41 |
| Manufacturer | Knipex |
| EAN | 4003773048664 |
| Weight | 0.576000 |
| Colour | Grey |
| Height | 17 mm |
| Width | 45 mm |
| GPSR manufacturer information | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
| Article authenticity | Original product |
| Condition of article | New |
| Farbe | grau |
| Overall length [mm] | 305.000000 |
