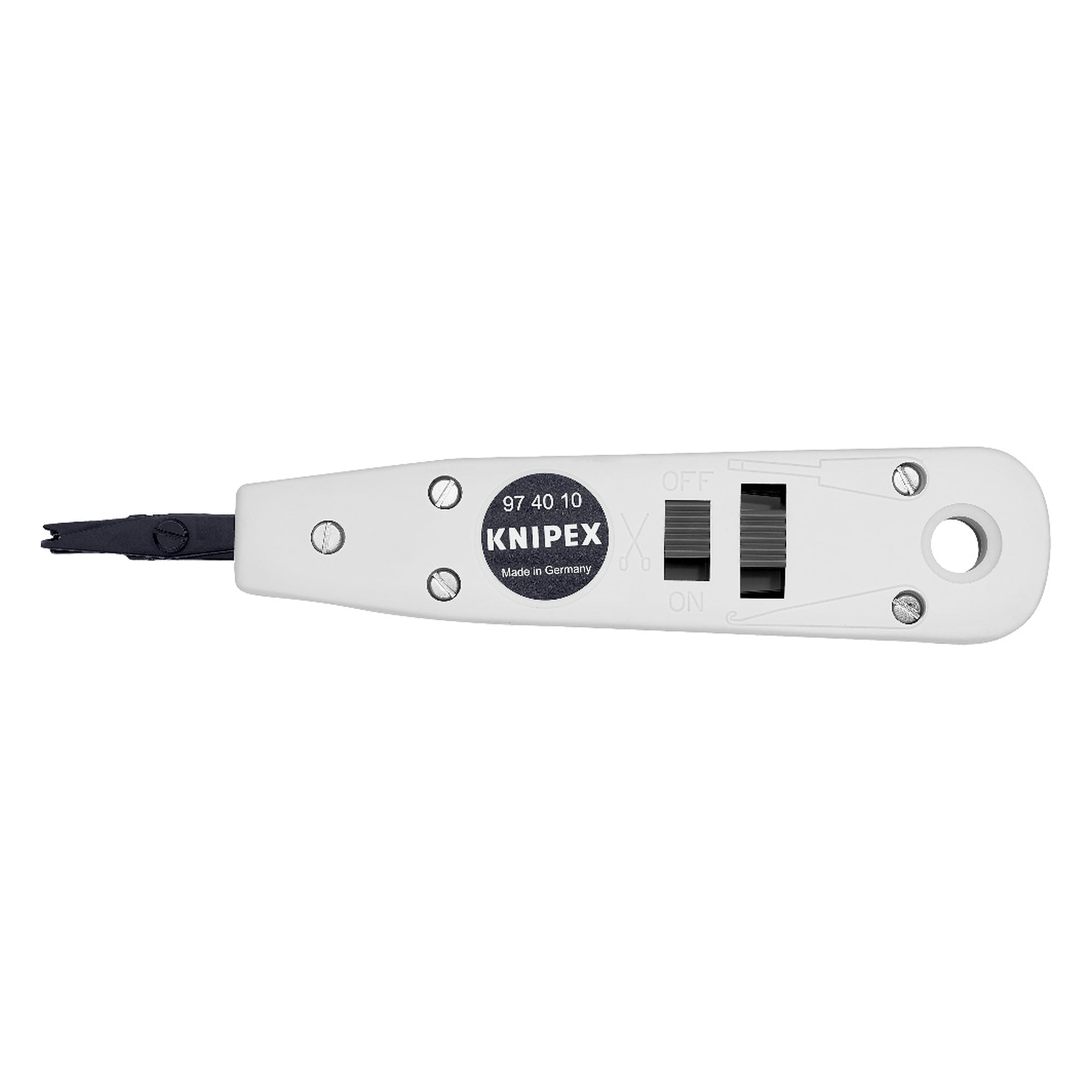

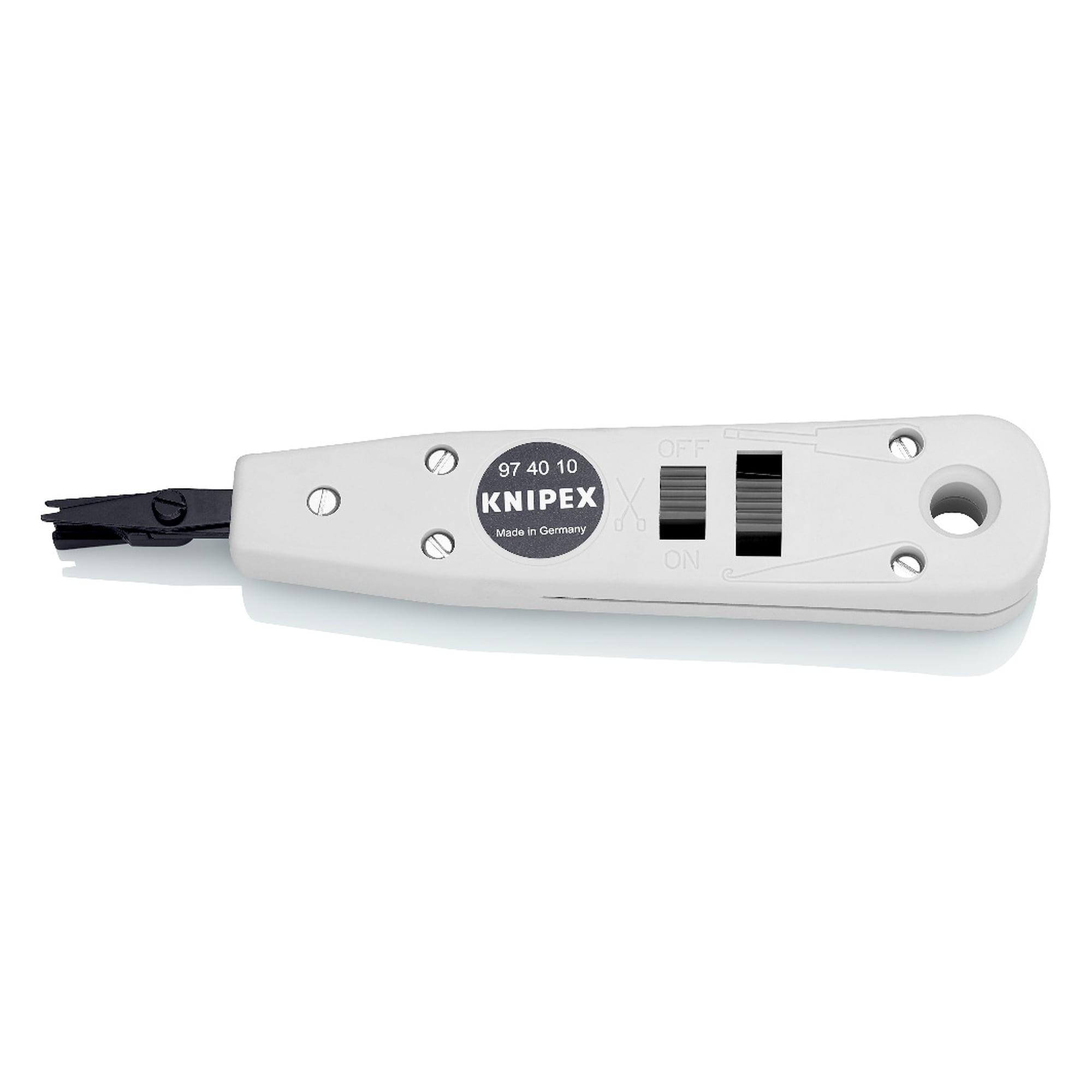

Insertion tool for LSA-Plus and identical designs, conductor Ø 0.4 to 0.8 mm, 175 mm - Knipex 97 40 10

When data cores are terminated on LSA-Plus strips, a clean contact decides the transmission quality. This insertion tool pushes the core in and cuts off the overhang in one operation, for conductor diameters from 0.4 to 0.8 mm.

Benefits

• Tool for terminating on strips, sockets and patch fields in LSA-Plus technology and identical designs.
• Pushing down and cutting in one operation, which saves one movement per core.

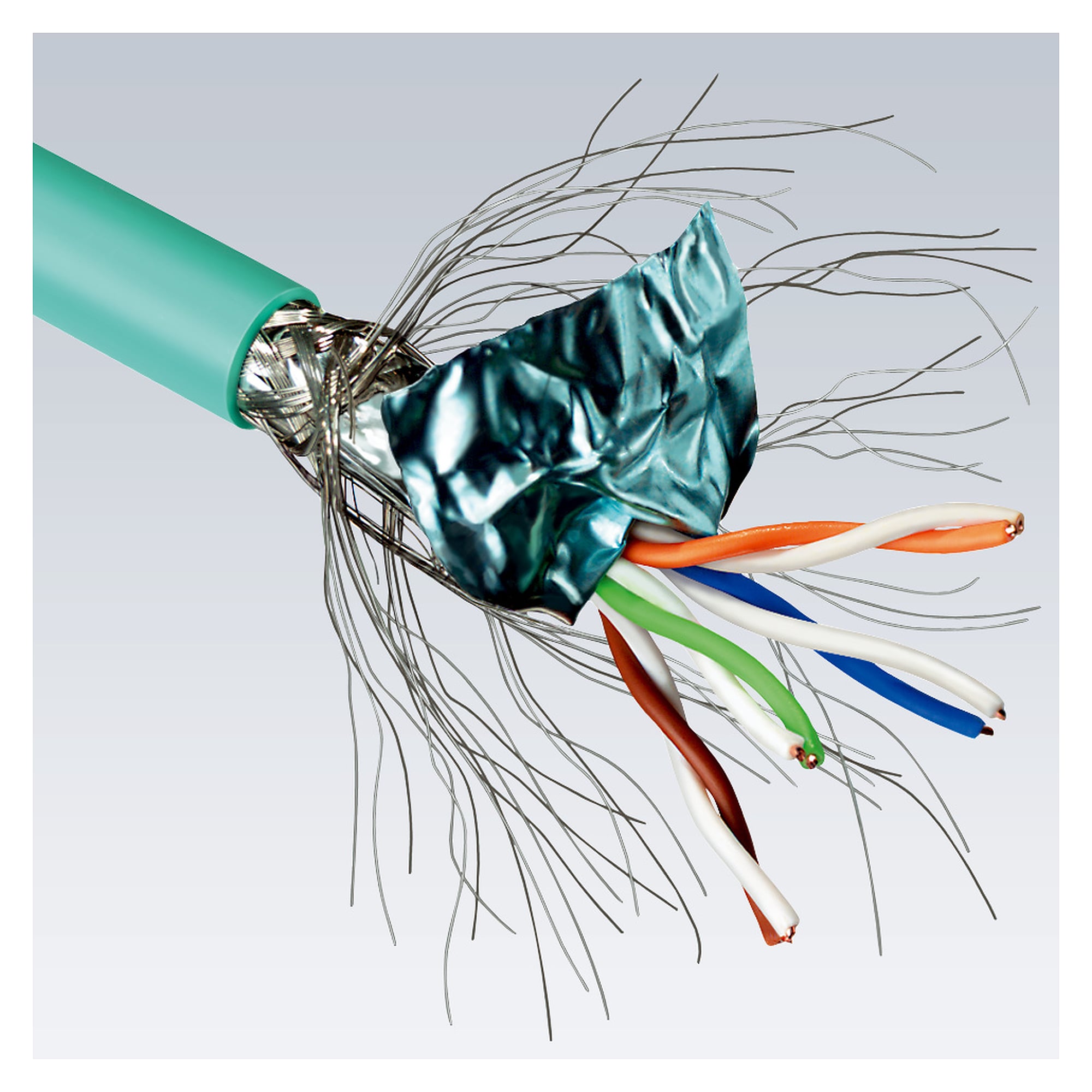

• For UTP and STP cables with a conductor Ø of 0.4 to 0.8 mm, the usual installation cables in network engineering.

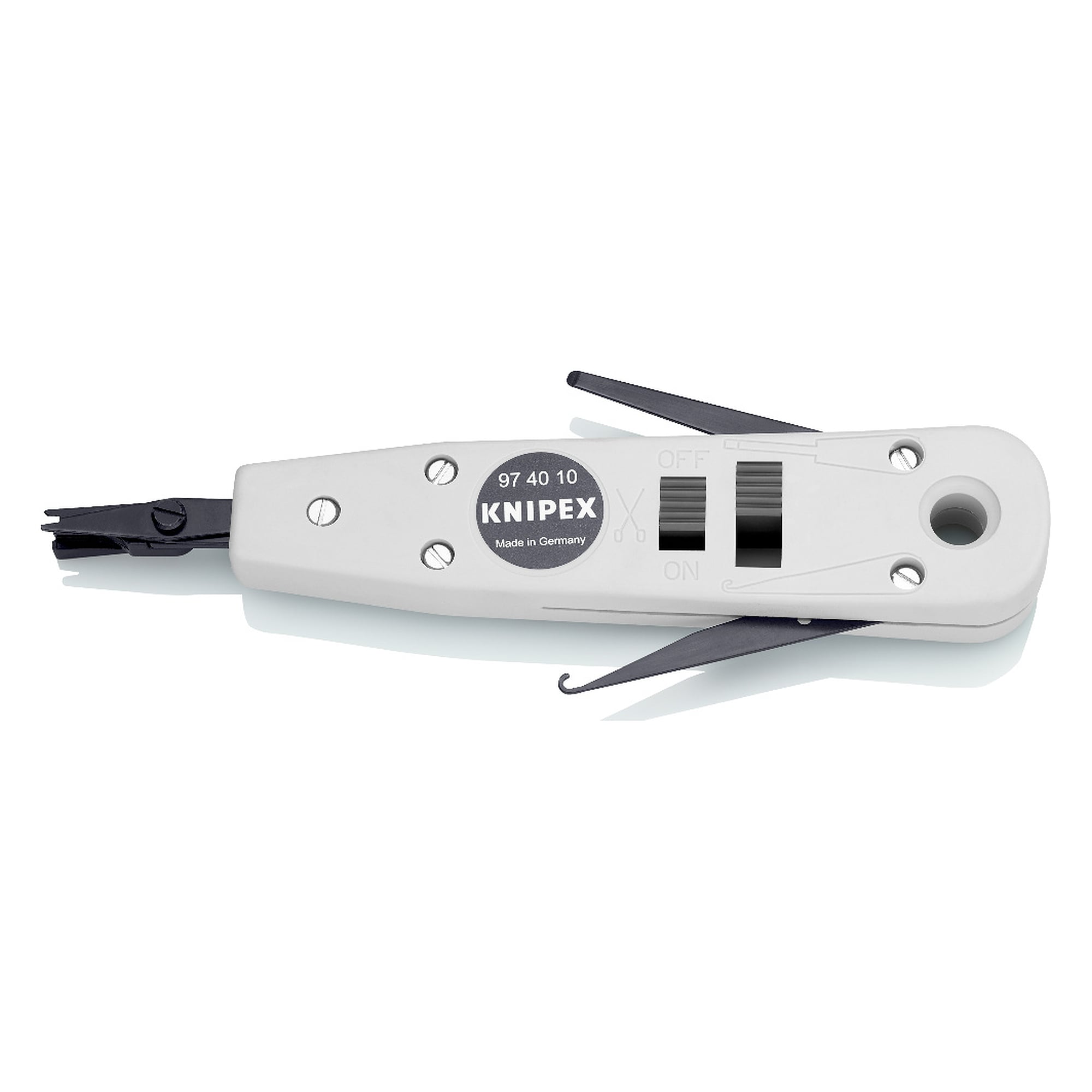

• Integrated pulling hook for taking out cores that are already terminated.
• Release blade for opening insulation displacement contacts without a second tool.
• Plastic housing and black atramentized head, overall length 175 mm at 100 g.

Technical data

Areas of use

Network and telephone installation, distribution cabinets, patch panels and outlet boxes. The tool belongs in the bag wherever LSA-Plus strips or identical insulation displacement contacts are terminated and corrected.

Standards and conformity

The manufacturer states no tool standard for this product. According to the manufacturer the tool contains substances of very high concern under REACH. The RoHS directive does not apply.
