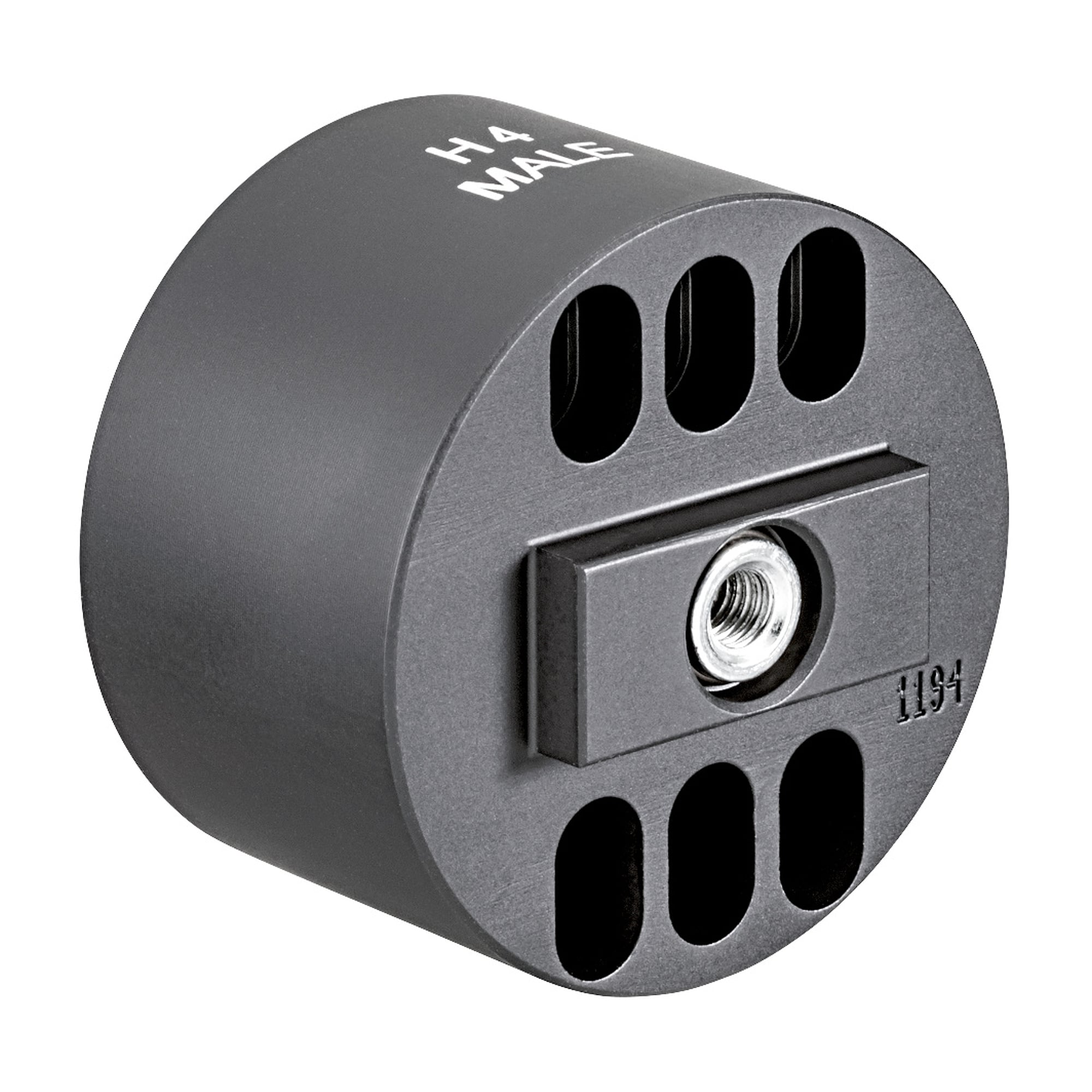

Locator for crimping die 97 49 59, Helios H4 PV connectors, 40 x 30 mm - Knipex 97 49 59 1

On the roof every connection counts, and a contact sitting askew costs time and material. The locator 97 49 59 1 aligns the contacts for crimping die 97 49 59 automatically and precisely and thus leads faster to the perfect crimp. The part measures 40 x 30 mm and weighs 55 g.

Benefits

• Automatic, precise contact alignment, so the clean crimp is reached faster.
• Matched exactly to crimping die 97 49 59 for cold-drawn Amphenol® Helios H4™ PV connectors.
• Part of the KNIPEX system of crimp system pliers and exchangeable crimping dies.
• At 55 g and 40 x 30 mm small enough to travel permanently in the installation bag.
• According to the manufacturer free of substances of very high concern under REACH.

Technical data

Areas of use

Photovoltaic installation and maintenance, electrical work on solar plants and prefabrication of module cables. Wherever contacts for Helios H4™ connectors are crimped in series.

Standards and conformity

According to the manufacturer the product contains no substances of very high concern under the REACH regulation. The RoHS directive does not apply to this product.
