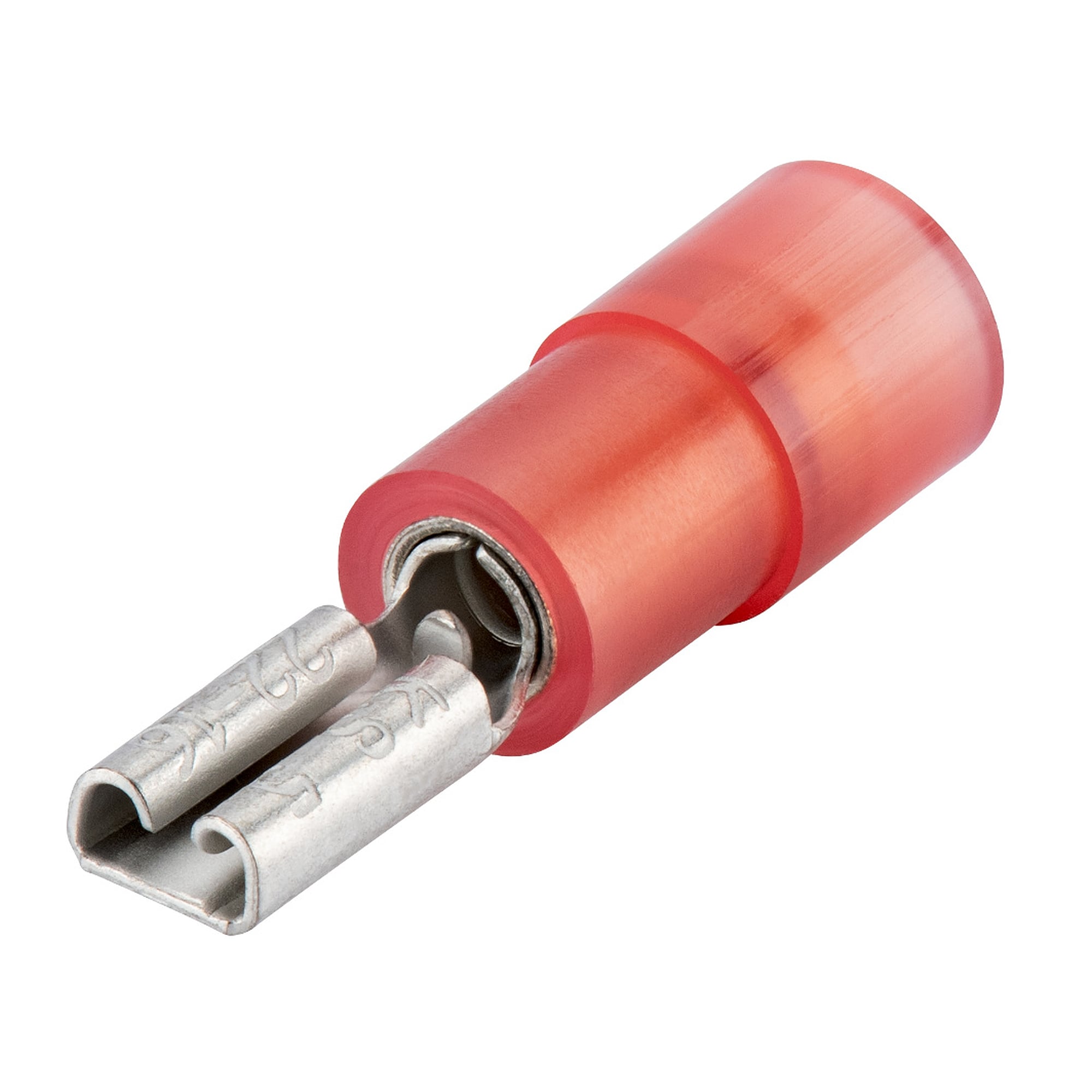

Blade terminal sockets insulated, connector width 2.8 mm, tin-plated brass, colour red, 100 pieces - Knipex 97 99 001

Plug connections on switches, relays and appliance terminals have to keep contact for years. The insulated blade terminal sockets 97 99 001 with a connector width of 2.8 mm are rated for 600 V and continuous temperatures up to 105 °C and come in a pack of 100 pieces.

Benefits

• Socket body of tin-plated brass, combining good conductivity with protection against corrosion at the contact face.
• Nylon insulation, it withstands continuous temperatures up to 105 °C and protects against accidental contact.
• Rated up to 600 V, which covers the usual applications in equipment building and installation work.
• Colour red, so the size is recognised at once in the assortment box.
• Connector width 2.8 mm, matching the blade terminals of the same size.
• Pack of 100 pieces, enough for repetitive work and as a refill in the service vehicle.

Technical data

Areas of use

Vehicle and equipment building, switchgear and control engineering and repairs on existing wiring harnesses. The sockets are processed with crimping pliers for insulated terminals and connectors, for example from the 97 crimping pliers range.

Standards and conformity

The manufacturer states no product standard for this article. According to the manufacturer the goods contain no substances of very high concern under REACH and are RoHS compliant.
