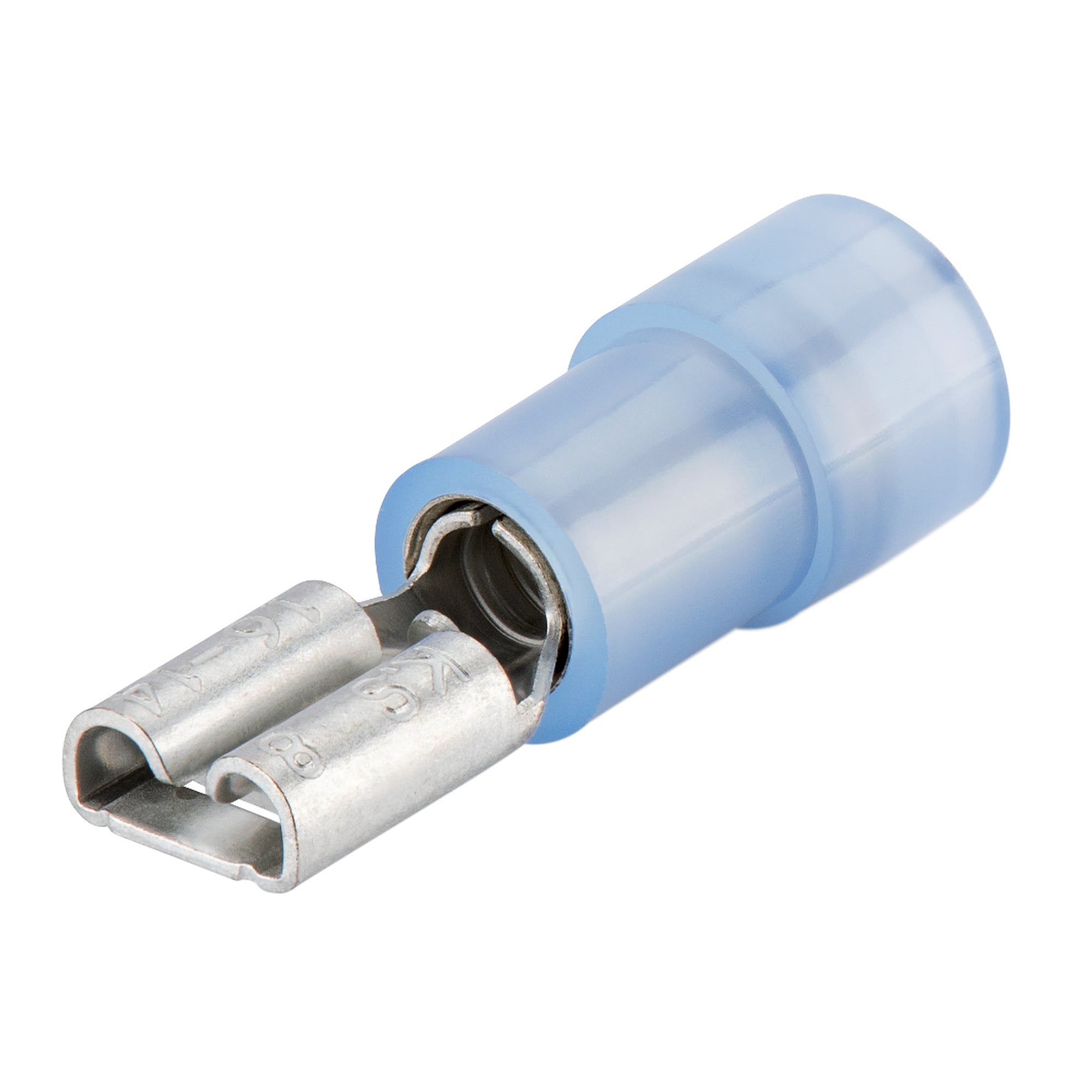

Blade terminal sockets, insulated, tin-plated brass, 600 V, blue, 100 pieces - Knipex 97 99 030
Insulated blade terminal sockets in tin-plated brass for detachable connections between stranded conductors and flat tabs. The nylon insulation withstands up to 105 °C, the sockets are rated up to 600 V. The pack holds 100 pieces with blue colour code.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Connecting stranded conductors to flat tabs calls for receptacles that stay tight mechanically and carry the current cleanly. These insulated blade terminal sockets from Knipex are rated for an electrical load of up to 600 V and come in a pack of 100 pieces.
Advantages
- Contact body in tin-plated brass, which keeps the contact resistance low over the long run.
- Nylon insulation, heat resistant up to 105 °C and therefore suitable for warm control cabinets.
- Approved for a maximum electrical load of 600 V.
- Blue colour code, so the sockets remain easy to tell apart in the assortment case.
- Pack of 100 pieces, enough for continuous wiring work.
- Free of substances of very high concern under REACH and RoHS compliant.
Applications
Suitable for control cabinet building, vehicle and machine wiring and for repairs where conductors are connected to flat tabs and later disconnected again. The sockets are crimped onto the stripped conductor with a matching crimping tool.
Standards and conformity
The material contains no substances of very high concern in the sense of the REACH regulation. The version is RoHS compliant.
Technical data
| Material | brass, tin-plated |
|---|---|
| Insulation | nylon |
| Max. temperature | 105 °C |
| Max. electrical load | 600 V |
| Content | 100 pieces |
| Colour | blue |
| EAN | 4003773075943 |
| REACH conformity | contains no SVHC |
| RoHS conformity | compliant |
| Weight | 0.1 kg |
| Manufacturer | Knipex |
| Manufacturer Nr. | 97 99 030 |
| GPSR manufacturer information | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
| Condition of article | New |
| Article authenticity | Original product |
| Farbe | blau |
