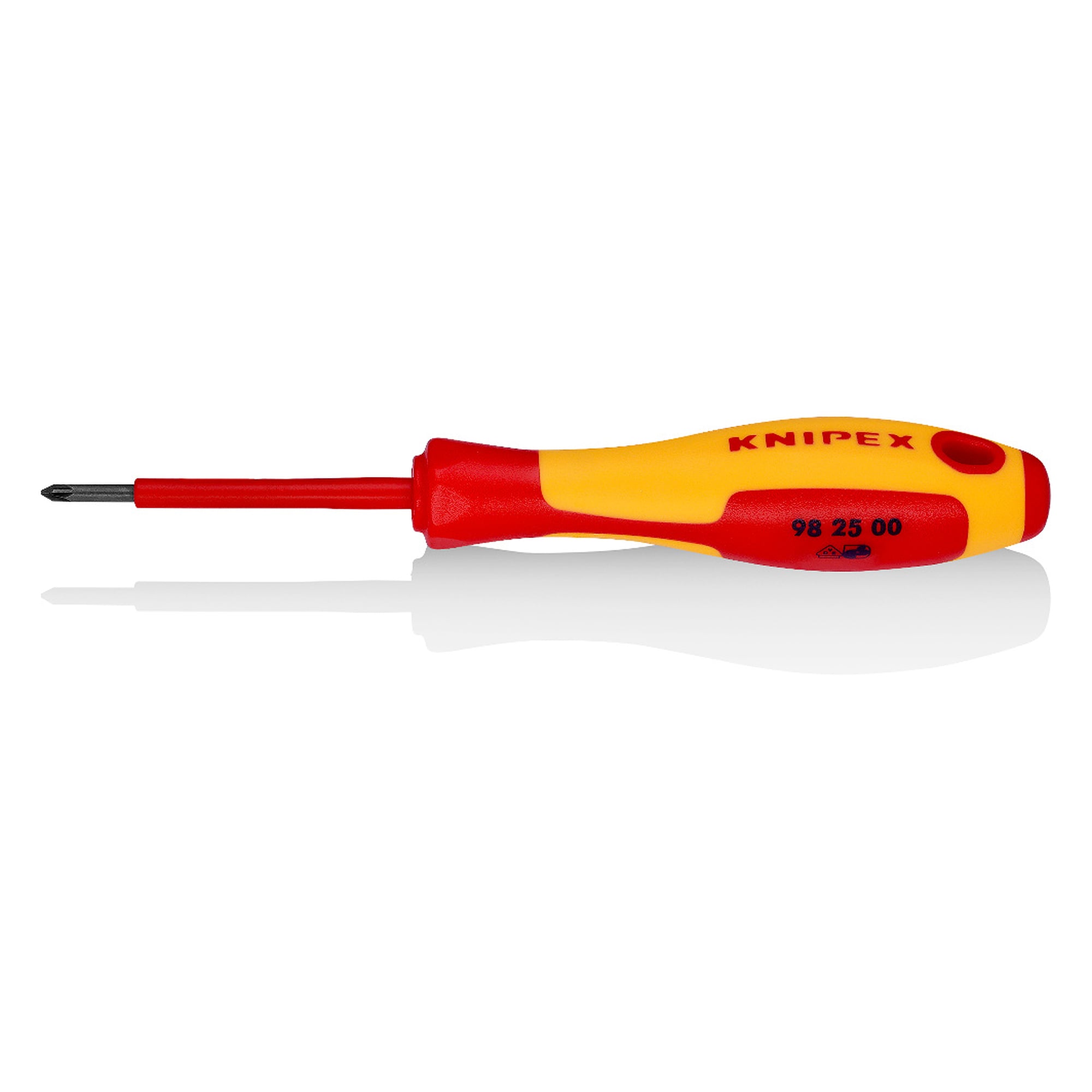

Screwdriver for cross recessed screws Pozidriv PZ0, VDE insulated, 162 mm - Knipex 98 25 00

When working on live installations, the insulation of the tool decides how safe the job is. The 98 25 00 screwdriver is VDE tested to DIN EN 60900 and IEC 60900 and drives Pozidriv cross recessed screws in size PZ0 with a blade of 60 mm, of which only the front 15 mm stay uninsulated.

Benefits

• Insulating multi-component handle and insulated blade, VDE tested to DIN EN 60900 and IEC 60900.
• Ergonomically optimised dual component handle for fatigue reduced work and optimum transmission of force, handle length 102 mm.
• Handle design prevents rolling, the tool stays put on sloping surfaces and inside the cabinet.
• Black oxide finished tip in size PZ0 for a secure seat in the screw head.
• Only the front 15 mm of the blade are uninsulated, overall length 162 mm at 32 g.

Technical data

Areas of use

Electrical installation, control cabinet and plant construction, maintenance and field service on machinery. Wherever screws are driven on or next to live parts, an insulated tool according to IEC 60900 is mandatory.

Standards and conformity

The tool is built and tested to DIN EN 60900 and IEC 60900. These standards cover hand tools for live working up to 1000 V AC. According to the manufacturer the screwdriver contains no substances of very high concern under REACH and the RoHS directive does not apply.
