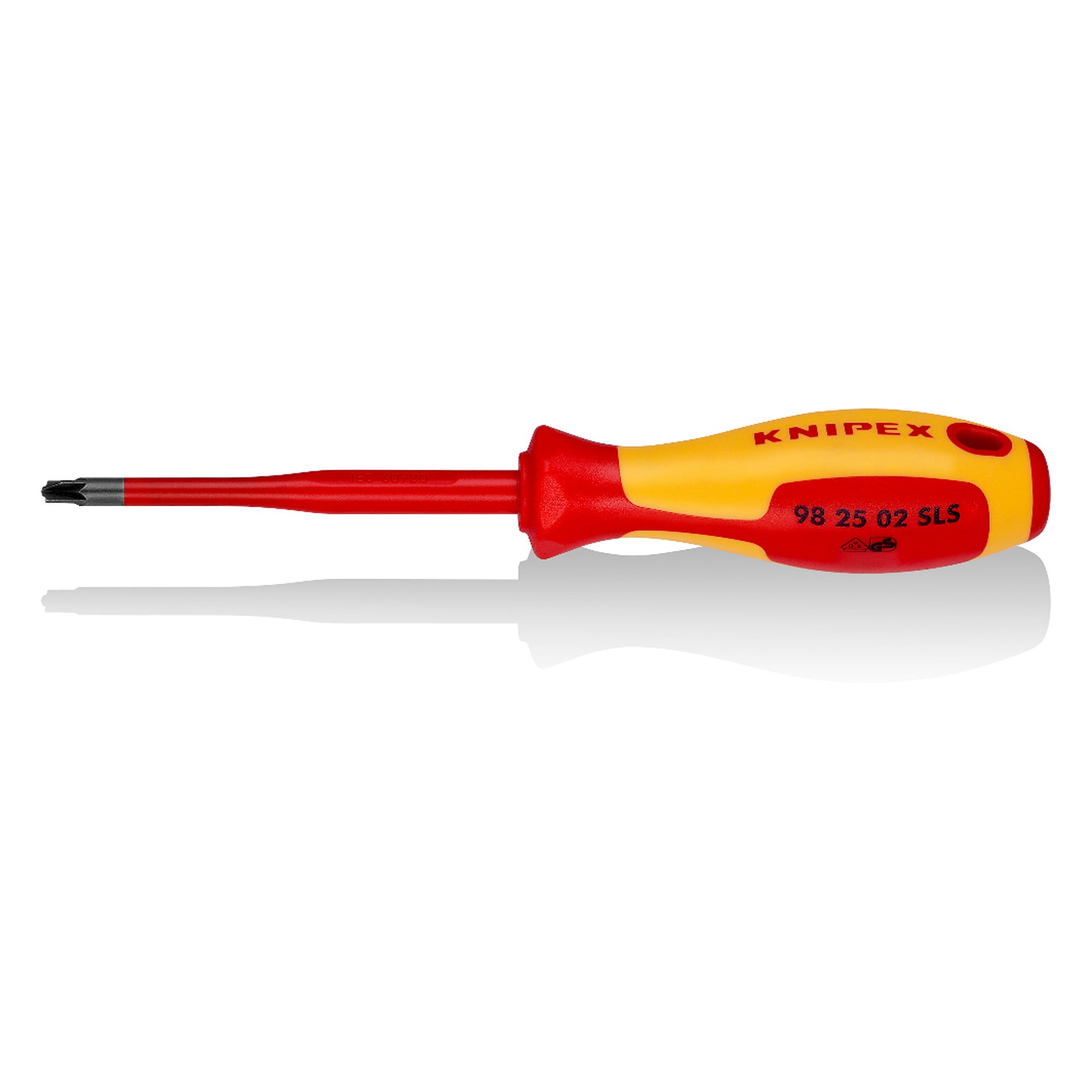

Slim PlusMinus screwdriver Pozidriv PZ/S 2, VDE insulated, 212 mm - Knipex 98 25 02 SLS

PlusMinus profile screws need a driving tip that engages both recesses, otherwise the head rounds off. The 98 25 02 SLS slim screwdriver covers exactly this profile with size PZ/S 2, is VDE tested to DIN EN 60900 and IEC 60900 and reaches recessed clamping points thanks to its reduced shaft.

Benefits

• Reduced extra slim shaft in the front area, so the blade reaches recessed spring and screw elements.
• Driving tip for PlusMinus profile screws in size PZ/S 2, intended for electrical installation components such as automatic circuit breakers.
• Insulating multi-component handle and insulated blade, VDE tested to DIN EN 60900 and IEC 60900.
• Ergonomically optimised dual component handle for fatigue reduced work and optimum transmission of force, handle length 118 mm.
• Handle design prevents rolling, the tool stays put on sloping surfaces and inside the cabinet.

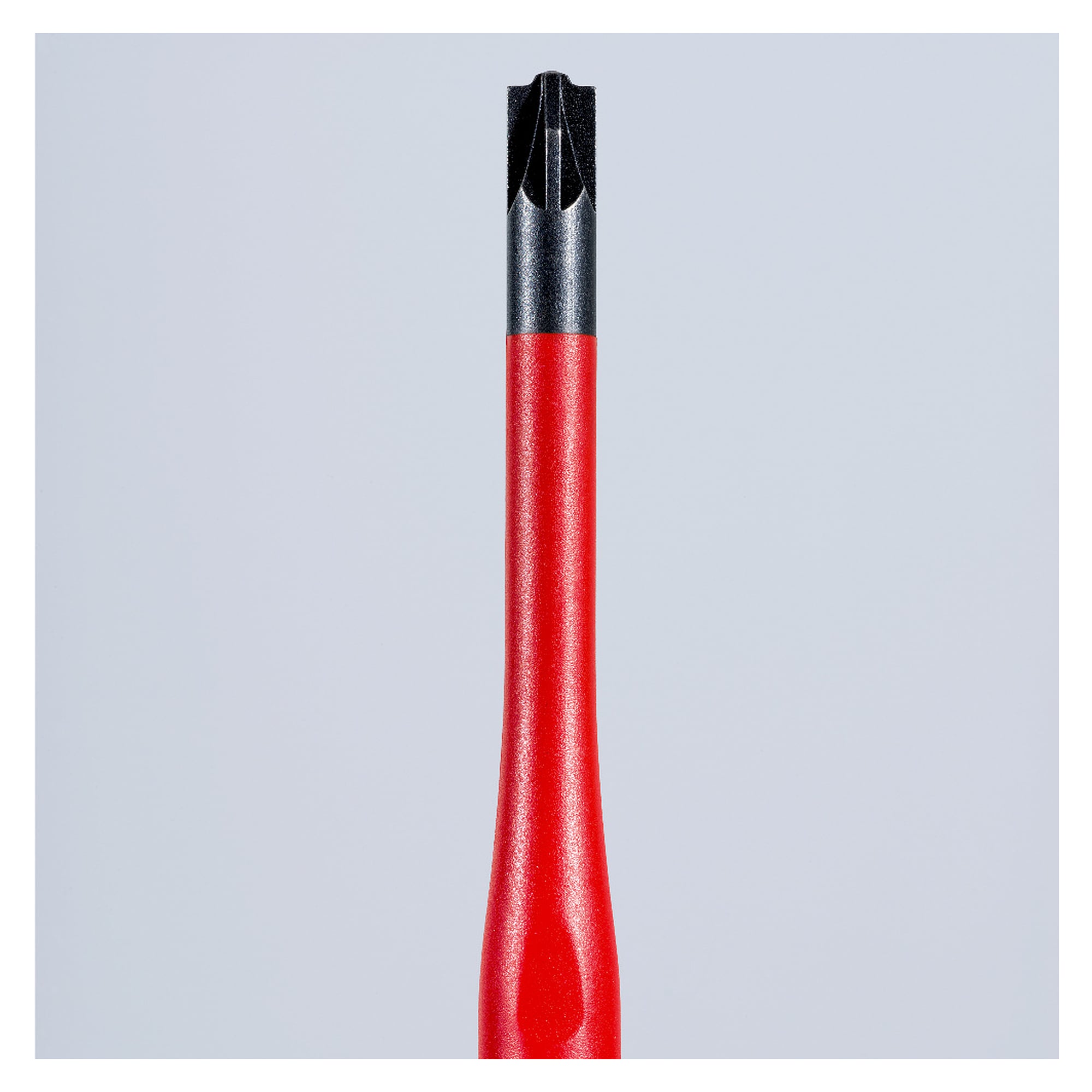

• Black oxide finished tip in size PZ/S 2 for a secure seat in the screw head.
• Only the front 18 mm of the blade are uninsulated, overall length 212 mm at 89 g.

Technical data

Areas of use

Electrical installation, control cabinet and plant construction, maintenance and field service on machinery. Wherever screws are driven on or next to live parts, an insulated tool according to IEC 60900 is mandatory.

Standards and conformity

The tool is built and tested to DIN EN 60900 and IEC 60900. These standards cover hand tools for live working up to 1000 V AC. According to the manufacturer the screwdriver contains no substances of very high concern under REACH and the RoHS directive does not apply.
