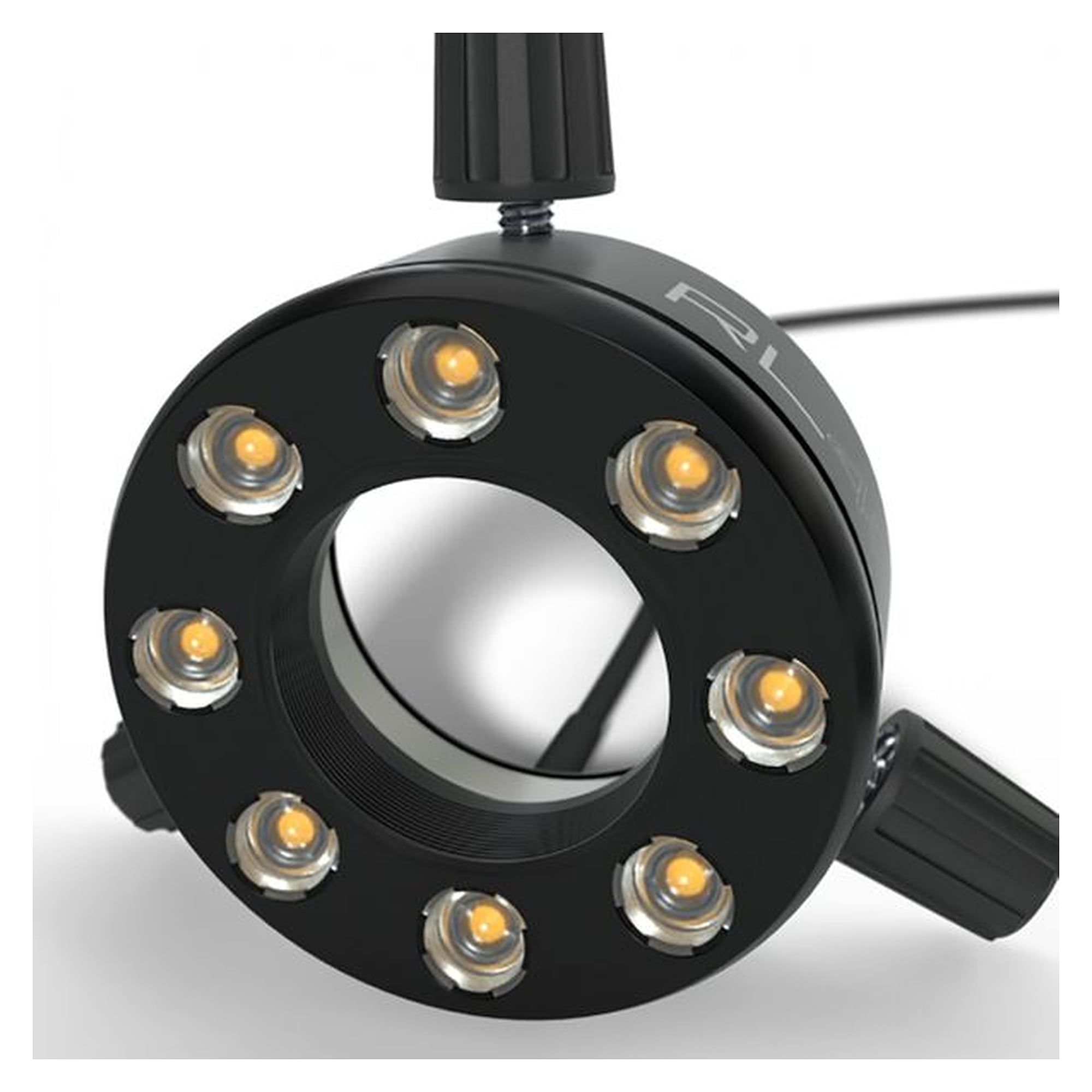

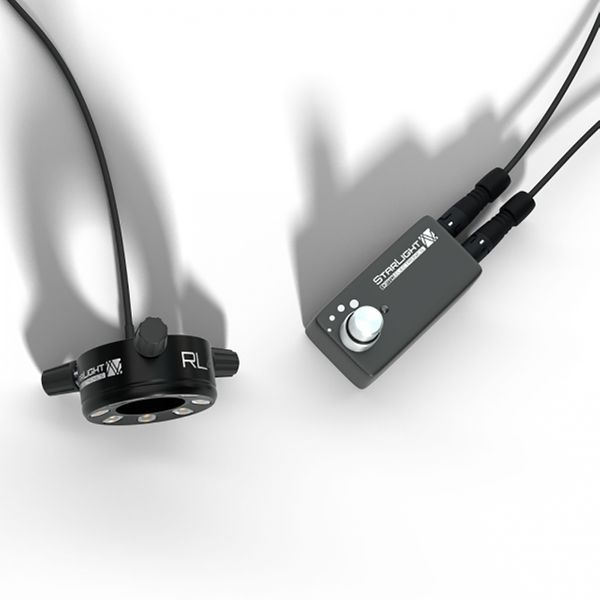

UV and IR LED ring light, UV 385 nm, working distance 35 mm, max. clamping diameter 40 mm - Starlight RL40-35 UV385
LED ring light with UV (385 nm) and IR emitters for fluorescence and special inspection. Working distance 35 mm, clamping diameter up to 40 mm, 8 LEDs at the lens.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The RL40-35 UV385 UV-and-IR ring light combines UV excitation at 385 nm with IR emitters and mounts directly onto the lens. At a working distance of 35 mm it suits fluorescence testing and demanding special inspection.
Benefits
- UV excitation at 385 nm for fluorescence testing and defect detection
- Additional IR emitters for extended inspection tasks
- Optimal working distance of 35 mm directly at the lens
- Fits lenses up to a clamping diameter of 40 mm
- Robust housing of anodised aluminium, only 25.1 mm high
Applications
Used in fluorescence testing, crack detection, leak detection, electronics and material inspection as well as laboratory and quality control.
Technical data
| Model | RL40-35 UV385 |
|---|---|
| Light colour | IR, UV |
| UV wavelength | 385 nm |
| Working distance (optimal) | 35 mm |
| Max. clamping diameter | 40 mm |
| Inner diameter | 30 mm |
| Outer diameter | 58 mm |
| Inner thread | M30.5 x 0.5 |
| Number of LEDs | 8 |
| Power consumption | 6 W |
| Height | 25.1 mm |
| Material | anodised aluminium |
| Cable length | 1.4 m |
| Manufacturer part no. | 100-012292 |
| ESD safe | No |
| Weight | 0.100000 |
| Manufacturer | Starlight |
| Manufacturer Nr. | 100-012292 |
| GPSR manufacturer information | STARLIGHT Opto-Electronics Flachslander Straße 8 DE-90431 Nürnberg www.starlight-sl.de |
| Condition of article | New |
| Article authenticity | Original product |
| Power (W) | 6 W |
