LED ring light with UV light (375 nm) and 56 LEDs for fluorescence and special applications. Mounts directly on the objective up to a 81 mm clamping diameter with a 50-140 mm working distance.

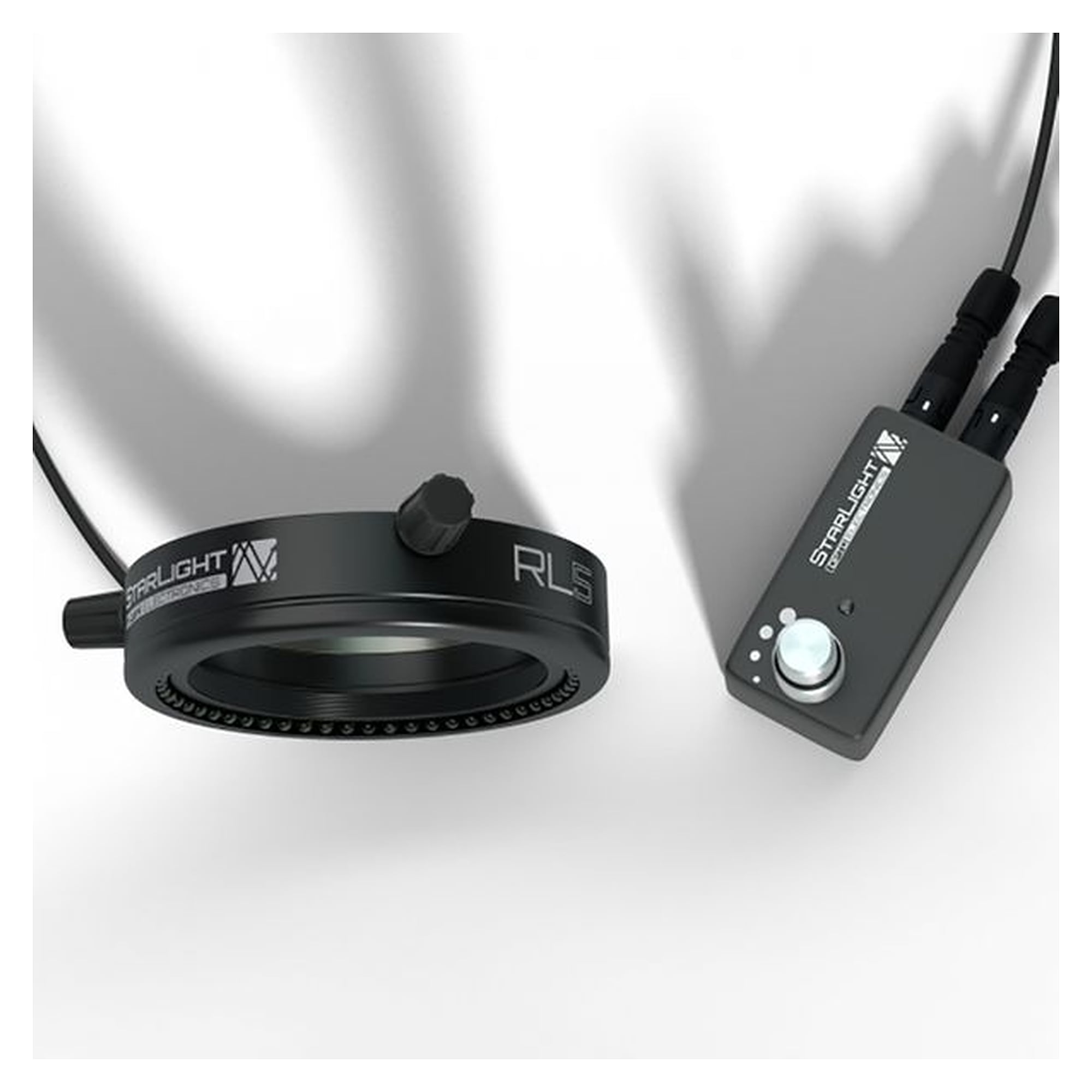

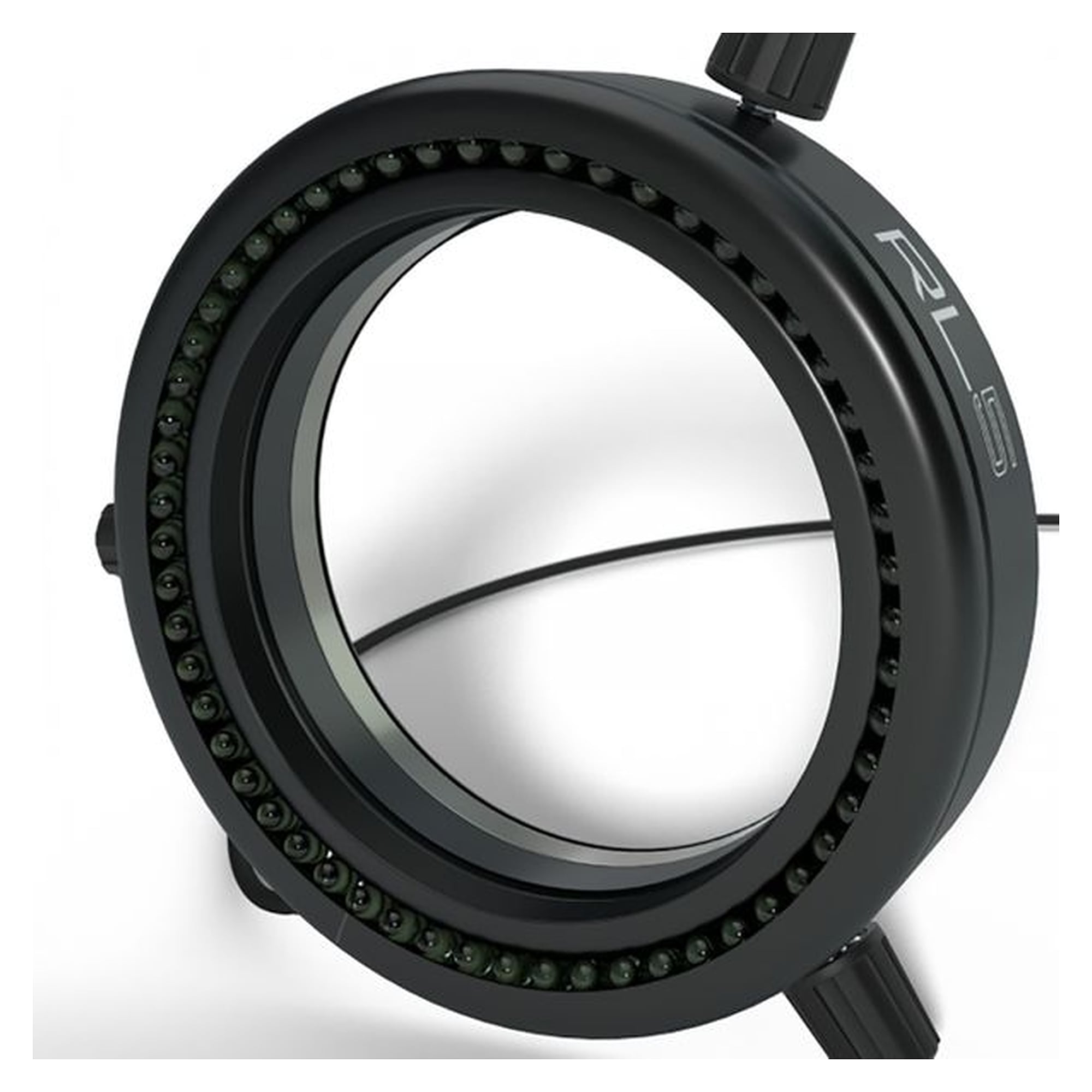

LED Ring Light UV 375 nm, inner Ø 81 mm, 56 LEDs - Starlight RL5-81-UV375
STARLIGHT
Original product
Net price (excl. VAT)
€729.00
Item
STL-100-010162
Manufacturer no.
100-010162
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.100-010162
ConditionNew
Article
STL-100-010162
Frequently Bought Together
-
This Item:
€729.00
-
Reducing Ring for ring lights, 40 mm to 32 mm - Starlight 100-009230
€33.00
-
LED Ring Light RL4-66W, pure white 6500 K, 48 LEDs, outer Ø 99 mm - Starlight RL4-66W
€379.00
Total price
The Starlight RL5-81-UV375 is an LED ring light with UV light (375 nm) for fluorescence, testing and special applications. 56 LEDs illuminate the field evenly for clamping diameters up to 81 mm.
Benefits
- Homogeneous, shadow-free illumination from 56 LEDs around the objective
- UV light (375 nm) for fluorescence and special applications
- Mounts directly on the objective via M82 x 0.75 internal thread, clamping diameter up to 81 mm
- Wide 50-140 mm working distance for flexible positioning
- Rugged anodised aluminium housing, only 25.5 mm high
- Low power consumption of 8 W
Technical data
| Property | Value |
|---|---|
| Luminaire type | LED ring light |
| Light colour | IR, UV |
| Number of LEDs | 56 |
| Inner diameter | 81 mm |
| Outer diameter | 110 mm |
| Clamping diameter | max. 81 mm |
| Internal thread | M82 x 0.75 |
| Working distance | 50-140 mm |
| Optimal working distance | 75 mm |
| Power consumption | 8 W |
| Height | 25.5 mm |
| Cable length (light head) | 0.85 m |
| Cable length (power supply) | 1.4 m |
| Material | anodised aluminium |
| Colour | black |
| Manufacturer | STARLIGHT |
| Manufacturer part no. | 100-010162 |
| ESD safe | no |
Applications
Suitable for fluorescence testing, leak detection, adhesive inspection and inspection tasks in electronics manufacturing, laboratories and quality control.
| Manufacturer Nr. | 100-010162 |
|---|---|
| Manufacturer | Starlight |
| Weight | 0.100000 |
| GPSR manufacturer information | STARLIGHT Opto-Electronics Flachslander Straße 8 DE-90431 Nürnberg www.starlight-sl.de |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
