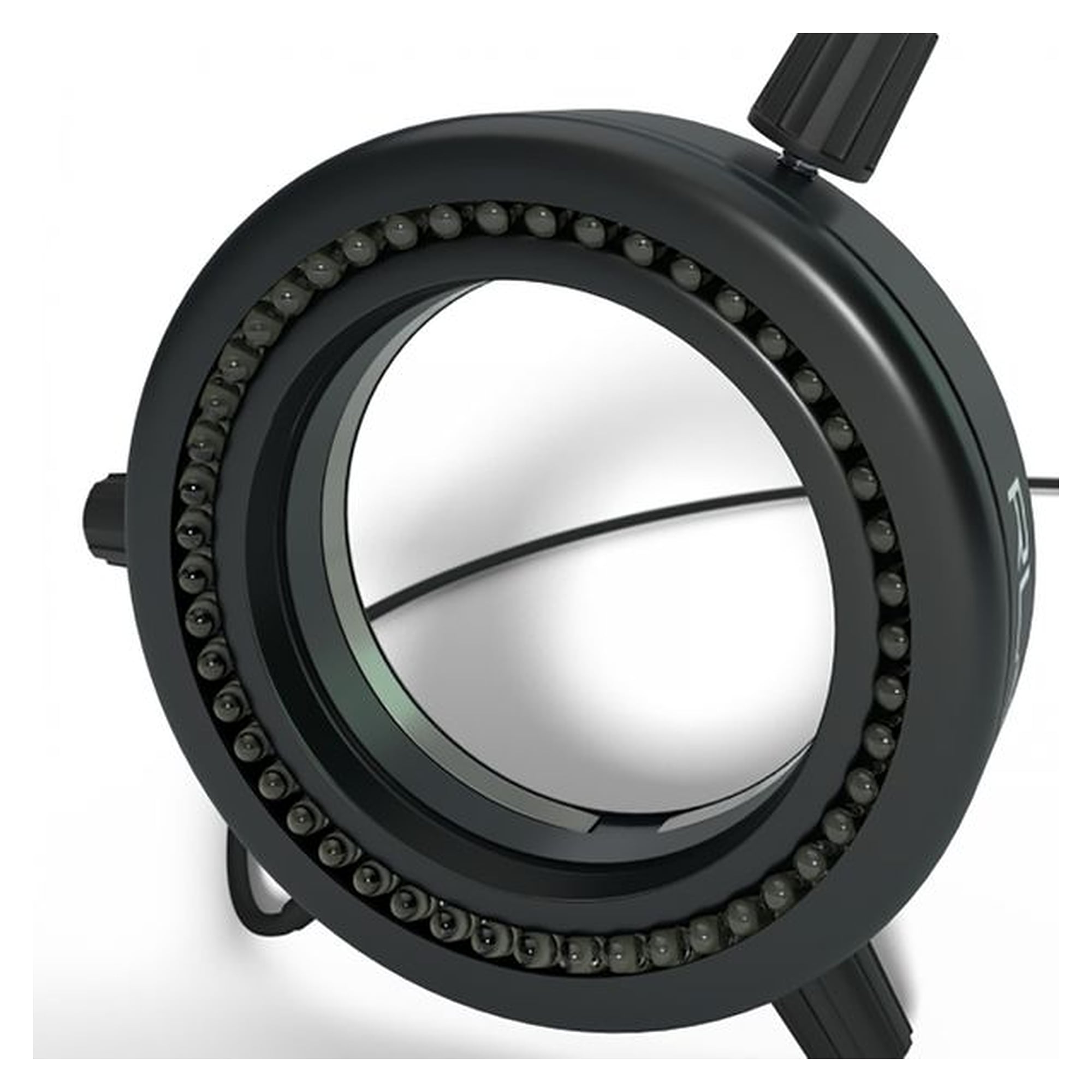

Starlight 100-010678. LED ringlight, warm-white (3,500 K), clamping diameter max. 74 mm

Skip to the beginning of the images gallery

The product may differ from the illustration

LED ring light in warm white (3,500 K) with 48 LEDs that mounts directly on the lens via the M67 x 0,75 internal thread (clamp Ø max. 74 mm). The optimal working distance is 80 mm, with a usable range of 50 mm-150 mm. Rugged anodized aluminium housing, power consumption 7 W.

LED Ring Light warm white (3,500 K), 48 LEDs, clamp Ø max. 74 mm, internal thread M67 x 0,75 - Starlight RL4-74 WW

Name: LED Ring Light warm white (3,500 K), 48 LEDs, clamp Ø max. 74 mm, internal thread M67 x 0,75 - Starlight RL4-74 WW
Brand: Starlight
SKU: STL-100-010678
Price: 329.12 EUR
Availability: InStock

STARLIGHT Original product

Net price (excl. VAT)

€329.12

Item STL-100-010678

Manufacturer no. 100-010678

Personal expert advice

Brand new Specialist dealer since 2009 Original product Worldwide shipping

Product data

Manufacturer no.100-010678

ConditionNew

Article

STL-100-010678

Frequently Bought Together

This Item: LED Ring Light warm white (3,500 K), 48 LEDs, clamp Ø max. 74 mm, internal thread M67 x 0,75 - Starlight RL4-74 WW
€329.12
LED Segment Ring Light pure white 6500 K, working distance 18-150 mm, outer Ø 44 mm - Starlight RL1-40-S40 PW
€397.76
LED Ring Light 24 V, pure white 6000 K, 12 LEDs, working distance 150-500 mm - Starlight RL12-10s-24V-PW
€659.12

Total price

Details

The RL4-74 WW LED ring light illuminates the object in warm white (3,500 K) directly along the lens axis and mounts firmly to the microscope via the M67 x 0,75 internal thread.

Benefits

48 LEDs for even ring light in warm white (3,500 K)
Direct mounting via M67 x 0,75 internal thread, clamp Ø max. 74 mm
Optimal working distance 80 mm, usable from 50mm - 150mm
Rugged anodized aluminium housing, outer Ø 99 mm
Power consumption 7 W

Technical data

Model	RL4-74 WW
Manufacturer	Starlight
Manufacturer part no.	100-010678
Light colour	warm white (3,500 K)
Number of LEDs	48
Clamp diameter max.	74 mm
Inner diameter	66 mm
Outer diameter	99 mm
Internal thread	M67 x 0,75
Optimal working distance	80 mm
Working distance	50mm - 150mm
Height	25,5 mm
Material	anodized aluminium
Power consumption	7 W
Cable length	1.4 m
Lead length	0.85 m
ESD safe	no

Applications

Ideal for stereo microscopy, optical inspection, assembly, electronics rework and quality control, where ring illumination in warm white (3,500 K) renders contours and surfaces clearly.

Information

More Information
Manufacturer Nr.	100-010678
Manufacturer	Starlight
Weight	0.100000
Colour	White
GPSR manufacturer information	STARLIGHT Opto-Electronics Flachslander Straße 8 DE-90431 Nürnberg www.starlight-sl.de
Article authenticity	Original product
Condition of article	New
