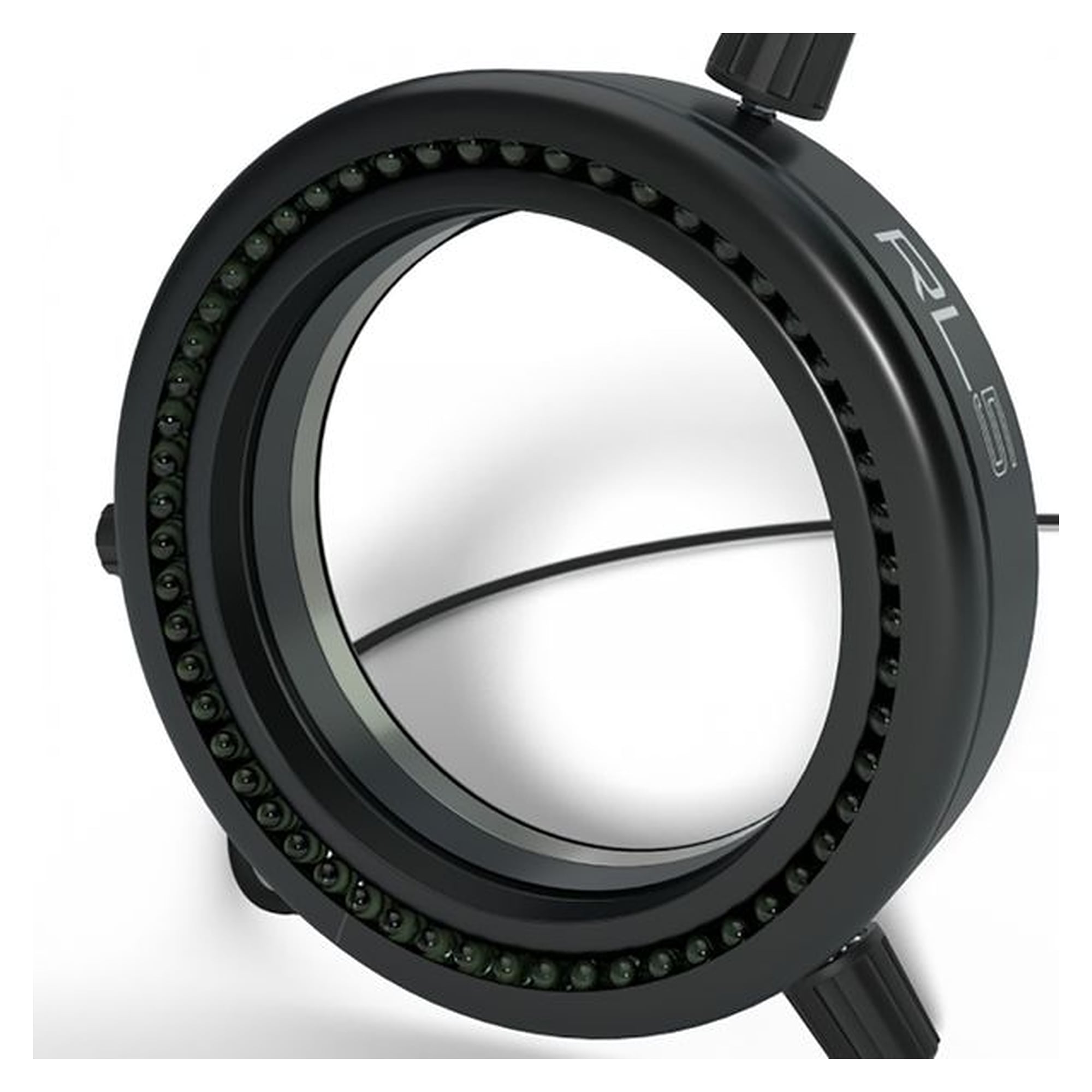

The red (620 nm) LED segment ring light delivers low-shadow, even illumination for microscopy and inspection. Being a segment ring light, it allows directional lighting that emphasises contours and surfaces. It mounts directly on the lens via the M82 x 0.75 internal thread and covers a clamping diameter up to 81 mm.
LED Segment Ring Light red 620 nm, 56 LEDs, max. clamping diameter 81 mm - Starlight Segment-Ringlicht RL5-81-S40 R
STARLIGHT
Original product
Net price (excl. VAT)
€619.00
Item
STL-100-011974
Manufacturer no.
100-011974
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.100-011974
ConditionNew
Article
STL-100-011974
Frequently Bought Together
The Starlight Segment-Ringlicht RL5-81-S40 R LED segment ring light provides even, low-shadow illumination for microscopy and inspection in the red (620 nm) light colour. As a segment ring light it enables directional lighting that brings out contours, edges and surface structures clearly.
Benefits
- Light colour red (620 nm) for high-contrast, colour-true inspection
- 56 LEDs for even, low-shadow illumination
- Internal thread M82 x 0.75 for direct lens mounting, clamping diameter up to 81 mm
- Anodised aluminium housing, only 25.5 mm high and rugged
- Low power consumption of 8 W
Technical data
| Model | Segment-Ringlicht RL5-81-S40 R |
| Light colour | red |
| Wavelength / colour temperature | 620 nm |
| Number of LEDs | 56 |
| Max. clamping diameter | 81 mm |
| Working distance | 50 mm - 140 mm |
| Optimum working distance | 75 mm |
| Inner diameter | 81 mm |
| Outer diameter | 110 mm |
| Internal thread | M82 x 0.75 |
| Height | 25.5 mm |
| Power consumption | 8 W |
| Material | anodised aluminium |
| Cable lead length | 0.85 m |
| Cable length | 1.4 m |
| Manufacturer part no. | 100-011974 |
| ESD safe | no |
Applications
Typical applications include stereo microscopy, optical incoming and final inspection, electronics manufacturing and rework, laboratory work as well as assembly and quality-control workstations.
| Manufacturer Nr. | 100-011974 |
|---|---|
| Manufacturer | Starlight |
| Weight | 0.100000 |
| Colour | Red |
| GPSR manufacturer information | STARLIGHT Opto-Electronics Flachslander Straße 8 DE-90431 Nürnberg www.starlight-sl.de |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
