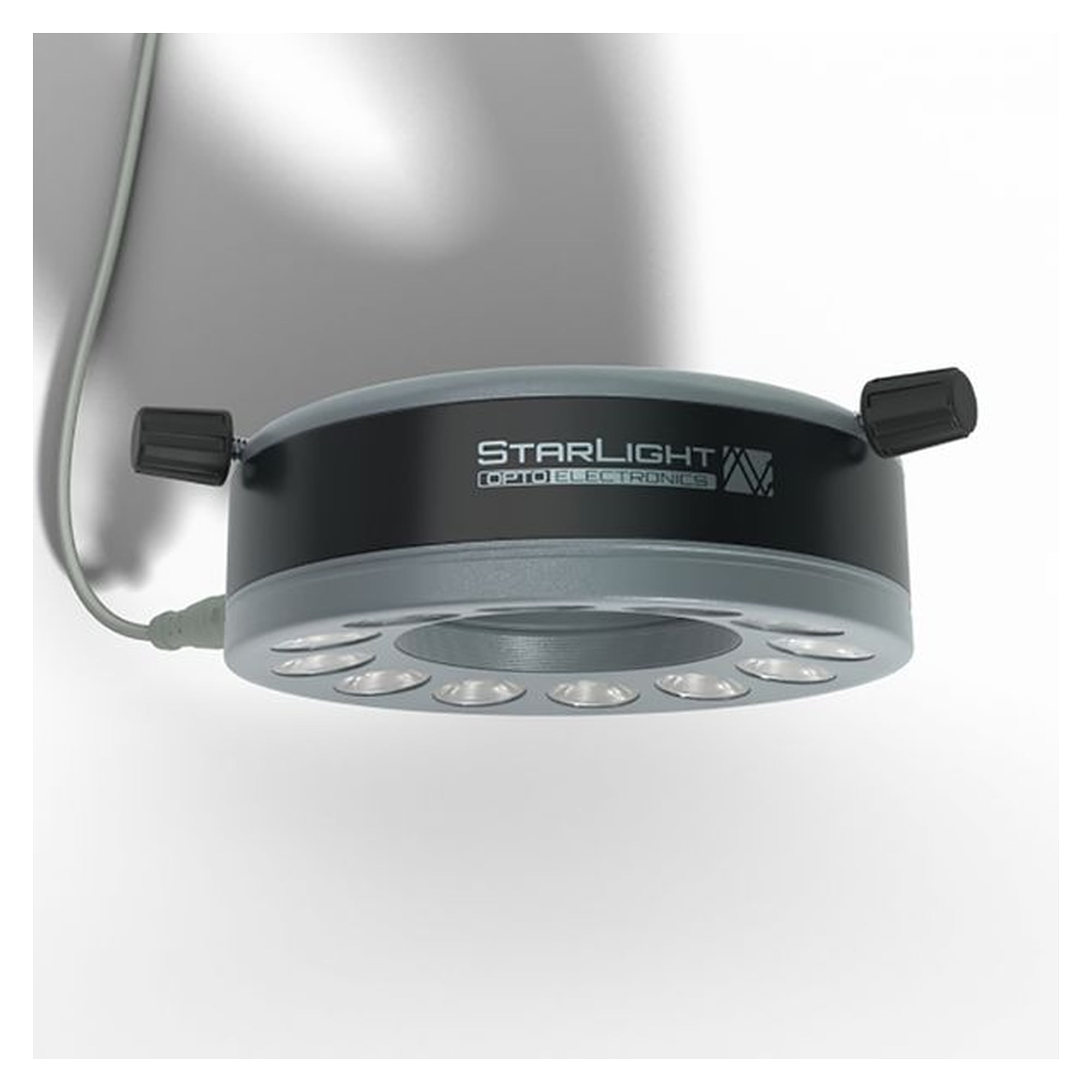

LED Ring Light 24V, green (528 nm), 12 LEDs, outer Ø 130 mm - Starlight RL12-18s-24V G
LED ring light with 12 LEDs in green (528 nm) and 24 V supply for shadow-free all-round illumination. The working distance spans 90 mm - 180 mm with an optimal distance of 140 mm. Anodised aluminium body with M67 x 0.75 internal thread and only 15 W power draw.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Starlight 24V LED ring light uses 12 LEDs in green (528 nm) to deliver even, shadow-free all-round illumination for microscopy and inspection. With a 130 mm outer diameter and only 15 W power draw it covers a working distance of 90 mm - 180 mm (optimal 140 mm).
Benefits
- 12 LEDs in green (528 nm) for homogeneous, low-shadow illumination
- Flexible working distance of 90 mm - 180 mm, optimal at 140 mm
- Compact 130 mm outer diameter at just 42 mm height
- Low 15 W power draw at 24 V operating voltage
- Rugged anodised aluminium body with M67 x 0.75 internal thread
Applications
Suited to microscopy, inspection, assembly, laboratory, quality control and electronics rework.
Technical data
| Light colour | green (528 nm) |
|---|---|
| Operating voltage | 24 V |
| Number of LEDs | 12 |
| Power consumption | 15 W |
| Working distance | 90 mm - 180 mm |
| Optimal working distance | 140 mm |
| Outer diameter | 130 mm |
| Inner diameter | 66 mm |
| Height | 42 mm |
| Internal thread | M67 x 0.75 |
| Material | anodised aluminium |
| Colour | black / titanium |
| Cable length | 1.4 m |
| Lead length | 0.85 m |
| Model | RL12-18s-24V G |
| Manufacturer part no. | 100-010791 |
| ESD safe | no |
| Weight | 0.100000 |
| Manufacturer | Starlight |
| Manufacturer Nr. | 100-010791 |
| GPSR manufacturer information | STARLIGHT Opto-Electronics Flachslander Straße 8 DE-90431 Nürnberg www.starlight-sl.de |
| Condition of article | New |
| Article authenticity | Original product |
| Colour | Green |
| Power (W) | 15 W |
